Ethernet Network Test Equipment

Platinum Tools T109C MapMaster™ mini Pocket Cable Test The MapMaster™ mini detects faults and locations of RJ45 network cables. Good terminations, causes of faulty and locations of cables are displayed on an LCD display. A set of five mapping remotes is included for locating cables terminated in wall jacks or patch panels. A built-in tone generator with 4 different tone combinations can be used with a tone probe to detect where a cable is routed and the location of the end of the cable. Detects Shorts, Opens, Miswires, Reversals, and Split-Pairs Built-in Tone Generator Map Multiple Locations Auto-off to Extend Battery Life Applications: Installation, troubleshooting, and maintenance on network cables Identify patch panel port where network cable is terminated Determine wiring condition Identify up to 5 network cable runs at a time Find and fix position of exposed or hidden cables

Read more less

Jonard Tools MCT-468 MODULAR CABLE TESTER Designed to check and troubleshoot the pin connections of RJ45, RJ12, and RJ11 connectorized cables, this cable tester is perfect for testing the continuity of cables with RJ11 or RJ45 connectors. This modular cable tester features the following:  Tests RJ45, RJ12, and RJ11 terminated cables with ease Tests for opens, shorts, and miswiring Full LED indication lights on both main and remote unit Automatically tests when switched on Can slowdown testing procedure using “S” switch to better see each test Includes: Nylon carrying case and 9V battery (for use)

Read more less

Platinum Tools T129 VDV MapMaster 3.0™ - Cable Tester The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer! Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs Single-ended Testing for Shorts & Split Pairs Measures Length in Feet/Meters Identifies cable location on active ports using flashing Port Link Light Easy to read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas Identify up to 20 network or coax cable runs at a time Audible Tone Generator, 4 selectable cadences Tests Voice (6 wire), Data (8 wire) and Video (coax) Works with Cable Tester Smart Remotes (#1-8) Made in USA with global components

Read more less

Platinum Tools T130K1 VDV MapMaster 3.0 Cable Tester Kit with 20 Network ID Remotes The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer! This new kit offers a set of 20 ID Only Network remotes, patch cables, RJ45 Port Saver in a hanging pouch. This kit offers a great cable tester with the ability to easily locate unlabeled network cables. Kit Includes: VDV MapMaster 3.0 Main Unit ID Only Network Remotes, #1-20 RJ45 Port Saver No-Fault, RJ12 Cable (2) FTP Patch Cable, 5 Cable Assembly, RJ45 to Alligator Clip BNC Adapter Kit 9V Battery Hanging Pouch   Download Platinum Tools VDV MapMaster 3.0 Product Info (.pdf)

Read more less

POCKET CAT™ RJ45 AND COAX TESTER: TRACES WIRE TYPES AND PERFORMS TI1568 TESTS - (CTX200) The perfect testers for any toolbox. Performs a TIA568 test on CAT5/6 network cable (RJ45) with instant PASS/FAIL results. Ruggedized and cushioned for toolbox use with a hidden drawer for remote storage. Includes a tone generator. Available with or without inductive tone probe (CTX200 vs CTX200PA). Coax remote also included. Ruggedized for field use. Includes toner only.FEATURES FEATURES Traces various types of cables including: twisted pair, LAN, multi-conductor, telephone/alarm and unpowered electrical wire Complete TIA568 test performed — Continuity, opens / shorts, reversals and split pairs Each pair's status is highlighted Tone mode for tracing and troubleshooting using the included probe Includes toner only   SPECIFICATIONS Input Voltage/Current  Max. 5VDC, 20mA Power   9V Batteries for Toner and Probe Dimensions        Cable Tester: 2.8 x 1.4 x 4.1” (70 x 36 x 104mm) Probe: 8.3 x 1.6 x 1” (212 x 40 x 27.5mm) Weight Cable Tester: 4oz (112g) Probe: 2.8oz (80g) https://www.files.triplett.com/datasheet/ctx200.pdf

Read more less

🔧 Steren BL-526-106 Wireless Display Tester - Closeout Special! 🔧 Unlock the full potential of your wireless network with the Steren BL-526-106 Wireless Display Tester. Designed for electronics technicians, IT professionals, and low voltage installers, this handheld device is your go-to solution for seamless connectivity and network troubleshooting. 🌟 Product Features: - IEEE802.11a/b/g/n/ac dual-band radio - Supports 2.4GHz and 5GHz scanning - Single-stream spatial multiplexing up to 433.3 Mbps data rate - Supports 20, 40, and 80MHz channels - Site survey for AP beacon signal strength and channel display - Identify best signal strength and interference levels - Switch between 2.4GHz and 5GHz frequencies - IP65 water-resistant design - Built-in speaker and rechargeable lithium-ion battery - OTA firmware for future upgrades 💡 Why Choose Tri-Tek Electronics? - Authorized distributor of Steren products - Guarantee of quality and authenticity - Limited stock available at a special closeout price Elevate your network testing capabilities with the Steren BL-526-106 Wireless Display Tester. Order now to experience unrivalled performance and value!

Read more less

Jonard Tools, TETP-900, Multi-Function Cable Tester Tone & Probe Designed to identify and test the continuity of RJ45, BNC, and F coaxial cables along with 6P2C/4P2C jacks, this multi-function cable tester tone and probe kit is the perfect kit for any Voice Data Video (VDV) professional. This kit features the following: Tone Tracing Probe+: Plastic probe tip prevents accidental shorts LED light provides a visual indication of signal strength Able to check the polarity of many 6P2C/4P2C telephone jacks Adjustable volume knob and headphone jack assist in tracing wires Works with many other manufacturers’ analog tone generators Includes (1) 9V battery required for operation Tester & Tone Generator+: Remote terminator can be used to test network cables with ease Provides tone via RJ45 and BNC connectors or test clips Provides talk power to a telephone for testing Two different musical tones to choose from Works with our TEP-200 Tone Tracing Probe+ or others to identify cables Includes TET-6 Accessory Kit and (1) 9V battery required for operation

Read more less

Jonard Tools, Multi Function Tester/Toner  ,JONTET-700BC The Jonard Tools® TET-700BC Cable Tester & Toner is used on RJ45, BNC, and F connectorized coaxial, and other non-connectorized cables. It will quickly test continuity of cables and generate tones for identifying cables. Angled Bed of Nails clips are convenient for grabbing onto 66 blocks securely. Piercing pin goes through insulation to reach the conductor without damaging insulation. The tester provides talk power to a telephone for testing.

Read more less

Triplett RWV10G Real World LAN and Cable Verifier The Triplett RWV10G Real World LAN and Cable Verifier is a cutting-edge tool that elevates cable and network verification to new heights. Unlike traditional testers, it employs digital circuitry and testing techniques to deliver comprehensive analysis for both unshielded twisted pair (UTP) and Ethernet devices.  Features: Comprehensive Cable Testing: Performs TIA568 cable verification, including length measurement, detection of opens, shorts, split pairs, and wire mapping for UTP cables. Speed and Category Assessment: Evaluates UTP cables to determine their category (CAT3, CAT5, CAT5E, CAT6, CAT7) and speed capabilities (10M, 100M, 1G, 10G). Live Network Device Testing: Interfaces with network devices such as hubs, switches, and PCs to test UTP cables under live data conditions, analyzing links and data across various equipment. High-Resolution Timing Analysis: Equipped with an engine capable of 1-nanosecond resolution, ensuring precise measurement of cable parameters. Coaxial Cable Testing: Supports testing of coax cables for length, opens, shorts, wire mapping, and distance to faults, enhancing its versatility. Data Storage: Capable of storing up to 250 test results for subsequent analysis and reporting. Specifications: Parameter Specification Cable Types Supported UTP (unshielded twisted pair) and coaxial cables Speed Testing Capabilities 10M, 100M, 1G, 10G Display Full-color interface for clear visualization of test results Included Accessories Remote Probe, (2) RJ45 to RJ45 cables, RJ45 to F cable, USB cable, (1) 9V and (3) AA batteries Battery 3*1.5V AA Battery Operating Temperature 0 to 50°C (32 to 122°F) Storage Temperature -10 to 60°C (14 to 140°F) Humidity 80% max Altitude 2000 meters Pollution Degree 2   Example Usage Scenario: In a large-scale network deployment within a corporate office in Phoenix, AZ, a technician can utilize the RWV10G to verify the integrity and performance of installed Cat 6A cables. By conducting comprehensive tests, including speed verification up to 10G, the technician ensures that the network infrastructure meets the required standards for high-speed data transmission. This process is crucial for preventing potential connectivity issues and optimizing overall network performance. Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of Triplett products. Purchasing from Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and access to factory support. Local customers in the Phoenix metropolitan area, including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, can benefit from Tri-Tek's expertise and support for all their networking needs.

Read more less

Jonard Tools TDR-100 Network Cable Tester and TDR The Jonard Tools TDR-100 is a versatile, field-ready tester that combines a time-domain reflectometer (TDR) with a standard network cable tester. Designed for network engineers, IT professionals, and low-voltage technicians, it quickly identifies cable faults, measures cable length up to 400 m (1,312 ft), and traces installed cabling with an integrated tone generator. The 2.5″ color LCD and built-in flashlight ensure clear readings even in dimly lit patch panels or conduit runs. As an authorized distributor, Tri-Tek Electronics provides full manufacturer warranty coverage, the best pricing, and direct factory support from our Mesa, AZ retail location. Key Features: TDR Measurement: Pinpoints cable breaks or faults and measures length from 6.6 ft to 1,312 ft (2 m–400 m) Wire Pair Mapping: Verifies TIA-568A/B line sequence; detects opens, shorts, crossed pairs, and reversals Cable Tracing: Functions as a tone generator to locate and trace cables behind walls or in bundles using the included probe Display & Lighting: 2.5″ TFT color LCD for clear diagnostics; probe features a built-in flashlight for low-light environments Durable Design: Compact housing with ergonomic grips, ideal for field and rack-room use Includes: Jonard Tools TDR-100 Cable Tester and TDR unit Cable Tracing Probe RJ45 Adapter Cable Rugged Carrying Case Six (6) AAA Batteries Specifications: Cable Length Range: 6.6 ft–1,312 ft (2 m–400 m) Working Temperature: 0 °C–40 °C Storage Temperature: –10 °C–50 °C Display Type: 2.5″ TFT color LCD Power Supply: Six (6) AAA batteries Dimensions (HxWxD): 8.98″ × 5.63″ × 2.12″ (22.8 × 14.3 × 5.4 cm) Weight: 1.05 lb (477 g) UPC: 810132438141 Example Usage ScenarioA data-center technician uses the TDR-100 to validate newly pulled Cat6A runs across multiple server racks. After terminating and labeling each cable, the technician clamps the RJ45 adapter, selects TDR mode to confirm run lengths, then switches to tone mode to trace cables through wall-mounted conduits—eliminating guesswork and reducing downtime. Tri-Tek Electronics, your local Mesa, AZ supplier, ensures every TDR-100 purchase includes full manufacturer warranty coverage, factory-direct technical support, and competitive pricing for Phoenix-area installers, hobbyists, and technicians.

Read more less

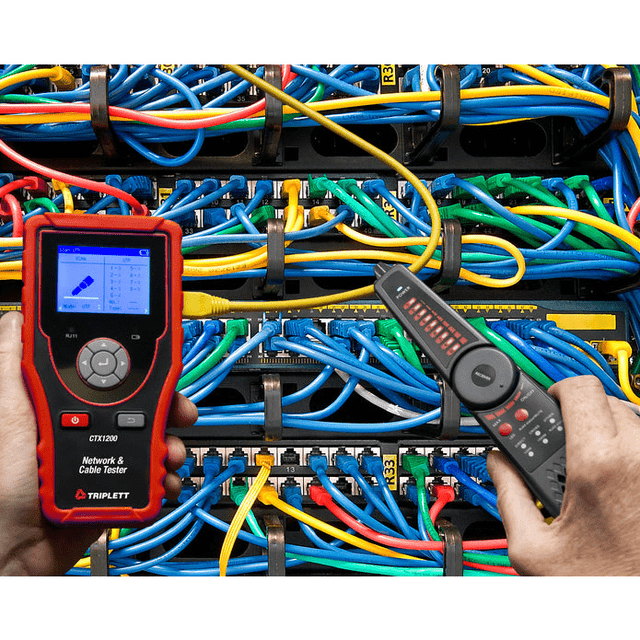

Triplett CTX1200 Network & Cable Tester with Probe The Triplett CTX1200 is a versatile, professional-grade tester ideal for network cabling installations, maintenance, computer room diagnostics, and CCTV deployment. It combines advanced TDR diagnostics, network analysis, cable tracing, and video level measurement into a single, portable unit—designed to streamline job site efficiency and accuracy. Tri-Tek Electronics, with its retail presence in Mesa, AZ, provides this product with full manufacturer warranty support, competitive pricing, and reliable factory support. Key Features Built-in TDR (Time Domain Reflectometry): Measures opens, shorts, and length up to 1.2 km on UTP, Cat 5e/6e, BNC, and telephone lines. 2.4″ TFT-LCD: High-resolution 320×240 pixel display for clear, easy readability. Network Tools Suite: Ping testing Port flashing IP address scanning Identifies network port speed (10/100/1000 M) and duplex mode (full/half) Cable Tracing & Identification: Traces UTP and BNC cables in bundles “Secondary code” digital mode reduces false signals and improves accuracy RJ45-Specific Diagnostics: Tests cable pair status, length, attenuation, reflectivity, impedance, skew (up to 180 m) Detects fault points at the connector (near/mid/far-end) HD Coaxial Video Level Meter: Measures peak, sync, and burst values for TVI, CVI, AHD, and CVBS video signals Download CTX1200 User manual (.pdf) Specifications Specification Details Display 2.4″ TFT-LCD, 320 × 240 resolution Cable Types Tested RJ45 UTP, RJ11 telephone line, BNC TDR Range Opens, shorts, length up to 1.2 km RJ45 Diagnostics Pair status, length, attenuation, reflectivity, impedance, skew up to 180 m Network Analysis Features Port flashing, ping, IP scan, speed & duplex detection Video Signal Meter TVI/CVI/AHD/CVBS peak, sync, burst values Dimensions 5 × 3.3 × 1.3″ (126 × 83 × 33 mm) Weight 0.75 lbs (340 g) Power Supply 3.7 V Li-ion battery (included) or 5 V/1 A AC adaptor Tracer Probe Power 2× AA batteries (not included) Warranty 1 year manufacturer warranty Included in the Box Triplett CTX1200 tester with probe 3.7 V Li-ion battery AC adaptor/charger BNC to alligator clip adapter RJ11 and RJ45 patch cables Cable tracer unit Tool bag Example Usage Scenario During a CCTV camera installation at a commercial building, the CTX1200 enables a technician to: Trace the correct BNC cable in a dense cable bundle using the cable tracer. Test cable integrity and length via the built-in TDR to verify performance up to 1.2 km. Analyze the video signal (TVI/AHD) levels using the video level meter to ensure video quality and correct signal levels. Validate network configurations by pinging connected IP cameras and identifying IP addresses, link speed, and duplex settings—all from the same handheld device. This one-tool solution saves time, reduces equipment needs, and improves installation reliability—perfect for network installers, CCTV technicians, and IT professionals.

Read more less

Triplett LVPRO10 TDR/Cable Tester Overview The Triplett LVPRO10 is an all-in-one TDR (Time Domain Reflectometry) cable tester designed for LAN installers, network technicians, and repair professionals. It delivers comprehensive diagnostics for both twisted-pair and coaxial cables, combining precision fault detection, tracing, and PoE analysis into a single, rugged handheld device. Tri-Tek Electronics, located in Mesa, AZ, proudly offers this model with full manufacturer warranty, competitive pricing, and expert factory support—ensuring a reliable tool for installers and technical professionals. Key Features Dual Cable Support: Tests and traces UTP twisted-pair (Cat 5E/6/6A/8) and coaxial (50Ω, 75Ω, 93Ω) cables with high accuracy. Fault Diagnostics: Identifies opens, shorts, reversals, split pairs, and verifies cable continuity. Length Measurement: Measures cable length up to approximately 500m (1,640 ft) with ±4% or ±2 ft (0.6 m) accuracy. PoE Detection & Ethernet Port Testing: Detects Power over Ethernet (standards 802.3AF, AT, BT) and validates port functionality via Ethernet analysis. Tone-Tracing Capability: Includes a tone mode to trace specific cables within bundled runs. Built-In Ports & Display: Equipped with RJ11, RJ45, and coax connectors and a 2.8-inch backlit graphical LCD for clear readings in all conditions. Safety & Convenience: Features 70 VDC protection, auto power-off, and a tracer probe with NCV detection (> 40 V), flashlight, wiremap indicators, low-battery alert, and headphone jack—ideal for noisy or dim environments. Download LVPRO10 User Manual (.pdf) Specifications Specification Details Cable Types Twisted-pair (Cat 5E/6/6A/8), Coax (50/75/93Ω) Fault Detection Continuity, opens, shorts, reversals, split pairs Length Range & Accuracy Up to 500 m (1,640 ft); ±4% or ±2 ft (0.6 m) PoE Detection 802.3AF, 802.3AT, 802.3BT Ports RJ11, RJ45, Coax Display 2.8″ backlit graphical LCD Safety Features 70 VDC input protection; auto power-off Tracer Probe Features NCV detection > 40 V, flashlight, indicators, earphone jack Power Requires 4 × AAA batteries (included) Accessories Included Tracer probe with charging cable, remote adapter, RJ11/RJ45 cables, alligator RJ11 cable, F-to-F adapter, carrying bag Warranty 1-year manufacturer warranty Weight (approximate) ~1.2 lbs Included in the Box LVPRO10 Tester (Remote & Receiver) Tracer probe with charging cable Remote adapter RJ45 and RJ11 adapter cables RJ11 cable with alligator clips F-to-F-connector adapter Four (4) AAA batteries Carrying bag Usage Scenario Example During structured cabling installation in a commercial office, the LVPRO10 simplifies troubleshooting and verification: Trace the intended cable within crowded conduit runs using tone mode and the tracer probe. Validate cable health and length via TDR measurements to ensure run integrity. Detect PoE presence on Ethernet drops to verify power supply capability before equipment install. Confirm port wiring and detect any miswiring, reversals, or split-pair faults in under a minute. Operate in dimly lit junction boxes using the built-in flashlight and get audio feedback through the earphone jack in noisy environments. This single handheld tool reduces job site complexity, expedites diagnostics, and ensures reliable network infrastructure deployment—ideal for technicians, installers, and field service teams.

Read more less
