Industrial Managed Switches

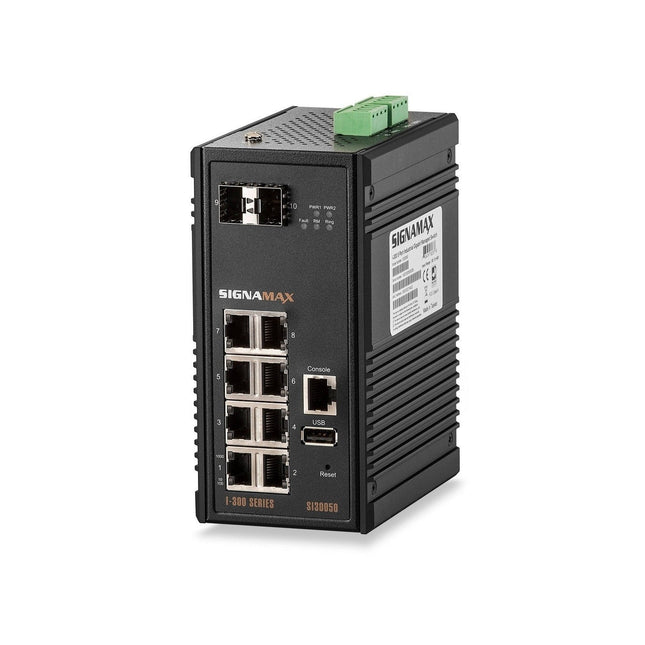

Signamax I-300 8 Port Industrial Managed Gigabit Switch with 2 SFP Ports - Signamax FO-SI30050
Features: Rugged IP30 enclosure with integrated DIN-Rail and wall mounting options Wide operating temperature: -40 to 167 °F (-40 to 75 °C) Surge protection (4kV LAN) for extreme outdoor environments Redundant terminal block DC inputs with overload and reverse polarity protection Cost-effective, reliable, and secure layer 2 Non-Blocking switch with 20Gbps bandwidth support ERPSv2 support for 20ms disconnection recovery time 2 Gigabit SFP ports USB port for image/configuration backup, restore, and upgrade 5 year hardware warranty & support at no additional cost Specifications: PORTS RJ-45 10/100/1000 Ports: 8Gigabit SFP Ports: 2 PERFORMANCE Switching Capacity: 20GbpsForward Rate: 14.9MppsMAC Addressing: 16K256MB DRAM12Mb Packet BufferSupports 10K Jumbo FramesWirespeed forwardingIPv4/IPv6 Dual Protocol Stack SECURITY Broadcast/Multicast/Unknown Storm ControlUp to 128 Access Control Lists (ACL) based on L2/L3/L4MAC AuthenticationAAA (IEEE 802.1X RADIUS/TACACS+)IP Source GuardEncrypt switch access with SSH and SSL LAYER 3 DHCP Client / Server / Relay LAYER 2 SFP ports support IEEE 802.3z (1000SX/LX/LHX/ZX)IEEE 802.3x Flow ControlSpanning Tree:IEEE 802.1D Spanning Tree Protocol (STP),IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)Up to 4094 IEEE 802.1Q (802.3ac) VLANS:Port-BasedAuto Voice VLAN802.3ad Link Aggregation (static and LACP)Multicast:IGMP v1/v2/v3 snoopingIGMP QueriesIGMP Immediate leaveIGMP Static Multicast AddressesMLD SnoopingIEEE 802.1AB LLDP/LLDP-MEDITU-T G.8032v2/Y.1344 – Ethernet Ring Protection Switching (EPRSv2)Q-in-Q MANAGEMENT Web-based Graphical User Interface (GUI)Industry-standard CLI (Telnet/SSH) with context-sensitive helpConsole management port on the front panel for ease of accessUSB PortAlarm Relay contactAuto Firmware UpgradeAuto Configuration BackupComprehensive SNMP MIB support for standards based device managementDual Image/ConfigurationRMON (groups 1,2,3 and 9)NTPSNMP v1/v2/v3ModbusUPnP QoS Rate Limiting (Ingress/Egress Port-Based)Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)Port-Based QoSIPv4/IPv6 DSCPDiffServAuto VOIP8 HW Queues per port for 802.1p priority taggingPolicy based dynamic QoS DIAGNOSTIC TOOLS Digital Diagnostic Monitoring (DDM) on SFP PortsPing pollingPort MirrorEvent/Error Log/Syslog/SMTP Alerts ELECTRICAL CHARACTERISTICS Max Power Consumption: 17WMTBF: 369K hrsDC Input Range: 12 ~ 48V DC, Dual Redundant4kV LAN surge protectionReverse polarity and overload current protection PHYSICAL CHARACTERISTICS Dimensions: 2.8” W x 5.7” H x 4.7” D (7.2 x 14.5 x 11.8 cm)Weight: 1.87 lb (0.85 kg)Housing: IP30 protection, aluminum alloy caseMounting: DIN-Rail and wall mounting (included) ENVIRONMENTAL REQUIREMENTS Operating Temperature: -40 to 167°F (-40 to 75°C)Storage Temperature: -40 to 185°F (-40 to 85°C)Operating/Storage Humidity: 5 to 95% (non-condensing) CERTIFICATIONS Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class AImmunity: IEC 61000-4-2/3/4/5/6/8Environmental: Shock (IEC 60068-2-27), Free Fall (IEC 60068-2-32), Vibration (IEC 60068-2-6) WARRANTY Five years
$1,500.00 $937.59

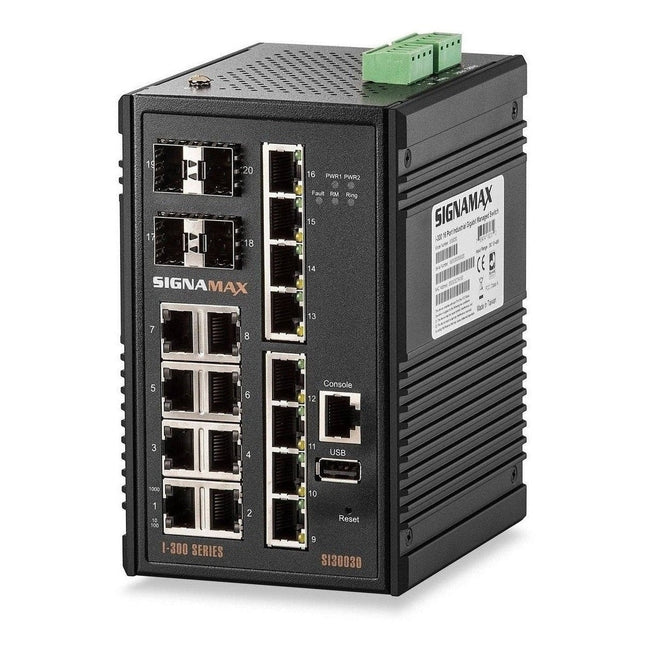

Signamax I-300 16 Port Industrial Managed Gigabit Switch with 4 SFP Ports - Signamax FO-SI30030
Features: Rugged IP30 enclosure with integrated DIN-Rail and wall mounting options Wide operating temperature: -40 to 167 °F (-40 to 75 °C) Surge protection (4kV LAN) for extreme outdoor environemtns Redundant terminal block DC inputs with overload and reverse polarity protection Cost-effective, reliable, and secure layer 2 Non-Blocking switch with 40Gbps bandwidth support ERPSv2 support for 20ms disconnection recovery time 4 Gigabit SFP ports USB port for image/configuration backup, restore, and upgrade 5 year hardware warranty & support at no additional cost Specifications: PORTS RJ-45 10/100/1000 Ports: 16Gigabit SFP Ports: 4 PERFORMANCE Switching Capacity: 40GbpsForward Rate: 29.7MppsMAC Addressing: 16K256MB DRAM12Mb Packet BufferSupports 10K Jumbo FramesWirespeed forwardingIPv4/IPv6 Dual Protocol Stack SECURITY Broadcast/Multicast/Unknown Storm ControlUp to 128 Access Control Lists (ACL) based on L2/L3/L4MAC AuthenticationAAA (IEEE 802.1X RADIUS/TACACS+)IP Source GuardEncrypt switch access with SSH and SSL LAYER 3 DHCP Client / Server / Relay LAYER 2 SFP ports support IEEE 802.3z (1000SX/LX/LHX/ZX)IEEE 802.3x Flow ControlSpanning Tree:IEEE 802.1D Spanning Tree Protocol (STP),IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)Up to 4094 IEEE 802.1Q (802.3ac) VLANS:Port-BasedAuto Voice VLAN802.3ad Link Aggregation (static and LACP)Multicast:IGMP v1/v2/v3 snoopingIGMP QueriesIGMP Immediate leaveIGMP Static Multicast AddressesMLD SnoopingIEEE 802.1AB LLDP/LLDP-MEDITU-T G.8032v2/Y.1344 – Ethernet Ring Protection Switching (EPRSv2)Q-in-Q MANAGEMENT Web-based Graphical User Interface (GUI)Industry-standard CLI (Telnet/SSH) with context-sensitive helpConsole management port on the front panel for ease of accessUSB PortAlarm Relay contactAuto Firmware UpgradeAuto Configuration BackupComprehensive SNMP MIB support for standards based device managementDual Image/ConfigurationRMON (groups 1,2,3 and 9)NTPSNMP v1/v2/v3ModbusUPnP QoS Rate Limiting (Ingress/Egress Port-Based)Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)Port-Based QoSIPv4/IPv6 DSCPDiffServAuto VOIP8 HW Queues per port for 802.1p priority taggingPolicy based dynamic QoS DIAGNOSTIC TOOLS Digital Diagnostic Monitoring (DDM) on SFP PortsPing pollingPort MirrorEvent/Error Log/Syslog/SMTP Alerts ELECTRICAL CHARACTERISTICS Max Power Consumption: 23WMTBF: 331K hrsDC Input Range: 12 ~ 48V DC, Dual Redundant4kV LAN surge protectionReverse polarity and overload current protection PHYSICAL CHARACTERISTICS Dimensions: 3.67” W x 5.7” H x 4.7” D (9.3 x 14.5 x 11.8 cm)Weight: 2.76 lb (1.25 kg)Housing: IP30 protection, aluminum alloy caseMounting: DIN-Rail and wall mounting (included) ENVIRONMENTAL REQUIREMENTS Operating Temperature: -40 to 167°F (-40 to 75°C)Storage Temperature: -40 to 185°F (-40 to 85°C)Operating/Storage Humidity: 5 to 95% (non-condensing) CERTIFICATIONS Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class AImmunity: IEC 61000-4-2/3/4/5/6/8Environmental: Shock (IEC 60068-2-27), Free Fall (IEC 60068-2-32), Vibration (IEC 60068-2-6) WARRANTY Five years
$2,600.00 $1,625.00

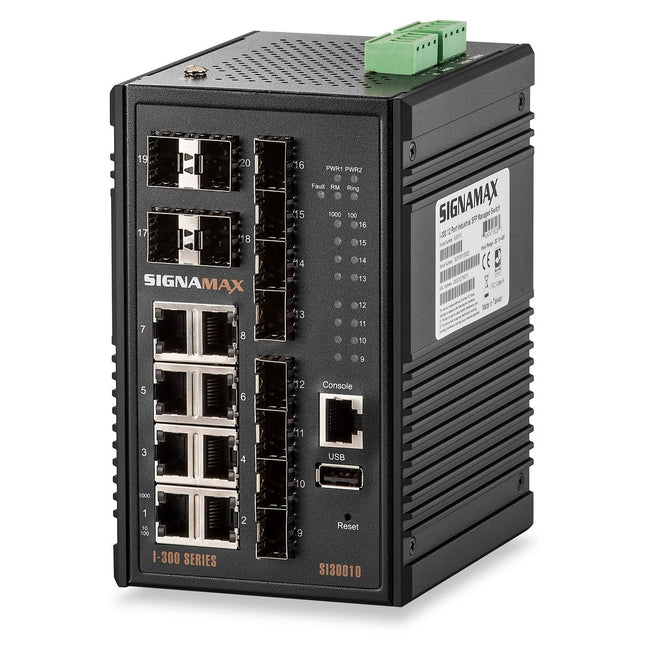

Signamax I-300 16 Port (8 SFP) Industrial Managed Gigabit Switch with 4 SFP Ports - Signamax FO-SI30010
Features: Rugged IP30 enclosure with integrated DIN-Rail and wall mounting options Wide operating temperature: -40 to 167 °F (-40 to 75 °C) Surge protection (4kV LAN) for extreme outdoor environemtns Redundant terminal block DC inputs with overload and reverse polarity protection Cost-effective, reliable, and secure layer 2 Non-Blocking switch with 40Gbps bandwidth support ERPSv2 support for 20ms disconnection recovery time 8 100/1000 SFP downstream ports and 4 Gigabit uplink SFP ports USB port for image/configuration backup, restore, and upgrade 5 year hardware warranty & support at no additional cost Specifications: PORTS RJ-45 10/100/1000 Ports: 8100/1000 SFP Ports: 8Gigabit SFP Ports: 4 PERFORMANCE Switching Capacity: 40GbpsForward Rate: 29.7MppsMAC Addressing: 16K256MB DRAM12Mb Packet BufferSupports 10K Jumbo FramesWirespeed forwardingIPv4/IPv6 Dual Protocol Stack SECURITY Broadcast/Multicast/Unknown Storm ControlUp to 128 Access Control Lists (ACL) based on L2/L3/L4MAC AuthenticationAAA (IEEE 802.1X RADIUS/TACACS+)IP Source GuardEncrypt switch access with SSH and SSL LAYER 3 DHCP Client / Server / Relay LAYER 2 SFP ports support IEEE 802.3z (1000SX/LX/LHX/ZX)Downstream SFP ports support IEEE 802.3zIEEE 802.3x Flow ControlSpanning Tree:IEEE 802.1D Spanning Tree Protocol (STP),IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)Up to 4094 IEEE 802.1Q (802.3ac) VLANS:Port-BasedAuto Voice VLAN802.3ad Link Aggregation (static and LACP)Multicast:IGMP v1/v2/v3 snoopingIGMP QueriesIGMP Immediate leaveIGMP Static Multicast AddressesMLD SnoopingIEEE 802.1AB LLDP/LLDP-MEDITU-T G.8032v2/Y.1344 – Ethernet Ring Protection Switching (EPRSv2)Q-in-Q MANAGEMENT Web-based Graphical User Interface (GUI)Industry-standard CLI (Telnet/SSH) with context-sensitive helpConsole management port on the front panel for ease of accessUSB PortAlarm Relay contactAuto Firmware UpgradeAuto Configuration BackupComprehensive SNMP MIB support for standards based device managementDual Image/ConfigurationRMON (groups 1,2,3 and 9)NTPSNMP v1/v2/v3ModbusUPnP QoS Rate Limiting (Ingress/Egress Port-Based)Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)Port-Based QoSIPv4/IPv6 DSCPDiffServAuto VOIP8 HW Queues per port for 802.1p priority taggingPolicy based dynamic QoS DIAGNOSTIC TOOLS Digital Diagnostic Monitoring (DDM) on SFP PortsPing pollingPort MirrorEvent/Error Log/Syslog/SMTP Alerts ELECTRICAL CHARACTERISTICS Max Power Consumption: 23WMTBF: 311K hrsDC Input Range: 12 ~ 48V DC, Dual Redundant4kV LAN surge protectionReverse polarity and overload current protection PHYSICAL CHARACTERISTICS Dimensions: 3.67” W x 5.7” H x 4.7” D (9.3 x 14.5 x 11.8 cm)Weight: 3.48 lb (1.58 kg)Housing: IP30 protection, aluminum alloy caseMounting: DIN-Rail and wall mounting (included) ENVIRONMENTAL REQUIREMENTS Operating Temperature: -40 to 167°F (-40 to 75°C)Storage Temperature: -40 to 185°F (-40 to 85°C)Operating/Storage Humidity: 5 to 95% (non-condensing) CERTIFICATIONS Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class AImmunity: IEC 61000-4-2/3/4/5/6/8Environmental: Shock (IEC 60068-2-27), Free Fall (IEC 60068-2-32), Vibration (IEC 60068-2-6) WARRANTY Five years
$2,600.00 $1,625.00
