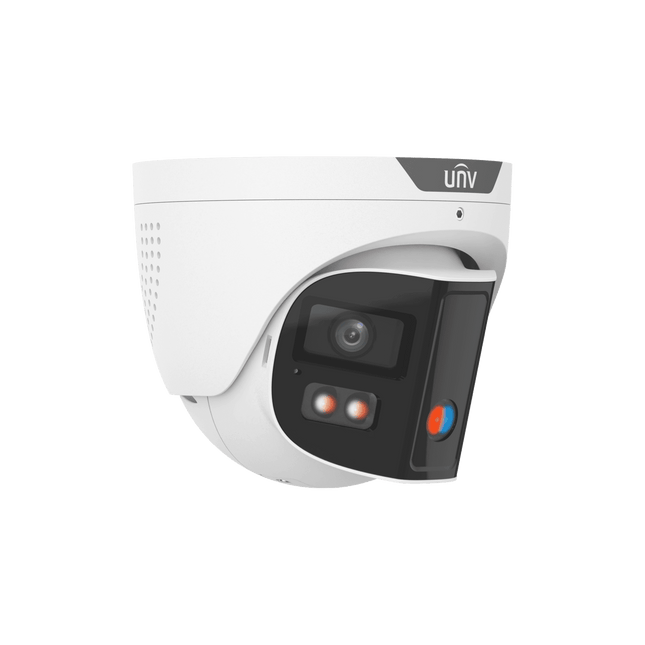

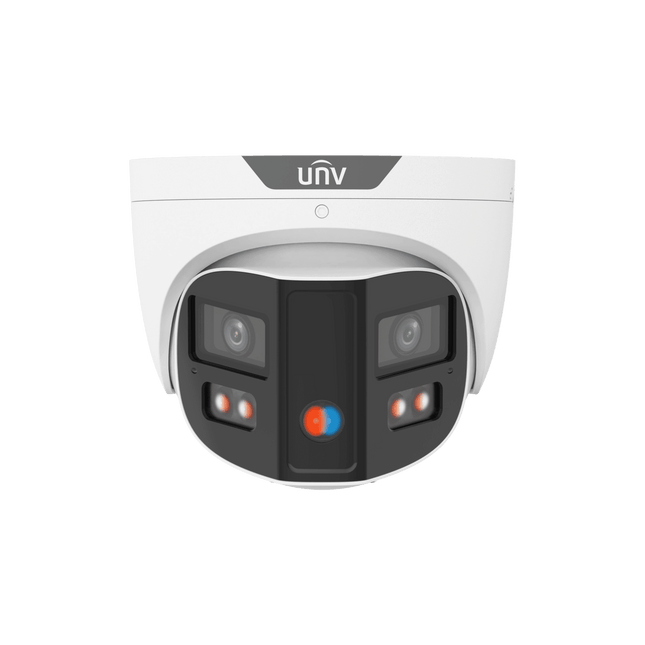

Uniview IPC3K28SE-ADF28KMC-DL-I0 8MP 180° Panoramic Turret Camera with Tri-Guard Active Deterrence
The Uniview IPC3K28SE-ADF28KMC-DL-I0 is an advanced 8MP panoramic turret camera designed to deliver comprehensive surveillance with its 180-degree field of view. Equipped with Tri-Guard active deterrence features, this camera integrates high-resolution imaging, intelligent analytics, and proactive security measures to ensure optimal protection for various environments.
Key Features
8MP High-Resolution Imaging: Captures detailed footage with an 8MP, 1/2.7" CMOS sensor, ensuring clarity in every frame.
180° Panoramic View: Provides extensive coverage, reducing blind spots and the need for multiple cameras.
Tri-Guard Active Deterrence: Combines smart intrusion prevention, active deterrence mechanisms, and real-time alerts to address potential security threats proactively.
2-Way Audio: Equipped with a built-in microphone and speaker, enabling real-time communication and audio deterrence.
Red and Blue Flashing Lights: Configurable flashing lights that activate to scare away intruders and signal potential threats.
Smart Intrusion Prevention: Includes cross line, intrusion, enter area, and leave area detection, with advanced filtering to minimize false alarms caused by environmental factors.
LightHunter Technology: Ensures superior image quality in low-light conditions, maintaining color fidelity and detail.
120dB True WDR: Balances lighting in high-contrast scenes, delivering clear images in challenging lighting conditions.
Built-in Microphone: Facilitates audio recording, enhancing situational awareness.
Smart IR Illumination: Provides up to 30 meters (98 feet) of infrared illumination for clear night-time imaging.
Weather and Vandal Resistant: Rated IP67 for dust and water resistance and IK10 for vandal resistance, ensuring durability in harsh environments.
Specifications
Specification
Details
Sensor
1/2.7" CMOS, 8.0 megapixel, progressive scan
Minimum Illumination
Color: 0.003 lux (F1.6, AGC ON); 0 lux with IR
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Lens
2.8 mm fixed lens, F1.6 aperture
Field of View
Horizontal: 112.4°; Vertical: 60.1°; Diagonal: 146.1°
IR Distance
Up to 30 meters (98.4 feet)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 8MP (3840×2160) at 20fps; 5MP (3072×1728) at 30/25fps
Audio Compression
G.711U, G.711A
Storage
Supports microSD card up to 512 GB
Network Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Power Supply
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Max 11W
Dimensions
Ø129 x 110mm (Ø5.1” x 4.3”)
Weight
0.64kg (1.41lb)
Operating Conditions
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Certifications
CE, FCC, UL, RoHS, IK10, IP67
Installation Scenario
Ideal for expansive areas such as parking lots, warehouses, and large retail spaces, the IPC3K28SE-ADF28KMC-DL-I0 offers a wide field of view, reducing the need for multiple cameras. The active deterrence features, such as built-in 2-way audio and red and blue flashing lights, provide a strong defense by discouraging unauthorized access and enhancing security measures.
Authorized Distributor
Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of Uniview products. Purchasing from Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and access to factory support.
