Triplett LVPRO40 10 Gb Multifunctional Low Voltage Cable / Network Tester
Overview
The Triplett LVPRO40 is a high-performance, all-in-one cable and network tester tailored for today’s advanced LAN installations and diagnostics. This professional-grade tool supports thorough testing of both twisted-pair (Cat 5E/6/6A/7) and coaxial cables, offering fault detection, TDR length measurement, PoE analysis, Ethernet switch diagnostics, and more. Tri-Tek Electronics, with its Mesa, AZ retail presence, offers this model with complete manufacturer warranty coverage, competitive pricing, and expert factory support.
Key Features
-
Multi-Cable Support: Tests twisted-pair (UTP/FTP/SSTP Cat 5E-7), coax (50Ω, 75Ω, 93Ω), telephone, speaker, and alarm cables.
-
Comprehensive Fault Detection: Identifies opens, shorts, reversals, split pairs, and provides wiring diagnostics including wiremap, skew, delay, and resistance measurements.
-

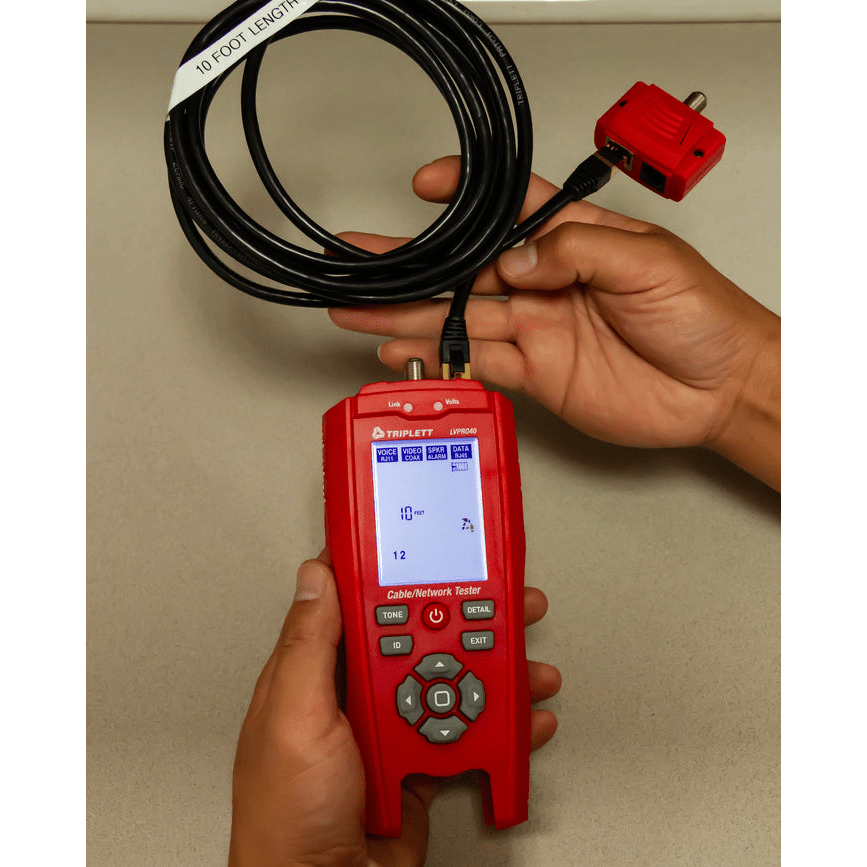

Accurate TDR Length Measurement: Measures cable length up to 1999 ft (610 m) with 1.5 ft resolution; adjustable velocity-of-propagation (VOP) and return-loss quality (RLQ) provided.
-
Advanced Network & PoE Analysis: Detects network speeds (10M/100M/1G/10G) and cable pairs in use; reports PoE presence (802.3AF, AT, BT), CCTV, CATV, and loaded-battery test readings.
-
Switch Port Blink & Remote Testing: Includes port blink function to locate switch ports; smart RJ45 remotes allow simultaneous testing of up to 8 cables.
-
Tone Generation & Reporting: Built-in tone generator for tracing; stores and prints up to 250 test results.
-

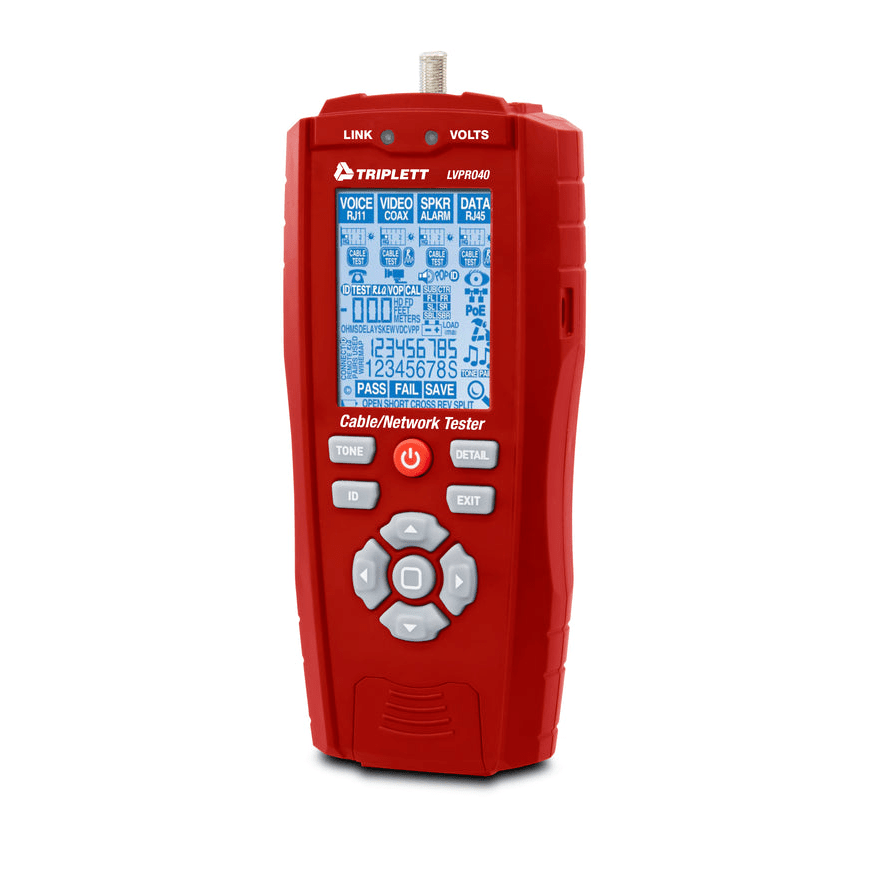

User-Friendly Display: Bright 2.8″ backlit graphical LCD ensures clarity in any lighting condition.
-
Durability & Convenience: Auto power-off, 70 VDC input protection, compact form factor (~7.1 × 3.2 × 1.5 in, 9.2 oz), powered by three (3) AA batteries.
Specifications
| Specification |
Details |
| Cable Types Tested |
UTP/FTP/SSTP Cat 5E–7; coax (50/75/93Ω); telephone, speaker, alarm cables |
| Fault Diagnostics |
Opens, shorts, reversals, split pairs, wiremap, skew, delay, ohms |
| Cable Length & Accuracy |
Up to 1999 ft (610 m); resolution: 1.5 ft (0.5 m); accuracy: ±(2% + 3 ft/1 m) |
| Adjustable VOP & RLQ |
Yes |
| Network Speed Detection |
10M/100M/1G/10G |
| PoE Detection |
802.3AF, 802.3AT, 802.3BT |
| Signal Testing |
CCTV (peak-to-peak volts), CATV (min 30 mV), battery 100 mA loaded test |
| Reporting |
Store & print up to 250 reports |
| Switch Port Blink |
Yes |
| Tone Generator |
Yes |
| Display |
2.8″ backlit graphical LCD |
| Power Protection |
70 VDC input protection |
| Power Source |
3 × AA batteries |
| Dimensions & Weight |
7.1 × 3.2 × 1.5″ (181 × 81 × 37 mm); 9.2 oz (260 g) |
| Warranty |
1 year manufacturer warranty |

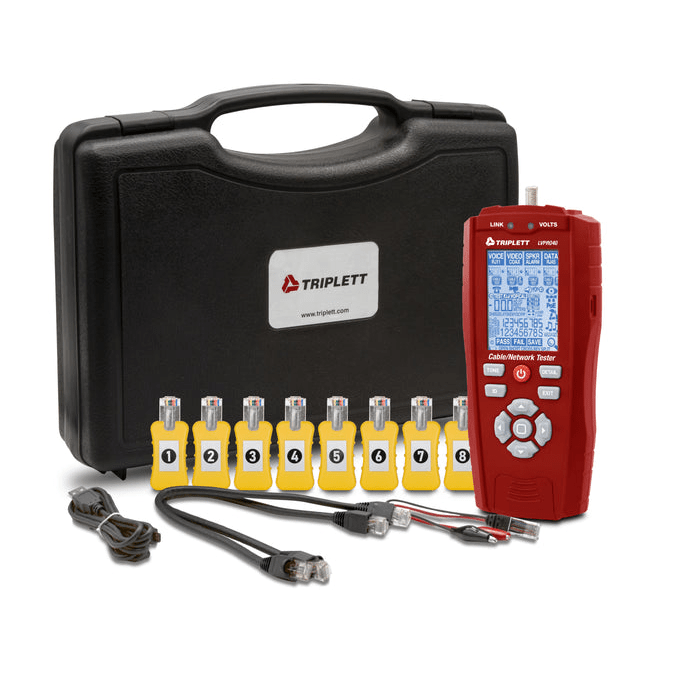

Included in the Box
-
LVPRO40 Main Tester
-
Eight (8) RJ45 Smart Remotes
-
USB Cable
-
RJ45-to-RJ45 Connector Cable
-
RJ45 Cable with Alligator Clips
-
Three (3) AA Batteries
Example Installation Scenario
In a multi-drop network deployment, an installer can:
-

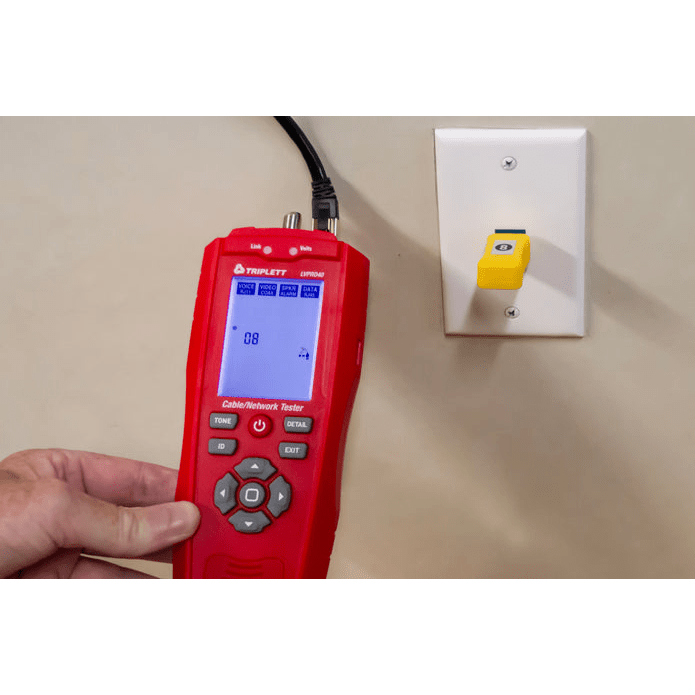

Simultaneously test eight cables using smart remotes—great for mass deployments or wall-jack labeling.
-
Determine cable quality and length via TDR, detecting any faults or discontinuities.
-
Verify PoE delivery and network port capability before equipment installation.
-
Locate switch ports quickly using the port blink function.
-
Trace specific cable runs efficiently using the built-in tone generator.
-
Archive test missions, storing data on up to 250 runs for compliance or record-keeping—all on a single, lightweight handheld.
The LVPRO40 streamlines workflows, reduces tool clutter, and enhances diagnostic capability—making it indispensable for system integrators, installers, and field network professionals.
