Relays

NTE R14-11A10-12 Relay – DPDT 12VAC 10A (Closeout Special) The NTE R14-11A10-12 is a dependable, general-purpose DPDT relay designed for 12VAC control circuits, offering a 10A contact rating. Its compact design, plug-in or solder terminals, and transparent housing make it ideal for a range of applications, including industrial automation, HVAC systems, and audio switching. Key Features: Contact Configuration: DPDT (Double Pole Double Throw) Coil Voltage: 12VAC Contact Rating: 10A at 240VAC / 30VDC Power Consumption: 1.2VA Contact Material: Silver cadmium oxide Mounting Options: Plug-in or solder terminals; compatible with .187" Faston terminals Housing: Transparent plastic cover for easy inspection Reliability: Rated for up to 50 million operations Operating Temperature Range: -30°C to +55°C Dimensions: Approximately 1.1" x 1.4" x 1.7" Applications: Control panels and automation systems HVAC equipment Audio and lighting systems General-purpose switching tasks Installation Example:In an HVAC control system, the R14-11A10-12 can be used to switch between heating and cooling modes, controlling the respective relays for each function. Its DPDT configuration allows for versatile control logic in such applications. Closeout Special:This item is offered as a Closeout Special. Availability is limited to stock on hand, and pricing is subject to change without notice. Once current inventory is depleted, this product will no longer be available. Tri-Tek Electronics Advantage:Tri-Tek Electronics is an authorized distributor of NTE Electronics products, ensuring full manufacturer warranty coverage, competitive pricing, and dedicated factory support. Serving the Phoenix metropolitan area—including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale—we provide local customers with expert assistance and a wide range of electronic components. Visit our Mesa, AZ retail location or explore our online catalog to find the perfect solutions for your projects.

Read more less

NTE R51-1D70-12F Automotive Relay – 12 VDC, 70A SPST-NO, Flange Mount, Quick Connect (Closeout Special) The NTE R51-1D70-12F is a high-performance, heavy-duty automotive relay designed for demanding 12VDC applications. Part of NTE Electronics' R51 Series, this Single Pole Single Throw Normally Open (SPST-NO) relay is rated for up to 70 amps at 14VDC, making it ideal for high-current switching in automotive, marine, recreational vehicle, and industrial environments. This model features a flange mount for secure panel installation and .250" (6.35mm) quick-connect terminals for fast, reliable wiring. The R51-1D70-12F is engineered for long-term durability and consistent performance under extreme conditions. Closeout Special: This item is available as a closeout special. Price and availability are limited to stock on hand only. Key Features Rated Current: 70A continuous at 14VDC Coil Voltage: 12VDC Contact Configuration: SPST-NO (Single Pole Single Throw – Normally Open) Terminals: .250" (6.35mm) quick-connect Mounting: Flange mount for panel installation Contact Material: AgSnO alloy for high conductivity and durability Coil Resistance: 90 ohms Dielectric Strength: 500 VRMS between contacts and coil Operating Temperature: -40°C to +125°C Mechanical Life: 10 million operations Electrical Life: 100,000 operations at rated load Weight: Approximately 1.1 oz (31 grams) Typical Applications Automotive auxiliary systems (e.g., electric fans, fuel pumps, lighting) Marine and RV power distribution Off-road vehicle modifications Heavy equipment and agricultural machinery Battery isolators and winch controls Installation Example In an off-road vehicle, the NTE R51-1D70-12F can be used to control high-current accessories such as auxiliary lighting or a winch. The flange mount allows for secure attachment to the vehicle's chassis, and the quick-connect terminals facilitate easy wiring to the control switch and power source. This setup ensures reliable operation even under harsh conditions. Why Choose NTE R51-1D70-12F? For installers, technicians, and hobbyists seeking a robust, high-current relay, the NTE R51-1D70-12F offers exceptional performance and reliability. Its durable construction and high-quality materials ensure long service life, making it a cost-effective solution for various applications. Available Accessories NTE R95-160A: 4-pin socket for 70A SPST automotive relays Tri-Tek Electronics – Your Authorized NTE Distributor Tri-Tek Electronics is an authorized distributor of NTE Electronics products, ensuring full manufacturer warranty coverage, competitive pricing, and factory support. Visit our retail location in Mesa, AZ, or shop online for local pickup and fast shipping throughout the Phoenix metropolitan area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale.

Read more less

NTE R14-11A10-120 Relay – DPDT 120VAC 10A Plug-In or Solder Terminals The NTE R14-11A10-120 is a versatile, general-purpose DPDT relay designed for 120VAC control circuits, offering a 10A contact rating. Its compact design, plug-in or solder terminals, and transparent housing make it ideal for a range of applications, including industrial automation, HVAC systems, and audio switching. Key Features: Contact Configuration: DPDT (Double Pole Double Throw) Coil Voltage: 120VAC Contact Rating: 15A @ 150VAC / 30VDC 10A @ 240VAC 1/3 HP @ 120VAC 1/2 HP @ 240VAC Contact Material: Silver cadmium oxide Contact Resistance: 100 milliohms max (@ 6VDC, 1A) Power Consumption: 1.2VA Mounting Options: Plug-in or solder terminals; compatible with .187" Faston terminals Housing: Transparent plastic cover for easy inspection Reliability: Rated for up to 50 million operations Operating Temperature Range: -30°C to +55°C Dimensions: Approximately 1.1" x 1.4" x 1.7" (28.2mm x 14.2mm x 43.9mm) Applications: Control panels and automation systems HVAC equipment Audio and lighting systems General-purpose switching tasks Installation Example:In an HVAC control system, the R14-11A10-120 can be used to switch between heating and cooling modes, controlling the respective relays for each function. Its DPDT configuration allows for versatile control logic in such applications. Tri-Tek Electronics Advantage:Tri-Tek Electronics is an authorized distributor of NTE Electronics products, ensuring full manufacturer warranty coverage, competitive pricing, and dedicated factory support. Serving the Phoenix metropolitan area—including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale—we provide local customers with expert assistance and a wide range of electronic components. Visit our Mesa, AZ retail location or explore our online catalog to find the perfect solutions for your projects.

Read more less

NTE R14-5D15-12 Relay – SPDT 12VDC 15A Plug-In or Solder Terminals The NTE R14-5D15-12 is a robust single-pole, double-throw (SPDT) relay engineered for 12VDC control circuits, delivering a 15A contact rating. Its compact design, plug-in or solder terminals, and transparent housing make it ideal for a range of applications, including industrial automation, HVAC systems, and audio switching. Key Features: Contact Configuration: SPDT (Single Pole Double Throw) Coil Voltage: 12VDC Contact Rating: 15A @ 150VAC / 30VDC 10A @ 240VAC 1/3 HP @ 120VAC 1/2 HP @ 240VAC Contact Material: Silver cadmium oxide Contact Resistance: 100 milliohms max (@ 6VDC, 1A) Power Consumption: 0.9W Coil Resistance: 160 ohms Mounting Options: Plug-in or solder terminals; compatible with .187" Faston terminals Housing: Transparent plastic cover for easy inspection Reliability: Rated for up to 50 million operations Operating Temperature Range: -30°C to +55°C Dimensions: Approximately 1.1" x 1.4" x 1.7" (28.2mm x 14.2mm x 43.9mm) Applications: Control panels and automation systems HVAC equipment Audio and lighting systems General-purpose switching tasks Installation Example:In an HVAC control system, the R14-5D15-12 can be used to switch between heating and cooling modes, controlling the respective relays for each function. Its SPDT configuration allows for versatile control logic in such applications. Tri-Tek Electronics Advantage:Tri-Tek Electronics is an authorized distributor of NTE Electronics products, ensuring full manufacturer warranty coverage, competitive pricing, and dedicated factory support. Serving the Phoenix metropolitan area—including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale—we provide local customers with expert assistance and a wide range of electronic components. Visit our Mesa, AZ retail location or explore our online catalog to find the perfect solutions for your projects.

Read more less

NTE R14-11D10-12 Relay – DPDT 12VDC 10A Plug-In/Solder Terminals The NTE R14-11D10-12 is a compact, high-reliability DPDT relay designed for 12VDC control applications. With a 10A contact rating and versatile mounting options, it is ideal for various applications, including industrial automation, HVAC systems, and audio switching. Key Features: Contact Configuration: DPDT (Double Pole Double Throw) Coil Voltage: 12VDC Contact Rating: 10A @ 240VAC / 30VDC 1/3 HP @ 120VAC 1/2 HP @ 240VAC Contact Material: Silver cadmium oxide Contact Resistance: 100 milliohms max (@ 6VDC, 1A) Coil Resistance: 160 ohms Power Consumption: 0.9W Mounting Options: Plug-in or solder terminals; compatible with .187" Faston terminals Housing: Transparent plastic cover for easy inspection Reliability: Rated for up to 50 million operations Operating Temperature Range: -30°C to +55°C Dimensions: Approximately 1.1" x 1.4" x 1.7" (28.2mm x 14.2mm x 43.9mm) Applications: Control panels and automation systems HVAC equipment Audio and lighting systems General-purpose switching tasks Installation Example:In an HVAC control system, the R14-11D10-12 can be used to switch between heating and cooling modes, controlling the respective relays for each function. Its DPDT configuration allows for versatile control logic in such applications. Tri-Tek Electronics Advantage:Tri-Tek Electronics is an authorized distributor of NTE Electronics products, ensuring full manufacturer warranty coverage, competitive pricing, and dedicated factory support. Serving the Phoenix metropolitan area—including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale—we provide local customers with expert assistance and a wide range of electronic components. Visit our Mesa, AZ retail location or explore our online catalog to find the perfect solutions for your projects.

Read more less

Philmore 86-217 24 VDC 10A Form-C General Purpose Relay The Philmore 86-217 Relay is a versatile general-purpose relay designed for various applications requiring reliable switching. It features a 24 VDC coil and a DPDT (Double Pole Double Throw) configuration, capable of handling a load current of up to 10A. Known for its compact "ice cube" style design, this relay is easy to install and integrates well into control panels and equipment. The relay offers efficient operation and durability, ideal for both industrial and commercial use. Key Features Coil Voltage: 24 VDC Contact Rating: 10A Configuration: DPDT Mounting Style: Plug-in with 8-pin octal base This relay is particularly suited for applications where dependable switching is essential, such as motor control, lighting circuits, and other automated systems. Tri-Tek Electronics is an authorized distributor, ensuring full manufacturer warranty and support.

Read more less

Philmore 86-216 12 VDC 10A Form-C General Purpose Relay The Philmore 86-216 Relay is a versatile general-purpose relay designed for various applications requiring reliable switching. It features a 12 VDC coil and a DPDT (Double Pole Double Throw) configuration, capable of handling a load current of up to 10A. Known for its compact "ice cube" style design, this relay is easy to install and integrates well into control panels and equipment. The relay offers efficient operation and durability, ideal for both industrial and commercial use. Key Features Coil Voltage: 12 VDC Contact Rating: 10A Configuration: DPDT Mounting Style: Plug-in with 8-pin octal base This relay is particularly suited for applications where dependable switching is essential, such as motor control, lighting circuits, and other automated systems. Tri-Tek Electronics is an authorized distributor, ensuring full manufacturer warranty and support.

Read more less

Philmore 86-220 120 VAC 10A Form-C General Purpose Relay The Philmore 86-220 General Purpose Relay operates on a 120 VAC coil and offers a DPDT (Double Pole Double Throw) configuration with a contact rating of 10 amps. It features an 8-pin octal plug-in style for easy installation and has a maximum switching voltage of 300V, making it ideal for various control applications, including motor switching and lighting controls. This compact, ice-cube style relay is well-suited for use in control panels where space and durability are essential. Key Features Coil Voltage: 120 VAC Contact Rating: 10A Configuration: DPDT (2 Form C) Mounting Style: 8-pin octal plug-in Tri-Tek Electronics, an authorized distributor, provides this relay with full manufacturer warranty support. It is ideal for engineers and technicians seeking reliable switching solutions in industrial and commercial settings.

Read more less

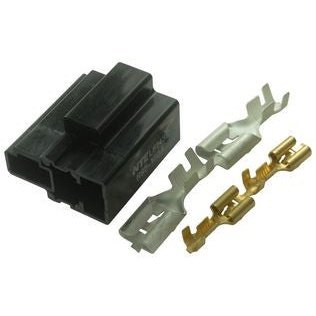

NTE R95-160A Relay Socket – 4-Pin, 70A, Panel Mount, Quick Connect (Closeout Special) The NTE R95-160A is a high-current, 4-pin automotive relay socket engineered for compatibility with NTE’s R51 Series 70A relays. Designed for panel mounting, this socket features quick-connect terminals, facilitating efficient and secure installations in automotive, marine, and industrial applications. This socket is ideal for installers and technicians seeking a reliable solution for high-amperage relay applications. Its robust construction ensures durability and long-term performance under demanding conditions. Closeout Special: This item is available as a closeout special. Price and availability are limited to stock on hand only. Key Features Current Rating: 70A Pin Configuration: 4-pin Mounting Style: Panel mount Terminal Type: Quick connect (blade) Compatibility: Designed for NTE R51 Series 70A automotive relays Construction: Durable plastic housing with metal terminals Included Accessories: Quick connect terminals supplied with socket Typical Applications Automotive electrical systems Marine and RV power distribution Industrial control panels Heavy equipment electrical systems Installation Example In an automotive application, the NTE R95-160A socket can be panel-mounted within the vehicle's fuse box or control panel. The quick-connect terminals allow for swift attachment of the NTE R51 Series relay, streamlining the installation process and ensuring a secure connection for high-current circuits. Why Choose NTE R95-160A? For professionals and hobbyists requiring a dependable relay socket for high-current applications, the NTE R95-160A offers a combination of durability, ease of installation, and compatibility with NTE's R51 Series relays. Its design caters to the needs of demanding electrical systems, ensuring reliable performance. Tri-Tek Electronics – Your Authorized NTE Distributor Tri-Tek Electronics is an authorized distributor of NTE Electronics products, ensuring full manufacturer warranty coverage, competitive pricing, and factory support. Visit our retail location in Mesa, AZ, or shop online for local pickup and fast shipping throughout the Phoenix metropolitan area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale.

Read more less

Philmore 86-203 8-Pin DPDT Rail Mountable Relay Socket The Philmore 86-203 Relay Socket is an 8-pin, DIN rail mountable socket designed for general-purpose relays. This socket provides a secure and stable mounting option for compatible 8-pin relays, enabling easy integration and replacement in control panels or automated systems. It features screw terminals for reliable electrical connections, making it well-suited for both industrial and commercial applications where quick assembly and stable relay connections are required. Key Features: Mounting Type: DIN Rail Socket Configuration: 8-Pin Octal Terminal Type: Screw Terminals Construction: Standard, robust design for secure relay mounting Tri-Tek Electronics offers this Philmore socket with full manufacturer support, providing ideal solutions for technicians and engineers needing efficient relay installations in industrial control systems.

Read more less

Philmore 86-202 8-Pin PCB Mount Relay Socket The Philmore 86-202 Relay Socket is an 8-pin, PCB-mountable relay socket designed for midget blade relays with 0.187" (4.75mm) blade terminals. This socket is optimized for easy integration onto printed circuit boards, making it ideal for applications requiring compact, durable relay connections in electronic control systems. It is rated to handle currents up to 10 amps at 300 volts, ensuring robust performance in various applications. Key Features Socket Type: 8-pin midget blade Mounting Style: PCB (Printed Circuit Board) mount Blade Size: 0.187" (4.75mm) terminals Contact Current Rating: 10A at 300V This Philmore relay socket is designed for reliability in professional or industrial PCB applications. Tri-Tek Electronics provides this socket with full manufacturer support, making it a great choice for local Arizona technicians seeking quality and warranty-backed components.

Read more less

Philmore 86-103 Miniature Power Relay – SPDT 3VDC 10A PCB Mount The Philmore 86-103 is a compact, high-reliability SPDT power relay engineered for 3VDC control circuits. With a 10A contact rating and a sealed design, it is ideal for various applications, including industrial automation, HVAC systems, and audio switching. Key Features: Contact Configuration: SPDT (Single Pole Double Throw) Coil Voltage: 3VDC Contact Rating: 10A @ 24VDC (resistive load) 10A @ 120VAC (resistive load) Coil Resistance: 25 ohms Power Consumption: 0.36W Pull-in Voltage: 75% of rated voltage (max) Mounting Style: PCB mount Housing: Fully sealed to protect against dust and solder flux Certifications: UL Recognized, CSA Certified Applications: Control panels and automation systems HVAC equipment Audio and lighting systems General-purpose switching tasks Installation Example:In an HVAC control system, the 86-103 can be used to switch between heating and cooling modes, controlling the respective relays for each function. Its SPDT configuration allows for versatile control logic in such applications. Tri-Tek Electronics Advantage:Tri-Tek Electronics is an authorized distributor of Philmore Manufacturing products, ensuring full manufacturer warranty coverage, competitive pricing, and dedicated factory support. Serving the Phoenix metropolitan area—including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale—we provide local customers with expert assistance and a wide range of electronic components. Visit our Mesa, AZ retail location or explore our online catalog to find the perfect solutions for your projects.

Read more less
