PC Boards and Prototyping Supplies

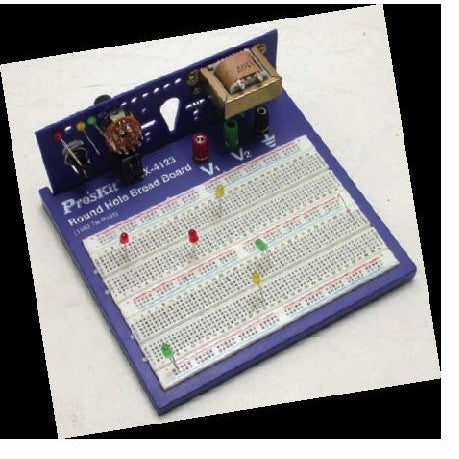

Pro'sKit 900-248 Round Hole Breadboard - 1580 Tie Points The Pro'sKit 900-248 Round Hole Breadboard offers an expansive 1580 tie points, making it an excellent choice for complex electronic prototyping. Its expandable design allows users to combine multiple boards for larger projects, and the convenient edge plate folds up for easy handling and storage. This breadboard is ideal for engineers, hobbyists, and students working on detailed circuit designs. Tri-Tek Electronics, an authorized Pro'sKit distributor, ensures full warranty support and expert guidance. Visit our Mesa, AZ store for personalized service. Features and Specifications Feature Details Total Tie Points 1580 Board Design Round hole configuration Expandability Connect multiple boards for larger designs Edge Plate Fold-up plate for convenience and portability Durability Built with high-quality materials for repeated use Compatibility Supports most electronic components and wires Applications Ideal for large-scale prototyping and testing Key Benefits Large Working Area: 1580 tie points accommodate complex designs with ease. Expandable Design: Combine multiple boards to scale up your project as needed. Convenient Edge Plate: Fold-up edge plate simplifies handling and storage. Reliable Construction: Durable materials ensure consistent performance over time. Versatile Compatibility: Works with various components and wire gauges. Example Use Case: Robotics Circuit Prototyping The Pro'sKit 900-248 is perfect for prototyping robotic systems. Use its expansive 1580 tie points to connect sensors, actuators, and control circuits. Expand the board by combining additional units for even larger designs. The fold-up edge plate keeps the setup organized and portable.

Read more less

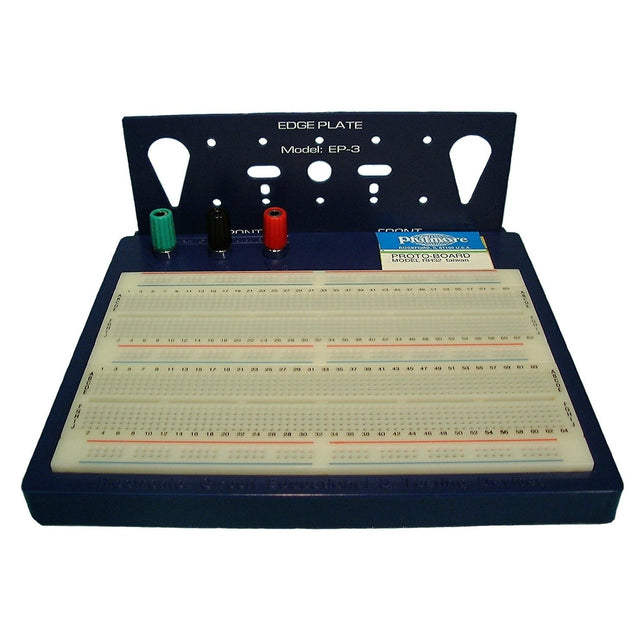

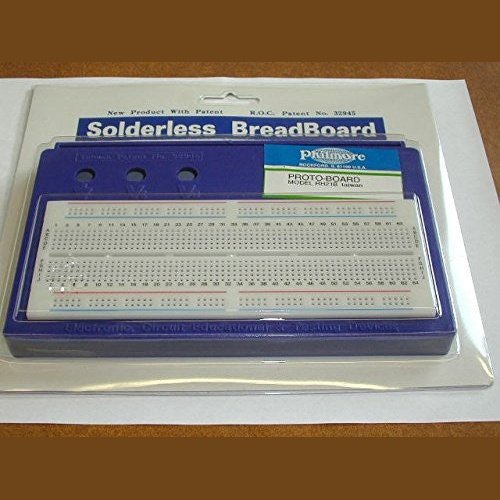

Philmore RH21B Proto Board Kit (840 Tie Points) – 191mm x 119mm The Philmore RH21B Proto Board Kit is a versatile and reliable tool designed for prototyping, testing, and modifying circuits without soldering. Featuring 840 tie points, this solderless breadboard is ideal for engineers, technicians, and educators who need a quick and efficient way to assemble electronic circuits. With its high-quality materials and thoughtful design, the RH21B allows for easy insertion and removal of components, making it an indispensable tool in any electronics lab or classroom. Key Features: Dimensions: 191MM Length x 119MM Width x 38MM Height Tie Points: 840 total tie points, offering ample space for various circuit designs Bus Strips: 128 points in 5-bus configuration 8 points in 25-bus configuration Integrated I.C. Slots: Supports 9 dual inline packages (14-pin I.C.s) Grid System: Standard 0.1" x 0.1" grid, perfect for DIP components Contact Material: Durable alloy with nickel plating for secure and lasting connections Body Material: ABS polymer ensures robust durability and long-term usage Indexing Numerals: Each row and column are clearly numbered, speeding up the assembly process and reducing errors Binding Posts: Equipped with 3 binding posts for added connectivity options Application Use Case: The Philmore RH21B is an excellent choice for rapid prototyping and circuit development. Ideal for use in educational settings, it allows students and professionals alike to build, test, and modify circuits without the need for soldering. In a design lab, the RH21B can be used for creating a variety of circuit designs, ranging from simple to moderately complex. Its durable construction and intuitive layout make it a go-to tool for anyone working with electronics. The inclusion of three binding posts makes the RH21B particularly useful in test setups where external power sources or additional connections are required. It is well-suited for building and testing analog and digital circuits, ensuring versatility in various design scenarios. Why Choose the Philmore RH21B? This solderless breadboard kit offers great value with its extensive tie point grid and additional binding posts, making it perfect for both educational and professional environments. Whether you're designing microcontroller-based projects or experimenting with discrete components, the RH21B offers flexibility, durability, and ease of use. Its nickel-plated contacts and ABS body guarantee reliable performance, even under frequent use. Tri-Tek Electronics, an authorized distributor of Philmore products, guarantees full manufacturer warranty coverage, along with factory support and the best pricing. Visit our Mesa, AZ retail location for personalized service and additional product options. Specifications: Specification Details Length 191MM Width 119MM Height 38MM Total Tie Points 840 Bus Points (5-bus) 128 Bus Points (25-bus) 8 I.C. Slots 9 x 14-pin I.C. count Grid Spacing 0.1" x 0.1" Binding Posts 3 Material (Contacts) Nickel-plated durable alloy Material (Body) ABS Polymer For further technical information or product inquiries, please contact Tri-Tek Electronics.

Read more less

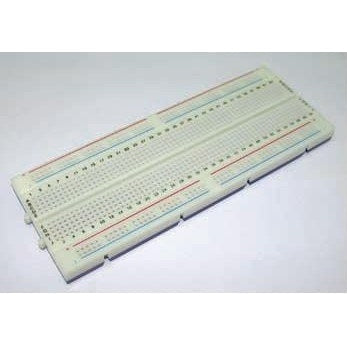

Pro'sKit 900-247 Round Hole Breadboard - 840 Tie Points The Pro'sKit 900-247 Round Hole Breadboard is a versatile and expandable prototyping tool, ideal for testing and developing electronic circuits without soldering. With 840 tie points and the ability to combine multiple boards, it provides ample space for complex designs and scalability for larger projects. Available at Tri-Tek Electronics, your authorized Pro'sKit distributor in Mesa, AZ, with full factory support and warranty coverage. Features and Specifications Feature Details Total Tie Points 840 Board Design Round hole configuration Expandability Can be combined with other boards for larger designs Durability High-quality materials for repeated use Compatibility Suitable for most electronic components and wires Applications Ideal for circuit design, testing, and prototyping Key Benefits Ample Tie Points: 840 tie points provide sufficient space for detailed circuit designs. Expandable Design: Connect multiple boards to create a larger working area for advanced projects. Round Hole Configuration: Ensures secure connections with various components. Reusable Construction: Built to withstand repeated use, making it perfect for long-term projects. Compact and Modular: Compact enough for small projects but easily expandable when needed. Example Use Case: Modular IoT Project Development Use the Pro'sKit 900-247 breadboard to prototype IoT systems by connecting sensors, actuators, and communication modules. For larger designs, combine multiple boards to accommodate additional components, ensuring seamless scalability.

Read more less

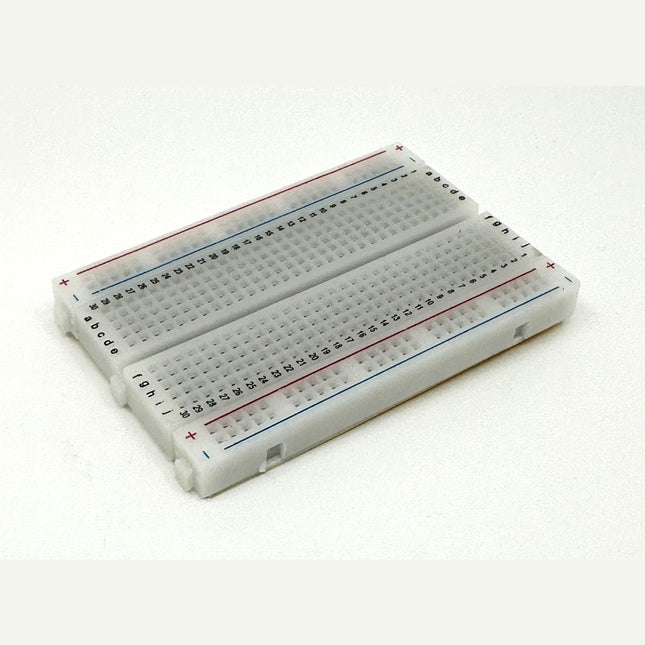

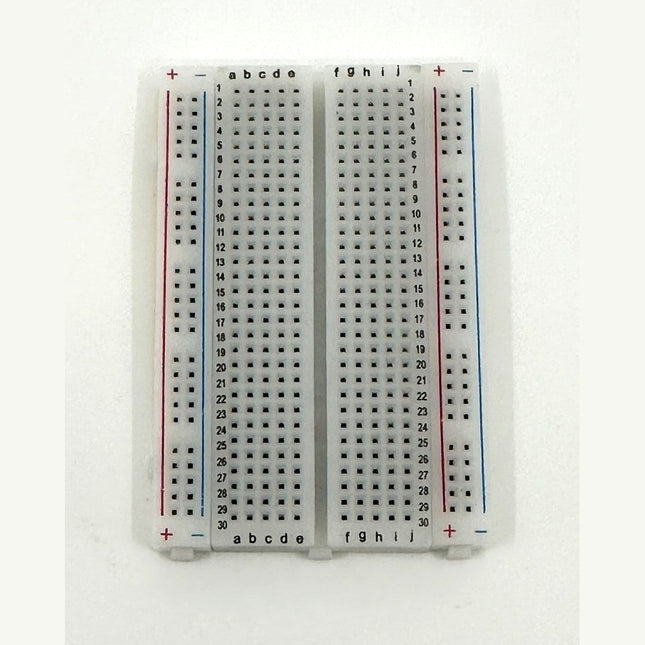

TeknoCrafters FA4033 400-Point Solderless Breadboard The TeknoCrafters FA4033 400-Point Solderless Breadboard is an essential tool for prototyping and testing electronic circuits. Designed for ease of use, this breadboard is perfect for Arduino shield prototyping and small-scale projects. Its compact design and robust specifications make it an excellent choice for both beginners and seasoned electronics enthusiasts. Tri-Tek Electronics, an authorized distributor, offers full warranty coverage and expert support at our Mesa, AZ retail location. Features and Specifications Feature Details Total Tie Points 400 Power Lanes 2 Tie-Point 100 1 double-strip Tie-Point 300 1 single-strip Size 3-1/8" x 2-1/8" Housing Durable plastic with metal clips Wire Compatibility Accepts 29-20 AWG wire Voltage/Current Rating 300V / 3-5A Key Benefits Ideal for Prototyping: Simplifies Arduino shield prototyping and circuit testing without soldering. Compact Design: Small size fits easily into workspaces or portable projects. Durable Construction: Plastic housing with metal contact clips ensures reliable performance. Versatile Compatibility: Accommodates a wide range of wire gauges for flexibility in design. Safe and Reliable: Rated for 300V and 3-5A, meeting most low-voltage project requirements. Example Use Case: Arduino LED Control Circuit Use the FA4033 breadboard to design a simple LED control circuit. Connect an Arduino, resistors, and LEDs to test code and hardware functionality before final assembly. Its solderless design allows easy modifications for testing and debugging.

Read more less

Philmore 12-665-3 Proto Board - 3 Pack The Philmore 12-665-3 Proto Board is a convenient 3-pack of high-quality prototyping boards designed for use in electronic projects and circuit development. These boards are perfect for both hobbyists and professionals, allowing you to quickly and easily assemble circuits without the need for custom PCBs. Each board provides a durable and versatile platform for creating temporary or permanent circuits, offering ample space for components, wires, and connectors. The proto boards in this pack are ideal for breadboarding, testing, and developing various electronic circuits, whether for small DIY projects, educational purposes, or larger, more complex systems. These boards are designed for easy soldering and are compatible with a wide range of electronic components, making them a staple for any engineer or electronics enthusiast. Key Features: Versatile Prototyping Platform: Ideal for creating, testing, and developing electronic circuits. High-Quality Construction: Durable and designed to handle frequent use in both temporary and permanent setups. Ample Space: Allows for multiple components and configurations on each board. Easy to Use: Designed for simple and effective soldering of components. 3-Pack Value: Provides multiple boards for multiple projects or stages of development. Specifications: Product Number: 12-665-3 Type: Prototyping Board (Proto Board) Quantity: 3 boards per pack Material: High-quality, durable material for long-term use Compatibility: Suitable for most through-hole components Dimensions: Standard proto board size Installation and Use Case The Philmore 12-665-3 Proto Board is widely used by electronics hobbyists, engineers, and educators to develop and test new circuits. For instance, a typical project might involve designing a small amplifier circuit or a simple microcontroller-based system. These proto boards are excellent for building circuits by soldering components and jumpers directly onto the board, allowing for quick and easy circuit creation and modification. Whether you’re building prototypes for a new product or experimenting with circuit designs, these boards provide the flexibility and reliability you need to bring your ideas to life. Why Choose Philmore 12-665-3 Proto Boards? Ease of Use: Perfect for quickly assembling circuits without the need for custom PCBs. Durable: Sturdy construction ensures the boards can handle repeated use and soldering. Multiple Boards: The 3-pack provides great value for users working on multiple projects or experiments. Compatible: Works with a wide variety of components, making it a go-to solution for circuit prototyping. Tri-Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. Visit our Mesa, AZ retail location to purchase the Philmore 12-665-3 Proto Board 3-Pack and explore other high-quality electronics tools and accessories for your projects.

Read more less

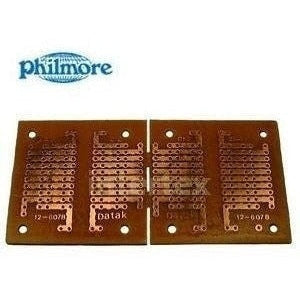

Philmore 12-607, Small Phenonlic IC Protoboard. 1.8" X 3.6" The board accommodates standard DIP (dual inline) IC's. Two smaller, identical boards and scored for easy break-apart when only a very small board is needed. Hole spacing on 1/10" centers, copper one side.

Read more less

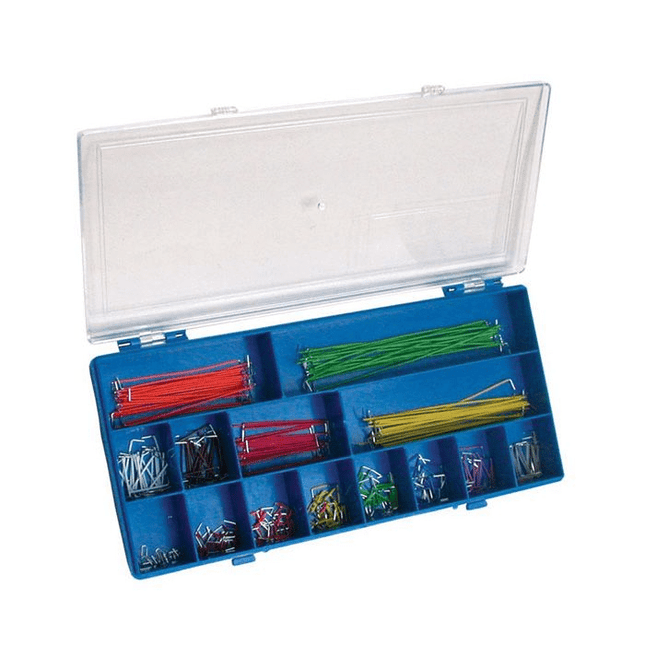

Pro'sKit 900-272 350-piece Breadboard Accessories Kit The Pro'sKit 900-272 Breadboard Accessories Kit is an essential collection for electronics enthusiasts and professionals, offering 350 pre-cut, pre-stripped, and pre-formed 22 AWG solid wires. This comprehensive kit enhances the efficiency and organization of breadboard prototyping and testing. Features: Comprehensive Set: Includes 350 pieces of 22 AWG solid wires, ready for immediate use. Variety of Colors: Multiple colors facilitate easy identification and organization of connections. Reusable: Durable construction allows for repeated use across various projects. Assorted Lengths: Contains 14 different lengths (2mm, 5mm, 7mm, 10mm, 12mm, 15mm, 17mm, 20mm, 22mm, 25mm, 50mm, 75mm, 100mm, and 125mm), with 25 pieces of each length, accommodating diverse circuit requirements. This accessory kit is ideal for hobbyists, students, and professionals engaged in electronic prototyping and testing. The assortment of wire lengths and colors simplifies the process of creating and modifying circuits on breadboards. Available at Tri-Tek Electronics, your authorized Pro'sKit distributor in Mesa, AZ, ensuring full factory support and warranty coverage. Example Use Case: When developing a microcontroller-based project, the Pro'sKit 900-272 kit provides the necessary jumper wires to connect components such as sensors, LEDs, and resistors to the breadboard, facilitating efficient prototyping and testing.

Read more less

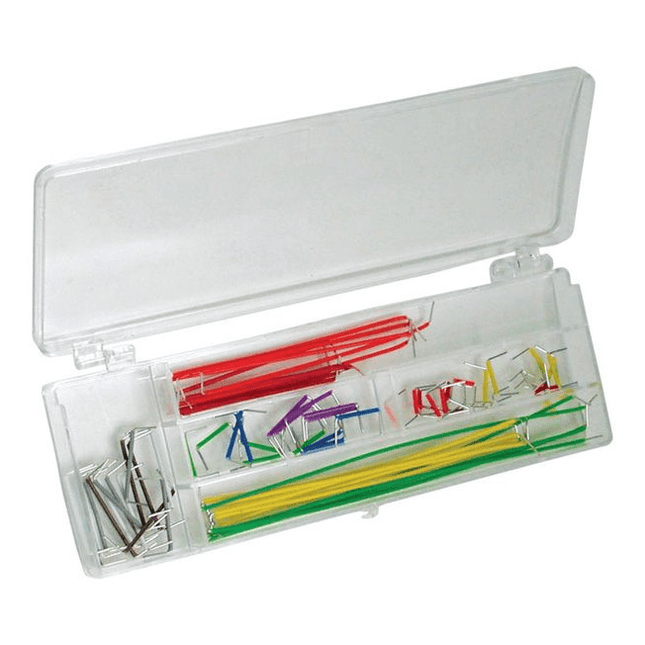

Pro'sKit 900-271 70 pc. Breadboard Accessory Kit The Pro'sKit 900-271 Breadboard Accessory Kit is a must-have for electronics prototyping, providing 70 pre-cut, pre-stripped, and pre-formed 22 AWG solid wires. With a variety of lengths and colors, this kit ensures flexibility and efficiency for any circuit-building project. Available at Tri-Tek Electronics, your trusted Pro'sKit distributor in Mesa, AZ, with full warranty support and expert guidance. Features Comprehensive Set: Includes 70 pieces of 22 AWG solid wires, ready for immediate use. Variety of Colors: Wires in multiple colors allow for easy identification of connections. Durable and Reusable: High-quality construction supports repeated use across projects. Assorted Lengths: Includes 14 different lengths (2mm, 5mm, 7mm, 10mm, 12mm, 15mm, 17mm, 20mm, 22mm, 25mm, 50mm, 75mm, 100mm, and 125mm) with 5 pieces of each size to suit diverse circuit requirements. Key Benefits Efficient Circuit Prototyping: Pre-formed wires save time in building and modifying breadboard connections. Organized Design: The variety of colors and lengths ensures clear and structured layouts. Versatile Applications: Suitable for beginners and professionals working on breadboard-based projects. Example Use Case: Microcontroller Circuit Design The Pro'sKit 900-271 kit is ideal for creating connections between microcontrollers, sensors, and peripheral devices on a breadboard. Its range of wire lengths simplifies even the most intricate setups, ensuring a neat and functional layout.

Read more less

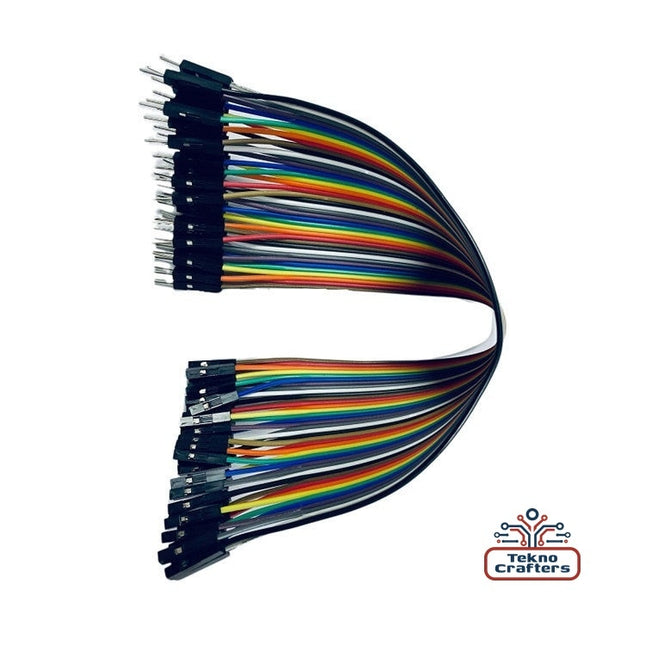

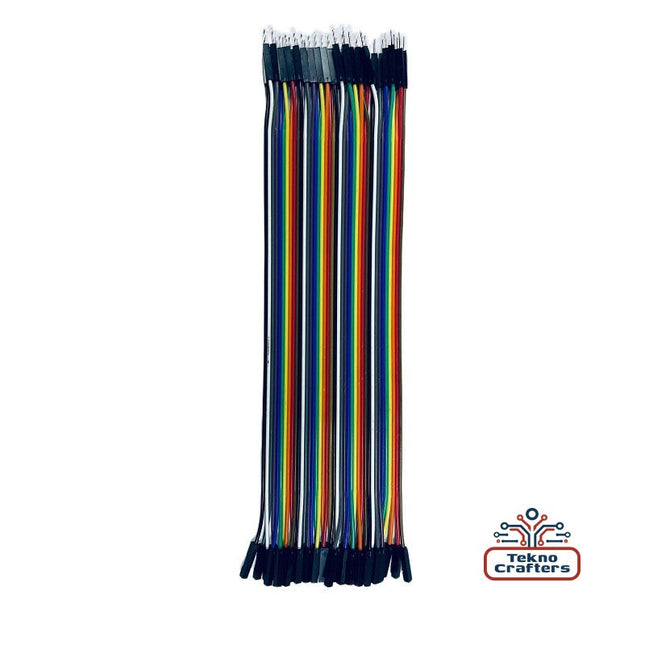

TeknoCrafters 40P-MF 40-pin Dupont Line Male to Female 8" Breadboard Jumpers Versatile 40-pin Male/Fem design Peelable Conductors 8-inch length for flexible connections Ideal for electronics technicians and hobbyists Elevate your projects with the TeknoCrafters 40P-MF 40-pin Male/Fem 8-in Breadboard Jumpers! 🚀 Designed for versatility and performance, these jumpers feature a 40-pin Male/Fem design that ensures seamless connections every time. With an 8-inch length, these jumpers offer flexibility and convenience for your projects. Whether you're a hobbyist or a pro, these jumpers are the perfect addition to your toolkit. Specification: - Product: TeknoCrafters 40P-MF 40-pin Male to Female 8-in Breadboard Jumpers - Length: 8 inches - Compatibility: Ideal for electronics projects - Brand: TeknoCrafters- Authorized Distributor: Tri-Tek Electronics Tri-Tek Electronics is the exclusive authorized distributor of TeknoCrafters products, guaranteeing you quality and performance. Upgrade your projects today with the TeknoCrafters 40P-MF 40-pin Male/Fem 8-in Breadboard Jumpers! 🛠️

Read more less

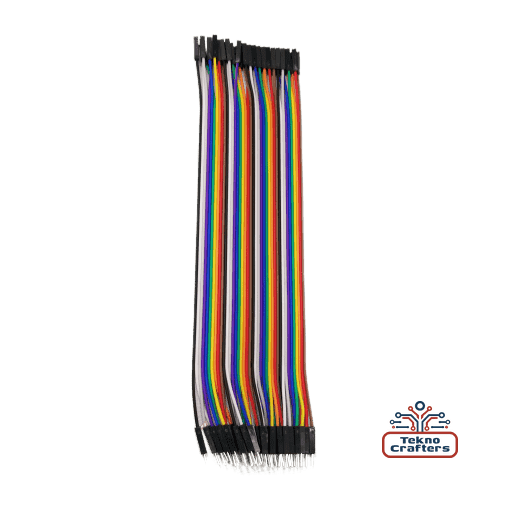

TeknoCrafters 40P-MM 40-pin Dupont Line Female to Female 8" Breadboard Jumpers Versatile 40-pin Male/Male design Peelable Conductors 8-inch length for flexible connections Ideal for electronics technicians and hobbyists Elevate your projects with the TeknoCrafters 40P-MM 40-pin Male/Male 8-in Breadboard Jumpers! 🚀 Designed for versatility and performance, these jumpers feature a 40-pin Male/Male design that ensures seamless connections every time. With an 8-inch length, these jumpers offer flexibility and convenience for your projects. Whether you're a hobbyist or a pro, these jumpers are the perfect addition to your toolkit. Specification: - Product: TeknoCrafters 40P-MM 40-pin Male to Male 8-in Breadboard Jumpers - Length: 8 inches - Compatibility: Ideal for electronics projects - Brand: TeknoCrafters- Authorized Distributor: Tri-Tek Electronics Tri-Tek Electronics is the exclusive authorized distributor of TeknoCrafters products, guaranteeing you quality and performance. Upgrade your projects today with the TeknoCrafters 40P-MM 40-pin Male/Male 8-in Breadboard Jumpers! 🛠️

Read more less

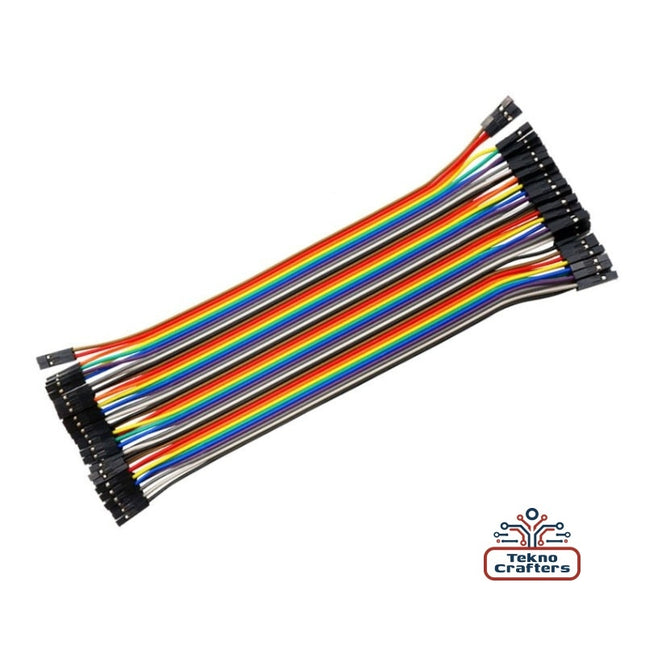

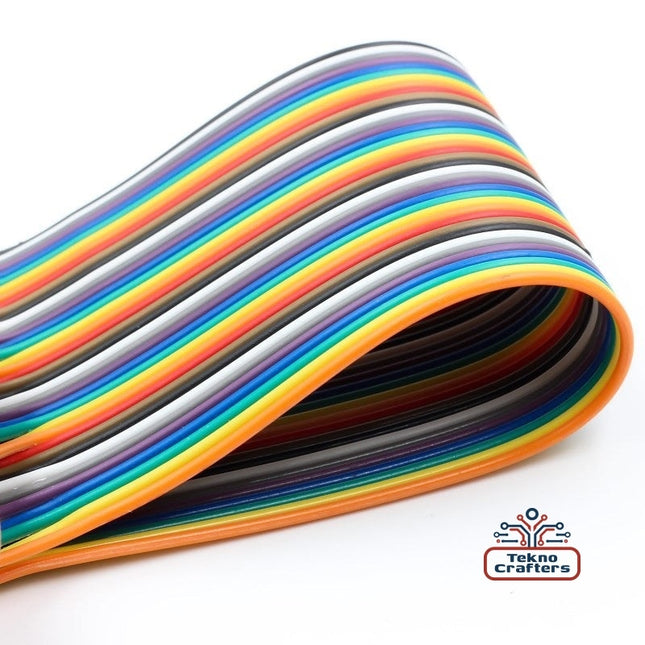

TeknoCrafters 40P-FF 40-pin Female to Female 8" Breadboard Jumpers Introducing the TeknoCrafters 40P-FF 40-pin Female to Female 8-inch Breadboard Jumpers! Designed for versatility and performance, these jumpers feature a 40-pin Female to Female design that ensures seamless connections every time. With an 8-inch length, these jumpers offer flexibility and convenience for your projects. Whether you're a hobbyist or a professional, these jumpers are the perfect addition to your toolkit. Product Features Versatile 40-pin Female to Female design: Ensures reliable and secure connections for a wide range of electronics projects. Peelable Conductors: Allow for easy separation of individual wires, providing customization for specific needs. 8-inch length for flexible connections: Offers ample length to reach various points on your breadboard or circuit. Ideal for electronics technicians and hobbyists: Perfect for circuit testing, prototyping, and educational purposes. Specification Product: TeknoCrafters 40P-FF 40-pin Female to Female 8-inch Breadboard Jumpers Length: 8 inches Compatibility: Ideal for electronics projects Brand: TeknoCrafters Usage Scenario For electronics technicians working on prototyping a new circuit design, the TeknoCrafters 40P-FF Breadboard Jumpers provide the ideal solution for connecting components on a breadboard. The 8-inch length ensures that even widely spaced components can be easily connected, while the peelable conductors allow customization of wire groupings as needed. These features make it an indispensable tool for both professionals and hobbyists. Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, ensuring full manufacturer warranty coverage and the best pricing with factory support.

Read more less
