Telecom Butt Sets

Eclipse 900-244, Banjo Adaptor 4-6-8 Pin The Eclipse 900-244 Banjo Adaptor 4-6-8 pin allows for inline testing for any plug jack combination. It includes two 4-pair jacks plus a modular cord terminated with 4-pair universal plug for accessing any standard 6- or 8-position jack. The individual conductors are broken out by pin number and correspond to eight separate test pads. Test equipment can be securely attached to the test pads using alligator clips.

Read more less

Triplett BSX200 Basic Butt Set Telephone Line Tester: Dial Tone, Dial Out, Caller ID Functions and More BSX200 Basic Butt Set is designed for people who occasionally need to deal with dial tone but don't require all of the features of an expensive model. The BSX200 provides user with dial tone, dial out, Caller ID, last number redial, on/off hangup button, flash button, DTM and FSK support, and three ways to connect to the line: an RJ11 connector, high quality alligator clips, and an RJ11 coupler. 1 year warranty. Features: Basic Butt Set handles the most critical requirements; useful for temporary communication Functions include: dial tone, dial out, Caller ID, last number redial, on/off hangup button, flash button, DTM and FSK support Includes RJ11 to Alligator clips adapter, RJ11 coupler, and carrying pouch 1 year warranty Handles the most critical butt set requirements: Dial tone Dial out Caller ID Last number redial On/Off hangup button Flash button DTM and FSK support 3 types of line plugs Package Includes: Handset with Cord and RJ11 Plug (1) RJ11 Connector (1) Set of Alligator Clips (1) Carrying Pouch (1) Instruction Manual (1) FAQ Q. Can you monitor a POTS line with the BSX200 phone?A. The BSX200 is not designed for POTS. Q. Can you listen to the line in the off position?A.No, the device will work on an off/dead line. Q. What is a telephone butt set used for?A. A telephone butt set, also known as a telephone line tester or lineman's handset, is a handheld tool used by telecom technicians to test and troubleshoot telephone lines, verifying line connectivity and detecting faults. Q. How do I use a telephone butt set to test telephone lines?A. To test telephone lines, connect the telephone butt set to the line's terminal block or modular jack, and use the handset to check for dial tone, line polarity, and to perform various line tests. Q. Is the BSX200 Basic Butt Set Telephone Line Tester suitable for professional telecom installations?A. Yes, the BSX200 Basic Butt Set Telephone Line Tester is suitable for both professional telecom technicians and DIY use, providing essential line testing capabilities. Q. What is a dial tone tester?A. A dial tone tester, also known as a telephone line tester or butt set, is a handheld tool designed to test and troubleshoot telephone lines, specifically for detecting the presence of a dial tone on the line. Q. Is the BSX200 Basic Butt Set Telephone Line Tester suitable for checking dial tones on telephone lines?A. Yes, the BSX200 Basic Butt Set Telephone Line Tester is suitable for detecting dial toneson telephone lines, providing essential line testing capabilities. Q. How do I use a dial tone tester to check for a dial tone on a telephone line?A. To check for a dial tone, connect the dial tone tester to the telephone line's terminal block or modular jack, and listen for the presence of a dial tone through the handset.

Read more less

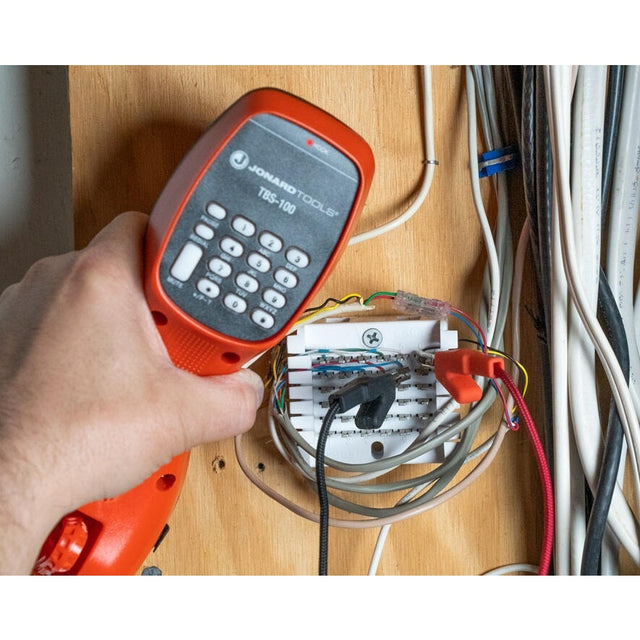

   Discover the efficiency of the Jonard TBS-100, a top-tier Analog Telephone Butt Set designed for professional installation, service, and maintenance of analog telephone lines. This indispensable tool is equipped with a range of essential functions, making it a must-have for telecommunication experts.   Key Features: Versatile Functionality: Engage in multiple operations like dialing, ringing, talking, muting, and redialing with ease. Signal Transmission: Efficiently sends signals through both dial tone (DTMF) and dial pulse modes. Secure Connection: Features Angled Bed-of-Nails (ABN) Clips for stable and secure clamping connections. Comprehensive Kit: Comes with an RJ11 test cord and an extra fuse for extended usability. Durability and Protection: Boasts a waterproof housing, safeguarding the device in various weather conditions. Convenient RJ11 Switchbox: Allows direct testing of telephone lines by simple plug-in, enhancing ease of use. Battery-Free Operation: Operates without batteries, powered either by ABN hook up or directly from the telephone line. Standards Compliance: Adheres to GB/T15279-2002 standards, ensuring reliability and quality in telecommunication testing. Ideal for telecom technicians, the Jonard TBS-100 is your reliable partner for efficient and accurate telephone line testing.

Read more less

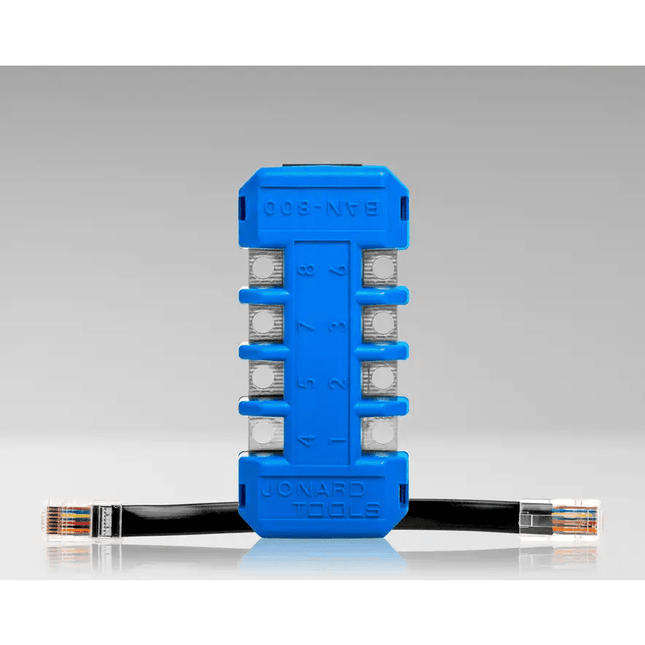

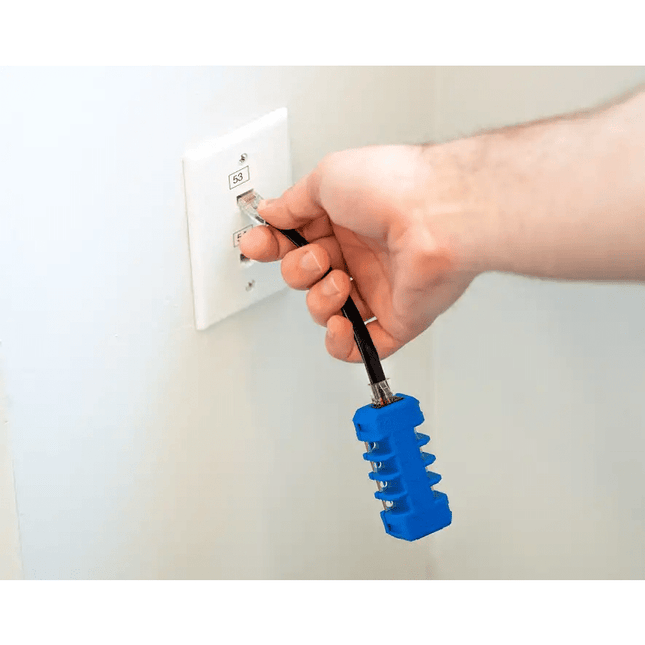

Jonard Tools BAN‑800 RJ45 8‑Position Modular Adapter Product Overview The Jonard Tools BAN‑800 is an 8‑position ("8P") modular adapter, commonly referred to as a “Banjo” adapter, designed for network and telephone line testing. It allows connection of butt sets, telephone test sets, tone generators, and network test equipment to RJ‑style modular plugs (RJ 11, RJ 12, RJ 45) used on data and telephone lines. This makes it ideal for field technicians, low‑voltage installers, and network professionals who need reliable access to live modular‑plug circuits for signal verification, fault location, or continuity checks. Key Features Holed copper contacts that accept alligator clips, ensuring a secure clamp‑on during testing Easy‑to‑read wire‑layout markings clearly identify each of the 8 positions Reinforced ABS plastic body and integrated belt clip for portability and durability on the job Includes a removable patch cord with rugged jack clips, making connection to test gear simple and quick Versatile plug compatibility — supports RJ11, RJ12, and RJ45 connectors via the same adapter Lifetime warranty from Jonard Tools Specifications Specification Detail Number of Positions 8 Dimensions 2.92 in × 1.35 in × 1.20 in (7.42 cm × 3.43 cm × 3.05 cm) Weight 0.07 lb (≈30.9 g) UPC 810053359617 Warranty Lifetime warranty via Jonard Tools Typical Installation / Usage Scenario Imagine a low‑voltage installer on a commercial job in Phoenix (Mesa, Chandler, Tempe, Gilbert, Scottsdale, Glendale). They’ve run a bundle of Cat5e/Cat6 cables with RJ45 terminations to workstations, telephone sets, and wall jacks. At the job hand‐over, the installer needs to verify continuity, correct pinouts, and observe any signal anomalies (e.g., butting onto an active data line or verifying dial tone on RJ11/12). They plug the RJ45/Cat6 connector into the BAN‑800 adapter, clip their alligator leads from the tester or tone generator to the holed copper contacts, and quickly map or troubleshoot the lines. The belt‑clip keeps the adapter on‑hand, the sturdy ABS body holds up in the tech’s toolkit, and the clear wire layout prevents mis‑interpretation of pin positions. In short: the BAN‑800 serves as a compact, field‑ready interface between modular plug terminations and test equipment. Why Buy from Tri‑Tek Electronics, Mesa AZ Tri‑Tek Electronics is an authorized distributor of Jonard Tools and ensures full manufacturer warranty coverage, best pricing, and factory support. With a retail location in Mesa, Arizona, local technicians can rely on same‑day or next‑day pickup and responsive service. Whether you’re working a job in the Valley of the Sun or servicing a remote site around Maricopa, Tri‑Tek has you covered. Suitability Technicians / Installers: Excellent for network cabling contractors who need a rugged adapter for live line testing and quick diagnostics Hobbyists / Home network: Also suitable for advanced home‑networkers who terminate their own RJ45 jacks and need diagnostic access Low‑Voltage Maintenance: Useful for voice/data/tone‑generator setups, especially when converting between RJ11/12 and RJ45 modular ends Summary If you need a dependable, field‑ready modular adapter for testing RJ11, RJ12 and RJ45 terminations — and you value clarity of wiring, secure clip access, and rugged portability — the Jonard Tools BAN‑800 is a strong choice. Combined with purchase from Tri‑Tek Electronics in Mesa, AZ, you get full distributor support and local presence.

Read more less
