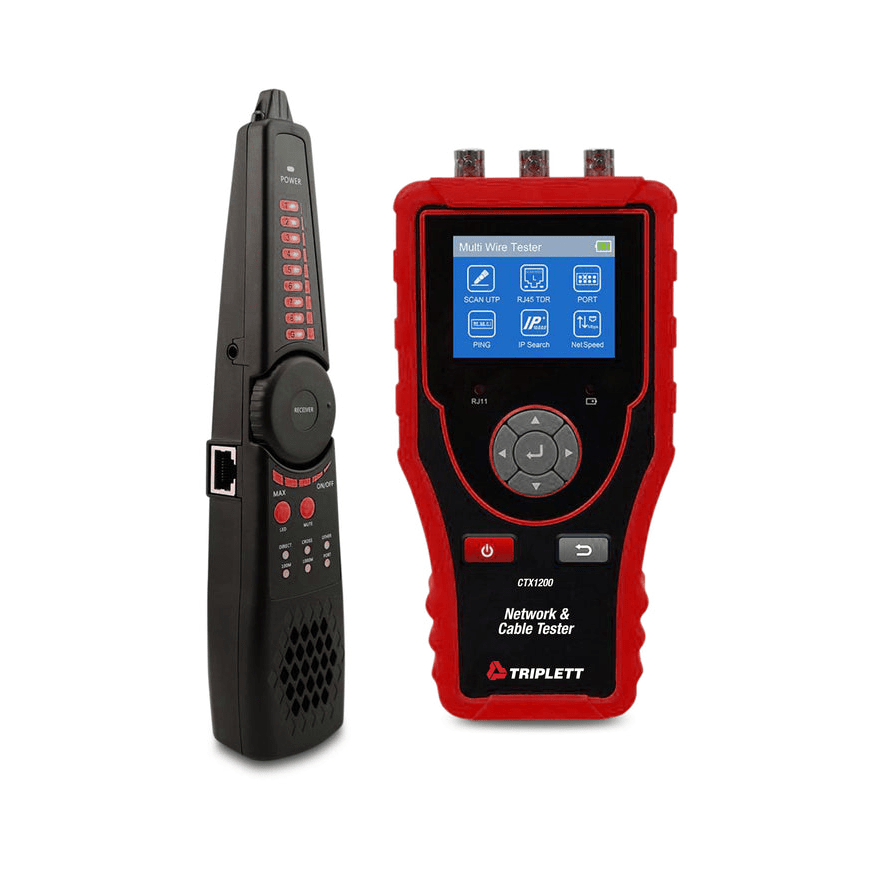

Triplett CTX1200 Network & Cable Tester with Probe
The Triplett CTX1200 is a versatile, professional-grade tester ideal for network cabling installations, maintenance, computer room diagnostics, and CCTV deployment. It combines advanced TDR diagnostics, network analysis, cable tracing, and video level measurement into a single, portable unit—designed to streamline job site efficiency and accuracy.
Tri-Tek Electronics, with its retail presence in Mesa, AZ, provides this product with full manufacturer warranty support, competitive pricing, and reliable factory support.
Key Features
-
Built-in TDR (Time Domain Reflectometry): Measures opens, shorts, and length up to 1.2 km on UTP, Cat 5e/6e, BNC, and telephone lines.
-
2.4″ TFT-LCD: High-resolution 320×240 pixel display for clear, easy readability.
-
Network Tools Suite:
-
Cable Tracing & Identification:
-
RJ45-Specific Diagnostics:
-
Tests cable pair status, length, attenuation, reflectivity, impedance, skew (up to 180 m)
-
Detects fault points at the connector (near/mid/far-end)
-
HD Coaxial Video Level Meter:
-
Measures peak, sync, and burst values for TVI, CVI, AHD, and CVBS video signals
Download CTX1200 User manual (.pdf)
Specifications
| Specification |
Details |
| Display |
2.4″ TFT-LCD, 320 × 240 resolution |
| Cable Types Tested |
RJ45 UTP, RJ11 telephone line, BNC |
| TDR Range |
Opens, shorts, length up to 1.2 km |
| RJ45 Diagnostics |
Pair status, length, attenuation, reflectivity, impedance, skew up to 180 m |
| Network Analysis Features |
Port flashing, ping, IP scan, speed & duplex detection |
| Video Signal Meter |
TVI/CVI/AHD/CVBS peak, sync, burst values |
| Dimensions |
5 × 3.3 × 1.3″ (126 × 83 × 33 mm) |
| Weight |
0.75 lbs (340 g) |
| Power Supply |
3.7 V Li-ion battery (included) or 5 V/1 A AC adaptor |
| Tracer Probe Power |
2× AA batteries (not included) |
| Warranty |
1 year manufacturer warranty |
Included in the Box
-
Triplett CTX1200 tester with probe
-
3.7 V Li-ion battery
-
AC adaptor/charger
-
BNC to alligator clip adapter
-
RJ11 and RJ45 patch cables
-
Cable tracer unit
-
Tool bag
Example Usage Scenario

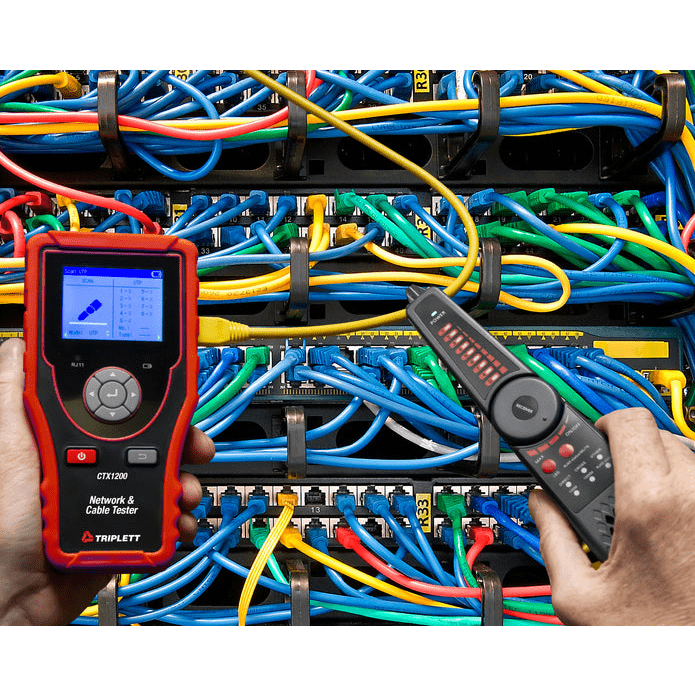

During a CCTV camera installation at a commercial building, the CTX1200 enables a technician to:
-
Trace the correct BNC cable in a dense cable bundle using the cable tracer.
-
Test cable integrity and length via the built-in TDR to verify performance up to 1.2 km.
-
Analyze the video signal (TVI/AHD) levels using the video level meter to ensure video quality and correct signal levels.
-
Validate network configurations by pinging connected IP cameras and identifying IP addresses, link speed, and duplex settings—all from the same handheld device.
This one-tool solution saves time, reduces equipment needs, and improves installation reliability—perfect for network installers, CCTV technicians, and IT professionals.
