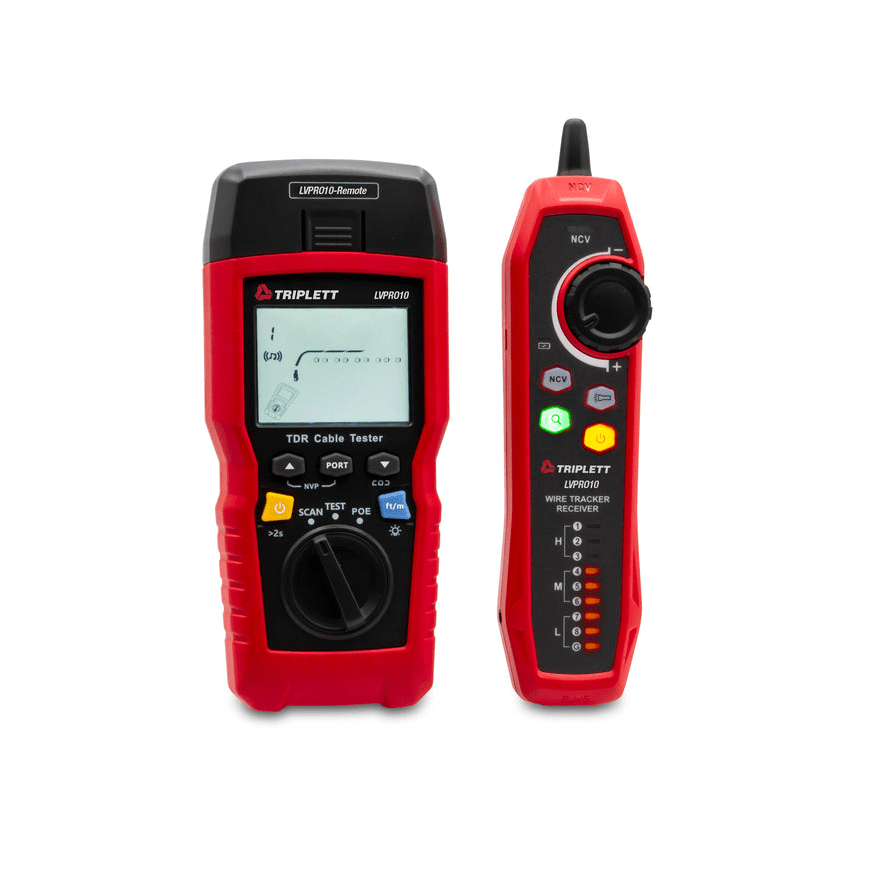

Triplett LVPRO10 TDR/Cable Tester
Overview
The Triplett LVPRO10 is an all-in-one TDR (Time Domain Reflectometry) cable tester designed for LAN installers, network technicians, and repair professionals. It delivers comprehensive diagnostics for both twisted-pair and coaxial cables, combining precision fault detection, tracing, and PoE analysis into a single, rugged handheld device.
Tri-Tek Electronics, located in Mesa, AZ, proudly offers this model with full manufacturer warranty, competitive pricing, and expert factory support—ensuring a reliable tool for installers and technical professionals.
Key Features
-
Dual Cable Support: Tests and traces UTP twisted-pair (Cat 5E/6/6A/8) and coaxial (50Ω, 75Ω, 93Ω) cables with high accuracy.
-

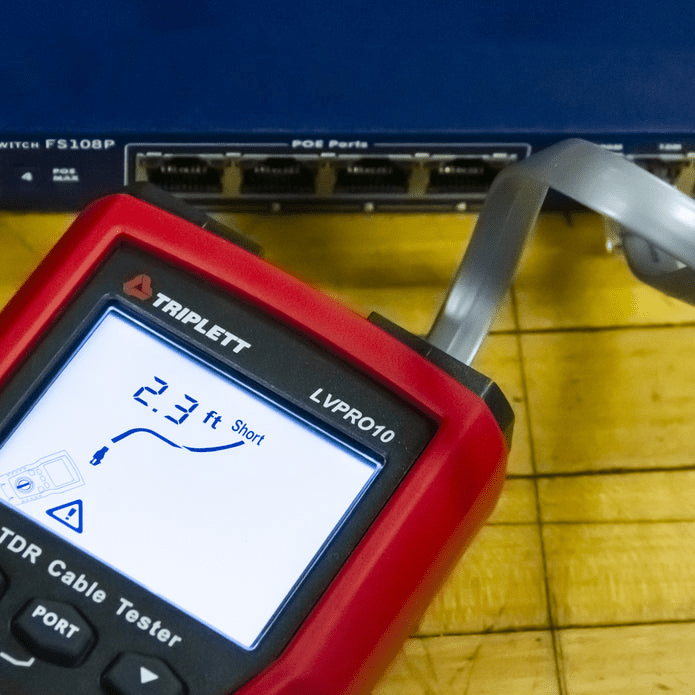

Fault Diagnostics: Identifies opens, shorts, reversals, split pairs, and verifies cable continuity.
-
Length Measurement: Measures cable length up to approximately 500m (1,640 ft) with ±4% or ±2 ft (0.6 m) accuracy.
-
PoE Detection & Ethernet Port Testing: Detects Power over Ethernet (standards 802.3AF, AT, BT) and validates port functionality via Ethernet analysis.
-
Tone-Tracing Capability: Includes a tone mode to trace specific cables within bundled runs.
-

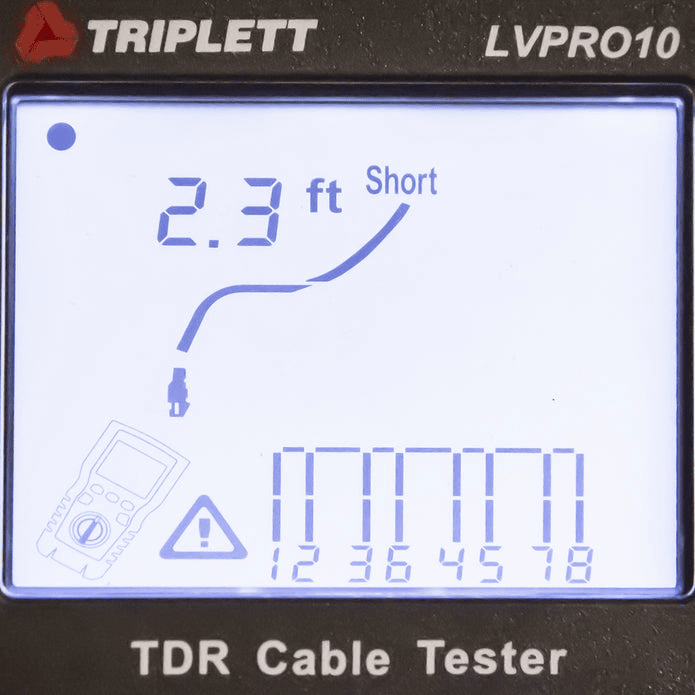

Built-In Ports & Display: Equipped with RJ11, RJ45, and coax connectors and a 2.8-inch backlit graphical LCD for clear readings in all conditions.
-

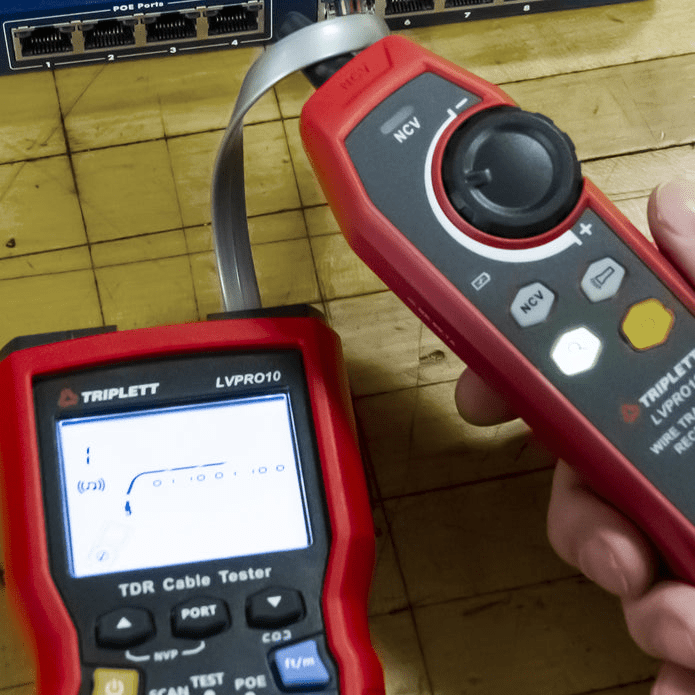

Safety & Convenience: Features 70 VDC protection, auto power-off, and a tracer probe with NCV detection (> 40 V), flashlight, wiremap indicators, low-battery alert, and headphone jack—ideal for noisy or dim environments.
Download LVPRO10 User Manual (.pdf)
Specifications
| Specification |
Details |
| Cable Types |
Twisted-pair (Cat 5E/6/6A/8), Coax (50/75/93Ω) |
| Fault Detection |
Continuity, opens, shorts, reversals, split pairs |
| Length Range & Accuracy |
Up to 500 m (1,640 ft); ±4% or ±2 ft (0.6 m) |
| PoE Detection |
802.3AF, 802.3AT, 802.3BT |
| Ports |
RJ11, RJ45, Coax |
| Display |
2.8″ backlit graphical LCD |
| Safety Features |
70 VDC input protection; auto power-off |
| Tracer Probe Features |
NCV detection > 40 V, flashlight, indicators, earphone jack |
| Power |
Requires 4 × AAA batteries (included) |
| Accessories Included |
Tracer probe with charging cable, remote adapter, RJ11/RJ45 cables, alligator RJ11 cable, F-to-F adapter, carrying bag |
| Warranty |
1-year manufacturer warranty |
| Weight (approximate) |
~1.2 lbs |

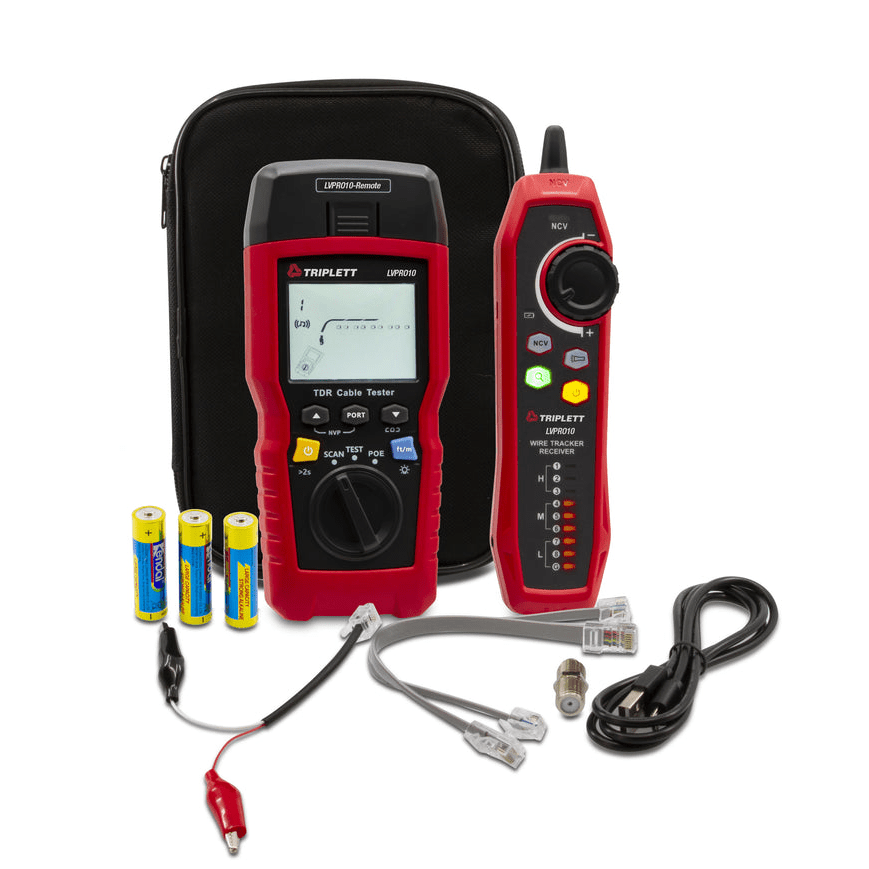

Included in the Box
-
LVPRO10 Tester (Remote & Receiver)
-
Tracer probe with charging cable
-
Remote adapter
-
RJ45 and RJ11 adapter cables
-
RJ11 cable with alligator clips
-
F-to-F-connector adapter
-
Four (4) AAA batteries
-
Carrying bag
Usage Scenario Example
During structured cabling installation in a commercial office, the LVPRO10 simplifies troubleshooting and verification:
-

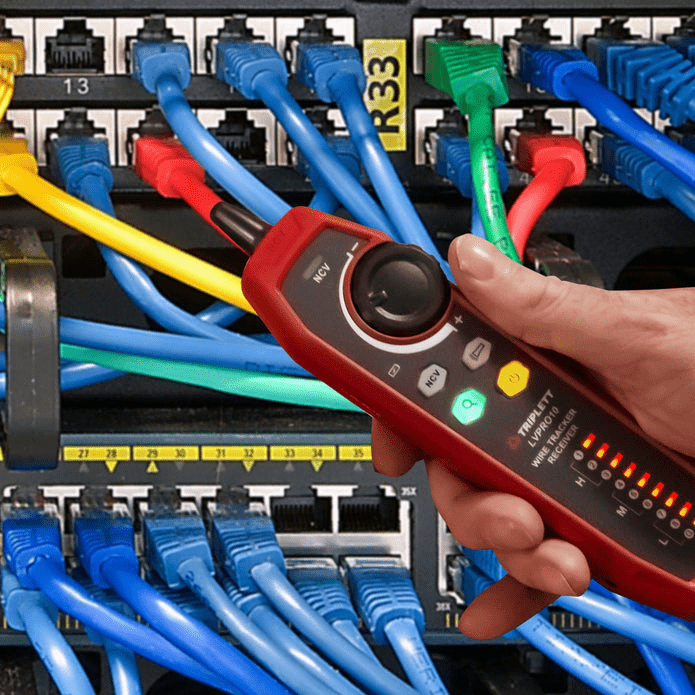

Trace the intended cable within crowded conduit runs using tone mode and the tracer probe.
-
Validate cable health and length via TDR measurements to ensure run integrity.
-
Detect PoE presence on Ethernet drops to verify power supply capability before equipment install.
-
Confirm port wiring and detect any miswiring, reversals, or split-pair faults in under a minute.
-
Operate in dimly lit junction boxes using the built-in flashlight and get audio feedback through the earphone jack in noisy environments.
This single handheld tool reduces job site complexity, expedites diagnostics, and ensures reliable network infrastructure deployment—ideal for technicians, installers, and field service teams.
