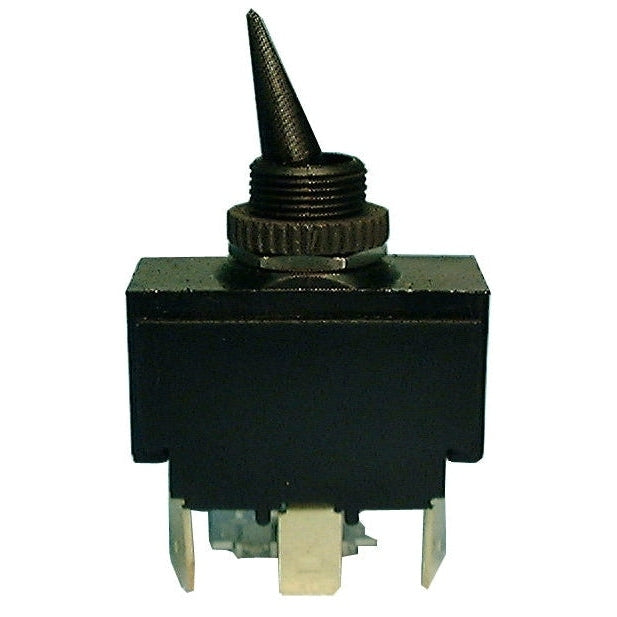

Philmore Mfg. 30-125 (ON)-OFF-(ON) Reversing Toggle Switch, DPDT The Philmore Mfg. 30-125 is a high-performance (ON)-OFF-(ON) reversing toggle switch with a DPDT (Double Pole Double Throw) configuration. This switch is specifically designed for applications requiring polarity reversal or directional control, making it a popular choice for hobbyists, equipment manufacturers, and repair technicians who need reliable and versatile switching solutions. Features DPDT Configuration: Allows for the simultaneous control of two separate circuits, providing versatile switching options for various applications. (ON)-OFF-(ON) Functionality: Features momentary (spring-loaded) ON positions with a stable central OFF position, perfect for applications needing precise directional control. High Current Rating: Supports up to 21A at 14V DC, suitable for demanding applications requiring robust switching capabilities. Durable Design: Constructed to withstand frequent use, ensuring long-term reliability and performance. Compact and Versatile: Compact size facilitates easy integration into a variety of spaces and systems. Easy Installation: Equipped with .250" quick-connect terminals for straightforward connection and installation. Specifications Manufacturer: Philmore Manufacturing Part Number: 30-125 Switch Type: DPDT (Double Pole Double Throw) Operation: (ON)-OFF-(ON), momentary ON positions Voltage Rating: 14V DC Current Rating: 21A @ 14V DC Initial Contact Resistance: 20 MΩ (Max) Insulation Resistance: 100 MΩ (Min) Dielectric Strength: 1000V AC for 1 minute Contact Material: Brass Terminal Material: Brass Terminal Type: .250" Quick Connect Actuator Material: Nylon Mounting Style: Panel Mount Mounting Hole Diameter: 0.50" Dimensions: 1.3" x 0.7" x 1.5" Applications The Philmore Mfg. 30-125 toggle switch is ideal for a wide range of applications, including: DIY Electronics Projects: Perfect for hobbyists needing reliable directional control in custom circuits. Automotive Systems: Commonly used in vehicles for controlling window motors, seat adjustments, and other electronic components. Industrial Machinery: Suitable for reversing motors and other industrial machinery that require precise directional control. Home Appliances: Ideal for applications needing polarity reversal, such as fan controls or motorized devices. Installation Example In an automotive context, the Philmore 30-125 toggle switch can be used to control a window motor, providing an easy way to reverse the direction of the window's movement. Connect the motor’s leads to the switch’s terminals, and with a flick of the switch, control the window’s up and down motion efficiently. Why Choose Tri-Tek Express? As an authorized distributor of Philmore products, Tri-Tek Express guarantees that you receive genuine Philmore 30-125 reversing toggle switches with full manufacturer warranty coverage. We are committed to offering competitive pricing and exceptional factory support, making us your reliable partner for all your electronic component needs.
