Ethernet & POE Extenders

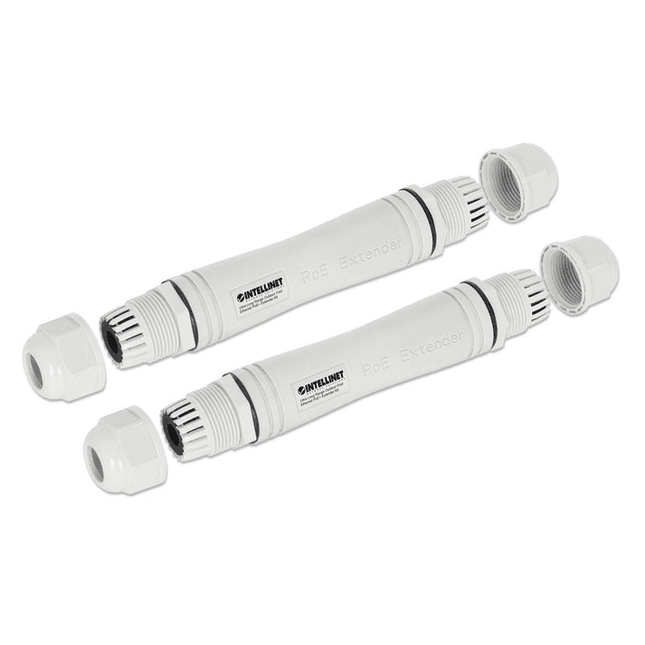

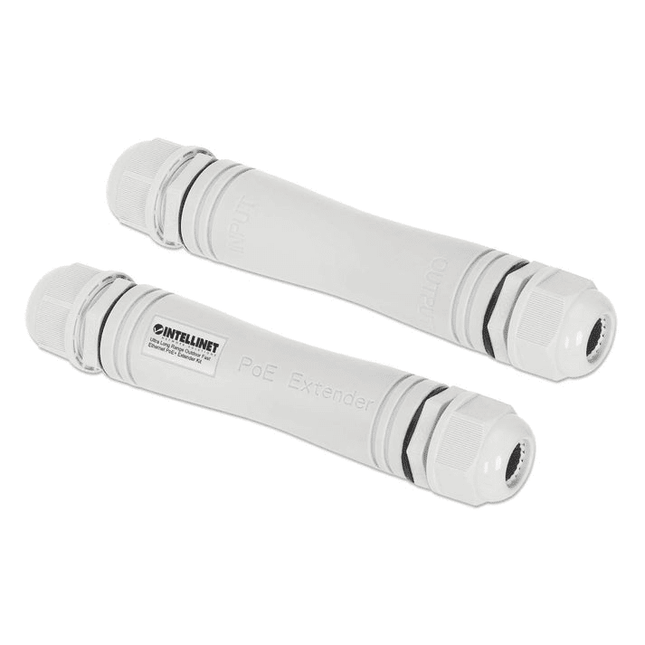

Intellinet 561952 Ultra Long‑Range Outdoor PoE++ Extender Kit Overview The Intellinet 561952 is a high-performance outdoor PoE extension kit designed to dramatically expand the reach of PoE links—up to 1,000 m (3,280 ft)—while maintaining data connectivity and delivering power to downstream devices. This kit includes two modules (one “in” unit and one “out” unit) that must be used together to achieve the maximum range. It supports IEEE 802.3bt (4‑pair PoE, “PoE++”) at the input side (up to 95 W) and provides up to 30 W output for 802.3at-compliant devices, or 15 W for 802.3af devices, depending on length and speed constraints. Its enclosure is rated IP67 for dust and waterproof protection, making it suitable for outdoor or harsh environment deployments. Typical usage includes extending PoE feeds to remote IP cameras, wireless bridges, or access points without needing separate AC power lines. Tri-Tek Electronics is an authorized distributor of Intellinet products and ensures full manufacturer warranty coverage, best pricing, and factory support. Key Features Extends PoE + data up to 1,000 m (3,280 ft) over Cat5e / Cat6 cable Compatible with IEEE 802.3bt (input) and 802.3at / af (output) standards Up to 30 W output at 100 Mbps over moderate distances At lower speeds or longer distances may provide reduced output power (e.g. ~15 W at 10 Mbps) IP67-rated weatherproof housing for outdoor installations No external power supply needed—draws power via PoE on the “in” side Auto-sensing short-circuit / overload / high-voltage protection Plug-and-play installation (no configuration required) Distance vs. Power / Throughput Chart Below is a reference chart indicating how much power (to the powered device, PD) and data rate one might expect at various distances, assuming ideal cable conditions, proper PoE source and minimal losses. Distance (m) Approx Distance (ft) Approx Output Power to PD* Data Rate / Notes 100 m ~328 ft Up to 30 W 100 Mbps link possible 200 m ~656 ft Slightly reduced from 30 W Still 100 Mbps over good cable 300 m ~984 ft ~30 W (ideal conditions) 100 Mbps likely with low-loss cable 500 m ~1,640 ft Lower output May maintain 100 Mbps with quality cable 800 m ~2,625 ft ~15 W Possibly only 10 Mbps 1,000 m ~3,280 ft Minimal Data link may degrade significantly *Output power estimates assume a PoE++ source delivering sufficient input (up to 95 W) and high-quality cabling. Real-world performance will vary based on cable type, terminations, and environmental conditions. Example Installation Scenario A remote IP surveillance camera is located 900 meters (2,950 feet) away from the main network switch. Using the Intellinet 561952 kit, a Cat6 cable is run from a PoE++ switch to the “In” module, and then from the “Out” module to the camera. The extender supports this long-range connection without the need for an AC power source near the camera. Although the data link may reduce to 10 Mbps and power delivery to 15 W, it remains sufficient for many low-power PoE camera models, offering a cost-effective and reliable solution for long-range outdoor deployments. Thanks to the rugged IP67-rated enclosures, both modules can be mounted in pole enclosures or junction boxes without requiring additional environmental protection, making installation simple and durable. Advantages for Installers, Technicians & Integrators Reduced wiring cost: Avoids running separate AC lines in remote areas Extended reach: Supports PoE and data transmission beyond 100 m limits Durability: IP67 weatherproof design ensures longevity in outdoor use Interoperability: Compatible with standard IEEE PoE equipment Ease of Use: No setup or configuration required—plug and deploy

Read more less

Intellinet 561211 IPE-ODG Outdoor Gigabit High-Power PoE+ Extender Repeater The Intellinet IPE-ODG extender repeater amplifies and regenerates an IEEE 802.3at/af PoE signal, extending your PoE+ network by up to 100 meters over standard Cat5e/6 cable without any external power source. Designed for harsh outdoor environments, it features an IP65-rated metal housing and operates reliably from –40 °C to 75 °C, making it ideal for long-range connections to cameras, wireless access points, and other remote devices. Key Features Extends PoE+ signal up to 100 m (328 ft) per segment; supports daisy-chaining up to five units for a total reach of 500 m (1,640 ft) Compliant with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE), delivering up to 25 W to downstream devices Rugged IP65-rated metal enclosure protects against dust, rain, and corrosion Two shielded RJ45 ports support 10/100/1000 Mbps data rates Fan-free, maintenance-free design with shielded connectors to minimize EMI Wide operating temperature range: –40 °C to 75 °C (–40 °F to 167 °F) Three-year manufacturer’s warranty Specifications Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Ports: PoE In: 1 × shielded RJ45 (48 V, 10/100/1000 Mbps) PoE Out: 1 × shielded RJ45 (10/100/1000 Mbps, up to 25 W) Power Consumption: Input: provided by upstream PoE switch or injector Output: up to 25 W to PD Device draw: 4 W max Mechanical: Dimensions: 145 × 38 × 30 mm (5.7 × 1.5 × 1.2 in) Weight: 130 g (0.29 lb) Environmental: IP65-rated metal housing Operating temperature: –40 °C to 75 °C Certifications: FCC Class A, CE Reliability: MTBF ≈ 4 025 514 hours at 40 °C Example Installation Scenario An installer in Phoenix mounts the IPE-ODG on a rooftop to power and connect outdoor security cameras located 200 meters from the network switch. By daisy-chaining two extenders, the technician achieves full Gigabit connectivity and delivers 25 W PoE+ power without trenching or additional electrical outlets—saving both time and labor costs. Value for Technicians and Installers Plug-and-Play Deployment: No configuration or additional power wiring required Cost Efficiency: Leverages existing Cat5e/6 cabling for both data and power Scalability: Easily add more extenders for longer distances Durability: Weatherproof housing and wide temperature tolerance ensure uninterrupted performance in outdoor installations

Read more less

Intellinet 561211 Outdoor Passive PoE Extender The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater (561211) is designed to extend connection distances from a PoE source to an output device up to 100 m (328 ft.) via Cat5e or Cat6 cable. Cover even longer distances by cascading up to five extenders. The PoE+ Extender Repeater does not need an additional power supply, as it draws the power it needs from the PoE input. Extends an existing Power over Ethernet connection beyond the 100 m (328 ft.) limit Saves time and money by delivering data and power via existing network cables Covers longer distances by cascading multiple PoE extenders (Model 561211) together Can be daisy-chained with up to four PoE extenders for a distance of up to 500 m (1640 ft.) Supports 10/100/1000 Mbps data rates and delivers up to 25 W to a connected PoE device PoE awareness ensures that power is only sent to IEEE 802.3af/at-compliant devices; non-PoE devices only receive data Requires no additional power supply; draws the power directly from the PoE input Compatible with IEEE 802.3at/af-compliant PoE injectors and PoE switches (PSE) Compatible with IEEE 802.3at/af-compliant powered devices (PD) Fanless design ideal for silent operation Compact aluminum case IP65 rated — waterproof and dust tight Mounting holes for wall mounting

Read more less

Intellinet 561648 2-Port Outdoor Vandal Gigabit PoE+ Extender Tri-Tek Electronics is proud to offer the Intellinet 561648 2-Port Outdoor Vandal Gigabit PoE+ Extender. This robust and reliable extender is designed for outdoor applications, providing extended network coverage and power over Ethernet (PoE+) to remote locations. Product Features 2 Gigabit Ethernet ports IEEE 802.3at/af Power over Ethernet (PoE+) support Extends PoE connection up to 200 meters Durable, weatherproof housing (IP65 rated) Vandal-resistant design Plug and play installation Surge protection Wall and pole mounting options LED indicators for PoE and data status Specifications Ports: 2 x 10/100/1000 Mbps RJ45 PoE Standard: IEEE 802.3at/af PoE Power Output: Up to 30W per port Total Power Budget: 60W Maximum Distance: 200 meters (656 ft) Housing: IP65 rated, vandal-resistant Mounting: Wall and pole Operating Temperature: -10 to 60°C (14 to 140°F) Dimensions: 182 x 97 x 43 mm (7.16 x 3.81 x 1.69 in.) Weight: 0.65 kg (1.43 lbs) Certifications: FCC, CE, RoHS Installation Scenario Ideal for extending network and PoE coverage in outdoor environments, the Intellinet 561648 2-Port Outdoor Vandal Gigabit PoE+ Extender can be used to connect IP cameras, wireless access points, and other PoE devices. Its weatherproof and vandal-resistant design ensures reliable operation in harsh conditions, making it an excellent choice for security and surveillance applications in public areas, parking lots, and building exteriors. Why Choose Tri-Tek Electronics? As an authorized distributor of Intellinet products, Tri-Tek Electronics ensures that you receive full manufacturer warranty coverage, the best pricing, and exceptional factory support. Trust Tri-Tek Electronics for all your networking needs.

Read more less

EASC-POE-EXT01, Passive 10/100 Mbps PoE Extender Extend the transmission distance of PoE without a need for AC power 10/100Mbps RJ45 PD and PSE port Max distance is 300 feet each unit  Passive - No power input required Output power: 15.4W Size: 94*71* 26mm IEEE802.3af/at Standard

Read more less

Ubiquity ETH-SP-G2 Inline Ethernet Surge Protector Interface Connections (2) RJ45 Female Connectors ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs DC Spark-Over Voltage: 90V @ 100V/s Maximum Impulse Spark-Over Voltage 700V @ 1kV/µs Discharge Current 10kA+ Maximum Insulation Resistance 1G ohm @ 50V Maximum Capacitance 1.0 pF @ 1 MHz Data Line Protection RJ45 10/100/1000 Ethernet PoE Support Yes Shock and Vibration Certification ETSI300-019-1.4 Standard Operating Temperature -30 to 65° C (-22 to 149° F) Operating Humidity 10 to 90% Noncondensing  Download Detailed Product Specifications Here. This item is a closeout offering so price and availability is limited to stock on hand only.

Read more less

Features: PoE up to 4,000ft (1200m) over Cat6 cables Provide up to 57W to the powered device No AC power required Reuse existing telephone cable Interoperable with indoor and outdoor models Zero touch Plug and Play connectivity 5 year hardware warranty & support at no additional cost Paired with EC30130 or EI30130 Download Signamax E-300 Series Quick Start Guide (.pdf) Specifications: PORTS RJ45, RJ45 ROLE Local PERFORMANCE Supports 10K Jumbo FramesWirespeed Forwarding LAYER 2 IEEE 802.3 10BaseTIEEE 802.3u 100BaseTXIEEE 802.3 Auto-NegotiateIEEE 802.3x Flow ControlPoE: Support IEEE 802.3af; IEEE802.3at; IEEE 802.3bt ELECTRICAL CHARACTERISTICS Powered: PoEPower Consumption: 2W Max PHYSICAL CHARACTERISTICS Dimensions: 4.29 x 2.03 x 0.91 in (10.9 x 5.15 x 2.3 cm)Weight: 0.61 lb (0.28 kg)Housing: IP30Mounting: Wall mountable (included) ENVIRONMENTAL REQUIREMENTS Operating Temperature: -4 to 140°F (-20 to 60°C)Storage Temperature: -40 to 185°F (-40 to 85°C)Operating/Storage Humidity: 5 to 95% (non-condensing) CERTIFICATIONS EMC: CE mark, FCC Part 15 Class A; VCCI Class ASafety: CE/LVD EN60950-1 WARRANTY Five years (Including power supply)

Read more less

Download Signamax E-300 Series Quick Start Guide (.pdf)   Experience the Future of Networking with Signamax EC30020 E-300 Ethernet & PoE Over Coax Signamax EC30020 is your gateway to an advanced network experience. It allows you to transform existing coax cables into a powerful network infrastructure without the need for AC power. With PoE support extending up to an impressive 4,000 feet (1200 meters) over RG6 cables, you can effortlessly power your devices and enhance network reach. Key Features: Cost-Effective Reuse: Harness the potential of your existing coaxial infrastructure, eliminating the need for costly cable replacements. Extended PoE Reach: Extend your network up to 4,000 feet, ensuring connectivity in expansive environments. High Power Delivery: Provide up to 57W of power to your devices, ensuring optimal performance. AC Power Not Required: With local PoE power, you can simplify installation and reduce power consumption. Versatile Compatibility: Interoperable with both indoor and outdoor models, offering flexibility in deployment. Plug and Play: Enjoy seamless connectivity with zero-touch, plug-and-play setup. Warranty: Rest assured with a comprehensive 5-year hardware warranty and included support at no additional cost. Specifications: Ports: Equipped with RJ45 and BNC ports for versatile connectivity. Performance: Supports 10K Jumbo Frames and delivers wirespeed forwarding. Layer 2: Complies with IEEE 802.3 standards, including 10BaseT, 100BaseTX, Auto-Negotiate, and Flow Control. PoE support includes IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. Electrical Characteristics: Powered by PoE, minimizing power consumption to a maximum of 2W. Physical Characteristics: Compact dimensions of 3.36 x 1.85 x 0.91 inches and a lightweight design of 0.57 lbs. IP30 housing and wall-mountable for convenient installation. Environmental Requirements: Designed to operate in a wide temperature range from -4 to 140°F (-20 to 60°C). Storage temperature ranges from -40 to 185°F (-40 to 85°C). Operating and storage humidity is 5 to 95% (non-condensing). Certifications: Complies with EMC standards, including CE mark and FCC Part 15 Class A, as well as VCCI Class A. Safety certified with CE/LVD EN60950-1. Warranty: Backed by a comprehensive five-year warranty, including the power supply.

Read more less

Signamax FO-EC30030 E-300 Long Range Ethernet & PoE Extender The Signamax FO-EC30030 E-300 Long Range Ethernet and PoE Extender is a robust solution designed to extend both Ethernet and Power over Ethernet (PoE) signals over long distances, utilizing existing twisted-pair copper cables. This extender allows the transmission of Ethernet and PoE signals up to 300 meters—three times the standard Ethernet limit of 100 meters—making it an ideal choice for security cameras, wireless access points, VoIP phones, and other network devices that require both data and power in hard-to-reach locations. Designed for both indoor and outdoor use, the FO-EC30030 is perfect for industrial environments and large-scale commercial installations where extending networks beyond the typical distance limitation is essential. It is capable of providing PoE and PoE+ (IEEE 802.3af/at) power, making it a versatile choice for a variety of devices with different power requirements. Key Features: Extends Ethernet and PoE up to 300 meters over a single twisted-pair copper cable. Supports PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) for delivering up to 30W of power. Long-range data transmission for security cameras, access points, and VoIP phones. Easy installation with plug-and-play setup, no configuration needed. Industrial-grade design with rugged housing for harsh environments. Works with standard Cat5e/6 cables, eliminating the need for specialized cabling. High-speed data transfer rates of up to 100Mbps full-duplex. Example Installation Scenario: The FO-EC30030 is ideal for large-scale surveillance systems where IP cameras need to be deployed across a wide area. For example, in a parking lot or outdoor campus where cameras are placed far from the main network switch, this extender can provide both Ethernet connectivity and PoE power up to 300 meters away, eliminating the need for installing additional power supplies near the cameras. Its durable design ensures reliable operation in harsh outdoor conditions or industrial environments, such as manufacturing plants. Specifications: Data Rate: 10/100Mbps full-duplex PoE Standards: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), up to 30W power output Max Transmission Distance: 300 meters (Cat5e/6 cable) Power Input: 48VDC power supply (external) Operating Temperature: -40°C to 75°C (-40°F to 167°F) Housing: Industrial-grade metal, weather-resistant Dimensions: Compact and DIN-rail mountable Tri-Tek Electronics, a trusted distributor of Signamax products, provides the FO-EC30030 with full manufacturer warranty and expert installation support. Our Mesa, AZ location ensures the best local pricing and factory support, with professional guidance for installing and deploying long-range Ethernet and PoE solutions.

Read more less

Download Signamax E-300 Series Quick Start Guide (.pdf)   Key Features: Cost-Effective Reuse: Say goodbye to costly cable replacements. EC30010 lets you leverage your existing coaxial infrastructure for network expansion. Long-Range PoE: Extend your network reach with PoE support up to 4,000 feet, ensuring connectivity even in large premises. High Power: Provide up to 57W of power to your connected devices, ensuring they operate efficiently. Versatile Compatibility: EC30010 is interoperable with both indoor and outdoor models, offering flexibility in deployment. Plug and Play: Enjoy hassle-free connectivity with zero-touch, plug-and-play setup. Warranty: Rest easy with a 5-year hardware warranty and included support at no extra cost. Specifications: Ports: Equipped with RJ45 and BNC ports for versatile connectivity. Performance: Supports 10K Jumbo Frames and delivers wirespeed forwarding. Layer 2: Complies with IEEE 802.3 standards, including 10BaseT, 100BaseTX, Auto-Negotiate, and Flow Control. PoE support includes IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. Electrical Characteristics: Powered by an included AC adapter, with an output of 56V DC. Wide input range: 100 to 240V AC, 50/60Hz. Power consumption is a maximum of 2W. Physical Characteristics: Compact dimensions of 3.36 x 1.85 x 0.91 inches and a lightweight design of 0.44 lbs. IP30 housing and wall-mountable for convenience. Environmental Requirements: Designed to operate in a wide temperature range from -4 to 140°F (-20 to 60°C). Storage temperature ranges from -40 to 185°F (-40 to 85°C). Operating and storage humidity is 5 to 95% (non-condensing). Certifications: Complies with EMC standards including CE mark and FCC Part 15 Class A, as well as VCCI Class A. Safety certified with CE/LVD EN60950-1. Warranty: Backed by a comprehensive five-year warranty, including the power supply.

Read more less

Features: PoE up to 4,000ft (1200m) over Cat6 cables Provide up to 57W to the powered device No AC power required IP66/IK10 Housing with 6kV Surge Protection Reuse existing telephone cable Zero touch Plug and Play connectivity 5 year hardware warranty & support at no additional cost Paired with EC30030 or EC30040 PORTS: 2 – RJ-45 ROLE: Remote PERFORMANCE: Supports 10K Jumbo Frames Wirespeed Forwarding LAYER 2: IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3 Auto-Negotiate IEEE 802.3x Flow Control PoE: Support IEEE 802.3af; IEEE802.3at; IEEE 802.3bt ELECTRICAL CHARACTERISTICS: Powered: From Local Power Supply: Output: 56 V DC Input: 100 to 240 V AC 50/60 Hz Power Consumption: 2W Max Surge Protection: 6kV PHYSICAL CHARACTERISTICS: Dimensions: 6.18 x 2.2 x 1.56 in (15.7 x 5.58 x 3.98 cm) Weight: 0.66 lb (0.3 kg) Housing: IP66/IK10 Mounting: Wall mountable (included) ENVIRONMENTAL REQUIREMENTS: Operating Temperature: -40 to 167°F (-40 to 75°C) Storage Temperature: -40 to 185°F (-40 to 85°C) Operating/Storage Humidity: 5 to 95% (non-condensing) CERTIFICATIONS: EMC: CE mark, FCC Part 15 Class A; VCCI Class A Safety: CE/LVD EN60950-1 WARRANTY: Five years (Including power supply)

Read more less

Signamax FO-EI30110 E-300 Industrial Ethernet and PoE over Coax Extender The Signamax FO-EI30110 E-300 Industrial Ethernet and PoE over Coax Extender is a high-performance solution designed for extending both Ethernet data and Power over Ethernet (PoE) signals over existing coaxial cable infrastructure. This allows you to reuse legacy coaxial cabling to deliver Ethernet and power to IP devices, such as security cameras, VoIP phones, and wireless access points, without the need for re-cabling. The FO-EI30110 is engineered for industrial applications, offering robust performance in harsh environments, making it ideal for manufacturing plants, outdoor surveillance systems, and other demanding industrial scenarios. This solution is particularly beneficial for retrofitting older CCTV systems with modern IP cameras, as it extends Ethernet and PoE up to 300 meters over standard coaxial cables. It supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), making it versatile for various power requirements. Key Features: Ethernet and PoE over coax: Extends Ethernet and PoE signals over existing coaxial cables up to 300 meters. Supports IEEE 802.3af and 802.3at: Compatible with both PoE and PoE+ devices. Industrial-grade design: Built for extreme environments, with rugged housing and extended operating temperature range. Easy retrofit solution: Ideal for upgrading legacy CCTV systems to IP without replacing coaxial infrastructure. Data Rates: Supports up to 100Mbps full-duplex Ethernet over coax. Plug-and-play setup: Simple installation with no software configuration required. Example Installation Scenario: Imagine a security facility with an existing analog CCTV system using coaxial cables. To upgrade to an IP-based system without the cost and hassle of running new Ethernet cabling, the Signamax FO-EI30110 can be used to extend both Ethernet data and PoE over the existing coax. This makes it easy to replace old cameras with new IP cameras while keeping the original cabling, saving on both labor and material costs. The industrial-grade design also ensures reliable performance in an outdoor or harsh industrial environment. Specifications: Ethernet Standard: IEEE 802.3 10/100Mbps, full duplex PoE Standard: IEEE 802.3af (PoE), IEEE 802.3at (PoE+) Max Distance: 300 meters (coaxial cable) Data Rate: 100Mbps full-duplex over coax Power Output: Up to 30W per port (PoE+) Operating Temperature: -40°C to 75°C (-40°F to 167°F) Housing: Rugged industrial-grade metal Mounting: DIN rail and wall mount options available Dimensions: 110mm x 60mm x 40mm Tri-Tek Electronics, as an authorized Signamax distributor based in Mesa, AZ, offers the FO-EI30110 with full manufacturer warranty and support. Our experts are ready to assist with installation and setup to ensure seamless operation for your industrial or security projects.

Read more less
