Jonard Tools TDR-100 Network Cable Tester and TDR

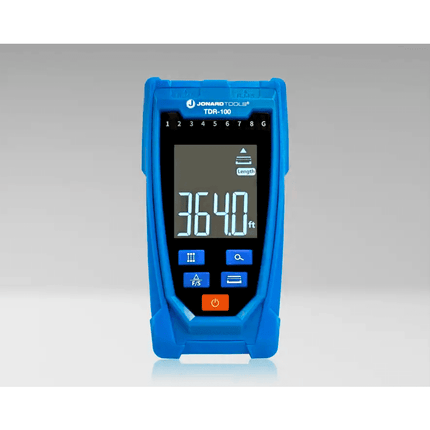

The Jonard Tools TDR-100 is a versatile, field-ready tester that combines a time-domain reflectometer (TDR) with a standard network cable tester. Designed for network engineers, IT professionals, and low-voltage technicians, it quickly identifies cable faults, measures cable length up to 400 m (1,312 ft), and traces installed cabling with an integrated tone generator. The 2.5″ color LCD and built-in flashlight ensure clear readings even in dimly lit patch panels or conduit runs. As an authorized distributor, Tri-Tek Electronics provides full manufacturer warranty coverage, the best pricing, and direct factory support from our Mesa, AZ retail location.
Key Features:
-

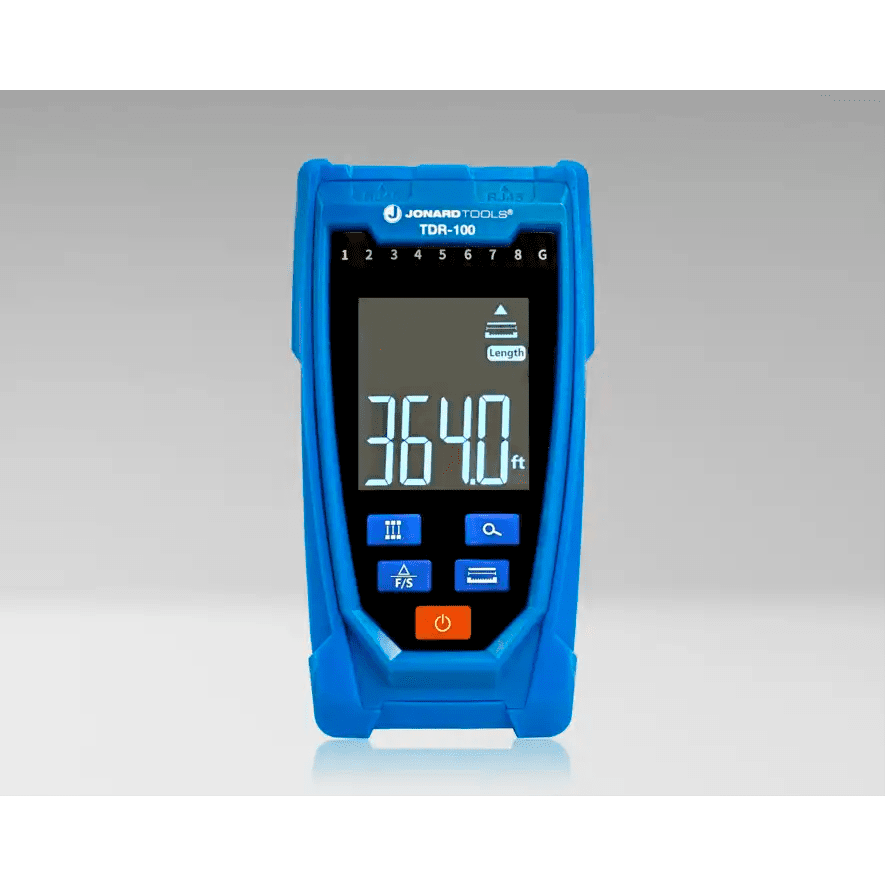

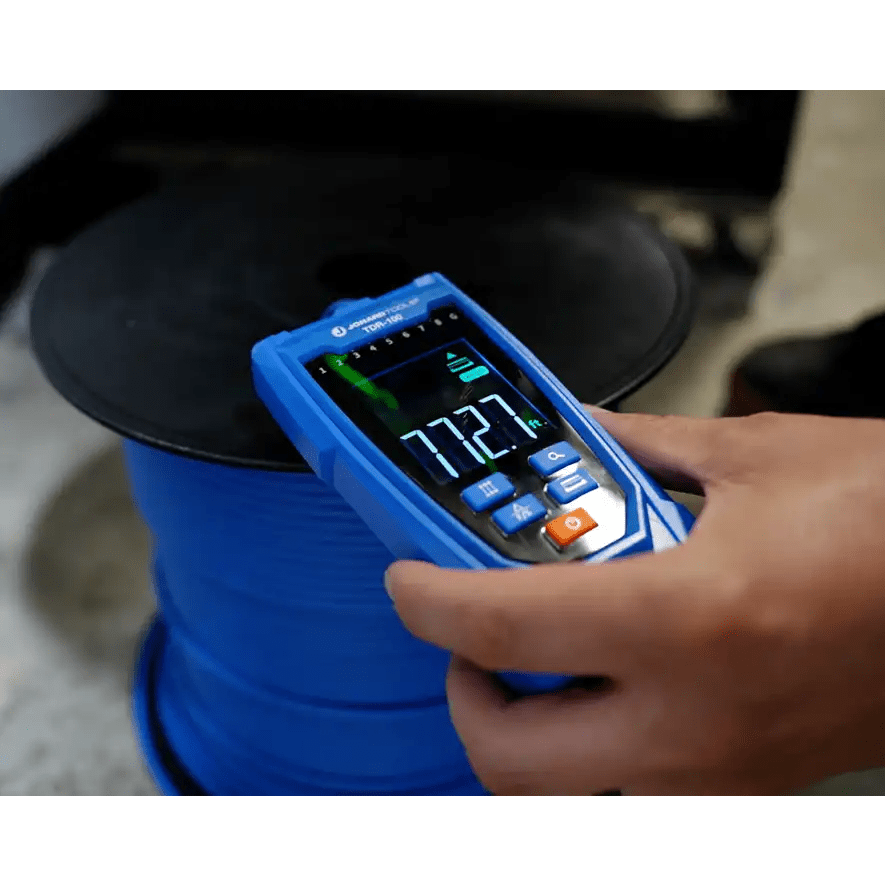

TDR Measurement: Pinpoints cable breaks or faults and measures length from 6.6 ft to 1,312 ft (2 m–400 m)
-

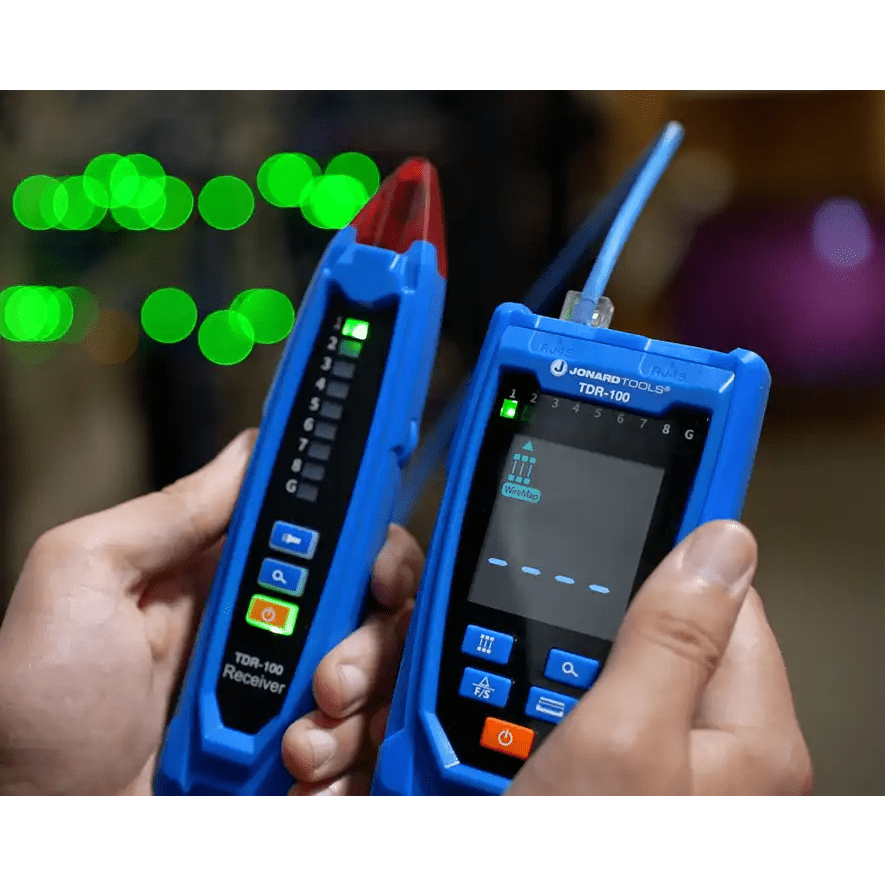

Wire Pair Mapping: Verifies TIA-568A/B line sequence; detects opens, shorts, crossed pairs, and reversals
-

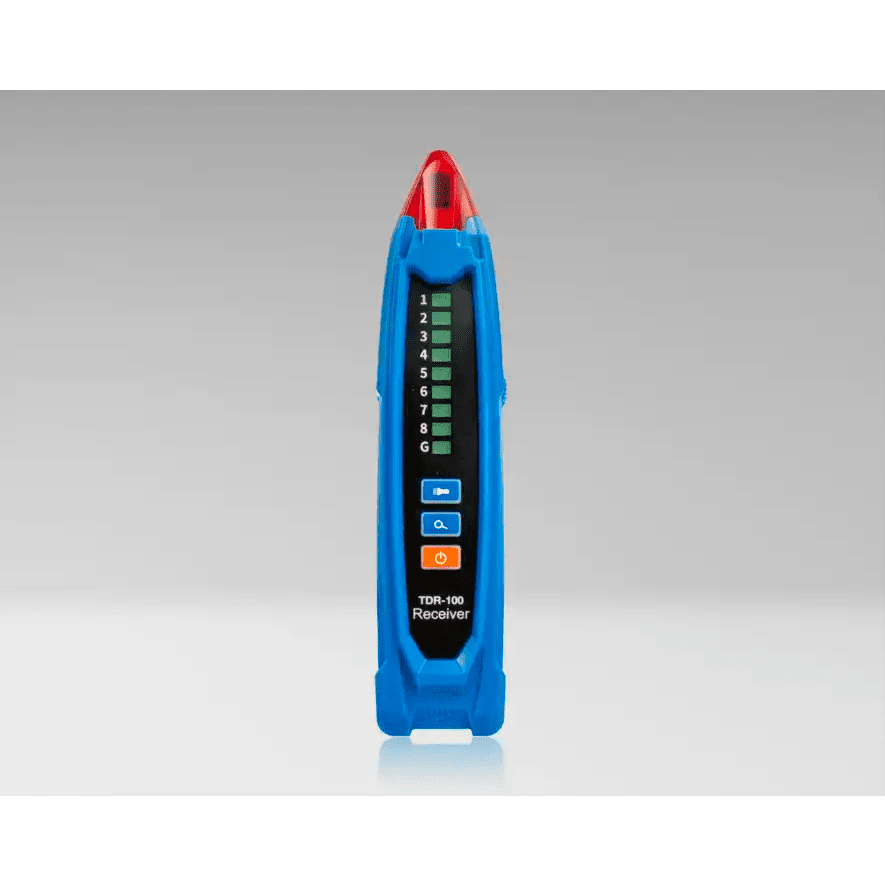

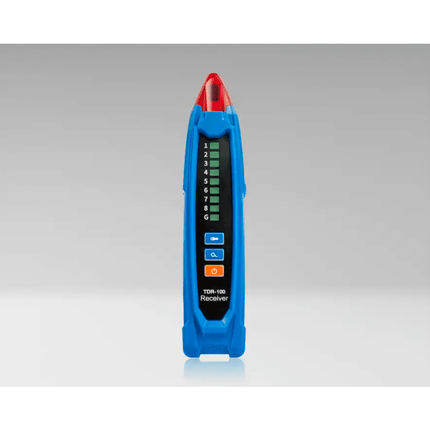

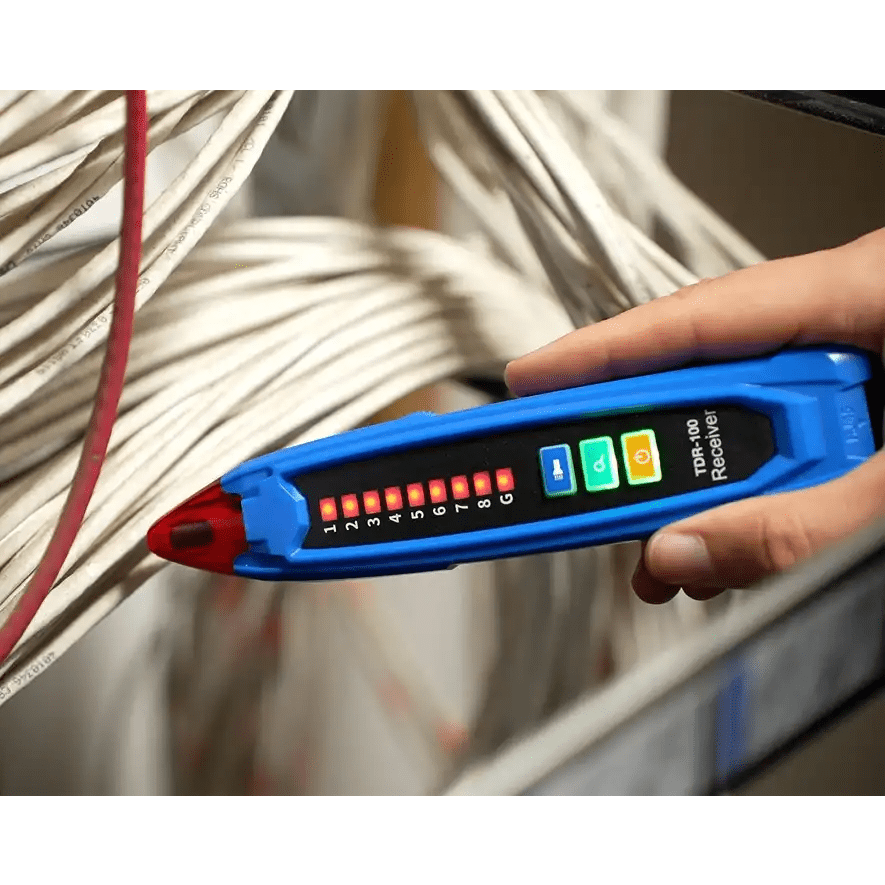

Cable Tracing: Functions as a tone generator to locate and trace cables behind walls or in bundles using the included probe
-

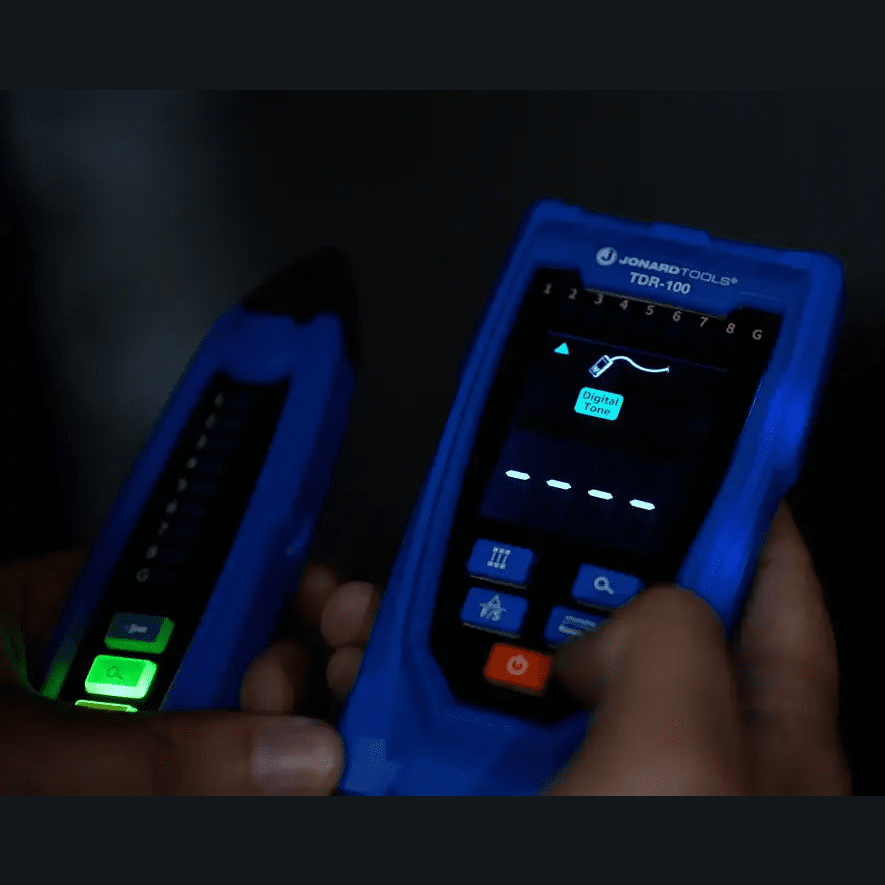

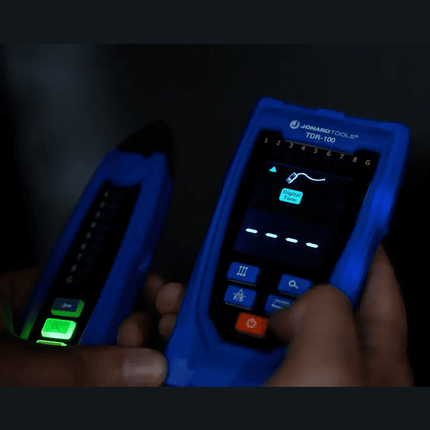

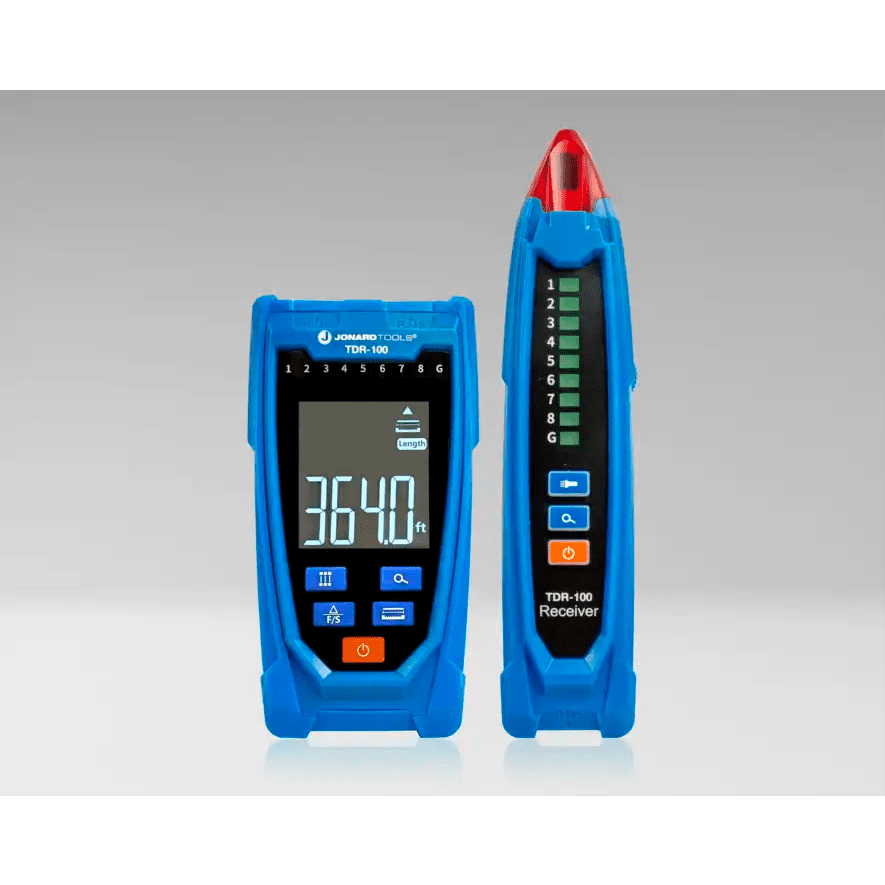

Display & Lighting: 2.5″ TFT color LCD for clear diagnostics; probe features a built-in flashlight for low-light environments
-
Durable Design: Compact housing with ergonomic grips, ideal for field and rack-room use

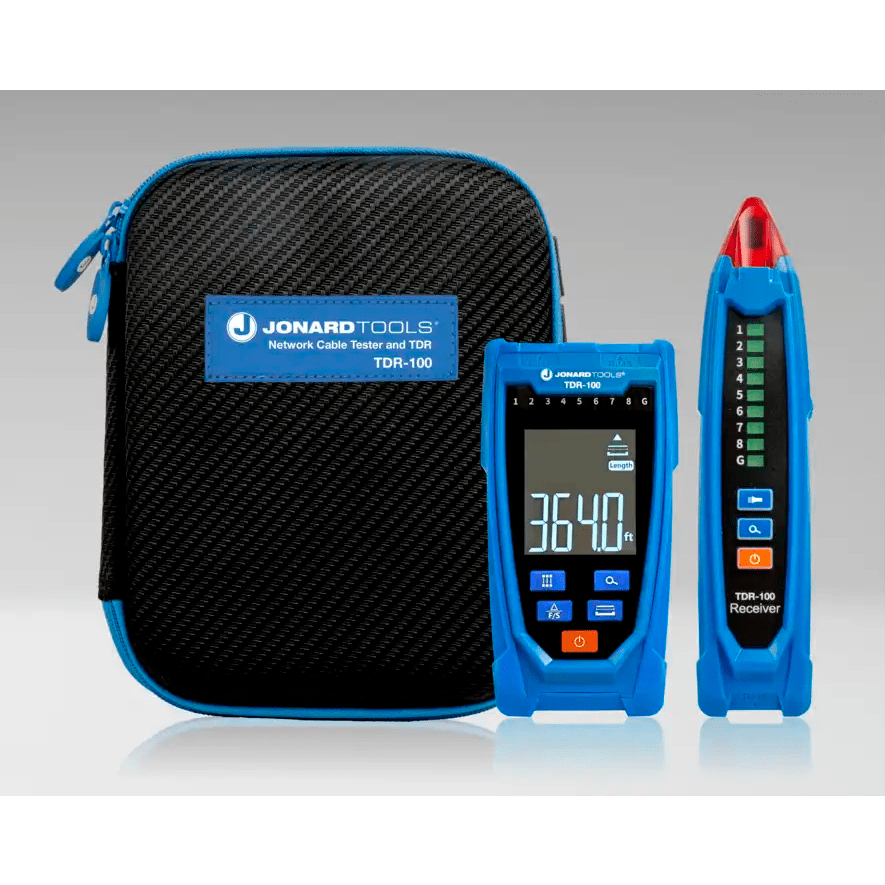

Includes:
Specifications:
-
Cable Length Range: 6.6 ft–1,312 ft (2 m–400 m)
-
Working Temperature: 0 °C–40 °C
-
Storage Temperature: –10 °C–50 °C
-
Display Type: 2.5″ TFT color LCD
-
Power Supply: Six (6) AAA batteries
-
Dimensions (HxWxD): 8.98″ × 5.63″ × 2.12″ (22.8 × 14.3 × 5.4 cm)
-
Weight: 1.05 lb (477 g)
-
UPC: 810132438141
Example Usage Scenario

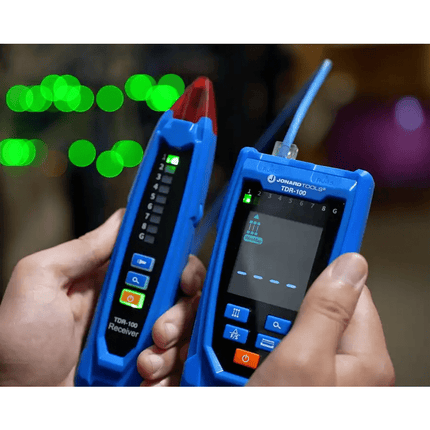

A data-center technician uses the TDR-100 to validate newly pulled Cat6A runs across multiple server racks. After terminating and labeling each cable, the technician clamps the RJ45 adapter, selects TDR mode to confirm run lengths, then switches to tone mode to trace cables through wall-mounted conduits—eliminating guesswork and reducing downtime.
Tri-Tek Electronics, your local Mesa, AZ supplier, ensures every TDR-100 purchase includes full manufacturer warranty coverage, factory-direct technical support, and competitive pricing for Phoenix-area installers, hobbyists, and technicians.
