Diodes / Rectifiers

Philmore 86-1217, 1w Zener Diode Assortment 5.1 / 6.2 / 9.1 / 10 / 12v FIVE Piece Assortment Package of Zener diodes. Includes one each of 1N4733 5.1v 1W 1N4735 6.2V 1W 1N4739 9.1V 1W 1N4710 10V 1W 1N4742 12V 1W

Read more less

Philmore 86-1280 1 Amp bridge rectifier - Suitable for various electronic applications - High-quality product from Philmore The Philmore 86-1280 1 Amp BRIDGE RECTIFIER is a reliable and high-quality component designed for a wide range of electronic applications. With its 1 Amp capacity, this bridge rectifier ensures efficient power conversion in your projects. 🛠️ **Specifications:** - Brand: Philmore - Model: 86-1280 - Amperage: 1 Amp - Type: Bridge rectifier 🔧 **Key Features:** - Versatile usage in electronics - Ensures smooth power conversion - High-quality construction for durability At Tri-Tek Electronics, we are proud to be an authorised distributor of Philmore products. By choosing the Philmore 86-1280 bridge rectifier through us, you can rest assured that you are getting a genuine product with all the performance and quality benefits that come with it. Upgrade your electronic projects with the Philmore 86-1280 and experience reliable power conversion like never before.

Read more less

TeknoCrafters 1N4001 50V DO-41 Direct Insertion Diode (Pack of 10) The TeknoCrafters 1N4001 is a general-purpose silicon rectifier diode, ideal for applications requiring reliable and efficient rectification. This package includes 10 diodes, each capable of handling up to 50V and 1A, making them suitable for various electronic circuits. Key Features: Reverse Voltage (Vᵣ): 50V Forward Current (I𝒻): 1A Surge Current (I𝒻𝓈𝓂): 30A Forward Voltage Drop (V𝒻): 1.1V at 1A Package Type: DO-41 axial lead Polarity: Cathode marked by a silver band Applications: AC to DC Rectification: Converts alternating current to direct current in power supplies. Reverse Voltage Protection: Safeguards circuits by preventing reverse current flow. Freewheeling Diode: Protects against voltage spikes in inductive loads. Value for Installers and Technicians: The 1N4001 diode's robust design ensures dependable performance in power management applications. Its high surge current capability makes it suitable for circuits experiencing transient conditions, providing longevity and reliability in various installations. Tri-Tek Electronics, an authorized distributor located in Mesa, AZ, offers this product with full manufacturer warranty coverage, competitive pricing, and factory support.

Read more less

TeknoCrafters 1N4007 1000V DO-41 Direct Insertion Diode (Pack of 10) The TeknoCrafters 1N4007 is a general-purpose silicon rectifier diode, ideal for applications requiring reliable and efficient rectification. This package includes 10 diodes, each capable of handling up to 1000V and 1A, making them suitable for various electronic circuits. Key Features: Reverse Voltage (Vᵣ): 1000V Forward Current (I𝒻): 1A Surge Current (I𝒻𝓈𝓂): 30A Forward Voltage Drop (V𝒻): 1.1V at 1A Package Type: DO-41 axial lead Polarity: Cathode marked by a silver band Applications: AC to DC Rectification: Converts alternating current to direct current in power supplies. Reverse Voltage Protection: Safeguards circuits by preventing reverse current flow. Freewheeling Diode: Protects against voltage spikes in inductive loads. Value for Installers and Technicians: The 1N4007 diode's robust design ensures dependable performance in power management applications. Its high surge current capability makes it suitable for circuits experiencing transient conditions, providing longevity and reliability in various installations. Tri-Tek Electronics, an authorized distributor located in Mesa, AZ, offers this product with full manufacturer warranty coverage, competitive pricing, and factory support.

Read more less

TeknoCrafters 1N5400 3A 50V Direct-Insertion Rectifier Diode (Pack of 10 pcs) The TeknoCrafters 1N5400 rectifier diode is a high-performance, general-purpose diode designed for applications requiring up to 3 amps of forward current and 50 volts of peak reverse voltage. Known for its durability and reliability, this diode is ideal for low-voltage rectification tasks, reverse polarity protection, and other DC voltage applications. Whether you're building or repairing power supplies, chargers, or other electronic circuits, the 1N5400 is a trusted and efficient component. This pack contains 10 diodes, providing excellent value for technicians, hobbyists, and installers needing a reliable stock of components for various projects. With its simple direct-insertion (through-hole) design, this diode is easy to install on PCBs or prototyping boards, ensuring consistent performance in a range of setups. Features: Rated Current: 3A forward continuous current for high-power applications. Peak Reverse Voltage: 50V, suitable for low-to-medium voltage rectification tasks. Fast Switching: Reduces power loss during operation. Compact Size: Ideal for space-limited circuit designs. Direct-Insertion Design: Standard through-hole mounting ensures ease of installation. Pack Size: Includes 10 diodes for ample supply. Specifications: Parameter Value Forward Continuous Current 3A Peak Reverse Voltage 50V Maximum Forward Voltage 1.2V @ 3A Reverse Recovery Time 30µs Mounting Style Through-Hole Package Type DO-201AD Applications: Rectification in power supplies Reverse polarity protection in circuits DC voltage regulation Battery charging systems Low-voltage AC to DC conversion Installation Example: The 1N5400 diode is commonly used in low-voltage rectification applications, such as building a full-wave bridge rectifier. Simply insert the diodes into your circuit board according to the circuit design, ensuring the proper orientation (anode and cathode), and solder them in place. For added durability in high-temperature environments, consider using a heat sink if operating at the diode's maximum current capacity. Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, ensuring full manufacturer warranty coverage and the best pricing and factory support. Visit our retail location in Mesa, AZ, or shop online to ensure you get authentic components for your projects.

Read more less

TeknoCrafters 1N5408 3A 1000V Direct-Insertion Rectifier Diode (Pack of 10 pcs) The TeknoCrafters 1N5408 rectifier diode is a robust, high-voltage diode designed to handle up to 3 amps of continuous forward current and 1000 volts of peak reverse voltage. This reliable and versatile component is ideal for high-voltage rectification, surge protection, and DC power regulation in demanding applications. With its direct-insertion (through-hole) design, this diode ensures ease of use in PCB assembly and prototyping. Perfect for use in power supplies, inverters, and other high-voltage circuits, the 1N5408 is a trusted choice for technicians, installers, and hobbyists who need dependable, high-performance diodes. This pack of 10 diodes provides excellent value for bulk usage in a wide range of projects. Features: High Voltage Rating: 1000V peak reverse voltage for high-voltage applications. High Current Handling: 3A forward continuous current capacity. Low Forward Voltage Drop: Ensures efficient operation with minimal power loss. Durable Construction: Withstands high temperatures and current loads. Direct-Insertion Design: Standard through-hole mounting for easy soldering. Pack Size: Includes 10 diodes for multiple applications. Specifications: Parameter Value Forward Continuous Current 3A Peak Reverse Voltage 1000V Maximum Forward Voltage 1.2V @ 3A Reverse Recovery Time 30µs Mounting Style Through-Hole Package Type DO-201AD Applications: High-voltage rectification in AC/DC converters Surge protection for sensitive electronic components Inverter circuits for industrial and residential use DC power supply regulation Bridge rectifier assemblies for high-voltage systems Installation Example: The 1N5408 is commonly used in high-voltage bridge rectifier configurations. For example, in a 120V or 220V AC to DC conversion project, four diodes can be connected in a bridge rectifier setup to provide efficient DC output. Ensure proper orientation of the diodes (anode and cathode) during installation and secure the solder joints for reliable performance. For additional safety, use heat sinks or proper airflow to manage heat dissipation in high-current circuits. Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, ensuring full manufacturer warranty coverage and the best pricing and factory support. Visit our retail location in Mesa, AZ, or shop online for genuine TeknoCrafters components.

Read more less

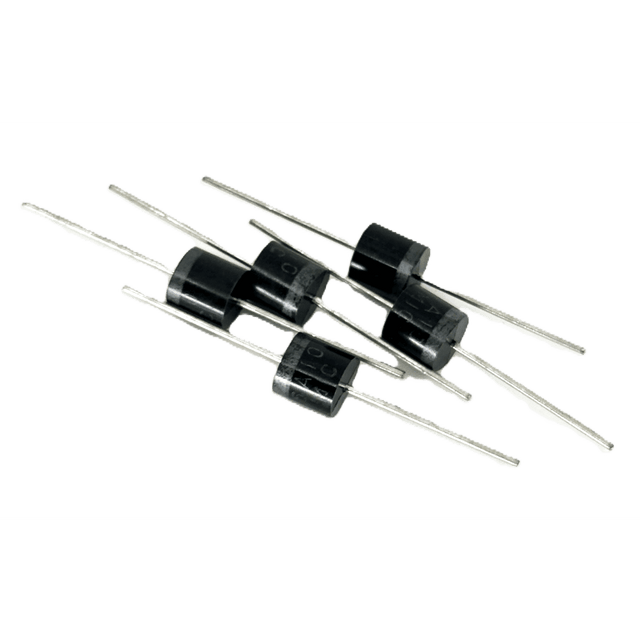

TeknoCrafters 6A10 6A 1000V Direct-Insertion Rectifier Diode (Pack of 5 pcs) The TeknoCrafters 6A10 rectifier diode is a high-power, general-purpose diode designed for applications requiring up to 6 amps of forward current and 1000 volts of peak reverse voltage. This versatile diode is ideal for high-current rectification, surge protection, and DC power conversion in industrial, commercial, and residential systems. Its direct-insertion (through-hole) design allows for easy installation on circuit boards or prototyping setups. This pack of 5 diodes offers excellent value for installers, technicians, and hobbyists who need durable, high-performance components for various high-voltage projects. Features: High Current Capacity: Supports up to 6A forward continuous current for heavy-duty applications. High Voltage Rating: Handles up to 1000V peak reverse voltage, making it suitable for high-voltage systems. Low Forward Voltage Drop: Reduces power loss and enhances efficiency. Durable Construction: Withstands high temperatures and current loads. Direct-Insertion Design: Standard through-hole mounting for easy soldering and installation. Pack Size: Includes 5 diodes for multiple applications. Specifications: Parameter Value Forward Continuous Current 6A Peak Reverse Voltage 1000V Maximum Forward Voltage 1.2V @ 6A Reverse Recovery Time 35µs Mounting Style Through-Hole Package Type DO-201AD Applications: High-current rectification in AC/DC power supplies Surge and voltage spike protection in industrial systems Battery charging circuits Inverters for solar and UPS systems Bridge rectifier assemblies in high-current and high-voltage applications Installation Example: The 6A10 diode is frequently used in high-power bridge rectifier setups for converting high-voltage AC into stable DC power. For instance, in a 220V AC system requiring a 12V or 24V DC output, four diodes can be connected in a bridge configuration to deliver high current while ensuring efficiency and stability. Ensure the diodes are oriented correctly (anode to cathode) during installation, and consider adding heat sinks or airflow mechanisms in high-current applications to manage heat dissipation. Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, guaranteeing full manufacturer warranty coverage, factory support, and the best pricing. Visit our retail location in Mesa, AZ, or shop online to find authentic TeknoCrafters components for your project needs.

Read more less

YSW GPBC3510 35A 1000V Bridge Rectifier Diode The YSW GPBC3510 is a high-performance bridge rectifier diode designed for applications requiring high current and voltage capacity. This device is capable of handling up to 35A of continuous current and withstanding reverse voltages of up to 1000V, making it suitable for a variety of industrial and commercial power rectification tasks. Features and Specifications Maximum Recurrent Peak Reverse Voltage: 1000V Maximum RMS Voltage: 700V Maximum DC Blocking Voltage: 1000V Average Forward Rectified Current: 35A Peak Forward Surge Current: 400A Forward Voltage Drop: 1.1V at 35A Reverse Current: 10µA at 1000V Operating Temperature Range: -55°C to +150°C Applications The YSW GPBC3510 bridge rectifier diode is ideal for: AC to DC conversion in power supplies Industrial power rectification Motor drives Battery chargers UPS systems Example Installation Scenario For instance, in an industrial motor drive system, the YSW GPBC3510 can be used to convert the AC power from the mains to DC power needed to drive the motor. Its high current and voltage handling capabilities ensure reliable operation even in demanding environments. The bridge rectifier can be easily installed on a heatsink to maintain optimal operating temperatures.

Read more less

TeknoCrafters FA5042 Diode Assortment Kit - 14 Values The TeknoCrafters FA5042 Diode Assortment Kit is a comprehensive collection of 14 essential diode types, making it ideal for technicians, hobbyists, and engineers. This kit is designed to meet a wide range of circuit design and repair needs, offering a convenient selection of rectifier, fast recovery, Schottky, and switching diodes. Each type is carefully selected to cover various voltage and current ratings, ensuring versatility and reliability for your electronic projects. Key Features: 14 Diode Types Included: A broad range of diodes suitable for rectification, fast recovery, switching, and low-voltage applications. Wide Range of Voltage and Current Ratings: Covers different operational needs from 50V to 1000V and up to 3A, offering flexibility for various circuit designs. Organized Assortment: Clearly labeled diodes for easy identification and efficient use during projects. High-Quality Components: All diodes in the kit meet RoHS and Pb-Free standards, ensuring reliability and environmental compliance. Kit Contents: Rectifier Diodes: 1N4001: 1A, 50V (Qty: 20) 1N4004: 1A, 400V (Qty: 20) 1N4007: 1A, 1000V (Qty: 20) RL207: 2A, 1000V (Qty: 10) 1N5404: 3A, 400V (Qty: 10) 1N5406: 3A, 600V (Qty: 10) 1N5408: 3A, 1000V (Qty: 10) Fast Recovery Diodes: UF4007: 1A, 1000V (Qty: 10) FR107: 1A, 1000V (Qty: 10) FR207: 2A, 1000V (Qty: 10) Schottky Diodes: 1N5817: 1A, 20V (Qty: 20) 1N5819: 1A, 40V (Qty: 20) 1N5822: 3A, 40V (Qty: 10) Switching Diodes: 1N4148: 200mA, 100V (Qty: 30) Example Use Case: A repair technician working on a power supply unit uses the 1N4007 rectifier diode to replace a faulty component in the circuit. For high-speed switching needs in a low-voltage circuit, the 1N4148 diode provides an efficient solution. The wide variety of diodes in the FA5042 kit ensures the technician always has the right part on hand. Tri-Tek Electronics in Mesa, AZ, is proud to offer the TeknoCrafters FA5042 Diode Assortment Kit. As an authorized distributor, we guarantee full manufacturer warranty coverage, competitive pricing, and expert technical support to meet your project requirements.
