Features: Effortlessly converts singlemode to multimode fiber at gigabit speeds. Complies with IEEE 802.3z standards for reliable performance. Flexible installation: wall, DIN-rail mounting, or compatible with media converter rack mount chassis. Comes with a Lifetime Warranty for assured quality. Specifications: Applicable Standards Adheres to IEEE 802.3z 1000BaseSX. Conforms to IEEE 802.3z 1000BaseLX. Ports P/N 065-1194: Includes 1 Fiber optic 1000BaseSX port and 1 Fiber optic 1000BaseLX port. Performance Low Latency: ≤4.2 μs (FIFO). High Throughput per port: At 1000Base, delivers 1,488,100 pps (64-byte packets). LED Status Indicators For each Unit: Indicates Power status. For each Fiber Port: Shows Port A Link (SDA) and Port B Link (SDB). Fiber Interface Type: Advanced MQW Laser. Wavelength for P/N 065-1194: Typically 1300 nm (1270 nm max., 1355 nm min.). Output Power Range: Max -3.0 dBm, Min -11.0 dBm. High Sensitivity: -22.0 dBm. Maximum Input Power: -3.0 dBm. Link Power Budget for P/N 065-1194: 11.0 dB. Electrical Characteristics Operates on 12 V DC. Includes an external 100 – 240 V AC, 50/60 Hz power supply. Environmental Requirements Operational Temperature: 32°F to 122°F (0°C to 50°C). Storage Temperature: -14°F to 158°F (-10°C to 70°C). Humidity Tolerance: 10% to 95% (non-condensing). Physical Characteristics Compact Dimensions: 4.33” L x 3.16” W x 0.91” H (109.2 mm x 83 mm x 23.8 mm). Lightweight: 0.33 lb (150 g). Certifications Certified by CE, FCC, ROHS, VCCI Class A. Warranty Offers a comprehensive Limited Lifetime Warranty.

Read more less

Features: Seamlessly convert between singlemode and multimode fiber at gigabit speeds. Fully compliant with the IEEE 802.3z standard. Versatile mounting options: wall, DIN-rail, or media converter rack mount chassis. Backed by a Lifetime Warranty for peace of mind. Specifications: Applicable Standards IEEE 802.3z 1000BaseSX IEEE 802.3z 1000BaseLX Ports P/N 065-1194ED: 1 Fiber optic 1000BaseSX port and 1 fiber optic 1000BaseLX port. Performance Low Latency: ≤4.2 μs (FIFO). High Throughput per port: @ 1000Base: 1,488,100 pps (64-byte packets). LED Status Indicators Per Unit: Power Indicator. Per Fiber Port: Port A Link (SDA); Port B Link (SDB). Fiber Interface Type: MQW Laser. Wavelength for P/N 065-1194ED: 1300 nm nominal (1261 nm max.,1360 nm min.). Max/Min Output Power: -3.0 dBm / -8.0 dBm. Sensitivity: -22.0 dBm. Max Input Power: -3.0 dBm. Link Power Budget for P/N 065-1194ED: 14.0 dB. Electrical Characteristics 12 V DC. External power supply: 100 – 240 V AC, 50/60 Hz included. Environmental Requirements Operating Temperature: 32°F to 122°F (0°C to 50°C). Storage Temperature: -14°F to 158°F (-10°C to 70°C). Relative Humidity Tolerance: 10% to 95% (non-condensing). Physical Characteristics Dimensions: 4.33” L x 3.16” W x 0.91” H (109.2 mm x 83 mm x 23.8 mm). Weight: 0.33 lb (150 g). Certifications CE, FCC, ROHS, VCCI Class A. Warranty Comprehensive Limited Lifetime Warranty.

Read more less

Description: Elevate your network infrastructure with the Signamax 12-Channel Rack Mount Media Converter, the ultimate solution for large-scale fiber optic connectivity. This powerhouse device packs an impressive 12 media converter channels into a compact 1U rack mountable chassis, maximizing port density and streamlining network management. Key Features: Unparalleled Port Density: Accommodate up to 12 media converter channels in a single rack unit, maximizing space utilization and reducing cable clutter. Versatile Media Conversion: Seamlessly convert between 10/100BaseT/TX and 100BaseFX or from 1000BaseT to 1000BaseSX/LX, ensuring compatibility with a wide range of network devices. Dual Redundant Power Supplies: Safeguard your network uptime with dual redundant load-sharing power supplies, eliminating single points of failure. Link Fault Signaling: Proactively monitor network health with comprehensive link fault signaling on all switching converters. Built-in 10/100BaseT/TX Switch: Leverage the built-in 10/100BaseT/TX switch for efficient store-and-forward data transmission. Unleash Unparalleled Network Performance: Ultra-Fast Speeds: Experience blazing-fast network speeds with support for 100BaseTX, 100BaseFX, 1000BaseT, and 1000BaseSX/LX protocols. Reduced Latency: Minimize network delays with exceptional latency of less than 4.2 μs (LIFO). Enhanced Throughput: Enjoy exceptional throughput of up to 148,809 pps (64-byte packets) per port. Embrace Unmatched Reliability: Robust Construction: Encased in a durable metal chassis, the Signamax 12-Channel Rack Mount Media Converter is built to withstand the rigors of demanding network environments. Extensive Certifications: Rest assured of compliance with industry standards, including CE, FCC, ROHS, and VCCI Class A. Limited Lifetime Warranty: Experience unparalleled peace of mind with a limited lifetime warranty. Revolutionize Your Network Infrastructure: Embrace the future of network connectivity with the Signamax 12-Channel Rack Mount Media Converter and unleash the power of high-density fiber optic conversion. Contact us today to elevate your network performance and experience the Signamax difference

Read more less

Certainly, here's the updated SEO-optimized description for the Signamax 10/100 to 100FX PoE+ Industrial Media Converters: The Signamax 10/100 to 100FX PoE+ Industrial Media Converters are engineered to thrive in demanding industrial settings that demand robust equipment capable of operating in extreme temperature variations. These converters come equipped with PoE+ power source capabilities, allowing them to deliver power to PoE or PoE+ enabled devices via twisted pair connections. This converter serves as an intelligent solution for outdoor environments, transportation systems, shop floors, and other challenging conditions where consistent operation in temperature extremes ranging from 14°F to 140°F (-10°C to 60°C) is essential. Its compact, plug-and-play design eliminates the need for intricate user configurations and offers a cost-effective choice for security and public safety applications. Key Features: Supports PoE+ (30-watt) Power Source Equipment (PSE) DIP switch configuration for link fault signaling, link down alarm, and speed/duplex mode selection 48 V DC terminal block power inputs Compatible with DIN-rail or panel mount installations Specifications: Applicable Standards: IEEE802.3 10BaseT IEEE802.3u 100BaseTX/100BaseFX IEEE802.3x Flow Control and Back pressure Ports: 1 – RJ-45 10/100BaseT/TX Auto-Negotiation, Auto-MDI/MDIX port 1 – Fiber optic 100BaseFX port LED Status Indicators: Per Unit: Power Status (Power) Per Port: 10/100BaseT/TX port: Link/Activity, Full-duplex/Collision 100BaseFX port: Link/Activity; PoE: PD connect/PD disconnect Performance: Latency: < 4.2 μs (LIFO) Throughput, per port: @ 100Base: 148,810 pps (64-byte packets) Electrical Characteristics: DC Input Range: 48 to 57 V DC Connected via Redundant Terminal Block; 48 to 52 V DC input supports up to 15.4 Watts, 52 to 57 V DC input supports up to 30 Watts. Environmental Requirements: Operating Temperature: 14°F to 140°F (-10°C to 60°C) Storage Temperature: -40°F to 185°F (-40°C to 85°C) Operating Humidity: 5% to 95% (non-condensing) Physical Characteristics: Dimensions: 1.18 W” x 2.76” D x 3.33” H (30 mm x 70 mm x 110 mm) Housing: IP30 protection, metal case. Pre-attached DIN-rail included. Weight: 0.55 lb (0.25 kg) Certifications: Safety: EN61000-6-2 EMI: FCC; EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3 EMS: ESD Standards (EN61000-4-2); Radiated RFI Standards (IEC 61000-4-3); Burst Standards (IEC 61000-4-4); Surge Standards (IEC 61000-4-5); Induced RFI Standards (IEC 61000-4-6); Magnetic Field Standards (IEC 1000-4-8); Voltage Dip Standards (IEC 61000-4-11) Environmental Test Compliance: Vibration Resistance (IEC 60068-2-6 Fc); Operation/Storage/Transport Shock (IEC 60068-2-27 Ea); Free Fall (IEC 60068-2-32 Ed) Warranty: Limited Lifetime

Read more less

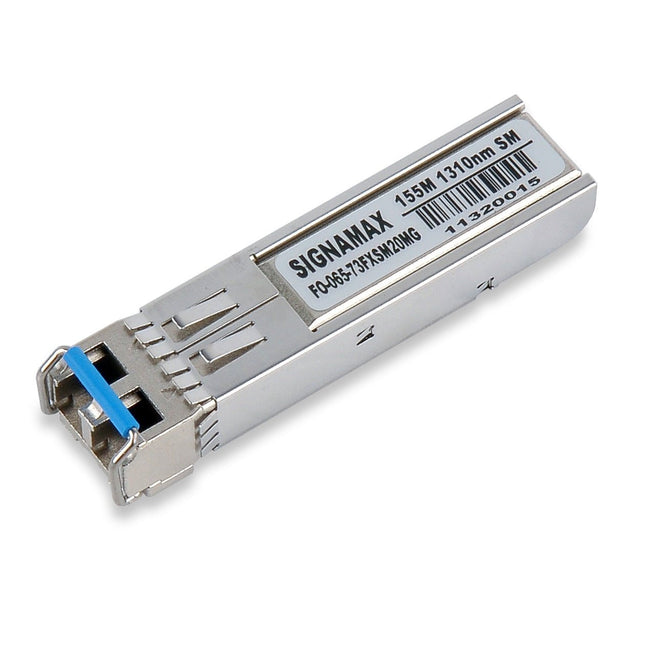

- Extended temperature range for versatile use - 20 km transmission distance for long-range connectivity - Compatible with various network standards for flexibility Elevate your networking capabilities with the Signamax FO-065-73FXSM20MG-H 100FX/OC-3/STM-1 Extended Temperature SFP Module. Designed for professionals like you, this module offers exceptional performance and value, making it a must-have for electronics technicians, IT professionals, and low voltage installers. 🔹 **Extended Temperature Range**: With its extended temperature range, this SFP module ensures reliable performance in various environments, providing you with the flexibility you need for your projects. 🔹 **Long-Range Connectivity**: Enjoy seamless connectivity up to 20 km, allowing you to extend your network across greater distances without compromising on performance. 🔹 **Versatile Compatibility**: This module is compatible with multiple network standards, giving you the freedom to integrate it into different setups with ease. At Tri-Tek Electronics, we take pride in being an authorised distributor of Signamax products. By choosing us, you not only gain access to top-quality products like this SFP module but also benefit from our expertise and support to enhance your networking solutions. Upgrade your network infrastructure today with the Signamax FO-065-73FXSM20MG-H SFP Module!

Read more less

  Signamax SFP Fiber Modules for Gigabit Ethernet: High-Performance, Long-Range Connectivity Solutions Overview: The Signamax Small Form-factor Pluggable (SFP) fiber modules are expertly crafted to deliver top-tier Gigabit Ethernet transmission, compatible with both multimode and singlemode fiber cables. These modules stand out in their ability to cover remarkable distances up to 110 kilometers, adhering to the stringent IEEE 802.3z standards. This ensures reliable and seamless fiber connectivity for Gigabit Ethernet applications. Cost-Effective and Flexible Solution: Signamax SFP modules are a budget-friendly choice for adding high-speed fiber optic interfaces to network devices. They seamlessly integrate with switches and media converters that have a standard SFP port, providing a versatile solution for various network setups. Temperature-Resistant Design: Designed to function optimally within a Standard Temperature Range (0°C to 70°C), these modules are built to withstand varying environmental conditions, ensuring consistent performance. Key Features: Compliance and Certification: The modules are RoHS compliant and adhere to the SFP Multi-Source Agreement (MSA), ensuring compatibility and safety. Extended Link Distance: They support link distances up to 110 km, making them ideal for extensive network layouts. Easy Installation: Hot-pluggable design simplifies the installation process, allowing for quick and hassle-free setup. Enhanced EMI Performance: The inclusion of a metal enclosure significantly improves electromagnetic interference (EMI) performance. Energy-Efficient: Low power consumption feature contributes to overall energy efficiency in network setups. Applications: Versatile Network Integration: Perfect for router and server interfaces, switch-to-switch connections, and high-speed I/O for file servers. Supports Distributed Multi-Processing: Enhances the capability and efficiency of distributed network systems. Specifications: Part Number: 065-79EZXMG Spectrum Type: EZX Light Source: 1550 nm DFB Laser Link Power Budget: 30 dBm Maximum Distance: Typically 110 km Supply Voltage: 3.3 V Operating Temperature Range: 0°C to 70°C

Read more less

            Signamax Small Form-factor Pluggable (SFP) fiber modules offer a versatile range of options for Gigabit Ethernet transmission over multimode or singlemode fiber cables, with capabilities extending up to 40 kilometers. Fully compliant with IEEE 802.3z standards, these modules are tailored for Gigabit Ethernet fiber connectivity. They stand out as cost-effective solutions for providing adaptable Gigabit Ethernet fiber optic interfaces to switches and media converters featuring a standard SFP port. The Industrial Temperature Range (-40° C to 85° C) Model is particularly notable for its robustness.Key Features:- RoHS compliant for environmental safety.- Aligns with the SFP Multi-Source Agreement (MSA).- Supports up to 40 km link distances.- Easily hot pluggable.- Designed with a metal enclosure to minimize EMI performance.- Engineered for low power dissipation.Ideal Applications:- Reliable Router/Server interfaces.- Efficient Distributed multi-processing.- Smooth Switch to switch interfaces.- High-speed I/O for file servers.Technical Specifications:| Part Number | TX/RX Spectrum | Light Source | Link Power Budget | Max. Distance | Voltage | Operating Temp. || ------------ | -------------- | ------------ | ----------------- | ------------- | ------ | --------------- || 065-79LXEDMG-H | LHX 1310 | DFB Laser | 22 dBm | 40 km | 3.3 V | -40 ~ 85° C |Note: Maximum distances achievable on singlemode fiber circuits depend on the circuit's conditions; including the number of splices, patch panels, and bends in the circuit path. For meaningful comparisons with competing products, the Link Power Budget should be used as a benchmark.

Read more less

Signamax Small Form-factor Pluggable (SFP) fiber modules offer a variety of options, supporting Gigabit Ethernet transmission over either multimode or singlemode fiber cable, reaching distances up to 40 kilometers. These modules comply with the IEEE 802.3z standards for Gigabit Ethernet fiber connectivity, and provide a cost-effective solution for integrating changeable Gigabit Ethernet fiber optic interfaces into switches and media converters equipped with a standard SFP port. They are also available in an Industrial Temperature Range model, which operates between -40° C to 85° C. Features: Compliant with RoHS Conforms to the SFP Multi-Source Agreement (MSA) Capable of reaching up to 40 km link distance Hot pluggable for easy installation Encased in metal for low EMI performance Energy efficient with low power dissipation Applications: Router / Server interface Distributed multi-processing Switch to switch interface High speed I/O for file server Specifications: Part Number: 065-79XDMG-H TX/RX Spectrum: XD 1550 Light Source: DFB Laser Link Power Budget: 18 dBm Typical Max. Distance: 40 km *** Supply Voltage: 3.3 V Operating Temp: -40 ~ 85° C *** The maximum distances achievable on singlemode fiber circuits depend on the conditions of the circuit, such as the number of splices and patch panels, and the number of bends in the circuit path. For comparisons with competing products, please use the Link Power Budget for meaningful comparisons.

Read more less

Discover the versatility of Signamax Small Form-factor Pluggable (SFP) Fiber Modules, engineered for optimal performance in Gigabit Ethernet applications. These modules offer a wide selection, compatible with both multimode and singlemode fiber cables, capable of transmitting data over distances up to 80 kilometers. Fully compliant with IEEE 802.3z standards, they ensure robust and efficient Gigabit Ethernet fiber connectivity. These cost-effective modules provide easily interchangeable fiber optic interfaces for switches and media converters equipped with a standard SFP port. Designed for standard temperature range operations (0° C to 70° C), they are ideal for various networking environments.Key Features:- RoHS compliant for environmental sustainability.- Aligns with the SFP Multi-Source Agreement (MSA).- Supports up to 80 km link distances for extensive network coverage.- Hot-pluggable design for seamless integration.- Metal enclosure minimizes electromagnetic interference (EMI).- Engineered for low power consumption, enhancing energy efficiency.Applications:- Ideal for router and server interfaces.- Suitable for distributed multi-processing systems.- Effective for switch-to-switch connections.- Optimal for high-speed input/output operations in file servers.Specifications:| Part Number | TX/RX Spectrum | Light Source | Link Power Budget | Max. Distance* | Supply Voltage | Operating Temp. || 065-79ZXMG | ZX 1550 | DFB Laser | 23 dBm | 80 km** | 3.3 V | 0 to 70° C |Note: Maximum achievable distances on singlemode fiber circuits vary based on circuit conditions, including the number of splices, patch panels, and bends. For effective product comparisons, refer to the Link Power Budget.

Read more less

     Explore Signamax's Advanced Small Form-factor Pluggable (SFP) Fiber Modules - a versatile solution for Gigabit Ethernet transmission. These modules offer a broad spectrum of choices, capable of operating over both multimode and singlemode fiber cables, with the impressive capability of reaching distances up to 80 kilometers. Fully compliant with IEEE 802.3z standards, they ensure reliable Gigabit Ethernet fiber connectivity. These modules are an economical way to provide flexible Gigabit Ethernet fiber optic interfaces to switches and media converters that have a standard SFP slot. The Industrial Temperature Range model operates efficiently between -40° C and 85° C.Features:- Compliance with RoHS standards.- Conforms to the SFP Multi-Source Agreement (MSA).- Supports link distances up to 80 km.- Hot-pluggable design for easy installation.- Robust metal enclosure ensures minimal EMI interference.- Optimized for low power consumption.Applications:- Router and server interfaces.- Distributed multi-processing environments.- Switch-to-switch connections.- High-speed file server I/O operations.Specifications:| Part Number | TX/RX Spectrum | Light Source | Link Power Budget | Max. Distance* | Supply Voltage | Operating Temp. || 065-79ZXMG-H | ZX 1550 | DFB Laser | 23 dBm | 80 km** | 3.3 V | -40 to 85° C |*Note: Maximum distances achievable on singlemode fiber circuits depend on specific circuit conditions, such as the number of splices, patch panels, and bends in the circuit path. For meaningful comparisons with competing products, please refer to the Link Power Budget.

Read more less

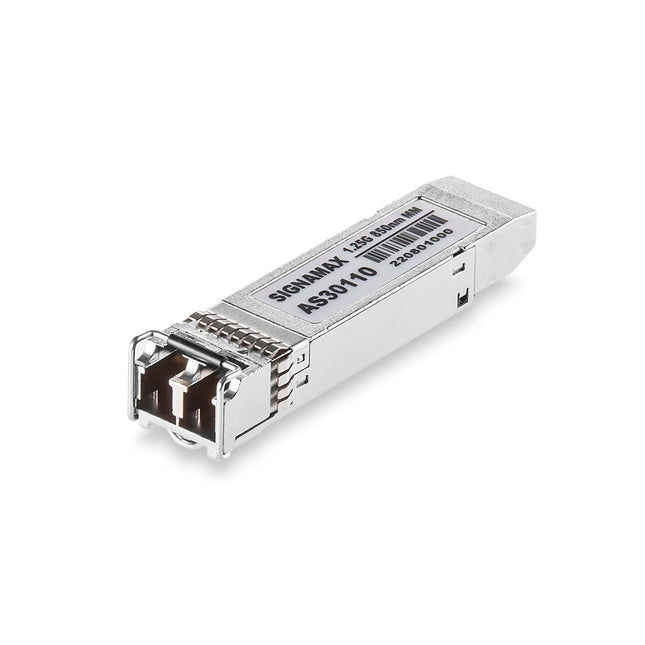

- Cisco compatible 1000BaseSX Multimode SFP - High performance for reliable network connectivity - Easy installation for convenience Upgrade your network with the Signamax FO-AS30110 1000BaseSX Multimode SFP, Cisco Compatible. Designed for electronics technicians, IT professionals, and low voltage installers, this high-performance SFP module ensures reliable network connectivity. 🚀 🔹 Cisco compatible 1000BaseSX Multimode SFP 🔹 Easy installation for convenience 🔹 Backed by Tri-Tek Electronics as an authorised distributor for added peace of mind Ensure seamless data transmission and enhance your network performance with the Signamax FO-AS30110. Trust in the expertise of Tri-Tek Electronics to deliver top-quality products for your networking needs. Elevate your network infrastructure today!

Read more less

- Cisco compatible 1000BaseSX Extended Distance Multimode SFP - Extended distance capabilities for versatile installation options - High performance for reliable network connectivity Elevate your network infrastructure with the Signamax FO-AS30120 1000BaseSX Extended Distance Multimode SFP. This Cisco compatible module offers extended distance capabilities, ensuring flexibility in your installation setup. With high performance and compatibility, this SFP module guarantees reliable network connectivity for electronics technicians, IT professionals, and low voltage installers. 🔹 Cisco compatible 1000BaseSX Extended Distance Multimode SFP 🔹 Extended distance capabilities for versatile installation options 🔹 High performance for reliable network connectivity Specifications: - Product: Signamax FO-AS30120 - Data Rate: 1.25 Gbps - Connector Type: LC - Compatibility: Cisco - Fibre Type: Multimode - Warranty: Manufacturer's Limited Lifetime Tri-Tek Electronics is an authorised distributor of Signamax products, ensuring you receive authentic items with the manufacturer's guarantee. Upgrade your network with the Signamax FO-AS30120 and experience seamless connectivity like never before. Trust in Tri-Tek Electronics for all your networking needs.
