Description

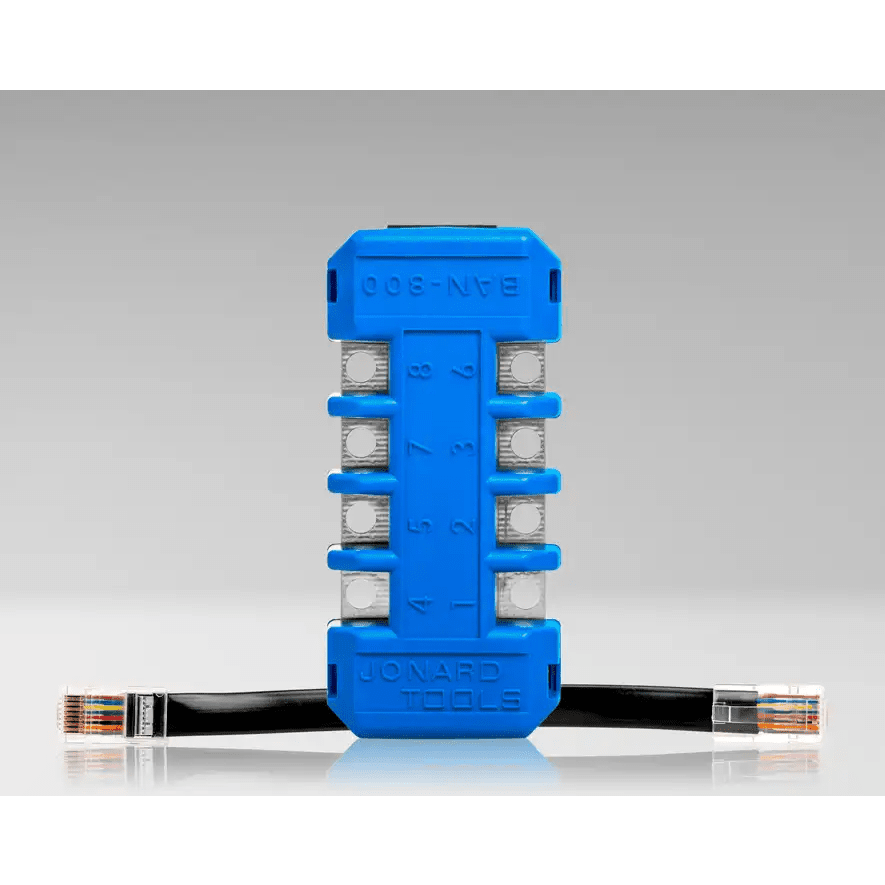

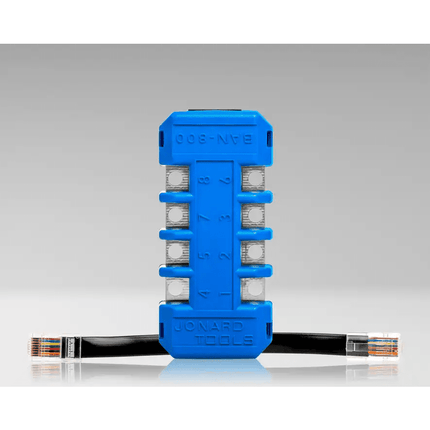

Jonard Tools BAN‑800 RJ45 8‑Position Modular Adapter
Product Overview
The Jonard Tools BAN‑800 is an 8‑position ("8P") modular adapter, commonly referred to as a “Banjo” adapter, designed for network and telephone line testing. It allows connection of butt sets, telephone test sets, tone generators, and network test equipment to RJ‑style modular plugs (RJ 11, RJ 12, RJ 45) used on data and telephone lines.
This makes it ideal for field technicians, low‑voltage installers, and network professionals who need reliable access to live modular‑plug circuits for signal verification, fault location, or continuity checks.
Key Features
-
Holed copper contacts that accept alligator clips, ensuring a secure clamp‑on during testing
-
Easy‑to‑read wire‑layout markings clearly identify each of the 8 positions
-

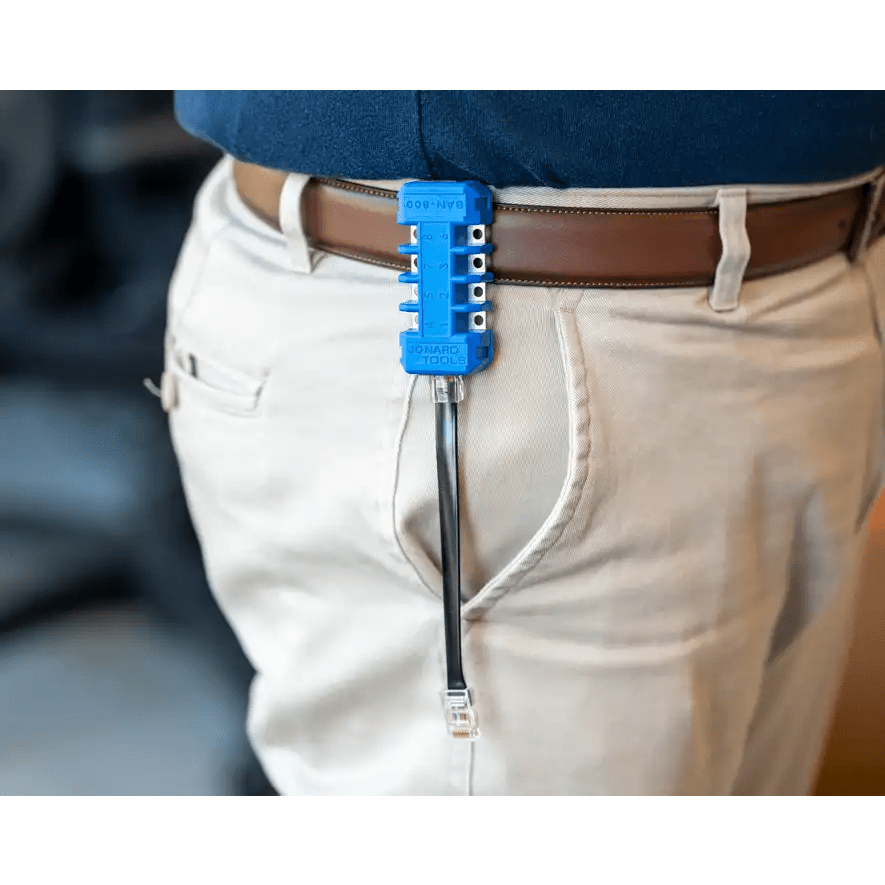

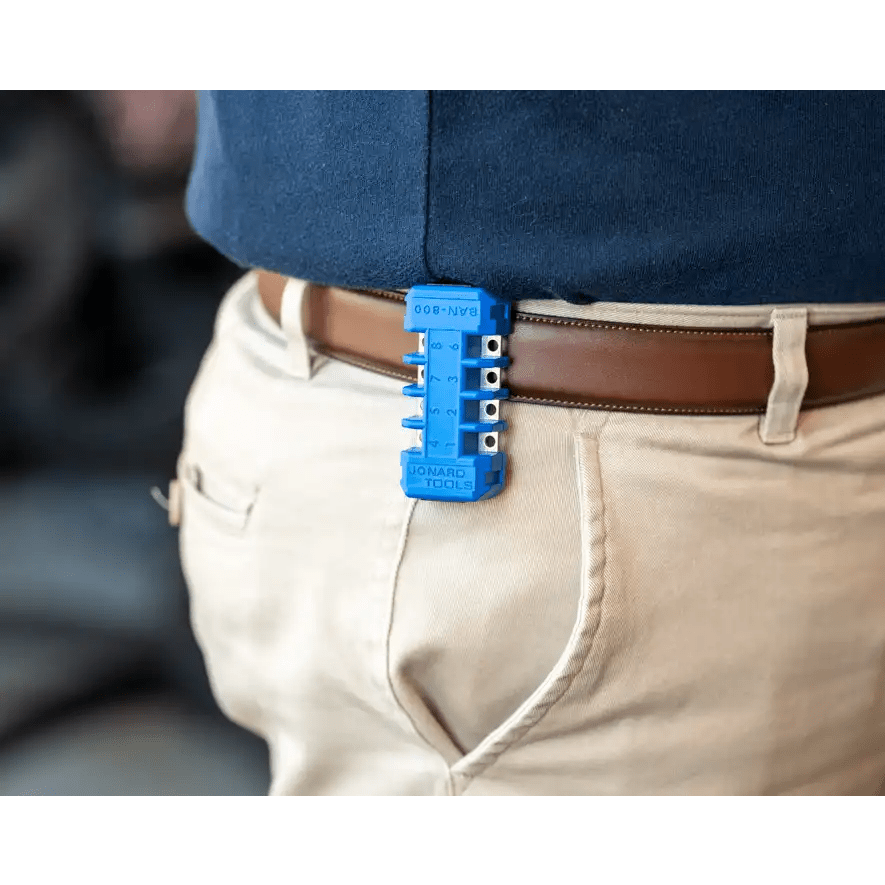

Reinforced ABS plastic body and integrated belt clip for portability and durability on the job
-
Includes a removable patch cord with rugged jack clips, making connection to test gear simple and quick
-
Versatile plug compatibility — supports RJ11, RJ12, and RJ45 connectors via the same adapter
-
Lifetime warranty from Jonard Tools
Specifications
| Specification |
Detail |
| Number of Positions |
8 |
| Dimensions |
2.92 in × 1.35 in × 1.20 in (7.42 cm × 3.43 cm × 3.05 cm) |
| Weight |
0.07 lb (≈30.9 g) |
| UPC |
810053359617 |
| Warranty |
Lifetime warranty via Jonard Tools |
Typical Installation / Usage Scenario

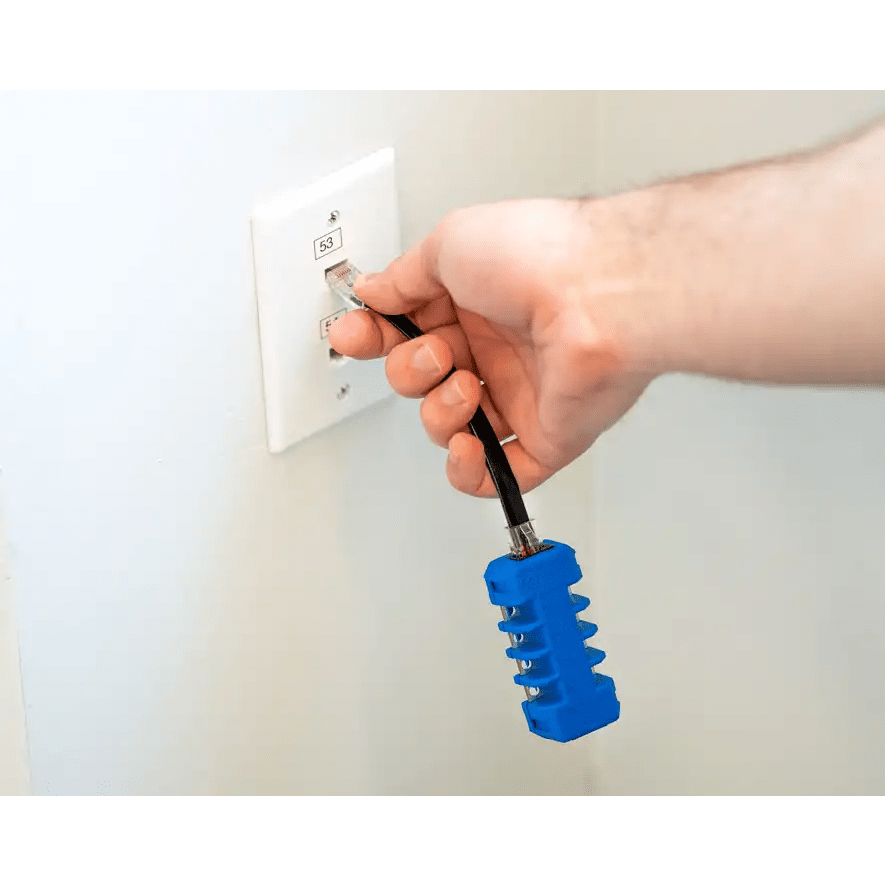

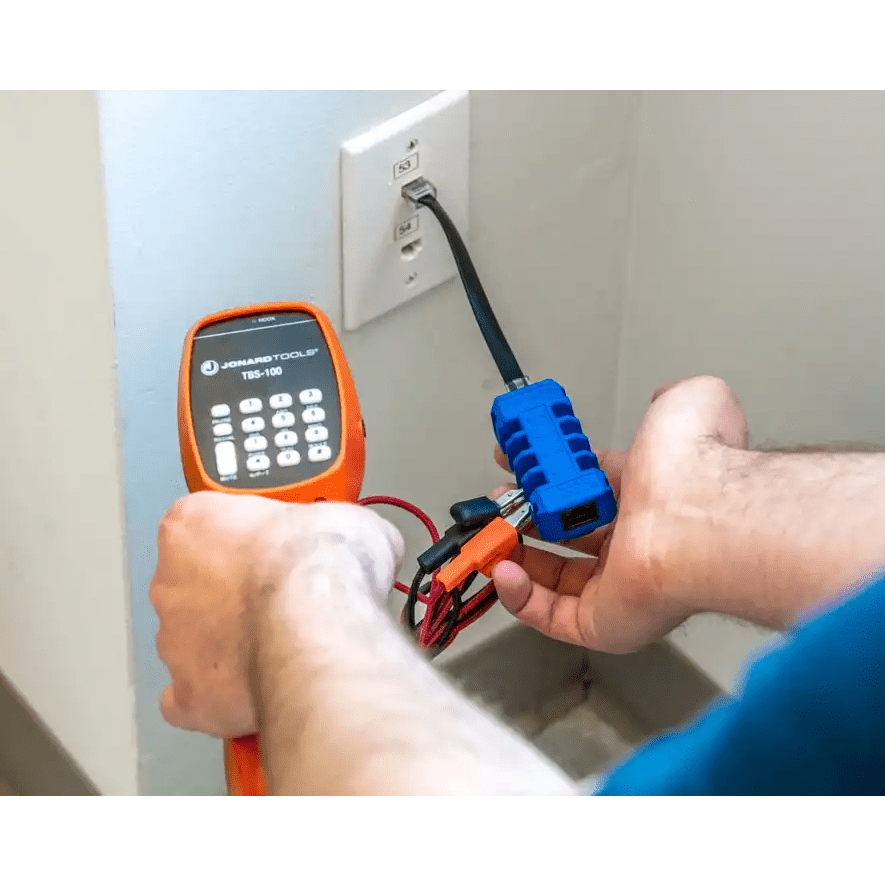

Imagine a low‑voltage installer on a commercial job in Phoenix (Mesa, Chandler, Tempe, Gilbert, Scottsdale, Glendale). They’ve run a bundle of Cat5e/Cat6 cables with RJ45 terminations to workstations, telephone sets, and wall jacks. At the job hand‐over, the installer needs to verify continuity, correct pinouts, and observe any signal anomalies (e.g., butting onto an active data line or verifying dial tone on RJ11/12). They plug the RJ45/Cat6 connector into the BAN‑800 adapter, clip their alligator leads from the tester or tone generator to the holed copper contacts, and quickly map or troubleshoot the lines. The belt‑clip keeps the adapter on‑hand, the sturdy ABS body holds up in the tech’s toolkit, and the clear wire layout prevents mis‑interpretation of pin positions. In short: the BAN‑800 serves as a compact, field‑ready interface between modular plug terminations and test equipment.
Why Buy from Tri‑Tek Electronics, Mesa AZ
Tri‑Tek Electronics is an authorized distributor of Jonard Tools and ensures full manufacturer warranty coverage, best pricing, and factory support. With a retail location in Mesa, Arizona, local technicians can rely on same‑day or next‑day pickup and responsive service. Whether you’re working a job in the Valley of the Sun or servicing a remote site around Maricopa, Tri‑Tek has you covered.
Suitability
-
Technicians / Installers: Excellent for network cabling contractors who need a rugged adapter for live line testing and quick diagnostics
-
Hobbyists / Home network: Also suitable for advanced home‑networkers who terminate their own RJ45 jacks and need diagnostic access
-
Low‑Voltage Maintenance: Useful for voice/data/tone‑generator setups, especially when converting between RJ11/12 and RJ45 modular ends
Summary
If you need a dependable, field‑ready modular adapter for testing RJ11, RJ12 and RJ45 terminations — and you value clarity of wiring, secure clip access, and rugged portability — the Jonard Tools BAN‑800 is a strong choice. Combined with purchase from Tri‑Tek Electronics in Mesa, AZ, you get full distributor support and local presence.
