Security, Access, and Fire Cable

Syston 5717‑PB‑WH‑500 18/4 Stranded Shielded Security Control Sound & Alarm Cable – White 1000 ft OverviewSyston’s 5717-PB-WH-1000 cable is a professional-grade, stranded and shielded 18 AWG 4-conductor cable designed for use in low-voltage security, alarm, access control, and sound applications. Engineered with a white UV-resistant PVC jacket and a foil shield for EMI protection, this cable meets a full range of industry certifications including CMR, CL3R, FPLR, and FT4 for riser-rated and fire alarm installations. It is suitable for commercial, industrial, and residential environments requiring both reliability and code compliance. Key Features & Benefits 18 AWG stranded bare copper conductors for flexibility and superior signal transmission 4-conductor configuration ideal for common alarm, control, and security system layouts Aluminum foil/polyester shielding with 99% coverage for excellent protection from electromagnetic interference White PVC outer jacket is sunlight-resistant and flame-retardant for long-term durability in indoor riser pathways Voltage rating of 300 volts, supporting a wide range of low-voltage systems Temperature rated from -35°C to +75°C, allowing performance in varied Arizona climate conditions UL listed for CMR (riser), CL3R (class 3 riser), FPLR (fire power limited riser), and FT4 (Canadian flame rating) Packaged in a 500-foot pull box for easy, efficient installation in structured cabling projects Installation Use Case This cable is often deployed in multi-story commercial buildings for connecting fire alarm panels to sensors, powering access control points, or distributing audio signals in public address systems. The shielded construction makes it particularly useful when routing cable near potential sources of electrical interference, such as near HVAC systems or fluorescent lighting. Whether pulling cable through risers or conduit, installers can count on the flexibility and durability of this product to perform under challenging conditions. Tri‑Tek Electronics Authorized Distributor Advantage Tri‑Tek Electronics is an authorized distributor of Syston Cable Technology, offering full manufacturer warranty coverage and factory support. Our Mesa, Arizona location provides convenient access to local inventory for professional installers, technicians, and integrators throughout the Phoenix metropolitan area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale. Our product experts ensure that you get the best cable solutions with reliable service and support.

Read more less

Syston 5818-SP-WH-1000 16/2 Stranded Shielded Plenum Cable – 1000 ft (White, CMP/CL3P/FPLP/FT6) OverviewThe Syston 5818‑SP‑WH‑1000 is a professional-grade 16 AWG stranded shielded cable engineered for high-performance applications in security, alarm, access-control, and audio installations. This plenum-rated cable meets stringent fire safety standards (CMP, CL3P, FPLP, FT6), making it suitable for air-handling spaces in commercial and residential structures. Key Features & Benefits Two 16 AWG stranded bare copper conductors for superior signal transmission and flexibility Full-coverage aluminum-foil/Mylar shielding with tinned copper drain wire to minimize EMI and RFI interference Plenum-rated low-smoke, flame-retardant white PVC jacket ensures code compliance and safety Rip cord under jacket for easy stripping and faster installation Voltage rating: 300 volts, designed for power-limited Class 3 systems Operating temperature range: –4 °F to +167 °F; installation temperature: 32 °F and above Ideal for security alarm wiring, fire panels, intercom systems, audio distribution, access control, and low-voltage control circuits Usage Scenario In a commercial building project requiring code-compliant cable in plenum airspaces, this 16/2 shielded plenum-rated cable provides dependable performance. Whether wiring access control devices above a drop ceiling or integrating audio lines in office floors, the stranded conductors allow flexible routing through conduit or tight pathways. Shielding maintains signal clarity even when bundled near other systems. Tri‑Tek Electronics Authorized Distributor Advantage Tri‑Tek Electronics is an authorized distributor of Syston Cable Technology. Located in Mesa, AZ, Tri‑Tek offers full manufacturer warranty support, factory-backed guidance, and fast local pickup for professionals across the Phoenix metro area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale. We serve installers, integrators, and technicians with high-quality bulk cable solutions always in stock.

Read more less

Syston 5717‑PB‑WH‑1000 18/4 Stranded Shielded Security Control Sound & Alarm Cable – White 1000 ft OverviewSyston’s 5717-SP-WH-1000 cable is a professional-grade, stranded and shielded 18 AWG 4-conductor cable designed for use in low-voltage security, alarm, access control, and sound applications. Engineered with a white UV-resistant PVC jacket and a foil shield for EMI protection, this cable meets a full range of industry certifications including CMR, CL3R, FPLR, and FT4 for riser-rated and fire alarm installations. It is suitable for commercial, industrial, and residential environments requiring both reliability and code compliance. Key Features & Benefits 18 AWG stranded bare copper conductors for flexibility and superior signal transmission 4-conductor configuration ideal for common alarm, control, and security system layouts Aluminum foil/polyester shielding with 99% coverage for excellent protection from electromagnetic interference White PVC outer jacket is sunlight-resistant and flame-retardant for long-term durability in indoor riser pathways Voltage rating of 300 volts, supporting a wide range of low-voltage systems Temperature rated from -35°C to +75°C, allowing performance in varied Arizona climate conditions UL listed for CMR (riser), CL3R (class 3 riser), FPLR (fire power limited riser), and FT4 (Canadian flame rating) Packaged on a 1000-foot pull box for easy, efficient installation in structured cabling projects Installation Use Case This cable is often deployed in multi-story commercial buildings for connecting fire alarm panels to sensors, powering access control points, or distributing audio signals in public address systems. The shielded construction makes it particularly useful when routing cable near potential sources of electrical interference, such as near HVAC systems or fluorescent lighting. Whether pulling cable through risers or conduit, installers can count on the flexibility and durability of this product to perform under challenging conditions. Tri‑Tek Electronics Authorized Distributor Advantage Tri‑Tek Electronics is an authorized distributor of Syston Cable Technology, offering full manufacturer warranty coverage and factory support. Our Mesa, Arizona location provides convenient access to local inventory for professional installers, technicians, and integrators throughout the Phoenix metropolitan area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale. Our product experts ensure that you get the best cable solutions with reliable service and support.

Read more less

Syston 5703-SP-WH-1000 18/4 Stranded Plenum-Rated Security & Alarm Cable – 1000 ft Spool The Syston 5703-SP-WH-1000 is a high-quality 18 AWG, 4-conductor stranded cable designed for a wide range of low-voltage applications. With its plenum-rated LS-PVC jacket, this cable is suitable for installations requiring compliance with stringent fire codes. Key Features Conductor Type: 18 AWG stranded bare copper (4 conductors) Jacket Material: Low Smoke PVC (LS-PVC), white Voltage Rating: 300V Temperature Rating: 75°C Certifications: UL 13 (CL3P), UL 1424 (FPLP), UL 444 (CMP), CSA FT6 Compliance: RoHS 3 compliant Length: 1000 ft Packaging: Supplied on a spool for easy transport and deployment Applications This versatile cable is ideal for: Security and burglar alarm systems Fire alarm systems Access control systems Intercom and public address systems Remote control circuits Sound and audio installations Instrumentation and signaling Its plenum rating makes it suitable for installations in air-handling spaces, ensuring compliance with building codes. Installation Scenario In a commercial office building, the Syston 5703-SP-WH-1000 can be run through plenum spaces to connect various security devices such as motion detectors, door contacts, and alarm panels. Its flexible design and durable jacket make installation straightforward, providing reliable signal transmission throughout the facility. Why Choose Syston 5703-SP-WH-1000? High-Quality Construction: Ensures durability and long-term performance Compliance: Meets multiple industry standards for safety and performance Ease of Installation: Flexible jacket simplifies the installation process Versatility: Suitable for a wide range of low-voltage applications Available at Tri-Tek Electronics Tri-Tek Electronics, an authorized distributor of Syston Cable Technology, offers the 5703-SP-WH-1000 with full manufacturer warranty coverage. Visit our retail location in Mesa, AZ, for the best pricing and factory support.

Read more less

Syston 5728-SP-WH-1000 18/6 Stranded Shielded Plenum-Rated Security & Alarm Cable – 1000 ft Spool The Syston 5728-SP-WH-1000 is a high-performance 18 AWG, 6-conductor stranded shielded cable engineered for advanced low-voltage system installations. Designed with a white low-smoke PVC (LS-PVC) plenum-rated jacket and an overall aluminum foil shield, this cable provides robust signal integrity and complies with rigorous fire safety codes—ideal for plenum spaces and professional-grade projects. Key Features Conductor Type: 18 AWG stranded bare copper (6 conductors) Shielding: Overall aluminum foil shield with tinned copper drain wire Jacket Material: White LS-PVC (Low Smoke Polyvinyl Chloride) Voltage Rating: 300V Temperature Rating: 75°C Certifications: UL 13 (CL3P), UL 1424 (FPLP), UL 444 (CMP), CSA FT6 Compliance: RoHS 3 compliant Length: 1000 ft Packaging: Supplied on a spool for easy transport and deployment Applications This professional-grade cable is ideal for: Burglar and security alarm systems Fire alarm control circuits Access control infrastructure Intercom and paging systems Audio and public address installations Remote control wiring Instrumentation and signaling in commercial settings Its plenum-rated jacket ensures compliance with NFPA fire codes, making it safe and reliable for installations in air-handling spaces. Installation Scenario In a multi-story office complex, the Syston 5728-SP-WH-1000 can be spooled out and routed through plenum ceilings to interconnect security control panels with sensors, alarms, and access control devices. The foil shield helps mitigate interference from HVAC and electrical systems, making it an excellent choice for environments where signal clarity is critical. Why Choose Syston 5728-SP-WH-1000? Reliable Shielding: Reduces EMI and RFI for clean, uninterrupted signal transmission Plenum Safety: Approved for air-handling spaces under multiple UL standards Flexible and Durable: Stranded copper conductors enhance flexibility and durability Professional Packaging: Comes on a spool for efficient storage, handling, and installation Available at Tri-Tek Electronics Tri-Tek Electronics is an authorized distributor of Syston Cable Technology. The 5728-SP-WH-1000 is available with full manufacturer warranty coverage. Visit our Mesa, AZ retail location for factory-backed support and unbeatable value.

Read more less

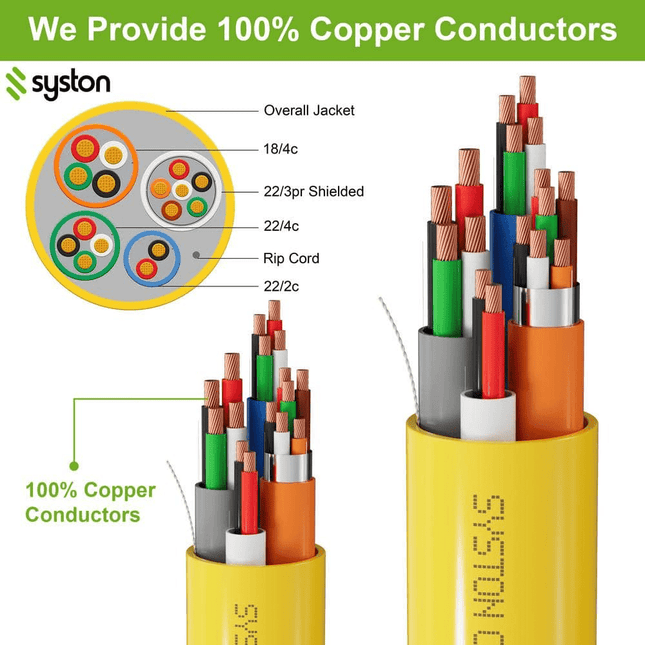

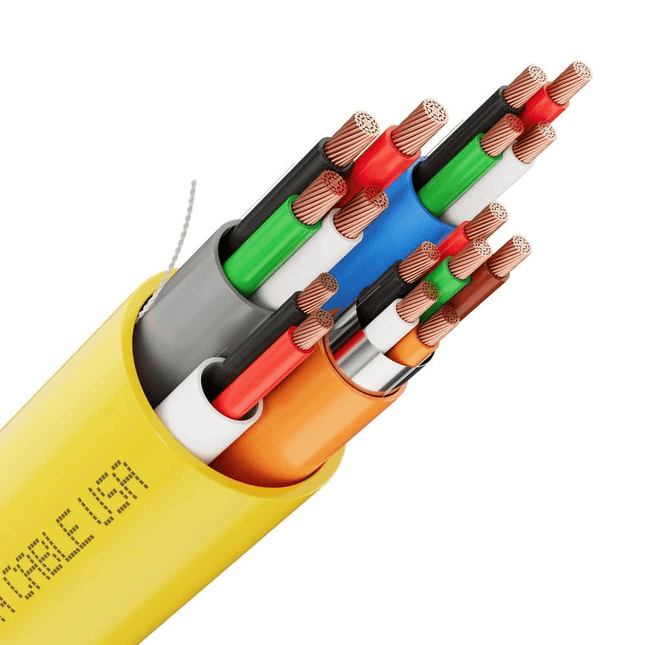

Syston 9888-SP-YL-500 Access Control Composite Cable – 500 ft Yellow CMP Comprehensive Plenum-Rated Access Control Solution The Syston 9888-SP-YL-500 Access Control Composite Cable is engineered to streamline access control installations by combining multiple control and signal cables into a single, plenum-rated assembly. This 500-foot yellow cable integrates four distinct conductor sets, each tailored for specific access control functions, ensuring efficient and organized installations in commercial and institutional environments. Key Features Integrated Conductor Sets: Lock Power: 18 AWG, 4-conductor, unshielded Card Reader: 22 AWG, 3-pair, shielded (Aluminum Foil) Door Contact: 22 AWG, 2-conductor, unshielded Request to Exit (REX): 22 AWG, 4-conductor, unshielded Plenum-Rated Jacket: Constructed with low-smoke, flame-retardant PVC, compliant with CMP, CL3P, and FT6 standards, suitable for installation in air-handling spaces. Color-Coded Conductors: Facilitates easy identification and termination: Gray: Lock Power Orange: Card Reader White: Door Contact Blue: Request to Exit Operating Temperature Range: Installation: 32°F to 140°F (0°C to 60°C) Storage & Operation: -4°F to 167°F (-20°C to 75°C) Cable Diameter: Nominal outer diameter of 0.390 inches (9.91 mm) Shielding: 100% aluminum foil shield coverage on the 22/3PR set to minimize electromagnetic interference. Compliance: UL Listed, RoHS Compliant Ideal Applications This composite cable is designed for comprehensive access control systems, including: Commercial Buildings: Streamlining installations in offices, retail spaces, and industrial facilities. Educational Institutions: Facilitating secure access in schools and universities. Healthcare Facilities: Ensuring reliable operation in hospitals and clinics. Government Buildings: Supporting secure entry systems in municipal and federal structures. Installation Scenario In a recent project in Scottsdale, AZ, an installer utilized the Syston 9888-SP-YL-500 to upgrade the access control system of a corporate office. By replacing multiple individual cables with this composite solution, the installation process was expedited, reducing labor costs and minimizing conduit space usage. The color-coded conductors allowed for quick identification during termination, ensuring a clean and efficient setup. Authorized Distributor Assurance Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of Syston Cable Technology products. Purchasing through Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and direct factory support.

Read more less

Wavenet SC2204RWH1 4 Cond 22 AWG Unshielded White Security Cable - 1000' Box The Wavenet SC2204RWH1 is a high-quality unshielded white security cable with 4 conductors, crafted from 22 AWG stranded bare copper, making it an excellent choice for reliable security and audio system installations. With its flexible and durable design, it is suited for both residential and commercial settings. Tri-Tek Electronics, as an authorized distributor, ensures comprehensive manufacturer warranty coverage, competitive pricing, and expert support. Key Features: Type: Unshielded Security Cable Conductor Material: Stranded bare copper Jacket Material: PVC Jacket Color: White Gauge: 22 AWG Conductors: 4 Voltage Rating: 300V Temperature Range: -20°C to +75°C Product Specifications: Outer Diameter: Approximately 4.4 mm Insulation Type: Color-coded PVC Compliance: Meets or exceeds UL 2464 specifications Packaging: Supplied in various length options to suit project needs Installation Scenario: The SC2204RWH1 cable is ideal for connecting security components such as CCTV cameras, access control panels, and alarm systems within a large retail complex. Its four conductors provide versatility, allowing for the simultaneous transmission of power and data, optimizing the infrastructure and reducing installation complexity. Benefits for Installers and Technicians: Versatile Use: Suitable for a variety of security applications, ensuring broad compatibility with different systems. Easy Handling: The cable’s flexible nature and smooth jacket material facilitate easy pulling and routing through walls and conduits. Reliable Performance: Designed to perform in diverse environments, maintaining signal integrity without the need for shielding. Why Choose Tri-Tek Electronics? At Tri-Tek Electronics, we pride ourselves on offering only the best products backed by detailed technical support and warranty services. Our commitment to quality ensures that your installations are equipped with the most reliable and efficient tools, such as the Wavenet SC2204RWH1, enhancing both the installation process and the end-user experience.

Read more less

Wavenet SC2202RWH1 22 awg 2 Conductor White Stranded Audio/Security Cable The Wavenet SC2202RWH1 is a versatile 22 AWG 2-conductor white stranded cable, specifically designed for audio and security applications. Its high-quality construction ensures effective performance in both commercial and residential installations. As an authorized distributor, Tri-Tek Electronics offers full manufacturer warranty coverage, optimal pricing, and superior factory support. Key Features: Type: Stranded Audio/Security Cable Conductor Material: Stranded bare copper Jacket Material: PVC Jacket Color: White Gauge: 22 AWG Conductors: 2 Voltage Rating: 150V Temperature Range: -20°C to +60°C Product Specifications: Outer Diameter: Approximately 3.3 mm Insulation Type: Premium-grade, color-coded PVC Packaging: Available in various reel sizes to accommodate different project scopes Compliance: Meets UL 1007/1569 standards for safety and quality Installation Scenario: Ideal for audio systems in a multi-room setup or integrated security systems, the Wavenet SC2202RWH1 cable can be used to connect speakers, microphones, or security devices such as sensors and alarms throughout a facility. This ensures seamless operation with minimal signal loss, which is crucial for both background music systems and critical security alerts. Benefits for Installers and Technicians: Flexible and Durable: The stranded copper conductors offer enhanced flexibility for easy installation while maintaining durability. Reduced Interference: Although unshielded, the high-quality copper and precise manufacturing standards minimize interference in most typical installation environments. Easy Identification: Color-coded insulation simplifies the process of connecting components, thereby reducing installation time and potential errors. Why Choose Tri-Tek Electronics? Tri-Tek Electronics is committed to providing top-tier products and support. We ensure that every cable we distribute, including the Wavenet SC2202RWH1, meets rigorous quality standards to deliver reliable and superior performance in every installation.

Read more less

Syston Cable 5603-PB-WH-1000 – 18/2 Stranded Plenum Unshielded Security Control Sound & Alarm Cable (CMP/CL3P/FPLP/FT6) – White, 1000 ft Tri-Tek Electronics, an authorized distributor of Syston Cable Technology, proudly offers the 5603-PB-WH-1000, a high-performance 18 AWG 2-conductor stranded unshielded plenum-rated cable. Designed for a wide range of low-voltage applications, this cable ensures optimal performance and safety in both commercial and residential installations. Product Overview The Syston 5603-PB-WH-1000 is engineered for versatility and reliability, making it ideal for: Security and burglar alarm systems Fire alarm and life safety systems Public address and intercom systems Access control and nurse call systems General low-voltage power-limited circuits Its CMP (Plenum) rating ensures compliance with stringent fire safety codes, making it suitable for installation in air handling spaces and other plenum environments. Key Features Conductor Type: 18 AWG stranded bare copper Number of Conductors: 2 Insulation: Plenum-rated PVC (CMP), low smoke, flame retardant, and RoHS compliant Jacket Color: White Voltage Rating: 300V (CL3P) Certifications: UL Listed, ETL Verified Packaging: 1000 ft reel Installation Scenario In a commercial office building in Phoenix, Arizona, a security integrator utilized the Syston 5603-PB-WH-1000 to wire a comprehensive fire alarm and public address system. The cable's plenum rating ensured compliance with local building codes, while its stranded construction facilitated easy routing through conduits and tight spaces. The installer appreciated the cable's flexibility and durability, which contributed to a smooth and efficient installation process. Why Choose Syston 5603-PB-WH-1000? Safety Compliance: Meets CMP, CL3P, FPLP, and FT6 standards for plenum installations High-Quality Construction: Stranded bare copper conductors provide excellent conductivity and flexibility Versatility: Suitable for a wide range of low-voltage applications Ease of Installation: Flexible jacket and stranded conductors simplify routing and termination Authorized Distribution: Tri-Tek Electronics ensures full manufacturer warranty coverage and factory support Local Availability Tri-Tek Electronics is your trusted source for Syston Cable products in Arizona. Visit our retail location in Mesa, AZ, to explore our extensive inventory and receive expert assistance for your low-voltage wiring needs.

Read more less

Syston Cable 5618-SP-WH-1000 – 18/2 Stranded Shielded Plenum-Rated Security & Control Cable, White, 1000 ft Tri-Tek Electronics, an authorized distributor of Syston Cable Technology, offers the 5618-SP-WH-1000, a high-quality 18 AWG 2-conductor stranded shielded plenum-rated cable. This cable is ideal for a variety of low-voltage applications where EMI protection and compliance with plenum space requirements are essential. Product Overview The Syston 5618-SP-WH-1000 is designed to provide reliable performance for: Security and intrusion detection systems Intercom and public address systems Access control installations Audio and sound distribution Power-limited control circuits Its plenum (CMP) rating ensures it can be safely installed in air-handling and other plenum-rated environments in commercial and residential buildings. Key Features Conductor Type: 18 AWG stranded bare copper Number of Conductors: 2 Shielding: Overall aluminum foil shield with drain wire Insulation: Plenum-rated PVC (CMP), low smoke, flame retardant, RoHS compliant Jacket Color: White Voltage Rating: 300V (CL3P) Certifications: UL Listed, ETL Verified Packaging: 1000 ft reel Installation Scenario In a commercial facility in Phoenix, Arizona, a professional technician selected the Syston 5618-SP-WH-1000 to install a centralized intercom and access control system. The cable’s shielding provided clean audio transmission by minimizing interference, while its plenum rating allowed for safe installation above suspended ceilings and in other return-air environments. The stranded copper construction also helped ensure flexibility and ease of routing. Why Choose Syston 5618-SP-WH-1000? Signal Protection: Shielding guards against electrical interference Flexible & Durable: Ideal for routing through tight spaces and conduits CMP Rated: Safe for use in plenum spaces requiring low smoke and flame spread Versatile Use: Supports a wide range of low-voltage applications Trusted Source: Backed by Tri-Tek Electronics with full factory warranty and support Local Availability Tri-Tek Electronics is your reliable source for Syston Cable products in Arizona. Visit our Mesa, AZ retail location for local pickup, expert support, and access to the industry’s top-rated bulk low-voltage cables.

Read more less
