Description

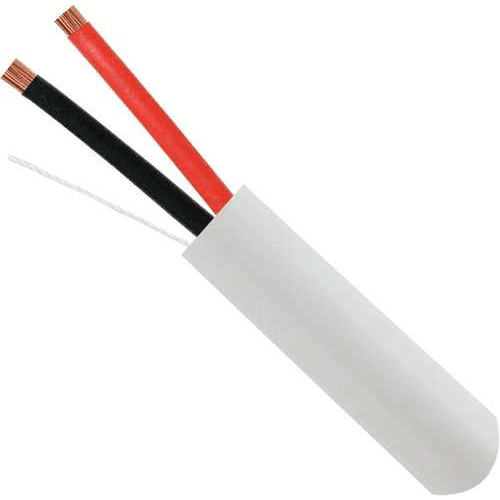

Vertical Cable 209-2315 – 16/2 High-Strand Audio Cable, Unshielded, White — 500 ft Pull Box
The Vertical Cable 209-2315 is a premium 16 AWG (2-conductor) unshielded audio cable supplied in a convenient 500-foot pull box. Featuring high-strand oxygen-free bare copper conductors, a durable white PVC jacket, and compliance with CMR/CL3 flame-retardant standards, this cable is built for reliable, flexible performance in low-voltage audio and control systems.
Key Features
-

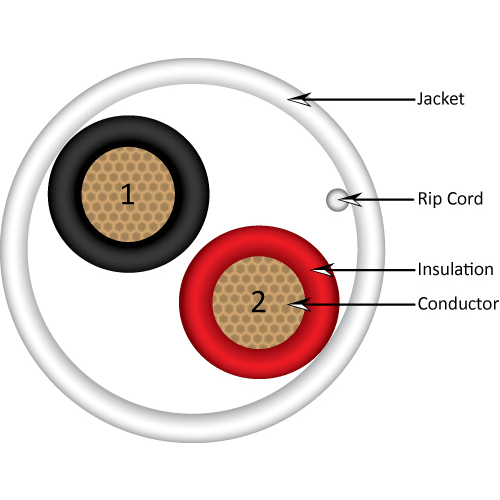

Conductor Size: 16 AWG, 2 conductor, stranded (65 strands)
-
Material: Oxygen-free bare copper for excellent conductivity and flexibility
-
Insulation: PVC insulation with consistent wall thickness for reliable protection
-
Jacket: White PVC outer jacket with a robust 5.10 mm outer diameter
-
Fire Rating: CMR / CL3 rated for in-wall installations
-

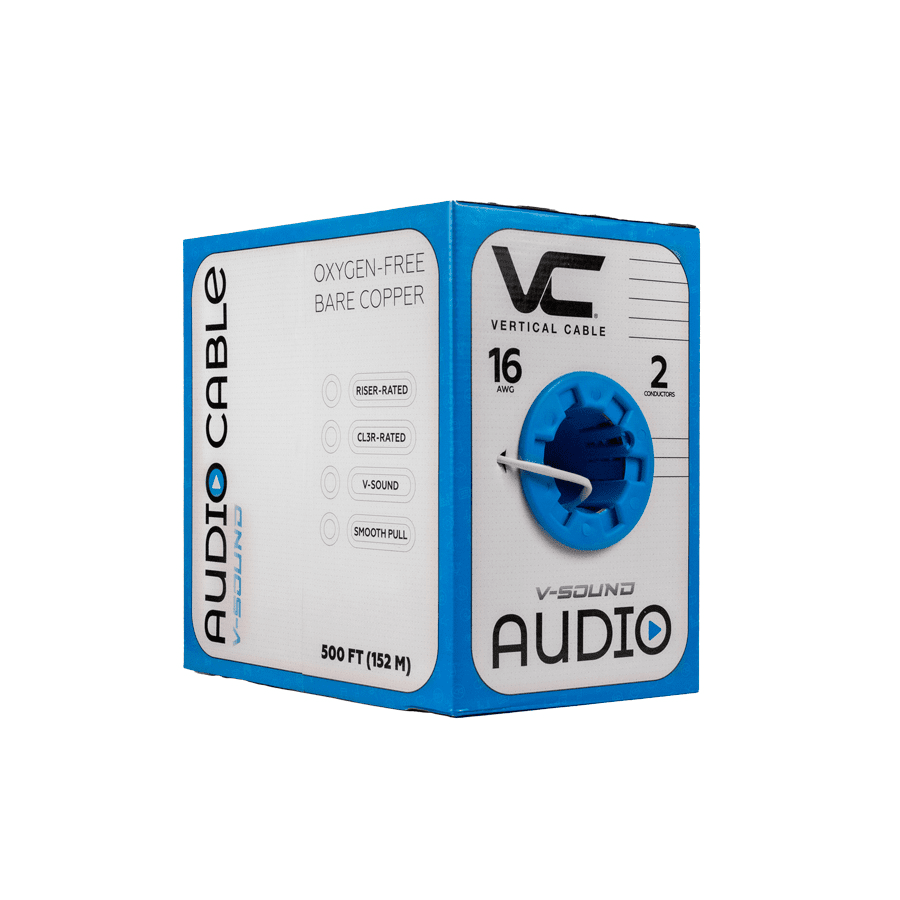

Packaging: 500 ft pull box minimizes tangling and speeds deployment
-
Durability: Flexible design, cold bend tested to –20 °C, resistant to wear and mechanical stress
Specifications Table
| Specification |
Detail |
| Part Number |
209-2315 |
| Conductor Gauge |
16 AWG, 2 conductors (65-strand) |
| Conductors |
Oxygen-free bare copper, stranded |
| Insulation |
PVC |
| Jacket |
White PVC, OD ~5.10 mm |
| Fire Rating |
CMR / CL3 |
| Pull Box Length |
500 ft |
| Rated Voltage |
300 V |
| Operating Temp |
–20 °C to +75 °C |
| Ideal For |
Audio systems, intercoms, low-voltage wiring |
| Packaging |
Pull box for smooth installation |
Ideal Applications
-
Audio & Intercom Systems: Perfect for powering speakers, paging, or communication panels
-
Security & Low-Voltage Control Wiring: Reliable choice for alarm panels, sensors, HVAC controls, and automation systems
-
In-Wall or Structured Cabling: CMR/CL3 rating ensures compliance with building codes for wall and ceiling installations
Installation Advantage
The 209-2315 is trusted by installers for its flexibility, ease of routing, and code-compliant safety. The high-strand copper design allows easy pulling through conduits and corners, while the 500 ft pull box packaging helps prevent tangling and speeds up installation.
Tri-Tek Electronics is an authorized distributor of Vertical Cable products. We provide full manufacturer warranty coverage, factory support, and competitive local pricing. Visit our Mesa, Arizona retail location, serving customers across Phoenix, Tempe, Chandler, Gilbert, Scottsdale, and Glendale.
