PoE Network Switches

Signamax FO-SC53030: 48-Port 860W PoE+ Switch with 10G Connectivity The Signamax FO-SC53030 is a high-performance managed switch, offering 48 PoE+ 10/100/1000 Mbps ports and 4 SFP+ 10G uplinks. With an 860W PoE+ power budget, it can power a wide range of devices, such as IP cameras, access points, and VoIP phones. The switch supports Layer 2 and Layer 3 features, including static routing, VLAN management, IPv4/IPv6 dual stack, and advanced QoS with 8 hardware queues per port. This switch offers 176 Gbps switching capacity and 130.94 Mpps forwarding rate, delivering high-speed, non-blocking performance. For redundancy, it supports ERPSv2 Ethernet Ring Protection Switching. Security features include 802.1X authentication, ACLs, IP Source Guard, and DHCP snooping. It’s ideal for large-scale networks that require extensive PoE capability and 10G uplinks. Features and Specifications: Feature Specification Ports 48 x 10/100/1000 Mbps PoE+ ports Uplinks 4 x 100/1G/10G SFP+ ports PoE Budget 860W (Supports IEEE 802.3af/at) Switching Capacity 176 Gbps Forwarding Rate 130.94 Mpps MAC Address Table 32K Jumbo Frame Support 10K Management Interfaces Web GUI, CLI (Telnet/SSH), SNMP Security Features 802.1X RADIUS, ACLs, DHCP Snooping, IP Source Guard VLAN Support Up to 4,094 VLANs IPv4/IPv6 Dual Stack Yes QoS 8 HW queues per port, 802.1p priority tagging Redundancy Protocol ERPSv2 Ethernet Ring Protection Power Consumption Max 920W Dimensions 17.3″W x 13″D x 1.7″H (44cm x 33cm x 4.4cm) Operating Temperature 0°C to 50°C (32°F to 122°F) Example Installation Scenario: The FO-SC53030 is ideal for large enterprise networks, such as educational institutions, corporate offices, or healthcare facilities where high-density PoE+ ports are needed. With its 860W PoE+ budget, it can simultaneously power multiple IP cameras, VoIP phones, and access points. The 10G SFP+ uplinks provide fast connections to core networks or data centers, ensuring smooth data traffic, even with heavy usage across multiple devices. This switch supports critical services such as voice and video conferencing, making it ideal for real-time communication applications.

Read more less

Signamax FO-SC53020 48-Port PoE+ 10G Managed Switch with 1440W Power Budget The Signamax FO-SC53020 is a powerful, fully-managed switch designed for enterprise and high-demand PoE networks. With 48 Gigabit Ethernet PoE+ ports and 4 SFP+ uplink ports, it provides advanced Layer 2/3 functionality and a total PoE budget of 1440W, ideal for powering IP cameras, access points, and VoIP phones. The switch supports IEEE 802.3af/at PoE standards, ensuring reliable and efficient power distribution. Key Features: 48 x Gigabit PoE+ Ports, 4 x SFP+ Uplinks for high-speed fiber connections 1440W PoE Budget, supporting IEEE 802.3af/at across all ports 176 Gbps Switching Capacity with 130.94 Mpps forwarding rate Layer 2/3 Functionality with VLANs, Spanning Tree Protocols, and IPv4/IPv6 dual stack Advanced Security with MAC Authentication, IP Source Guard, ACL, and 802.1X RADIUS Energy-Efficient Ethernet (IEEE 802.3az) for optimized power use Comprehensive Management: SNMP, CLI, Web-based GUI, Dual Image, and SSH/SSL encryption Hot-Swappable Dual Power Supply ensures redundancy and continuous PoE operation Technical Specifications: Feature Details Ports 48 x 10/100/1000 Mbps RJ45, 4 x SFP+ 10G PoE Budget 1440W, IEEE 802.3af/at support Switching Capacity 176 Gbps Forwarding Rate 130.94 Mpps MAC Address Table 32K entries VLAN Support 4094 VLANs Protocols Supported IPv4/IPv6, RSTP, MSTP, ERPSv2, DHCP Snooping QoS 8 hardware queues per port, priority traffic Power Consumption 1840W (max) Dimensions 17.3" W x 15" D x 1.7" H Weight 14.12 lbs Operating Temp 32°F to 122°F (0°C to 50°C) Warranty 5 years Use Case: The FO-SC53020 is ideal for high-power PoE applications, such as large-scale surveillance systems, VoIP networks, and high-bandwidth wireless deployments. Its dual hot-swappable power supplies ensure redundancy and reliability in mission-critical environments. Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of this product, ensuring full warranty and factory support for all your PoE networking needs.

Read more less

Signamax FO-SC53080 8-Port Managed PoE+ Switch with 2 SFP+ 10G Ports The Signamax FO-SC53080 is a robust Layer 2 managed switch designed for environments requiring both high-speed data transfer and Power over Ethernet (PoE) capability. Equipped with 8 PoE+ Gigabit Ethernet ports and 2 SFP+ 10G uplinks, it provides a versatile solution for delivering power and connectivity to IP cameras, VoIP phones, and wireless access points while ensuring efficient network management and high-speed uplinks to core switches or servers. Key Features: 8 x PoE+ Ports (10/100/1000 Mbps) supporting 180W total PoE budget IEEE 802.3af/at compliant with dynamic power allocation per device PoE scheduling and device keep-alive functions 2 x 10G SFP+ Uplink Ports for high-speed fiber connections Switching Capacity: 56 Gbps non-blocking architecture, ensuring smooth data transmission Layer 2 Features: VLAN, Link Aggregation, Spanning Tree Protocol (STP), Rapid STP (RSTP), and Multiple STP (MSTP) for enhanced network redundancy and traffic handling Advanced QoS: 8 dedicated hardware queues per port for traffic prioritization Security: IP Source Guard, MAC Authentication, DHCP Snooping, 802.1X RADIUS, and Access Control Lists (ACLs) for robust network protection Management: Supports CLI, Web-based GUI, SNMP, dual firmware image, and SSH/SSL encryption for secure remote management Technical Specifications: Specification Details Ports 8 x PoE+ Gigabit RJ-45, 2 x SFP+ 10G PoE Budget 180W Switching Capacity 56 Gbps Forwarding Rate 41.664 Mpps MAC Address Table 32K entries Jumbo Frames Supports up to 10K jumbo frames QoS 8 hardware queues per port Security Features Port Isolation, IP Source Guard, ACLs, DHCP Snooping Power Consumption Max 30W (excluding PoE load) Dimensions 13" W x 8.3" D x 1.7" H Operating Temperature 32°F to 122°F (0°C to 50°C) Weight 5.5 lbs Warranty 5 years Use Case: The FO-SC53080 is ideal for small to medium-sized businesses that need both high-power PoE+ capabilities and reliable fiber uplinks. It is perfect for connecting and powering security cameras, access points, or VoIP systems, while the 10G SFP+ uplinks ensure fast communication between network segments or data centers. Tri-Tek Electronics is an authorized distributor of the Signamax FO-SC53080, offering full manufacturer warranty and technical support. Available at Tri-Tek Electronics, Mesa, AZ.

Read more less

Signamax FO-SC50010 48-Port Gigabit PoE+ Managed Switch with 4 1/10G SFP+ Uplinks The Signamax FO-SC50010 is a high-capacity, fully-managed Layer 2 switch designed for demanding enterprise networks requiring both high-speed data transfer and Power over Ethernet (PoE) capabilities. Equipped with 48 PoE+ Gigabit Ethernet ports and 4 SFP+ uplink ports supporting 1G/10G speeds, this switch is ideal for powering a range of PoE devices such as IP cameras, VoIP phones, and wireless access points while providing ultra-fast uplink connections for backbone or data center environments. Key Features: 48 x PoE+ Gigabit Ports (10/100/1000 Mbps), supporting IEEE 802.3af/at standards with a total PoE budget of 1640W (with dual power supply configuration). 4 x 1/10G SFP+ Uplink Ports, offering flexibility for high-speed fiber connections. Switching Capacity: 176 Gbps with a forwarding rate of 130.944 Mpps, ensuring efficient data throughput and wire-speed forwarding. Advanced Layer 2/3 Support: Features include VLANs, Link Aggregation, Spanning Tree Protocol (STP/RSTP/MSTP), and static routing. Security Features: Includes 802.1X RADIUS/TACACS+ authentication, DHCP Snooping, IP Source Guard, and up to 512 Access Control Lists (ACLs). Power Efficiency: IEEE 802.3az compliant, reducing power consumption during low traffic periods. Management: Supports multiple management protocols such as CLI, web GUI, SNMP, SSH, and SSL for secure network configuration and monitoring. Technical Specifications: Feature Details Ports 48 x Gigabit PoE+, 4 x 1/10G SFP+ PoE Budget 1640W (with dual power supply) Switching Capacity 176 Gbps Forwarding Rate 130.944 Mpps MAC Address Table 32K entries Jumbo Frames Supports up to 14K jumbo frames Operating Temperature 32°F to 122°F (0°C to 50°C) Power Consumption 820W (primary power), 1640W (dual power supply) Management Protocols SNMP, Web GUI, CLI, SSH, SSL Use Case: The FO-SC50010 is ideally suited for large-scale networks in enterprise environments where high PoE demand is required, such as surveillance systems, VoIP networks, and wireless access point deployments. Its high PoE power budget and advanced management features make it ideal for critical network infrastructure that demands uptime and performance. Tri-Tek Electronics, an authorized Signamax distributor based in Mesa, AZ, offers full manufacturer warranty and factory support for the FO-SC50010​.

Read more less

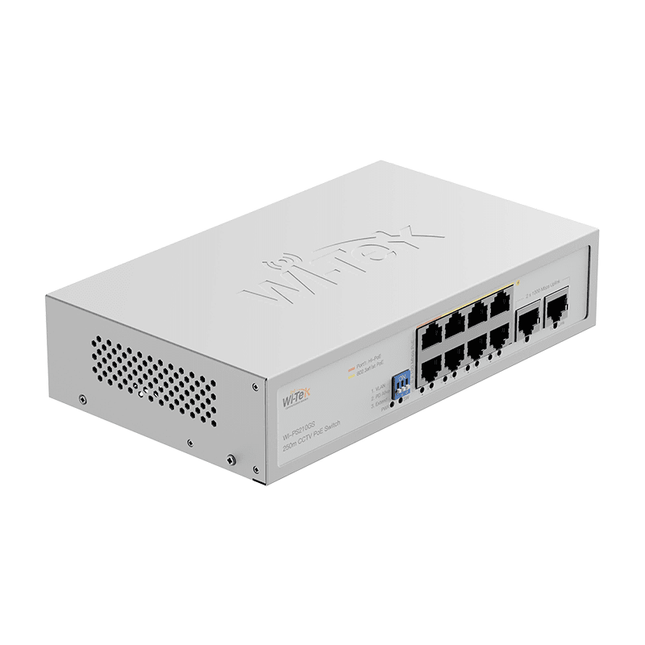

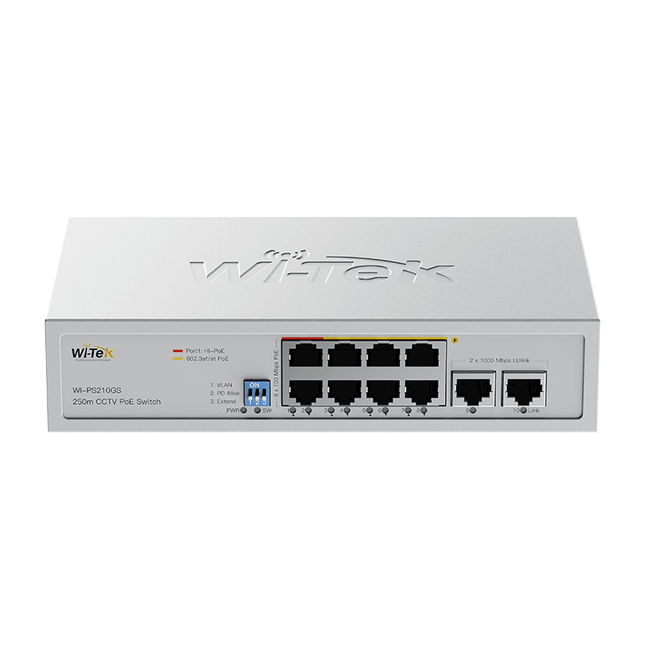

Wi-Tek WI-PS210GS V2 8FE+2GE 100W PoE Switch – 250m Long-Range, 60W Hi-PoE on Ports 1-2 The Wi-Tek WI-PS210GS V2 is a powerful 10-port unmanaged PoE switch designed for professional IP surveillance, extended network deployments, and high-demand PoE applications. Equipped with 8 Fast Ethernet (10/100 Mbps) PoE ports and 2 Gigabit Ethernet uplink ports, this switch offers robust performance, ensuring smooth connectivity across long distances. With a total PoE power budget of 100W, the WI-PS210GS V2 supports standard PoE (up to 30W per port) and Hi-PoE (up to 60W on ports 1 and 2), making it ideal for devices such as PTZ cameras, wireless access points, and other high-consumption network equipment. It also features long-range PoE transmission up to 250 meters and VLAN isolation for secure network segmentation. Key Features: Ports: 8 x 10/100 Mbps PoE ports + 2 x 10/100/1000 Mbps Gigabit uplink ports PoE Standards: IEEE 802.3af/at/bt compliant PoE Output: 60W maximum on ports 1-2; 30W maximum on ports 3-8 Total PoE Budget: 100W Transmission Distance: Up to 250 meters in extend mode Smart Features: VLAN isolation, PD Alive (PoE watchdog for automatic reboot of failed devices) Mounting: Wall-mountable, fanless design for silent operation Power Supply: Internal AC 110–240V Operating Temperature: -10°C to 55°C Certifications: CE, FCC, RoHS Warranty: Limited Manufacturer Warranty Typical Applications: IP surveillance systems covering parking lots, warehouses, campuses, and other wide-area installations Deployment of high-power devices such as PTZ cameras or outdoor wireless access points Network expansions requiring long-distance PoE transmission without additional hardware Installation Scenario: In a campus environment, the Wi-Tek WI-PS210GS V2 switch is used to power and connect multiple IP cameras spread over long distances. The extended PoE capability up to 250 meters eliminates the need for additional repeaters, while the Hi-PoE support on ports 1 and 2 powers heavy-duty PTZ cameras, simplifying system design and reducing installation costs. Tri-Tek Electronics is an authorized distributor of Wi-Tek products, offering full manufacturer warranty coverage, competitive pricing, and factory support. Visit our retail location in Mesa, AZ for expert assistance and a complete selection of professional networking products. We proudly serve customers in Mesa, Phoenix, Chandler, Tempe, Gilbert, Scottsdale, and the surrounding Arizona areas.

Read more less

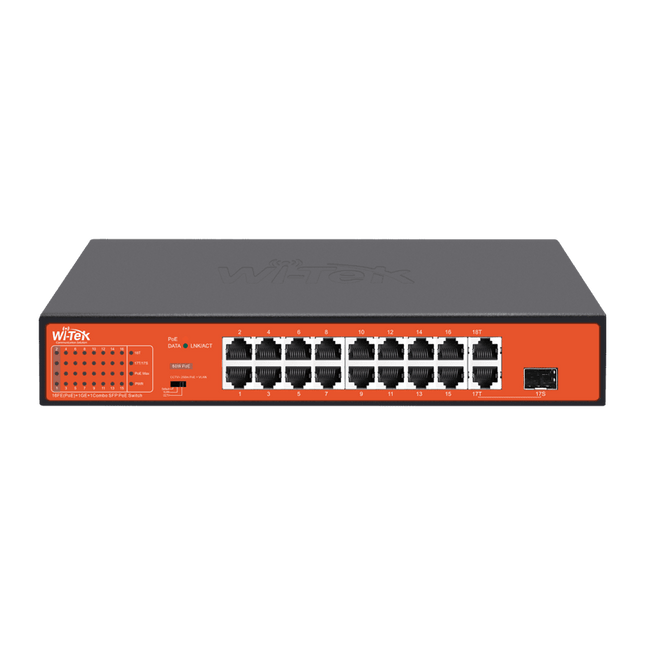

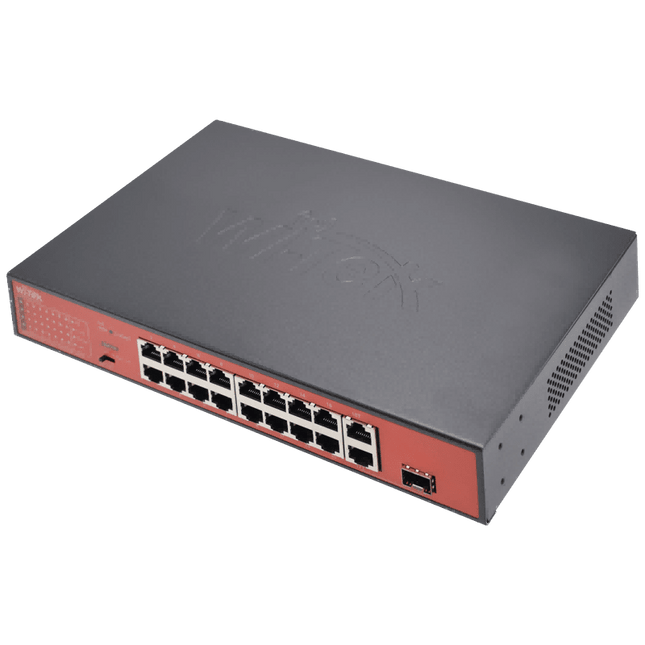

Wi-Tek WI-PS518G V4 16-Port PoE+ Ethernet Switch – 200W, 250m Long-Range, Gigabit & SFP Uplinks The Wi-Tek WI-PS518G V4 is a robust 19-inch rackmount PoE+ switch designed for high-density IP surveillance and network deployments. Featuring 16 Fast Ethernet PoE ports and both Gigabit RJ45 and SFP uplink ports, it delivers a total PoE power budget of 200W. With support for extended PoE transmission up to 250 meters, this switch is ideal for large-scale installations requiring long-distance connectivity. Key Features: PoE Ports: 16 x 10/100 Mbps Uplink Ports: 1 x 1000 Mbps RJ45, 1 x 1000 Mbps SFP PoE Standards: IEEE 802.3af/at compliant Total PoE Budget: 200W Extended Transmission: Up to 250 meters in extend mode Smart Features: VLAN isolation, PoE watchdog, CCTV mode Mounting: 19-inch rackmount design Power Supply: Internal AC 110–240V Operating Temperature: -10°C to 55°C Certifications: CE, FCC, RoHS Warranty: Limited Manufacturer Warranty Typical Applications: IP surveillance systems in large facilities Network setups requiring extended PoE transmission Deployments with high-power devices like PTZ cameras Installation Scenario: In a campus-wide surveillance system, the WI-PS518G V4 can be centrally located to power multiple IP cameras, including high-power PTZ models. Its extended PoE transmission capability eliminates the need for additional repeaters, simplifying installation and reducing infrastructure costs. Tri-Tek Electronics is an authorized distributor of Wi-Tek products, ensuring full manufacturer warranty coverage, competitive pricing, and factory support. Visit our retail location in Mesa, AZ, for expert assistance and a comprehensive selection of networking solutions. We proudly serve customers throughout Mesa, Phoenix, Chandler, Tempe, Gilbert, Scottsdale, and surrounding Arizona areas.

Read more less
