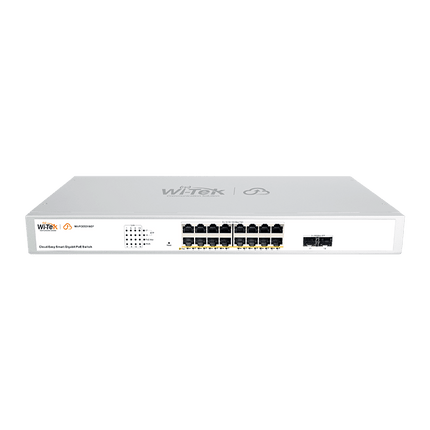

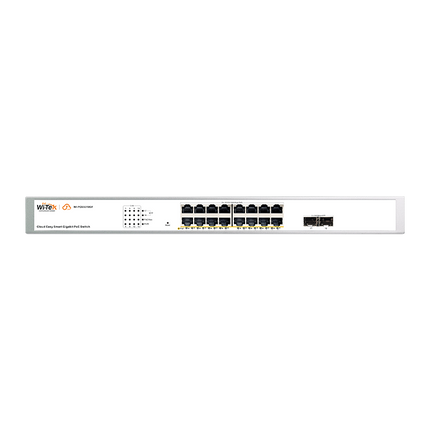

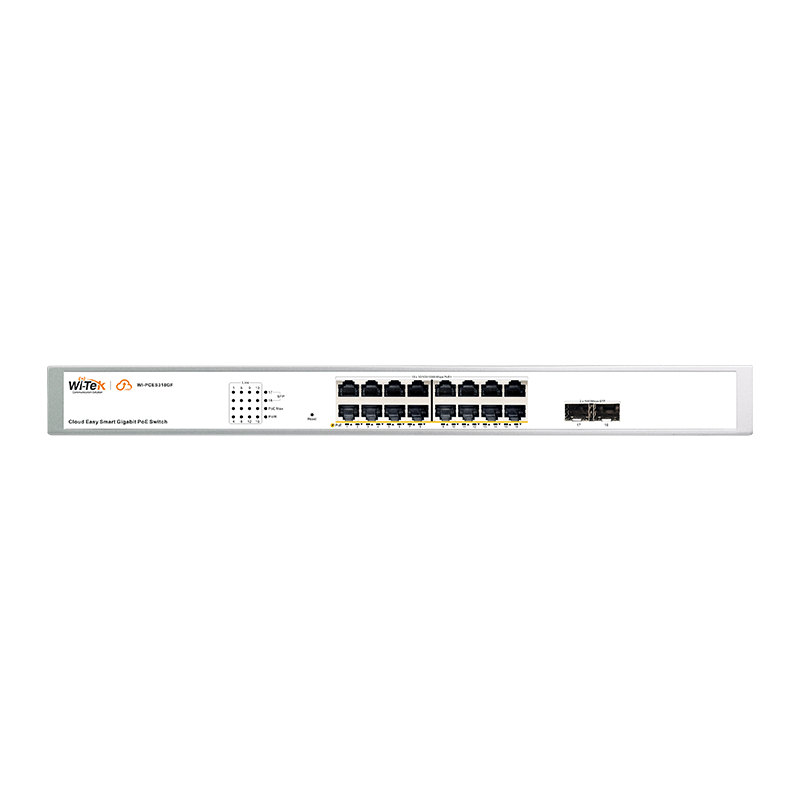

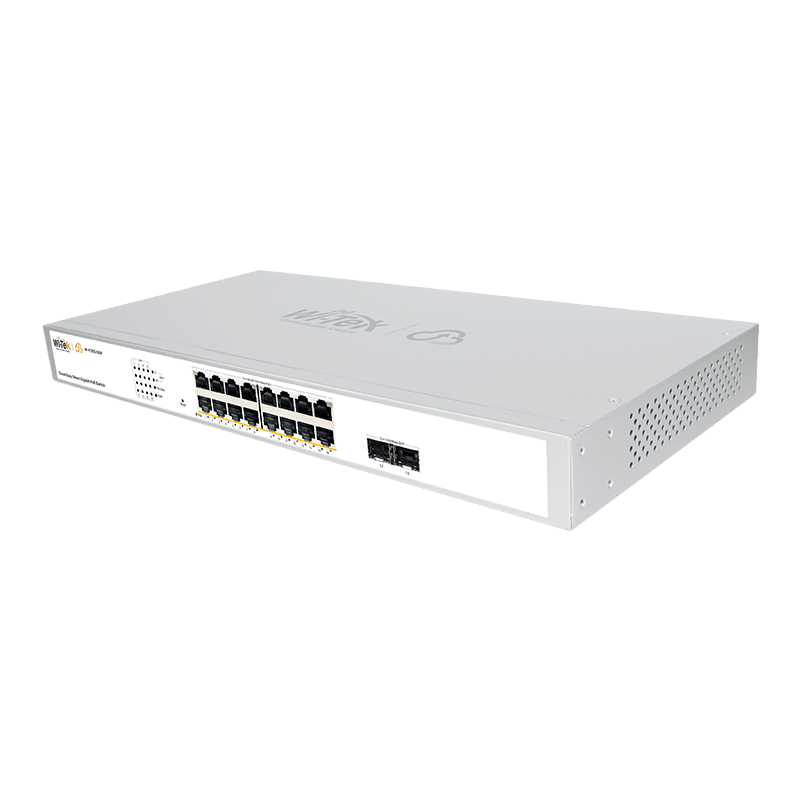

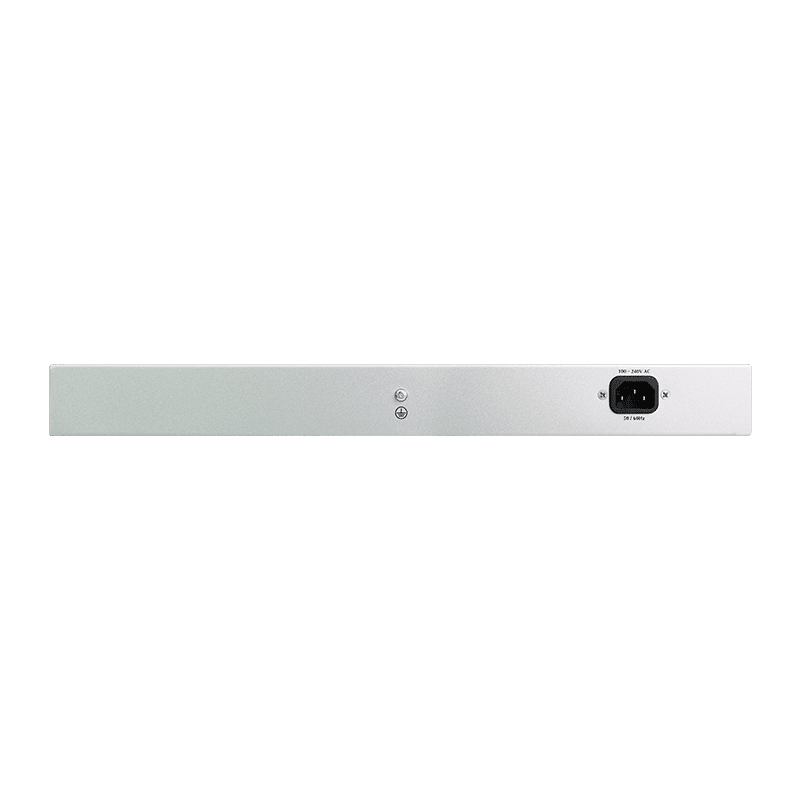

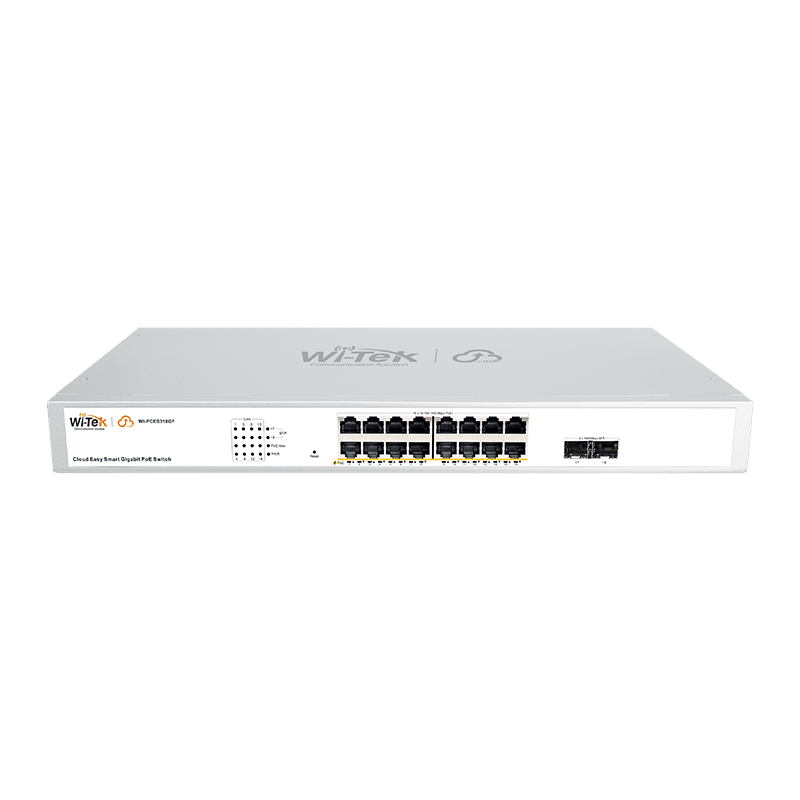

Wi-Tek WI-PCES318GF V2 16-Port Gigabit PoE+ Network Switch with 2 SFP Uplinks and 250W Power Budget
The Wi-Tek WI-PCES318GF V2 is a professional-grade 16-Port Gigabit Ethernet switch featuring full PoE+ support and dual SFP uplink slots. Designed for commercial IP surveillance, wireless access networks, and VoIP systems, this switch provides seamless data and power integration for up to 16 powered devices. With a 250W total PoE power budget, it efficiently delivers up to 30W per port—supporting high-power devices such as PTZ cameras and enterprise-grade wireless access points.
The switch also offers advanced Layer 2 management via cloud-based controls, including VLAN configuration, QoS, port reboot, isolation, and ONVIF auto-discovery, making it ideal for installers and integrators managing multi-site or complex network deployments.
Tri-Tek Electronics is an authorized distributor of Wi-Tek networking equipment and offers full manufacturer warranty, factory-direct pricing, and expert support. Located in Mesa, AZ, we serve Phoenix and surrounding areas with in-stock availability and walk-in retail convenience for contractors and technicians.
Product Features and Technical Specifications
-
16 x Gigabit Ethernet Ports (10/100/1000 Mbps) with PoE+ Support
Compliant with IEEE 802.3af/at standards, delivering up to 30W per port
-
2 x SFP Uplink Ports (1000 Mbps)
Ideal for high-speed backbone or fiber uplinks between buildings or network closets
-
Total PoE Power Output: 250 Watts
Shared across all 16 PoE-enabled ports, suitable for powering multiple IP cameras or access points
-
Switching Capacity: 36 Gbps
-
Forwarding Rate: 26.78 Mpps
-
MAC Address Table: 8,000 entries
-
Jumbo Frame Support: Up to 9216 bytes
-
Buffer Memory: 4.1 MB
-
Surge Protection: 6KV for enhanced port protection
-
Cloud-Based Management: VLAN, PoE scheduling, port control, link aggregation, and remote reboot
-
ONVIF Protocol Compatibility: Automatically detects IP surveillance cameras
-
Fan-Cooled, Rack-Mountable Metal Housing: 440mm × 207mm × 44mm (1U standard rack size)
Installation Scenario: Retail or Office IP Surveillance Network
This switch is an excellent choice for a retail location, warehouse, or office facility that requires centralized control of PoE devices. For example, a network technician in Phoenix or Tempe can deploy the WI-PCES318GF V2 in a secure rack cabinet, connect PoE cameras throughout the facility using Cat6 cabling, and uplink to a core switch or NVR via the dual SFP ports. Through the cloud portal, configuration and diagnostics can be managed remotely—saving time and enabling fast resolution of issues without physical site visits.
Ideal for Arizona Installers and Network Professionals
-
PoE+ on Every Port – Powers security cameras, access points, VoIP phones, and more
-
Cloud Managed – Simplifies deployment, monitoring, and updates
-
High Power Budget – Handles multiple high-demand devices simultaneously
-
Dual SFP Ports – Supports fiber or long-distance copper uplinks
-
Locally Available in Mesa, AZ – Fast pickup and expert support at Tri-Tek Electronics
