Outdoor Gigabit High-Power PoE+ Extender Repeater

Description

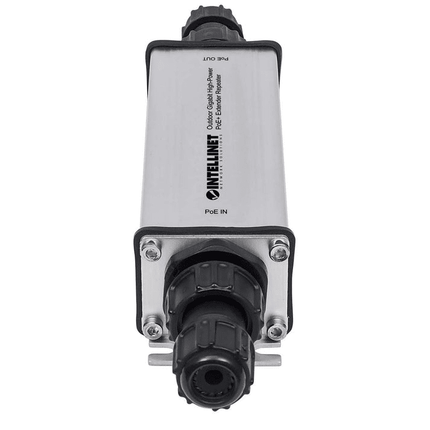

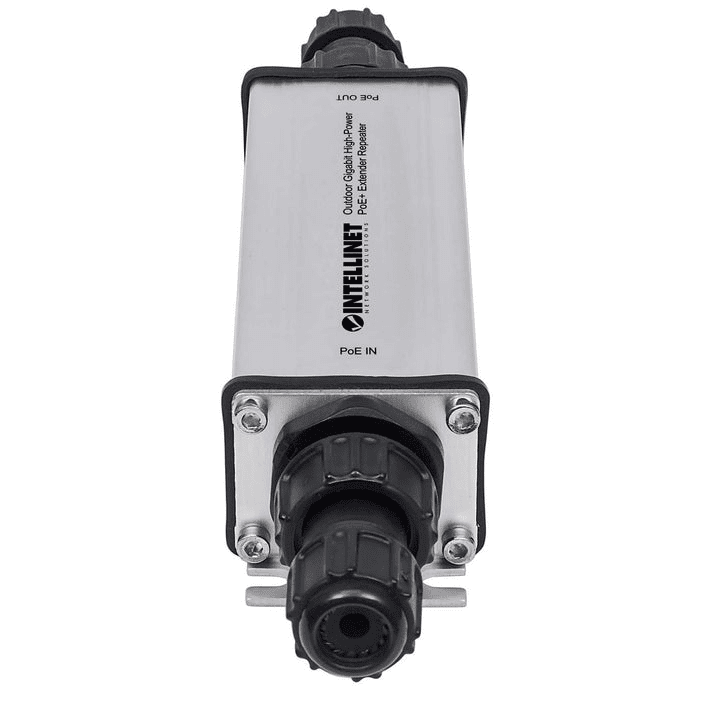

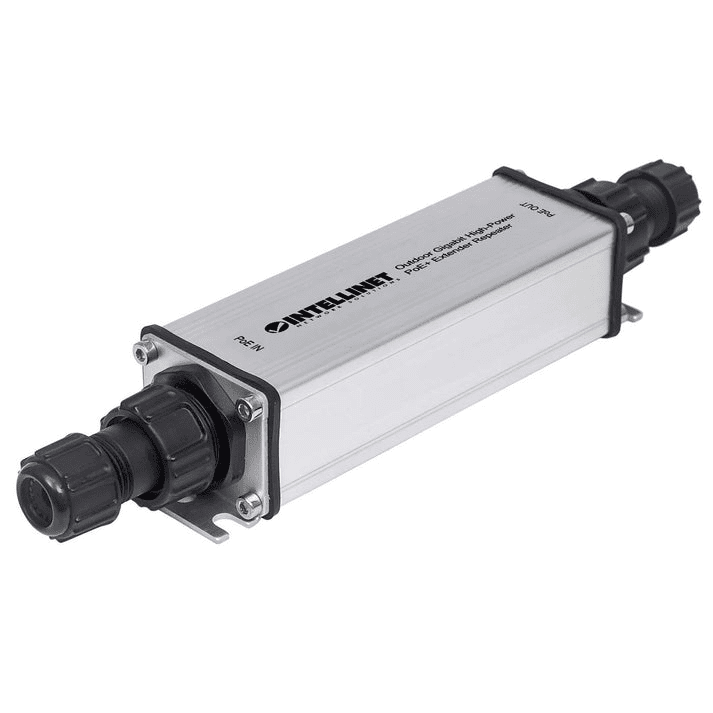

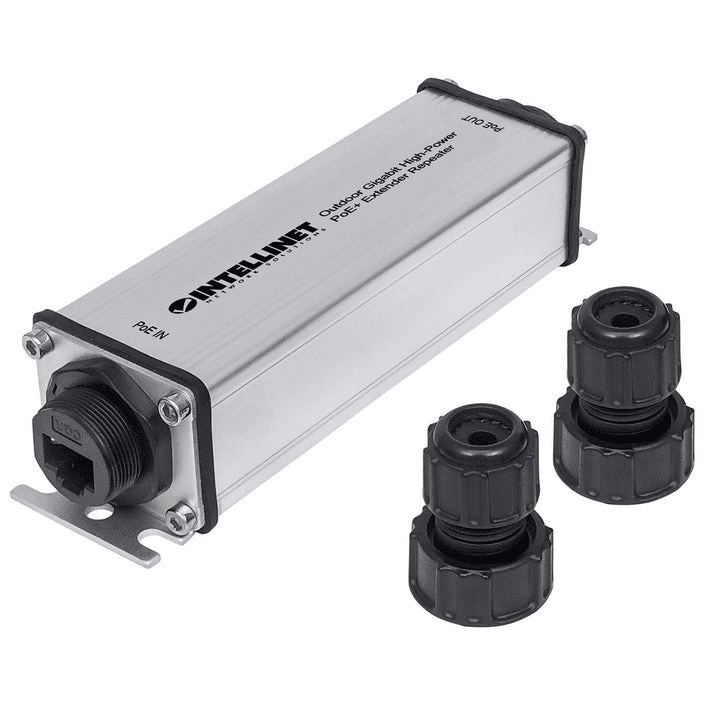

Intellinet 561211 IPE-ODG Outdoor Gigabit High-Power PoE+ Extender Repeater

The Intellinet IPE-ODG extender repeater amplifies and regenerates an IEEE 802.3at/af PoE signal, extending your PoE+ network by up to 100 meters over standard Cat5e/6 cable without any external power source. Designed for harsh outdoor environments, it features an IP65-rated metal housing and operates reliably from –40 °C to 75 °C, making it ideal for long-range connections to cameras, wireless access points, and other remote devices.

Key Features

  • Extends PoE+ signal up to 100 m (328 ft) per segment; supports daisy-chaining up to five units for a total reach of 500 m (1,640 ft)

  • Compliant with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE), delivering up to 25 W to downstream devices

  • Rugged IP65-rated metal enclosure protects against dust, rain, and corrosion

  • Two shielded RJ45 ports support 10/100/1000 Mbps data rates

  • Fan-free, maintenance-free design with shielded connectors to minimize EMI

  • Wide operating temperature range: –40 °C to 75 °C (–40 °F to 167 °F)

  • Three-year manufacturer’s warranty

Specifications

  • Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

  • Ports:

    • PoE In: 1 × shielded RJ45 (48 V, 10/100/1000 Mbps)

    • PoE Out: 1 × shielded RJ45 (10/100/1000 Mbps, up to 25 W)

  • Power Consumption:

    • Input: provided by upstream PoE switch or injector

    • Output: up to 25 W to PD

    • Device draw: 4 W max

  • Mechanical:

    • Dimensions: 145 × 38 × 30 mm (5.7 × 1.5 × 1.2 in)

    • Weight: 130 g (0.29 lb)

  • Environmental:

    • IP65-rated metal housing

    • Operating temperature: –40 °C to 75 °C

    • Certifications: FCC Class A, CE

  • Reliability: MTBF ≈ 4 025 514 hours at 40 °C

Example Installation Scenario

An installer in Phoenix mounts the IPE-ODG on a rooftop to power and connect outdoor security cameras located 200 meters from the network switch. By daisy-chaining two extenders, the technician achieves full Gigabit connectivity and delivers 25 W PoE+ power without trenching or additional electrical outlets—saving both time and labor costs.

Value for Technicians and Installers

  • Plug-and-Play Deployment: No configuration or additional power wiring required

  • Cost Efficiency: Leverages existing Cat5e/6 cabling for both data and power

  • Scalability: Easily add more extenders for longer distances

  • Durability: Weatherproof housing and wide temperature tolerance ensure uninterrupted performance in outdoor installations

Product form

Intellinet 561211 IPE-ODG Outdoor Gigabit High-Power PoE+ Extender Repeater The Intellinet IPE-ODG extender repeater amplifies and regenerates an IEEE 802.3at/af... Read more

Free local pickup in our store

SKU: ICI561211 IPE-ODG
UPC: 0766623561211

Pre-order Now

$116.95 $109.99

  •  Restock is coming soon!

Description

Intellinet 561211 IPE-ODG Outdoor Gigabit High-Power PoE+ Extender Repeater

The Intellinet IPE-ODG extender repeater amplifies and regenerates an IEEE 802.3at/af PoE signal, extending your PoE+ network by up to 100 meters over standard Cat5e/6 cable without any external power source. Designed for harsh outdoor environments, it features an IP65-rated metal housing and operates reliably from –40 °C to 75 °C, making it ideal for long-range connections to cameras, wireless access points, and other remote devices.

Key Features

  • Extends PoE+ signal up to 100 m (328 ft) per segment; supports daisy-chaining up to five units for a total reach of 500 m (1,640 ft)

  • Compliant with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE), delivering up to 25 W to downstream devices

  • Rugged IP65-rated metal enclosure protects against dust, rain, and corrosion

  • Two shielded RJ45 ports support 10/100/1000 Mbps data rates

  • Fan-free, maintenance-free design with shielded connectors to minimize EMI

  • Wide operating temperature range: –40 °C to 75 °C (–40 °F to 167 °F)

  • Three-year manufacturer’s warranty

Specifications

  • Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

  • Ports:

    • PoE In: 1 × shielded RJ45 (48 V, 10/100/1000 Mbps)

    • PoE Out: 1 × shielded RJ45 (10/100/1000 Mbps, up to 25 W)

  • Power Consumption:

    • Input: provided by upstream PoE switch or injector

    • Output: up to 25 W to PD

    • Device draw: 4 W max

  • Mechanical:

    • Dimensions: 145 × 38 × 30 mm (5.7 × 1.5 × 1.2 in)

    • Weight: 130 g (0.29 lb)

  • Environmental:

    • IP65-rated metal housing

    • Operating temperature: –40 °C to 75 °C

    • Certifications: FCC Class A, CE

  • Reliability: MTBF ≈ 4 025 514 hours at 40 °C

Example Installation Scenario

An installer in Phoenix mounts the IPE-ODG on a rooftop to power and connect outdoor security cameras located 200 meters from the network switch. By daisy-chaining two extenders, the technician achieves full Gigabit connectivity and delivers 25 W PoE+ power without trenching or additional electrical outlets—saving both time and labor costs.

Value for Technicians and Installers

  • Plug-and-Play Deployment: No configuration or additional power wiring required

  • Cost Efficiency: Leverages existing Cat5e/6 cabling for both data and power

  • Scalability: Easily add more extenders for longer distances

  • Durability: Weatherproof housing and wide temperature tolerance ensure uninterrupted performance in outdoor installations
