TeknoCrafters FA5042 Diode Assortment Kit - 14 Values
The TeknoCrafters FA5042 Diode Assortment Kit is a comprehensive collection of 14 essential diode types, making it ideal for technicians, hobbyists, and engineers. This kit is designed to meet a wide range of circuit design and repair needs, offering a convenient selection of rectifier, fast recovery, Schottky, and switching diodes. Each type is carefully selected to cover various voltage and current ratings, ensuring versatility and reliability for your electronic projects.
Key Features:
-
14 Diode Types Included: A broad range of diodes suitable for rectification, fast recovery, switching, and low-voltage applications.
-
Wide Range of Voltage and Current Ratings: Covers different operational needs from 50V to 1000V and up to 3A, offering flexibility for various circuit designs.
-
Organized Assortment: Clearly labeled diodes for easy identification and efficient use during projects.
-
High-Quality Components: All diodes in the kit meet RoHS and Pb-Free standards, ensuring reliability and environmental compliance.

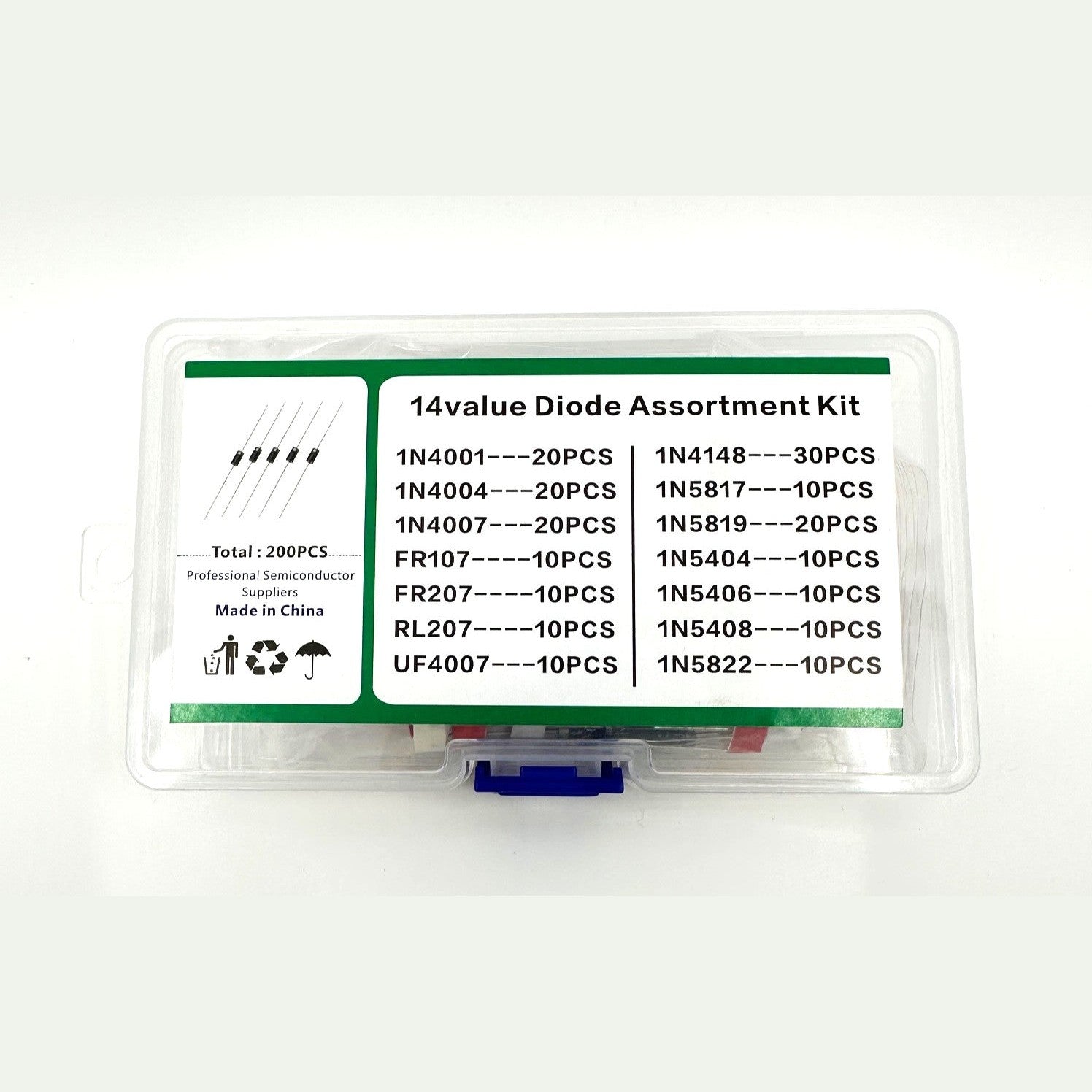

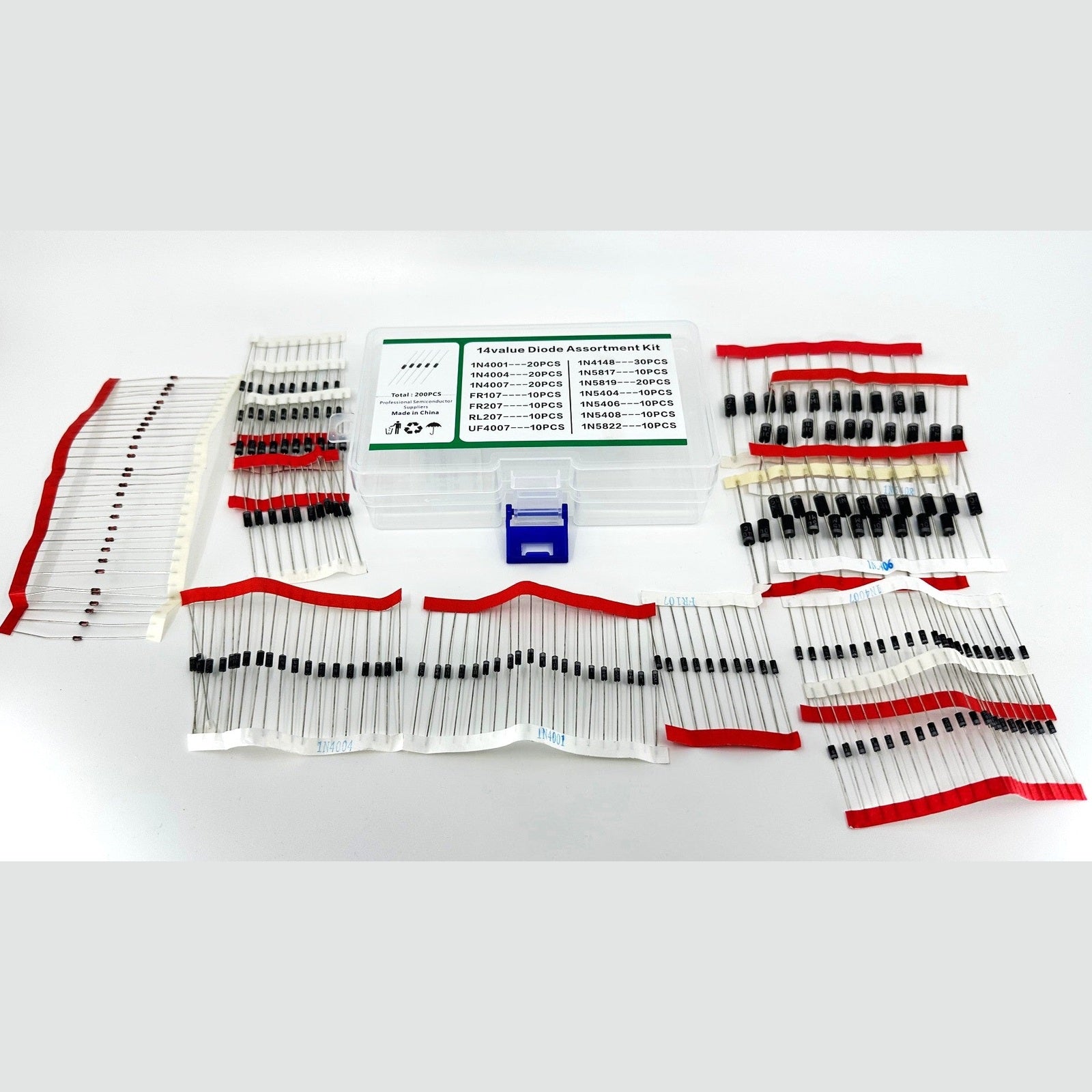

Kit Contents:
Rectifier Diodes:
-
1N4001: 1A, 50V (Qty: 20)
-
1N4004: 1A, 400V (Qty: 20)
-
1N4007: 1A, 1000V (Qty: 20)
-
RL207: 2A, 1000V (Qty: 10)
-
1N5404: 3A, 400V (Qty: 10)
-
1N5406: 3A, 600V (Qty: 10)
-
1N5408: 3A, 1000V (Qty: 10)
Fast Recovery Diodes:
-
UF4007: 1A, 1000V (Qty: 10)
-
FR107: 1A, 1000V (Qty: 10)
-
FR207: 2A, 1000V (Qty: 10)
Schottky Diodes:
-
1N5817: 1A, 20V (Qty: 20)
-
1N5819: 1A, 40V (Qty: 20)
-
1N5822: 3A, 40V (Qty: 10)
Switching Diodes:
-
1N4148: 200mA, 100V (Qty: 30)
Example Use Case:
A repair technician working on a power supply unit uses the 1N4007 rectifier diode to replace a faulty component in the circuit. For high-speed switching needs in a low-voltage circuit, the 1N4148 diode provides an efficient solution. The wide variety of diodes in the FA5042 kit ensures the technician always has the right part on hand.
Tri-Tek Electronics in Mesa, AZ, is proud to offer the TeknoCrafters FA5042 Diode Assortment Kit. As an authorized distributor, we guarantee full manufacturer warranty coverage, competitive pricing, and expert technical support to meet your project requirements.
