Development Boards and Accessories

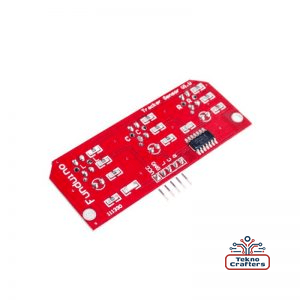

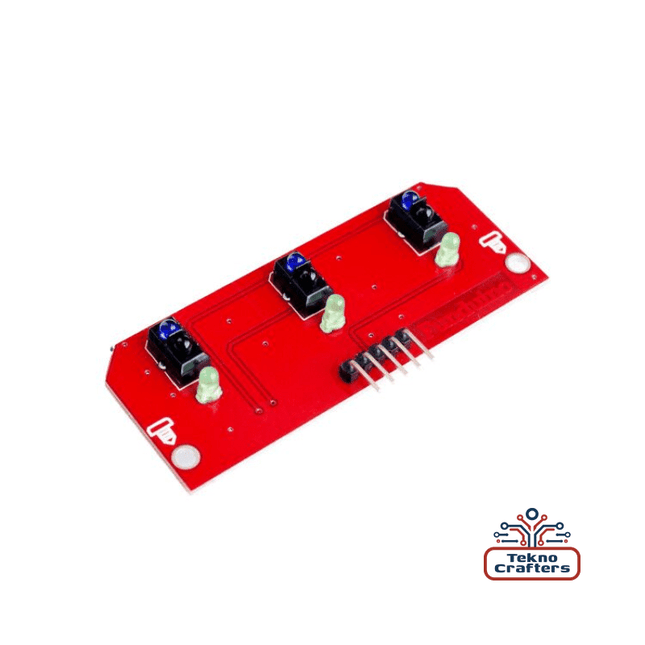

TeknoCrafters FA3008-1 3-Way Tracking/Hunt Module for Robotic Line Following The TeknoCrafters FA3008-1 is a compact and efficient 3-way tracking module designed to enhance the line-following capabilities of robotic projects. Utilizing infrared sensors, this module accurately detects and responds to line patterns, making it an essential component for developing autonomous robots that require precise path tracking. Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of TeknoCrafters products, including the FA3008-1 tracking module. Purchasing from Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and direct factory support. Key Features: Triple Infrared Sensors: Equipped with three CTRT5000 infrared sensors, the module effectively detects line positioning, enabling robots to follow paths with high accuracy. Adjustable Sensitivity: The sensitivity of the sensors can be fine-tuned to accommodate various surface materials and lighting conditions, ensuring stable performance across different environments. Anti-Interference Capability: Designed with robust anti-jamming features, the module maintains reliable operation even in environments with potential signal interference. Indicator Lights: Built-in LED indicators provide visual feedback of the sensor status, aiding in debugging and calibration during development. Standard 5V Operating Voltage: Compatible with most microcontrollers and development boards operating at 5V, facilitating seamless integration into existing robotic systems. Compact and Lightweight Design: Weighing only 17 grams, the module adds minimal weight to robotic platforms, preserving agility and efficiency. Mounting Convenience: Pre-drilled bolt holes allow for secure and straightforward installation onto various robotic chassis. Example Usage Scenario: In a line-following robotic application, the FA3008-1 module is mounted on the underside of the robot chassis, positioned to detect the guiding line on the floor. The three infrared sensors continuously monitor the line's position, sending real-time data to the robot's microcontroller. Based on this input, the robot adjusts its movement to stay aligned with the path, enabling smooth and accurate navigation along predefined routes. This setup is particularly useful in settings where precise movement along designated paths is crucial.

Read more less

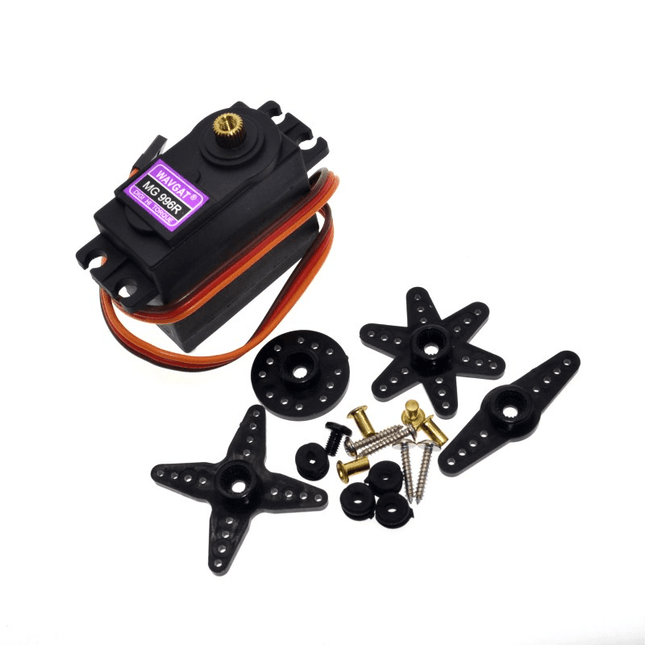

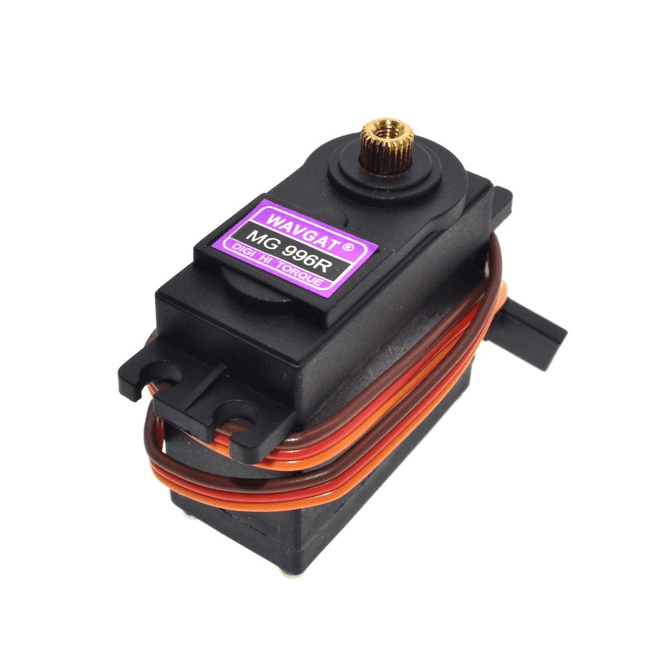

TeknoCrafters FA6036 MG996R Full Metal Gear 180° Servo Motor Kit The TeknoCrafters FA6036 MG996R Servo Motor Kit is a high-torque, full metal gear analog servo designed for precision and durability in demanding applications. Engineered for robotics, RC vehicles, and industrial automation, this servo motor combines robust mechanical construction with smooth, controlled performance. Its 180-degree rotation, dual ball bearing system, and broad voltage range make it a top choice for hobbyists and professionals alike. Product Overview Designed for consistent torque and long service life, the MG996R servo features a reinforced metal gear train and dual ball bearings for efficient, stable operation. It operates within a voltage range of 4.8V to 7.2V and is capable of producing stall currents up to 2.5A at 6V, supporting high load scenarios. With precise analog control and a 5 μs dead band width, it delivers accurate response for a variety of dynamic positioning needs. Key Features Operating Voltage: 4.8V – 7.2V Running Current: 500 mA – 900 mA (at 6V) Stall Current: 2.5 A (at 6V) Control System: Analog Operating Angle: 180° Operating Speed: 0.17 sec/60° at 4.8V 0.14 sec/60° at 6V Temperature Range: 0°C – 55°C Required Pulse Width: 900 µs – 2100 µs Direction: Counterclockwise (CCW) Dead Band Width: 5 µs Gear Type: Full metal Bearing Type: Dual ball bearings Dimensions: 40.7 x 19.7 x 42.9 mm Weight: 55g Connector: 3-pin ‘S’ type female header Wire Configuration: Red: Positive Brown: Negative Orange: Signal (PWM) Application Scenario Whether you’re building a robotic arm, automating servo-driven machinery, or upgrading RC models, the MG996R delivers reliable torque and precision. Its extended voltage tolerance and temperature range make it ideal for use in classroom robotics, industrial prototypes, and maker labs. The full metal gear assembly ensures the longevity and strength needed in physically demanding environments. Authorized Distribution Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, ensuring genuine product availability with full manufacturer warranty coverage. Our Mesa, AZ retail store proudly serves the greater Phoenix metro area including Tempe, Chandler, Gilbert, Glendale, and Scottsdale, offering technical support and competitive pricing for builders, installers, and engineers.

Read more less

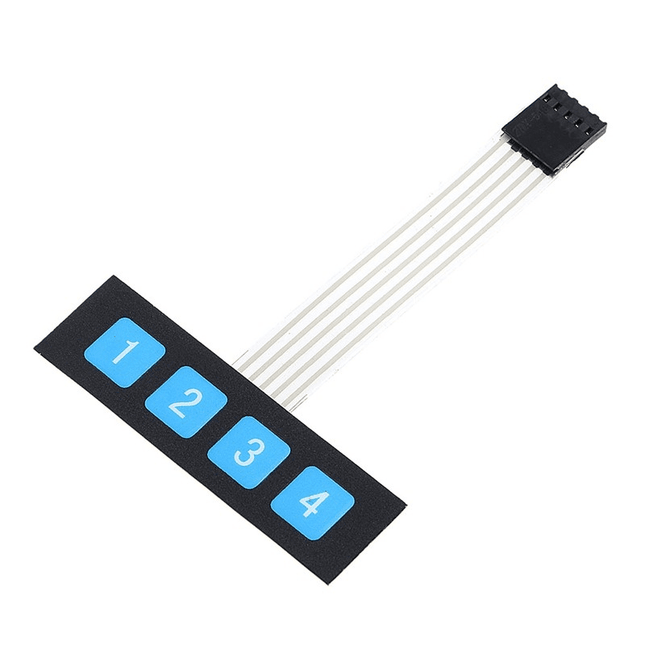

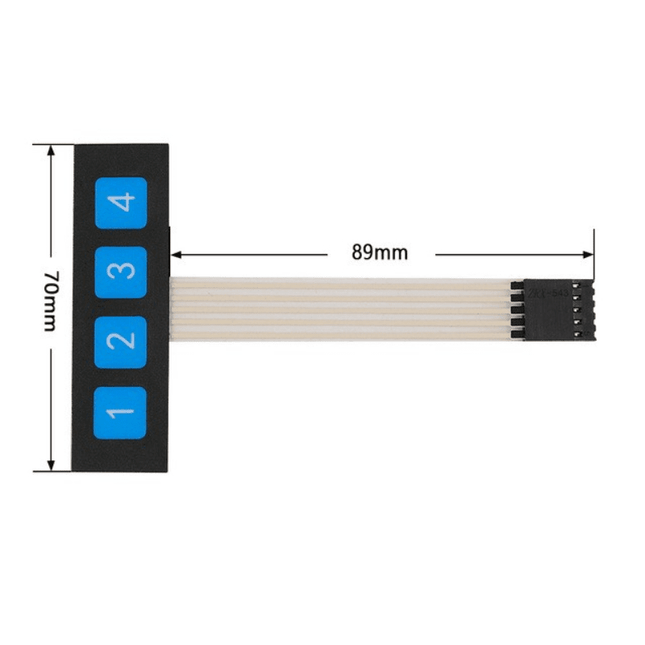

TeknoCrafters FA4046 1×4 Key Matrix Membrane Switch Keypad The TeknoCrafters FA4046 is a compact and reliable 1×4 key matrix membrane switch keypad designed for seamless integration with microcontroller-based systems. Its slim profile and durable construction make it an ideal choice for applications requiring a simple yet effective user interface. Product Overview Featuring four tactile keys arranged in a single row, the FA4046 provides a straightforward input method for various electronic projects. The membrane switch design ensures a long operational life, while the adhesive backing allows for easy mounting on different surfaces. Its compatibility with standard microcontroller input configurations makes it suitable for a wide range of applications, from DIY electronics to industrial control panels. Key Features Key Configuration: 1×4 matrix layout Circuit Rating: 35V DC, 100mA, 1W Contact Resistance: 10Ω–500Ω (varies with lead length and material) Insulation Resistance: ≥100MΩ at 100V Dielectric Withstand Voltage: 250V RMS (50–60Hz for 1 minute) Contact Bounce Time: ≤5ms Operating Force: 220–350g (metal dome type) Key Travel: 0.6–0.8mm Dimensions: 6.9 × 2 cm Thickness: ≤0.13mm Operational Life: Metal dome type: <100,000 actuations Flat touch type: <30 million actuations Film button type: <500,000 actuations Environmental Tolerance: Storage Temperature: +15°C to +35°C Operating Temperature: 0°C to +60°C Humidity: 70%–90% RH Vibration Resistance: 20G max (10–200Hz, MIL-STD-202, M204, Condition B) Application Scenario The FA4046 keypad is well-suited for projects requiring a minimalistic input interface, such as menu navigation on embedded systems, code entry for security systems, or control inputs for custom-built devices. Its slim design allows for integration into compact enclosures, and the adhesive backing facilitates straightforward installation on various surfaces. Authorized Distribution Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, providing customers with genuine components backed by full manufacturer warranty coverage. Our commitment to competitive pricing and factory support ensures that hobbyists, technicians, and professionals receive the best value and service. Visit our retail location in Mesa, AZ, serving the greater Phoenix area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale.

Read more less

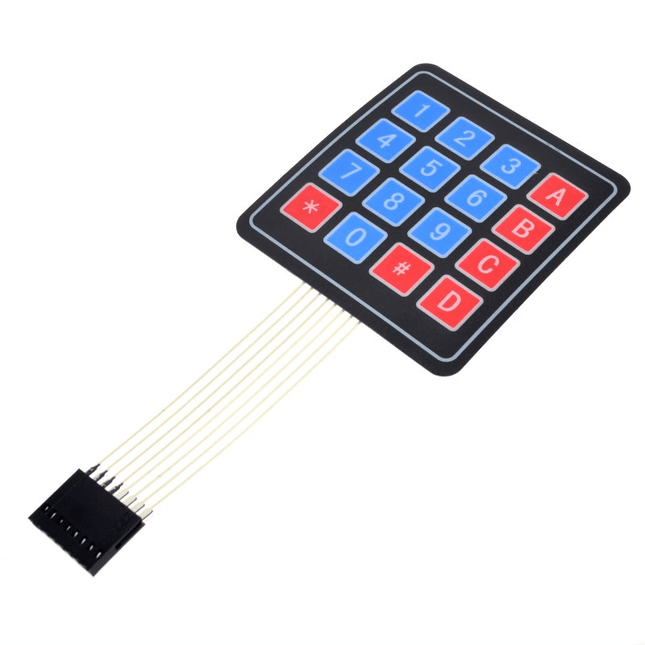

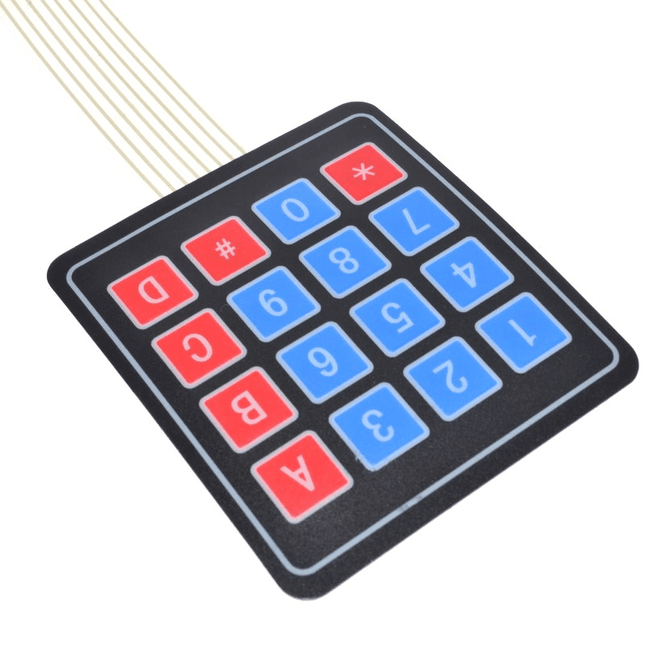

TeknoCrafters FA4043 4×4 Matrix 16-Key Membrane Switch Keypad The TeknoCrafters FA4043 is a compact 4×4 matrix membrane switch keypad featuring 16 tactile keys, ideal for seamless integration with Arduino, Raspberry Pi, and other microcontroller-based platforms. Its slim membrane construction and adhesive backing make it a preferred choice for projects that demand both reliability and space efficiency. Product Overview With clearly labeled tactile keys in a standard 4×4 layout, this keypad provides a straightforward interface for user input. It’s perfect for tasks like numeric entry, menu selection, and password input in embedded systems. The flexible, durable membrane allows the keypad to be mounted in a variety of enclosures or directly on panels using its built-in adhesive backing. Key Features 4×4 matrix layout with 16 responsive keys Compatible with Arduino, Raspberry Pi, and other microcontrollers 8-pin female header connector for easy interfacing Slim profile with adhesive backing for quick installation Ideal for compact control panels, security systems, and custom projects Technical Specifications Circuit Rating: 35V DC, 100mA, 1W Contact Resistance: 10Ω–500Ω (varies by lead length and material) Insulation Resistance: ≥100MΩ at 100V Dielectric Withstand Voltage: 250V RMS (50–60Hz for 1 minute) Contact Bounce Time: ≤5ms Operating Force: 150–200N Key Travel: 0.6–1.5mm Keypad Dimensions: 6.9 × 7.6 cm Cable Length: Approximately 8.5 cm Operating Temperature Range: 0°C to 50°C Storage Temperature Range: -40°C to 80°C Humidity Tolerance: 90%–95% RH at 40°C for 240 hours Vibration Resistance: 20G max (10–200Hz per MIL-STD-202) Key Lifespan: Over 1 million actuations Application Scenario Whether you're designing a PIN entry system for access control, building a handheld interface for a robotics project, or developing a custom menu input device, the FA4043 provides durable, responsive input in a compact format. Its reliable performance and ease of use make it a go-to solution for both professional and hobbyist applications. Authorized Distribution Tri-Tek Electronics is an authorized distributor of TeknoCrafters products, providing genuine components backed by the full manufacturer warranty. Our retail location in Mesa, AZ serves the entire Phoenix metro area—including Tempe, Chandler, Gilbert, Glendale, and Scottsdale—with the best pricing, factory support, and in-stock availability.

Read more less
