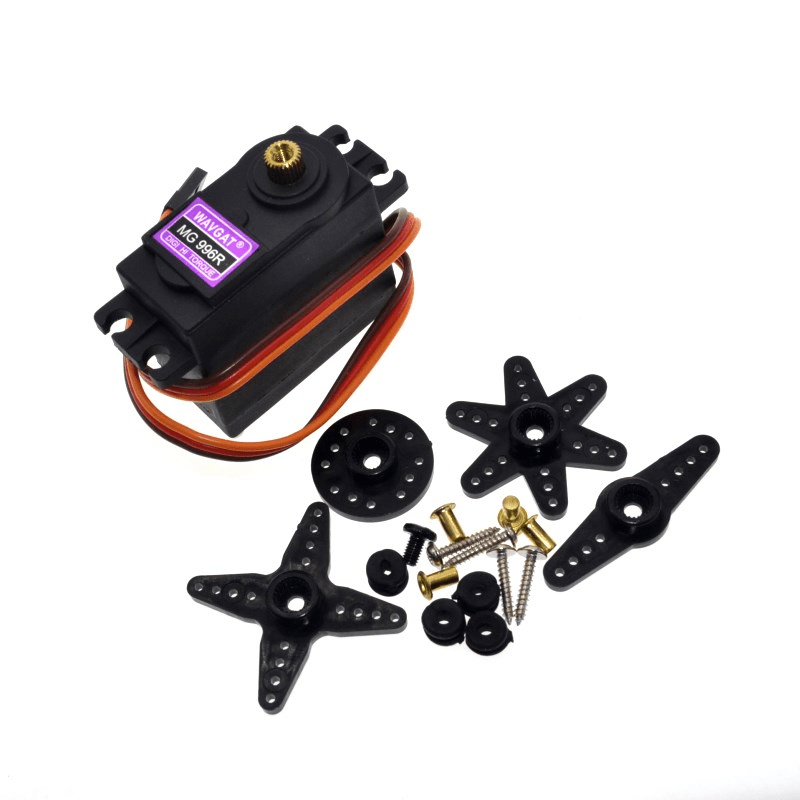

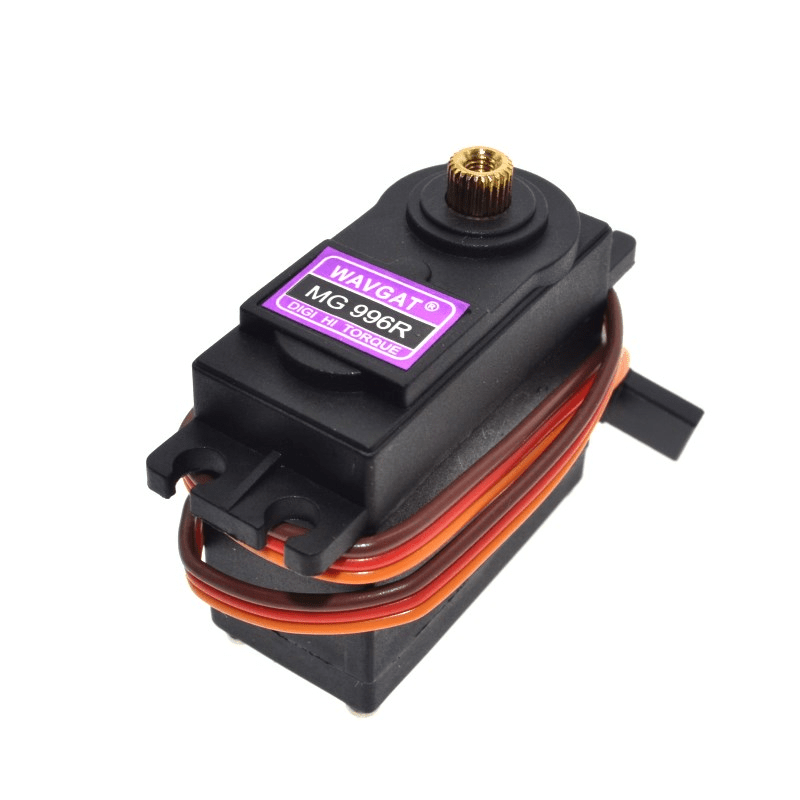

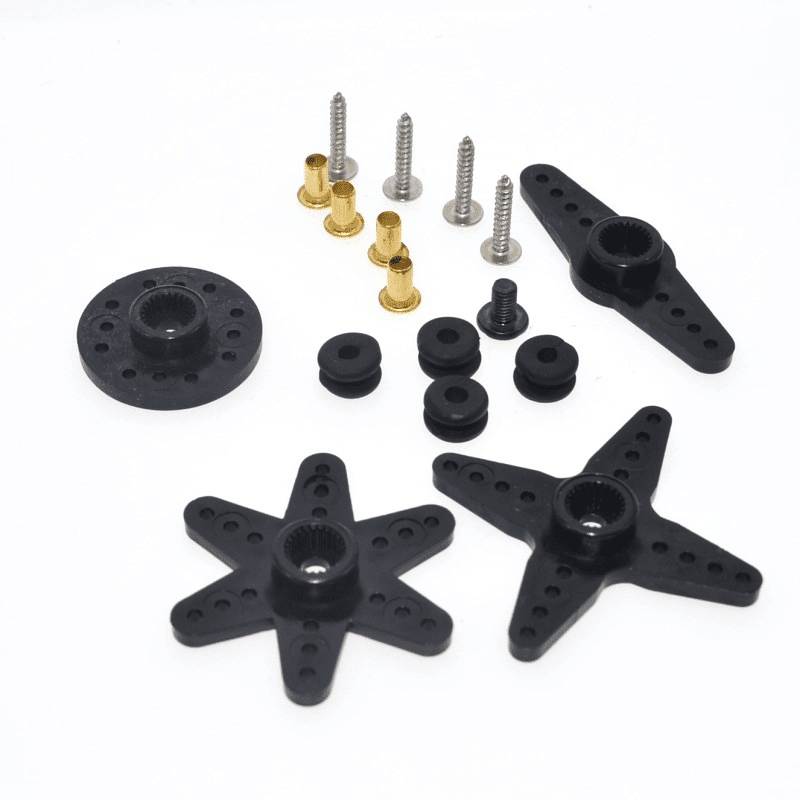

TeknoCrafters FA6036 MG996R Full Metal Gear 180° Servo Motor Kit
The TeknoCrafters FA6036 MG996R Servo Motor Kit is a high-torque, full metal gear analog servo designed for precision and durability in demanding applications. Engineered for robotics, RC vehicles, and industrial automation, this servo motor combines robust mechanical construction with smooth, controlled performance. Its 180-degree rotation, dual ball bearing system, and broad voltage range make it a top choice for hobbyists and professionals alike.
Product Overview
Designed for consistent torque and long service life, the MG996R servo features a reinforced metal gear train and dual ball bearings for efficient, stable operation. It operates within a voltage range of 4.8V to 7.2V and is capable of producing stall currents up to 2.5A at 6V, supporting high load scenarios. With precise analog control and a 5 μs dead band width, it delivers accurate response for a variety of dynamic positioning needs.
Key Features
-
Operating Voltage: 4.8V – 7.2V
-
Running Current: 500 mA – 900 mA (at 6V)
-
Stall Current: 2.5 A (at 6V)
-
Control System: Analog
-
Operating Angle: 180°
-
Operating Speed:
-
0.17 sec/60° at 4.8V
-
0.14 sec/60° at 6V
-
Temperature Range: 0°C – 55°C
-
Required Pulse Width: 900 µs – 2100 µs
-
Direction: Counterclockwise (CCW)
-
Dead Band Width: 5 µs
-
Gear Type: Full metal
-
Bearing Type: Dual ball bearings
-
Dimensions: 40.7 x 19.7 x 42.9 mm
-
Weight: 55g
-

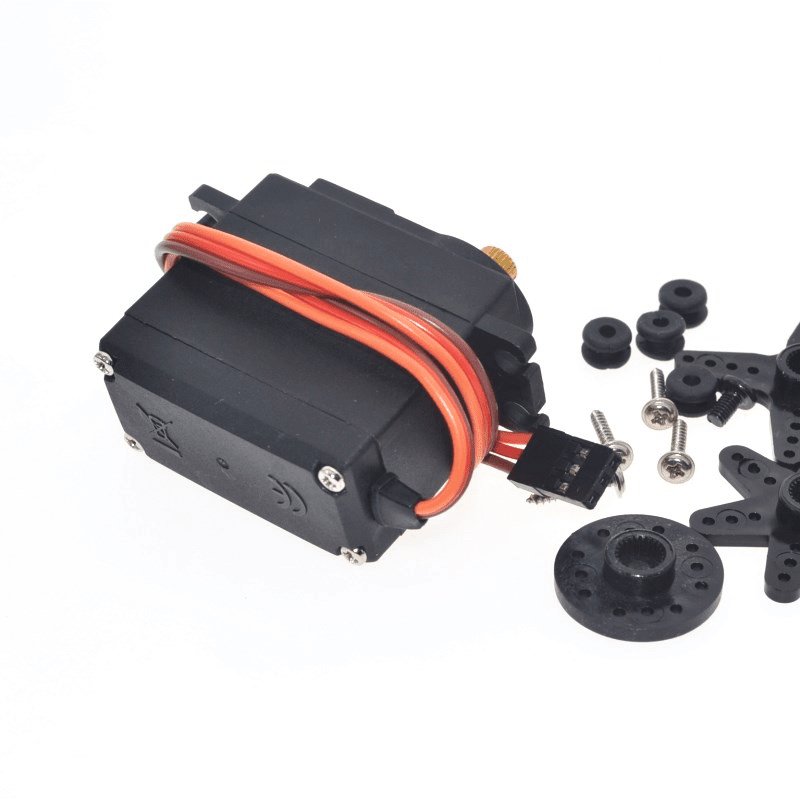

Connector: 3-pin ‘S’ type female header
-
Wire Configuration:
-
Red: Positive
-
Brown: Negative
-
Orange: Signal (PWM)
Application Scenario
Whether you’re building a robotic arm, automating servo-driven machinery, or upgrading RC models, the MG996R delivers reliable torque and precision. Its extended voltage tolerance and temperature range make it ideal for use in classroom robotics, industrial prototypes, and maker labs. The full metal gear assembly ensures the longevity and strength needed in physically demanding environments.
