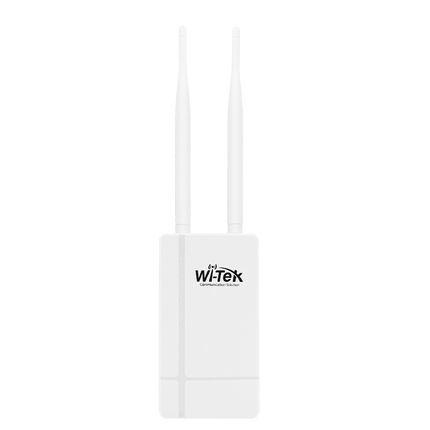

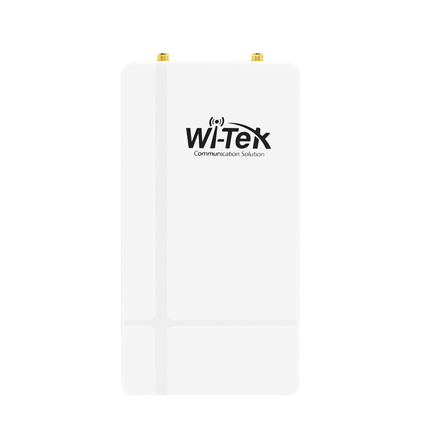

Wi-Tek WI-AP316 Dual Band 1200Mbps Wireless Outdoor Access Point
Enhance your outdoor network coverage with the 1200Mbps Dual Band Wireless Outdoor Access Point, available exclusively at Tri-Tek Electronics. This robust access point is designed to offer reliable, high-speed wireless connectivity in outdoor environments, supporting both 2.4GHz and 5GHz bands for optimal performance. Engineered to withstand the elements, it ensures uninterrupted internet access ideal for cafes, parks, and outdoor recreational areas. As an authorized distributor, Tri-Tek Electronics guarantees full manufacturer warranty coverage, best pricing, and factory support, making this product a superior choice for installers and technicians seeking to expand outdoor network capabilities.
Features:

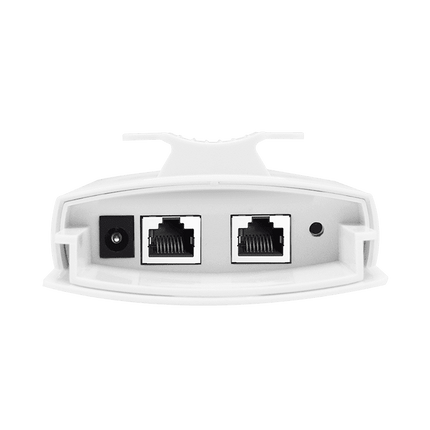

- 2 x 10/100Mbps Ethernet Ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Support IP65 Weatherproof
- Support Fit/Fat working mode
- Support mesh technology
- Support AP controller and cloud management
- Wi-Tek WI-AP316 Product Datasheet (.pdf)
Specifications:
- Wireless Standards 802.11ac wave2/wave1 802.11n/b/g/a
- Operating Bands 2.4GHz & 5GHz
- Antenna 2.4GHz:5dBi, 5GHz: 5dBi
- Spatial Steams 2.4GHz：2x2 MIMO 5GHz：2x2 MIMO
- Signal Rate Up to 300Mbps at 2.4GHz Up to 867Mbps at 5GHz
- Receiver Sensitivity
-
2.4GHz:：
- 11n: -65dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -89.5dbm@6Mbps. 11b: -92dbm@11Mbps, -94dbm@1Mbps.
-
5GHz :
- 11a: -72dbm@54Mbps, -88dbm@6Mbps. 11n@HT20: -65dbm@MCS7, -87.5dbm@MCS0. 11ac@HT80:-55.5dbm@MCS9, -79dbm@MCS0.
- Maximum Transmit Power <23dbm
- Interface (2)10/100 Base-T Ethernet ports
- Power Supply DC 12V/1A (Not Included) 24V Passive PoE
- Power Consumption < 10W
- Installation Pole/Wall mounting
- External buttons reset button (long press for 8 seconds to restore the factory default configuration)
- Dimensions 340mm * 85mm * 35mm
- Environment Operating Temperature: -40°C～55°C
- Storage Temperature: -40°C～70°C
- Operating Humidity: 5% ～ 95% (non-condensing)
-
Storage Humidity: 5% ～ 95% (non-condensing)
Software Features
- Operating Mode Fit AP, Fat AP
- Wireless Function Up to 16 SSIDs
- Support SSID hiding, enable/disable wreless radio
- Manual and automatic channel assignment
- Manual and automatic bandwidth assignment
- TxPower control
- One-click mesh
- Roaming Support Layer 2 roaming
- Wireless Security Captive portal authentication
- Static blacklist and whitelist
- Wireless isolation between clients SSID to VLAN mapping
- Support 802.1X WPA/WPA2/PSK/WPA/WPA2-Enterprise
- Internet Connection Type Support Static IP, DHCP, PPPoE Dial Up
- Management Support local management with web
- Support centralized management with AC
- Support remote management with Wi-Tek cloud platform
- Platform Management Features Automatic RF adjustment via the platform
- Unified configuration via the platform
- Unified monitoring via the platform
