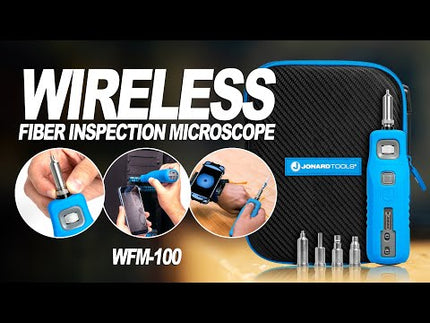

Jonard Tools WFM-100 Wireless Fiber Inspection Microscope
Tri-Tek Electronics is proud to offer the Jonard Tools WFM-100 Wireless Fiber Inspection Microscope, a high-performance, portable device designed for precision end-face inspection of fiber optic connectors. As an authorized distributor, Tri-Tek Electronics ensures full manufacturer warranty coverage, best pricing, and factory-backed support for all Jonard Tools products.
The WFM-100 is engineered for technicians and fiber installers requiring clear, high-resolution imaging in the field. It wirelessly transmits real-time inspection data to mobile devices using a dedicated app and also supports USB-C direct connection to OTDRs and other compatible equipment. This tool eliminates guesswork in fiber cleanliness by providing automatic pass/fail analysis, making it ideal for certification and troubleshooting in data centers, telecom environments, and field installations.
Download Jonard Tools WFM-100 Product Specifications (.pdf)
Features and Benefits:
-

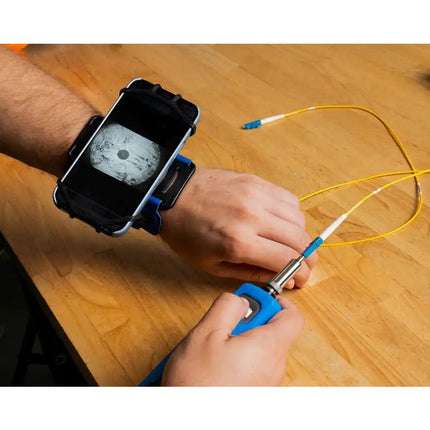

Wireless Connectivity: Built-in Wi-Fi module transmits live images to iOS and Android devices via the Jonard FiberScope app
-
200x Magnification: Enables clear visualization of connector end-faces for detailed inspection
-
High-Resolution Imaging: Captures at 1280 x 1024 resolution with 0.75 μm lens resolution for exceptional clarity
-
Auto Analyze Function: Automatically detects and evaluates connector cleanliness, displaying instant pass/fail reports
-
Multiple Adapter Tips: Includes SC/ST/FC and LC male/female tips for broad compatibility
-
USB-C Interface: Allows for tethered connection with compatible OTDRs and other test equipment
-
Rechargeable 3000 mAh Battery: Provides up to 3 hours of continuous inspection
-
Long-Range Operation: Maintains wireless connection up to 100 meters (328 feet) from the inspection device
Technical Specifications:
Installation/Usage Scenario:
A fiber technician working in a high-density telecom facility can quickly connect the WFM-100 to their smartphone, inspect dozens of fiber ports, and automatically receive pass/fail results for each connection. This drastically reduces inspection time and ensures optimal signal performance across the network.
Whether you're a fiber optic installer needing reliable inspection in the field or a technician maintaining a large fiber infrastructure, the Jonard WFM-100 delivers efficiency, accuracy, and convenience in a compact, rugged form factor.
