Round SJT-16/3 Strain Relief, 10 Pack

Philmore 65-1050, Round SJT-16/3 Strain Relief, 10 Pack

This is a bushing for AC power cords. It is the most accepted method of securing AC power cords at the point where they enter or exit a chassis or cabinet. This type of strain relief is generally regarded as permanent and it will prevent damage to the wire as well as securing the wire against any possible in-out motion. Easy to install by drilling the correct sized hole and then squeezing the strain relief around the wire and inserting it into the hole. These strain reliefs are also perfect for data and audio cables, in addition to power cords and cables.

To select the correct strain relief bushing for your application, look at the wire type and gauge, and then the maximum panel thickness. For applications that are not using the wire listed in the table, go by the approximate wire size instead.

Specifications:

  • Wire Shape: Round
  • Wire Type: SJT-16/3
  • Approx. Wire Size: .320-.362"
  • Hole A: .625" Hole B: .55"
  • Max Thickness: .125"
  • Dim. D: .583"
  • Constructed out of molded Nylon.

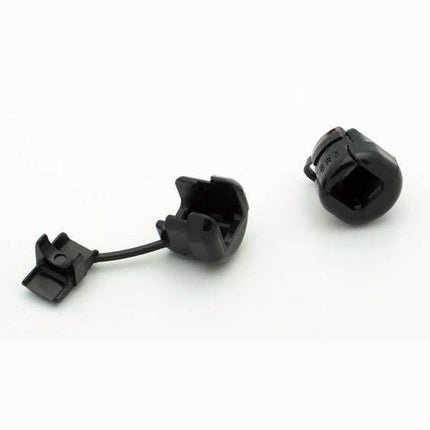

This is a 2 piece strain relief - each part is permanently connected by an integral tether to prevent the two halves from becoming separated. UL listed (File number: E-10793).

Product form

Philmore 65-1050, Round SJT-16/3 Strain Relief, 10 Pack This is a bushing for AC power cords. It is the most... Read more

Free local pickup in our store

SKU: PHI65-1050
UPC: 0038975510507

1 in stock

$2.39

      Philmore 65-1050, Round SJT-16/3 Strain Relief, 10 Pack

      This is a bushing for AC power cords. It is the most accepted method of securing AC power cords at the point where they enter or exit a chassis or cabinet. This type of strain relief is generally regarded as permanent and it will prevent damage to the wire as well as securing the wire against any possible in-out motion. Easy to install by drilling the correct sized hole and then squeezing the strain relief around the wire and inserting it into the hole. These strain reliefs are also perfect for data and audio cables, in addition to power cords and cables.

      To select the correct strain relief bushing for your application, look at the wire type and gauge, and then the maximum panel thickness. For applications that are not using the wire listed in the table, go by the approximate wire size instead.

      Specifications:

      • Wire Shape: Round
      • Wire Type: SJT-16/3
      • Approx. Wire Size: .320-.362"
      • Hole A: .625" Hole B: .55"
      • Max Thickness: .125"
      • Dim. D: .583"
      • Constructed out of molded Nylon.

      This is a 2 piece strain relief - each part is permanently connected by an integral tether to prevent the two halves from becoming separated. UL listed (File number: E-10793).
