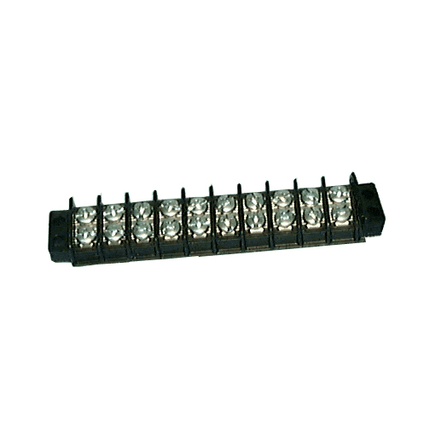

Philmore 13-1410, 30 Amp Dual Row Terminal Block
Product AttributeProduct Value
Weight
1.75 oz
10 poles, dimension: A=4.40", B=4.12", rating: 30A, 300V
center spacing: .375" (9.52mm), wire size: #14-22AWG CU
distance between barriers: .30" (7.62mm), #6-32 philslot screws
terminal plating: tin over brass, screws: zinc plated steel
operating temperature: 130?C (266?F) max., -40?C (-40?F) min.
black molded base, UL rated 94VO thermoplastic
