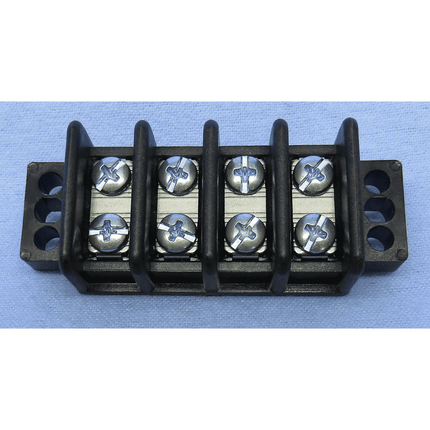

Philmore 13-1604 30 Amp 4 Pole Dual Row Terminal Block
Product AttributeProduct Value
Weight
1.95 oz
4 poles, dimension: A=3.25", B=2.81", rating: 30A, 600V
center spacing: .562" (14.28mm), wire size: #8-22AWG CU
distance between barriers: .41" (10.5mm), #8-32 philslot screw
terminal plating: tin over brass, screws: zinc plated steel
operating temperature: 130?C (266?F) max., -40?C (-40?F) min.
black molded base, UL rated 94VO thermoplastic
