Description

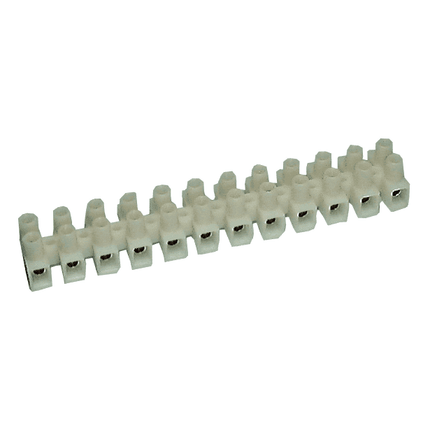

Philmore 13-1216, Euro Style 16A Barrier Strip
Product AttributeProduct Value
Weight
2 oz
300V (UR), 35 amp, clamping area: 6.0mm2
wire range: 22-10 sol/str, zinc plated screw M3.5x7
dimension: A=5.40"(140.7), B=0.94"(23.80), C=0.75"(19.00), D=0.47"(12.00), E=0.15"(3.90), F=0.15"(4.2?0.1)
housing material: polyamide 66 (nylon 66), UL94V-6
temperature rating: 105?C, 12 poles, UL-EI52550
terminal insert: brass metal alloy, nickel plated
