Description

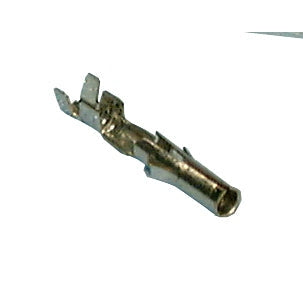

Philmore 61‑292 — Female Sockets 24‑20 AWG for .093″ Power Connector Housings (Pack of 50)
Overview
The Philmore 61‑292 is a set of 50 female crimp sockets designed for use with .093-inch series power connector housings. These high-quality sockets accept 24–20 AWG wire sizes and are ideal for creating secure, removable connections in power and signal wiring assemblies. Designed to mate with compatible male pins in the Philmore “61” series, these terminals are an essential component in many modular connector configurations.
Tri‑Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. Local customers in Mesa, AZ — and the greater Phoenix, Chandler, Gilbert, Scottsdale, and Tempe areas — benefit from expert support and convenient local availability.
Key Features & Specifications
-
Includes 50 female crimp sockets per pack
-
Designed for use with .093″ power connector housings (Philmore 61 series)
-
Compatible wire gauge: 24 to 20 AWG
-
High-conductivity metal contacts, typically phosphor bronze or copper alloy
-
Plated for corrosion resistance and conductivity
-
Rated for up to 12 A, 250 V when used with proper housings
-
Designed for press-fit or snap-in insertion into .093 series housings
-
Mates with male pins such as Philmore 61‑280, 61‑282, and others
-
Durable and reusable when paired with compatible extraction tools
Application & Installation Notes
The 61‑292 female sockets are commonly used in electronics, custom cable assemblies, industrial control panels, lighting systems, and automotive electrical systems where modular and serviceable wiring connections are required.
Installation Process:
-
Strip the wire end (24–20 AWG) to the appropriate length.
-
Crimp the socket onto the wire using a suitable crimping tool.
-
Insert the crimped contact into a compatible .093 housing until it locks in place.
-
Use an extraction tool if removal is needed.
Example Use Scenario
An electronics technician creating a power harness for an LED driver may select Philmore .093 series connectors for their robust current handling and modularity. Using 61‑292 female sockets with a 5-circuit housing, the technician can easily create a plug-in solution for power and control lines, enabling quick servicing or upgrades in the field.
Why Choose This Product?
-
Ideal for installers and technicians requiring modular, secure connections
-
Compatible with a wide range of Philmore housings and pin styles
-
Cost-effective pack size for bench stock or production
-
Trusted quality from Philmore, supported by Tri-Tek Electronics in Mesa, AZ
-
Suitable for industrial, hobbyist, and professional use
