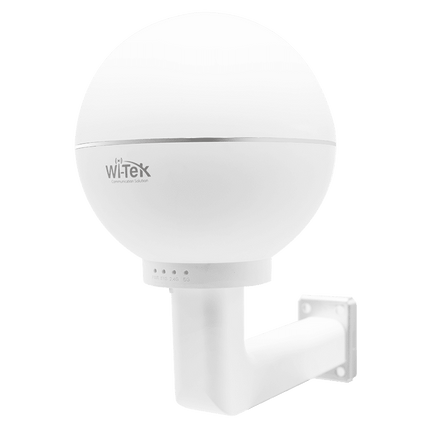

Wi-Tek WI-AP718M 1200Mbps Wireless Outdoor Mesh Access Point
Features:
- 1 Gigabit Ethernet PoE ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Supports fast roaming technology
- IP65 weatherproof
- Supports cloud and Web management
The WI-AP718M adopts dual-band 2.4GHz and 5GHz 802.11ac Wave2 MU-MIMO technology with a data rate of up to 1200 Mbps, which can accommodate up to 60 users and cover 200 meters to improve overall network performance. It can be powered by 802.3af PoE for convenient deployment. The high quality weatherproof shell design provides enhanced protection against rain and sun.
In a multi-node environment, the Intelligent Self-Organization and Self-Healing features of the WI-AP718M automatically choose the best route to further extend wi-fi coverage and re-route data in the event of a node failure. Fast Roaming technology provides fast switching between nodes for mobile devices, ensuring an uninterrupted and low-latency connectivity experience.
Download Wi-Tek WI-AP718M Product Datasheet (.pdf)
Specifications:
- Wireless Standards IEEE 802.11 ac/n/b/g/a
- Operating Bands 2.4GHz & 5GHz
- Spatial Streams 2.4GHz: 2x2 MIMO 5GHz: 2x2 MIMO
- Antenna 2.4GHz: 5dBi, 5GHz: 5dBi
- Signal Rate Up to 300 Mbps at 2.4GHz Up to 867 Mbps at 5GHz
- Maximum Transmit Power 2.4GHz: ≤24dbm 5GHz: ≤26dbm
- Maximum Power Consumption < 13W
- Interface (1)10/100/1000M Base-T LAN Ethernet ports
- Power Supply 802.3af/at PoE Supported
- Weatherproof Enclosure IP65
- ESD Protection 6KV

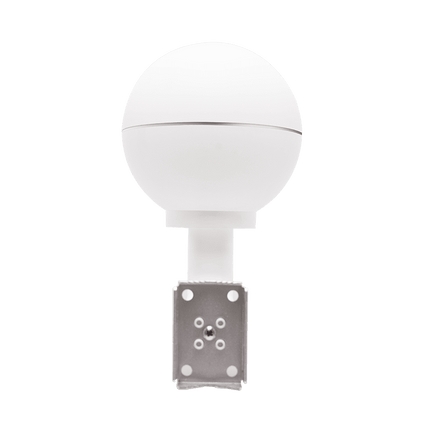

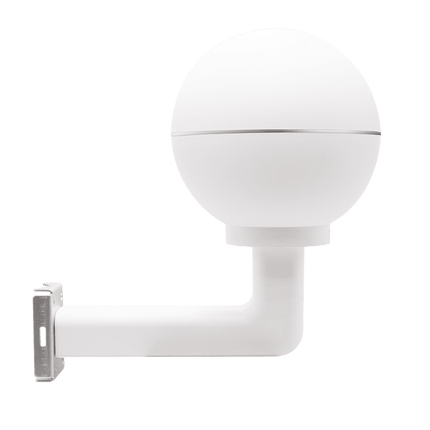

- Mounting Pole Mounting (Kits included)
- Buttons reset button (long press for 8 seconds to restore the factory default configuration)
- Dimensions 160mm * 170mm
- Operating Temperature: -40°C～60°C
- Storage Temperature: -40°C～70°C
- Operating Humidity: 5% ～ 95% (non-condensing)
- Storage Humidity: 5% ～ 95% (non-condensing)
Software Features
- Operating Modes: Router Mode and AP Mode
- Internet Connection Types: Static IP, DHCP, PPPoE Dial-Up
-
Network Security: Guest Wi-Fi; Hide SSID; Wi-Fi Isolate; Parental Control; IP/MAC binding
- Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
Advanced Features
- Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices.
- Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment
- Firewall: Forbid TCP/UDP flood attack
- Application: Port Forwarding; SD-LAN; Open VPN;
-
Software upgrade: Firmware upgrade online or Firmware upgradeable via browser
-
Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup
- Support local management with web
- Support remote management with the Wi-Tek Cloud platform
