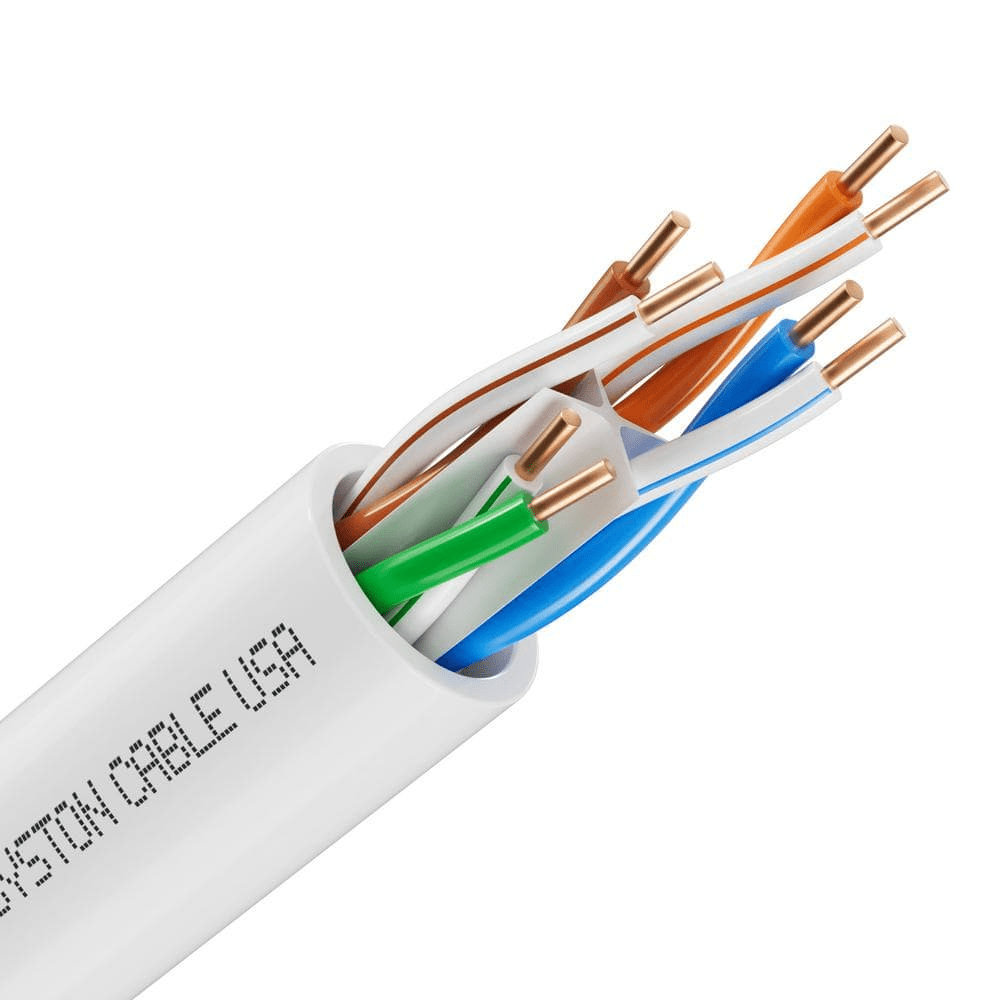

Syston 1477-PB-WH-1000 Cat6A+ 700MHz 23AWG UTP Plenum Cable – White, 1000ft
Tri-Tek Electronics, an authorized distributor of Syston Cable Technology, proudly offers the Syston 1477-PB-WH-1000 Cat6A+ Ethernet cable. This high-performance cable is engineered for professional-grade data, voice, and video applications, making it ideal for structured cabling installations in commercial, residential, and industrial environments. With a plenum-rated (CMP/CL2P/FT6) white jacket, it ensures compliance with stringent fire safety standards for installations in air-handling spaces.

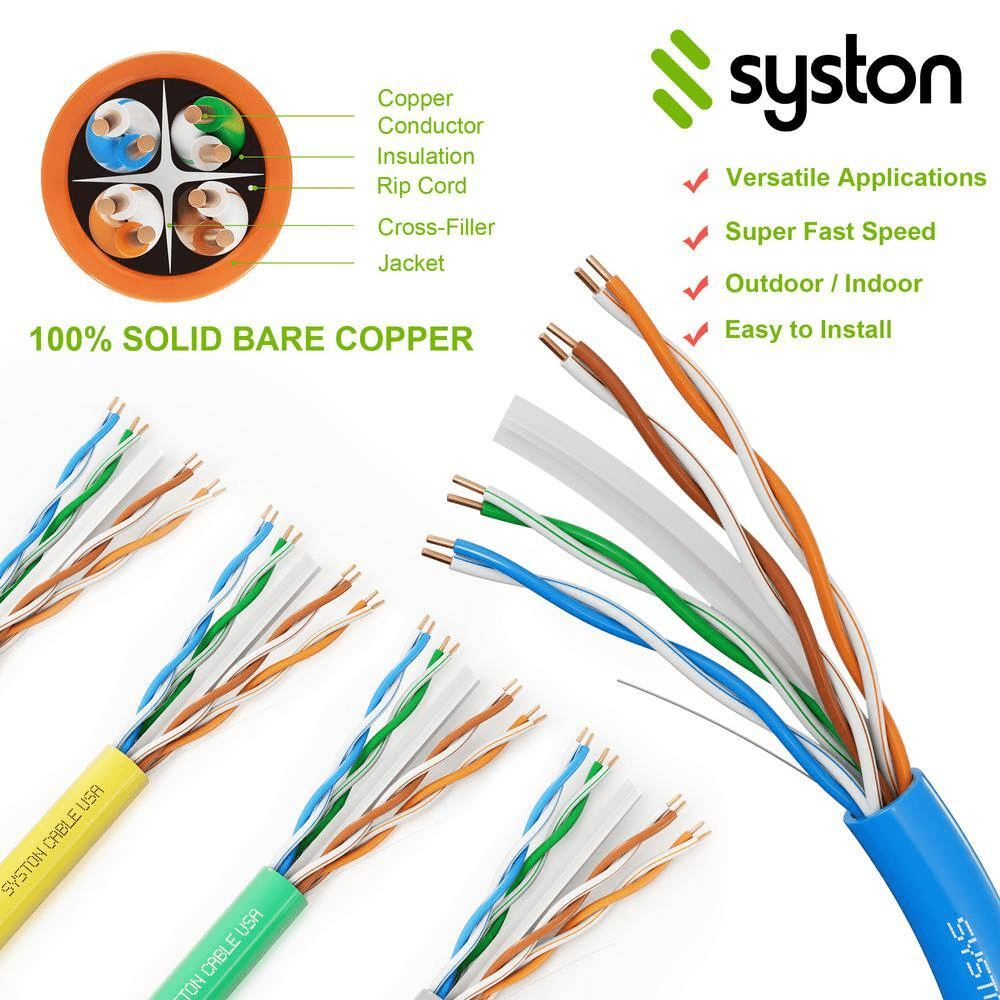

Constructed with 23 AWG solid bare copper conductors, this cable guarantees superior signal transmission and minimal attenuation. Its unshielded twisted pair (UTP) design supports frequencies up to 700 MHz, accommodating high-speed data transfers and reducing crosstalk. The integrated spline enhances cable separation and performance consistency, particularly in high-density and high-interference installations.
Key Features:
-
Category: Cat6A+
-
Bandwidth: Up to 700 MHz
-
Conductors: 23 AWG solid bare copper
-
Pairs: 4 unshielded twisted pairs (UTP)
-
Jacket Rating: CMP (Plenum), CL2P, FT6
-
Jacket Color: White
-
Length: 1000 feet (305 meters)
-
Compliance: TIA/EIA-568-C.2, RoHS
-
Packaging: Easy-pull box for hassle-free installation
Typical Installation Scenario:
This cable is perfect for installations in air-handling spaces, such as above suspended ceilings or below raised floors, where plenum-rated cable is required. Its unshielded design ensures reliable performance in environments with minimal electromagnetic interference, making it suitable for data centers, hospitals, and commercial buildings.
Trusted Local Supplier:
Tri-Tek Electronics, located in Mesa, Arizona, is your go-to source for high-quality networking cables and components. As an authorized distributor of Syston Cable Technology, we guarantee full manufacturer warranty coverage, competitive pricing, and exceptional factory support. Our retail location serves the greater Phoenix area, including Chandler, Tempe, Gilbert, Scottsdale, and Glendale.
