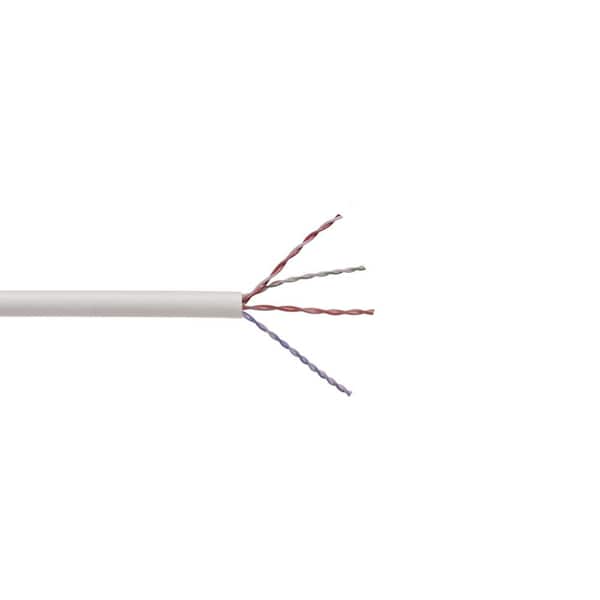

Syston 1008-PB-WH-1000: 1000ft White Cat 5e Plenum-Rated UTP Cable
Tri-Tek Electronics is proud to offer the Syston 1008-PB-WH-1000, a premium 1000-foot white Cat 5e plenum-rated UTP cable designed for high-performance networking applications.
As an authorized distributor, Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and direct factory support.
Key Features
-
Plenum-Rated (CMP/CL2P/FT6): Compliant with UL 444 and NFPA 262 standards, suitable for installation in air-handling spaces.
-
24 AWG Solid Bare Copper Conductors: Ensures optimal signal transmission and durability.
-
350 MHz Bandwidth: Supports high-speed data applications, including Gigabit Ethernet.
-
Unshielded Twisted Pair (UTP): Minimizes crosstalk and electromagnetic interference.
-

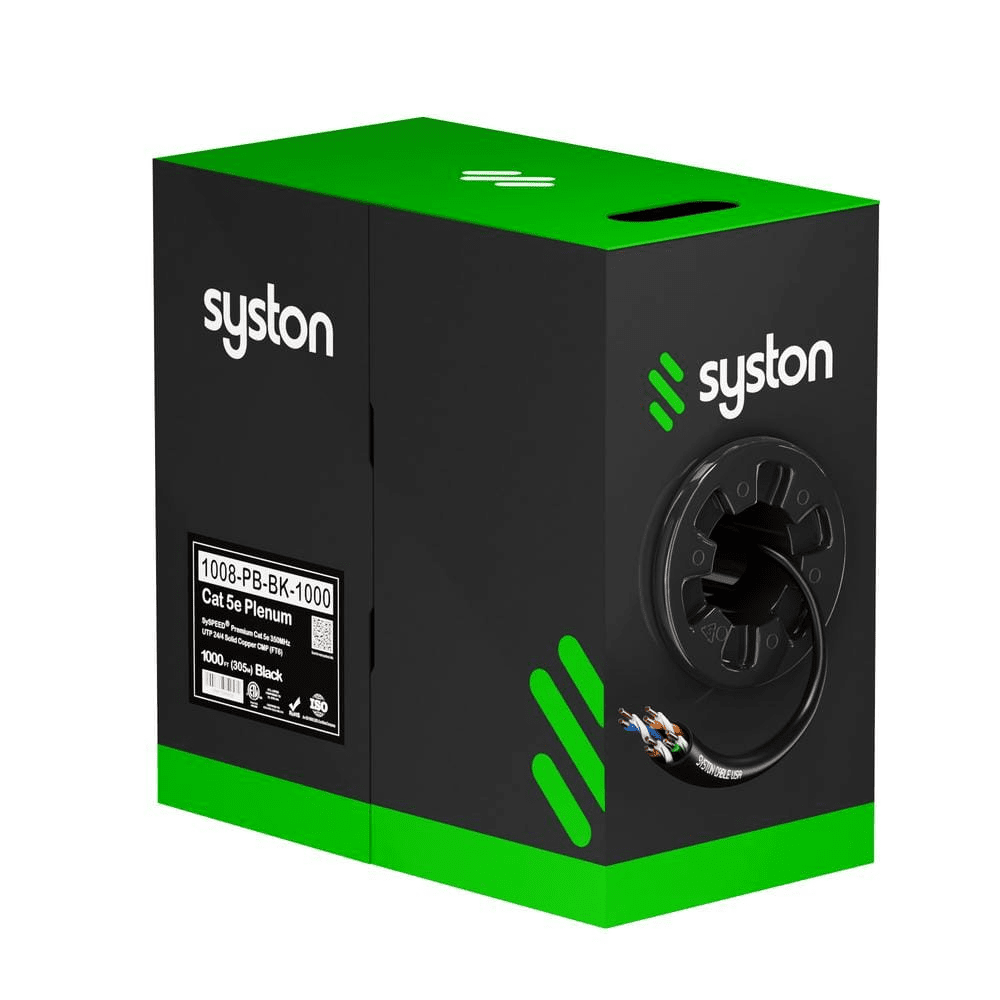

RhinoPac® Pull Box: Facilitates easy cable dispensing and reduces installation time.
-
Sequential Footage Markings: Allows for precise measurements during installations.

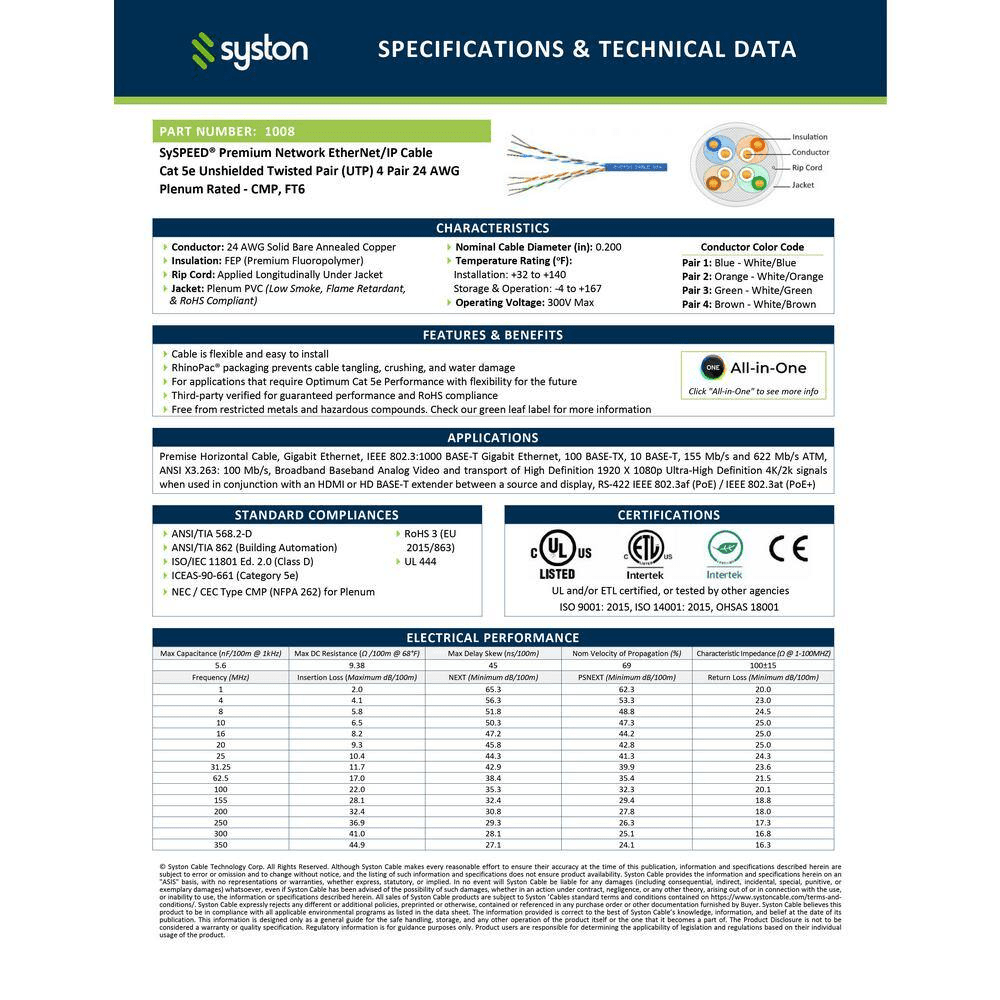

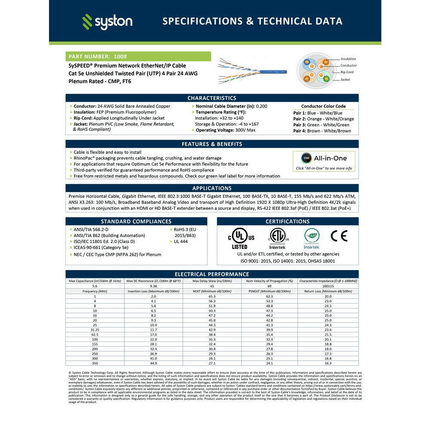

Specifications
| Specification |
Details |
| Cable Type |
Cat 5e UTP |
| Conductor Material |
Solid Bare Copper |
| Gauge |
24 AWG |
| Bandwidth |
350 MHz |
| Jacket Rating |
CMP/CL2P/FT6 (Plenum-Rated) |
| Color |
White |
| Length |
1000 ft |
| Packaging |
RhinoPac® Pull Box |
| Compliance |
UL 444, NFPA 262, RoHS |
Installation Scenario
Ideal for commercial and residential installations requiring plenum-rated cabling, such as office buildings, schools, and hospitals. The Syston 1008-PB-WH-1000 is perfect for running network connections through air ducts and drop ceilings, ensuring safety and compliance with building codes. Its solid copper construction and high bandwidth make it suitable for applications like VoIP, video conferencing, and high-speed internet.
Benefits for Installers and Technicians
-
Ease of Installation: The RhinoPac® pull box and sequential footage markings streamline the installation process.
-
Compliance Assurance: Meets stringent safety standards for plenum spaces, providing peace of mind.
-
Versatility: Supports a wide range of networking applications, making it a go-to choice for various projects.
