Vigitron Vi1053VPD 12VDC Video, Data & Power Combiner
Tri-Tek Electronics offers factory-backed warranty coverage, competitive pricing, and local support at our Mesa, AZ retail location.
Product Overview
The Vigitron Vi1053VPD is a compact, passive device designed to transmit a single channel of analog video, RS-422/RS-485 data, and 12VDC camera power over one Cat-5 cable. It supports distances up to 750 feet (228 meters) with passive transceivers and, when paired with multi-channel combiner hubs and active UTP receivers, can support long-range runs up to 3,000 feet (915 meters).

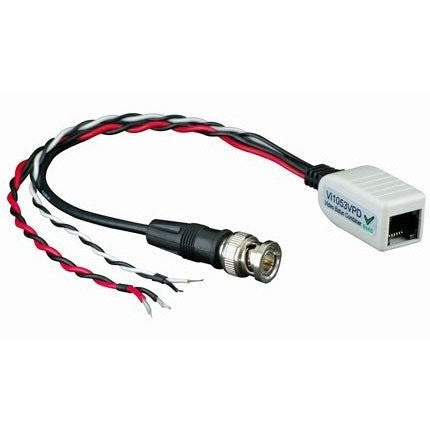

The unit connects via RJ-45 and includes breakout cables for video (BNC coax), data, and power, ensuring a clean structured wiring setup. Integrated surge protection safeguards video equipment against voltage spikes, while its high 60 dB noise immunity guarantees signal quality.
Download Vigitron Vi1053VPD User Manual (.pdf)
Key Features
-
Carries video, data, and power over a single RJ-45 4-pair cable
-
Supports NTSC, PAL, and SECAM video formats
-
Built-in passive transceiver and surge protection
-
Enables "up-the-coax" PTZ signaling
-
60 dB crosstalk and noise immunity
-
Compact size for easy camera-mounted installation
-
Ideal for structured cabling environments
-
Covered by a limited lifetime warranty
Installation & Applications
Install the Vi1053VPD at each camera location using pre-run Cat-5 cabling. Connect the RJ-45 input, then attach breakout leads to the camera’s video, data, and power interfaces. For short runs, pair with Vi12xxVPD or Vi15xxVPD series receivers; for extended distances, combine it with Vi13xxVPD or Vi14xxVPD hubs and active UTP receivers for centralized control and long-distance reach.
Example Use Case: In an industrial facility, installers can use existing cabling to supply power, data control, and video signal to PTZ cameras without running separate conduits, significantly streamlining deployment and reducing material cost.
Specifications
-
Maximum range: 750 feet (228 meters); up to 3,000 feet (915 meters) with active receivers
-
Frequency range: DC to 10 MHz
-
UTP impedance: 100 ohms ±20%, 24 AWG minimum
-
Input voltage: 16–30 VAC/DC (Class II SELV)
-
Output: 12VDC, regulated, ≤30 mV ripple, 600 mA max
-
Connectors: RJ-45, BNC video, 9-inch power and data pigtails
-
Surge protection: ANSI/IEEE C62.41 compliant
-
Operating environment: –10°C to +50°C, 0–95% humidity (non-condensing)
-
Housing: Grey flame-retardant ABS, 1.5 × 1.25 × 0.8 inches, 25 grams
Warranty & Availability
This is a Closeout Special — limited stock and pricing available. The Vi1053VPD is backed by Vigitron’s limited lifetime warranty. Secure yours today at Tri-Tek Electronics in Mesa, AZ, and benefit from knowledgeable local support and technical service.
