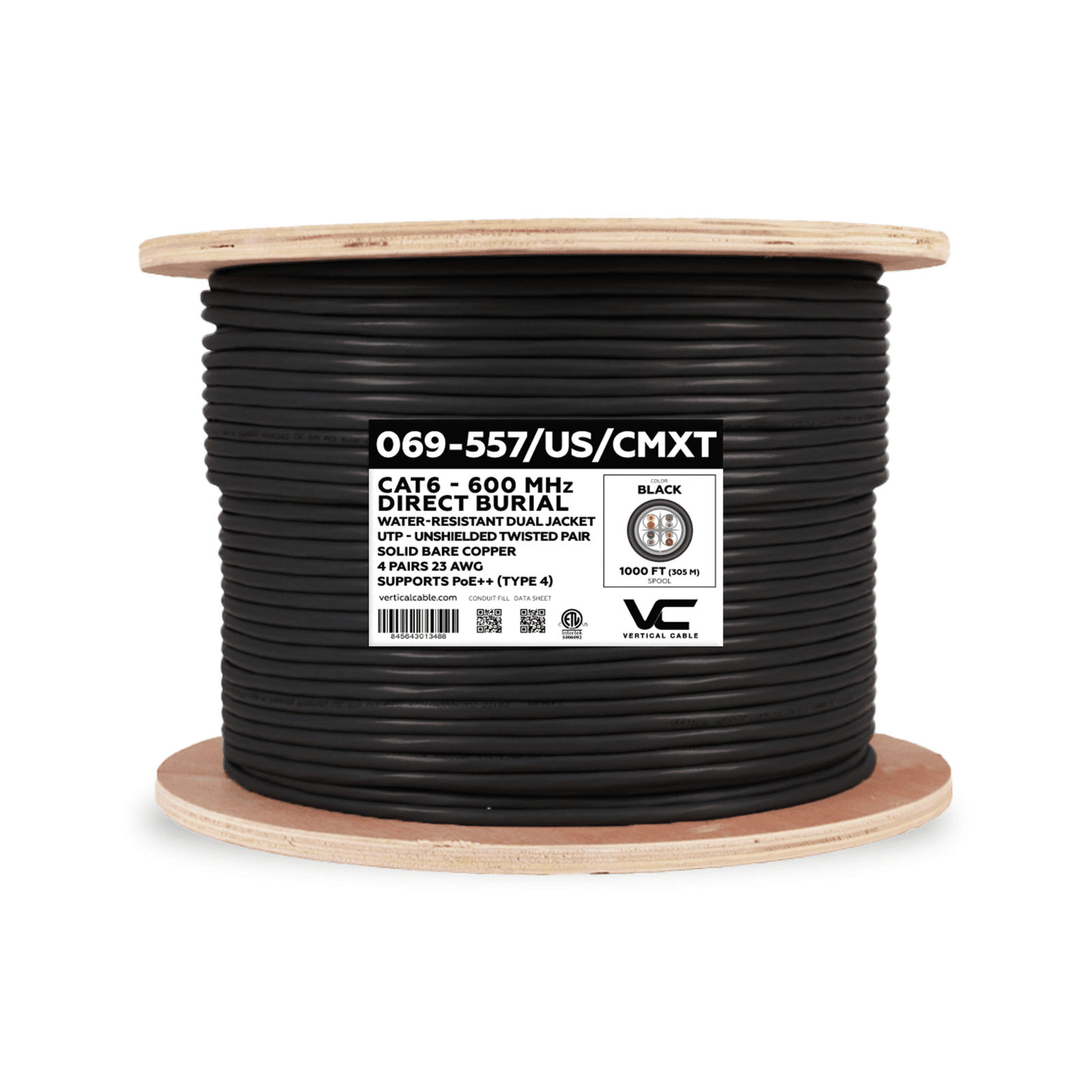

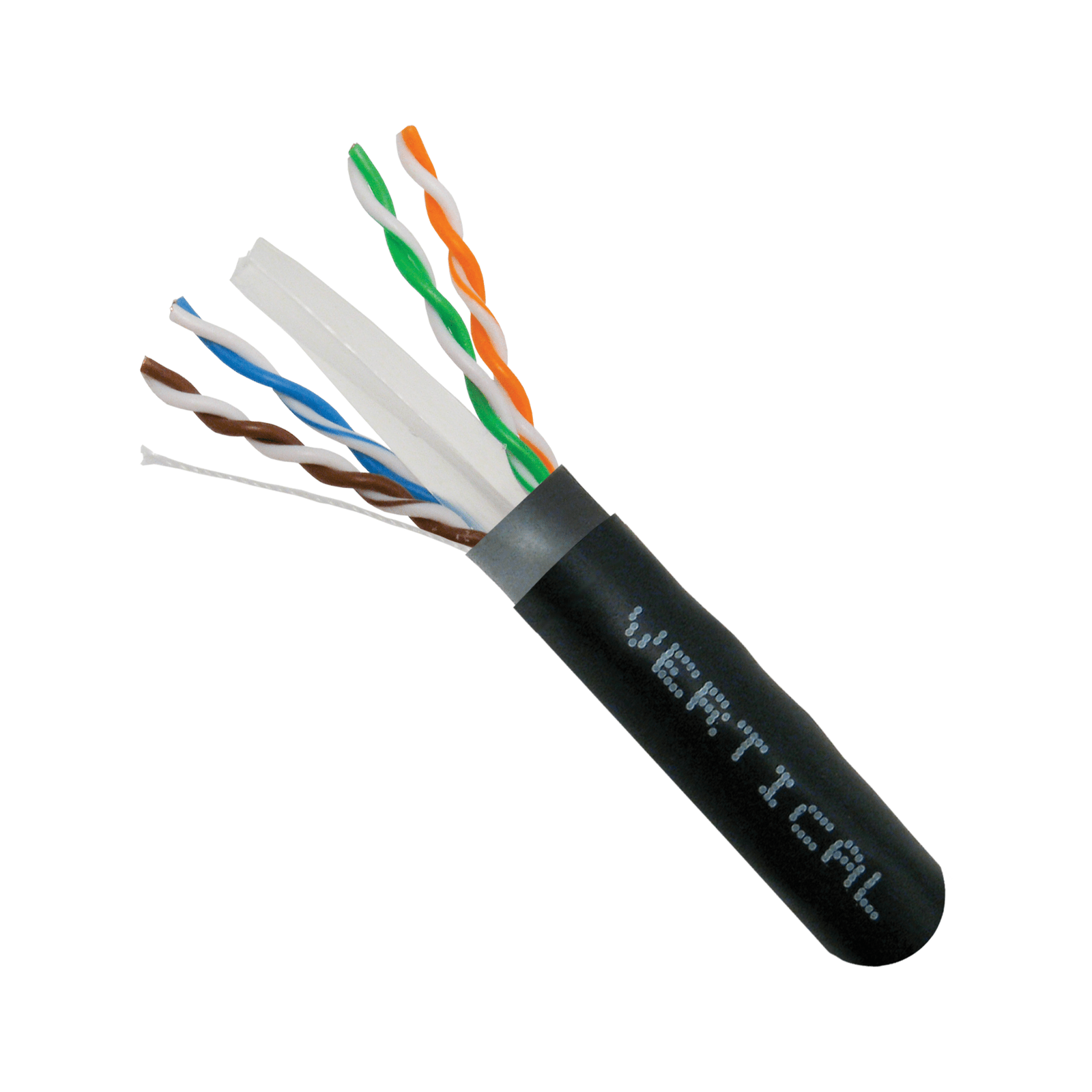

Vertical Cable VC069-557/US/CMXT CAT6 PoE++ 600 MHz CMX Direct Burial UTP Cable – 1000 ft Black
The VC069-557/US/CMXT from Vertical Cable is a high-performance CAT6 outdoor-rated Ethernet cable designed for direct burial installations and demanding PoE++ applications. Featuring a double jacket construction, 23 AWG solid bare copper conductors, and a bandwidth rating of 600 MHz, this cable delivers reliable high-speed data transmission in harsh outdoor environments.
Tri-Tek Electronics is an authorized distributor of Vertical Cable products, ensuring full manufacturer warranty coverage, factory support, and competitive pricing for installers and contractors throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, Arizona.
This cable is ideal for security camera systems, wireless access points, gate controllers, outdoor network drops, and any installation requiring rugged underground Ethernet connectivity.
Key Features
Category 6 UTP cable rated to 600 MHz
Supports high-speed Gigabit Ethernet and PoE++ applications
23 AWG solid bare copper conductors
CMX outdoor/direct burial rated
Double jacket construction for enhanced moisture protection
Black UV-resistant outer jacket
1000 ft pull box
Sequential footage markings for accurate pulls
Suitable for underground installations without conduit (where code permits)
Technical Specifications
Cable Type: Category 6 UTP
Bandwidth: 600 MHz
Conductor Size: 23 AWG
Conductor Material: Solid Bare Copper
Pairs: 4
Jacket Rating: CMX Outdoor

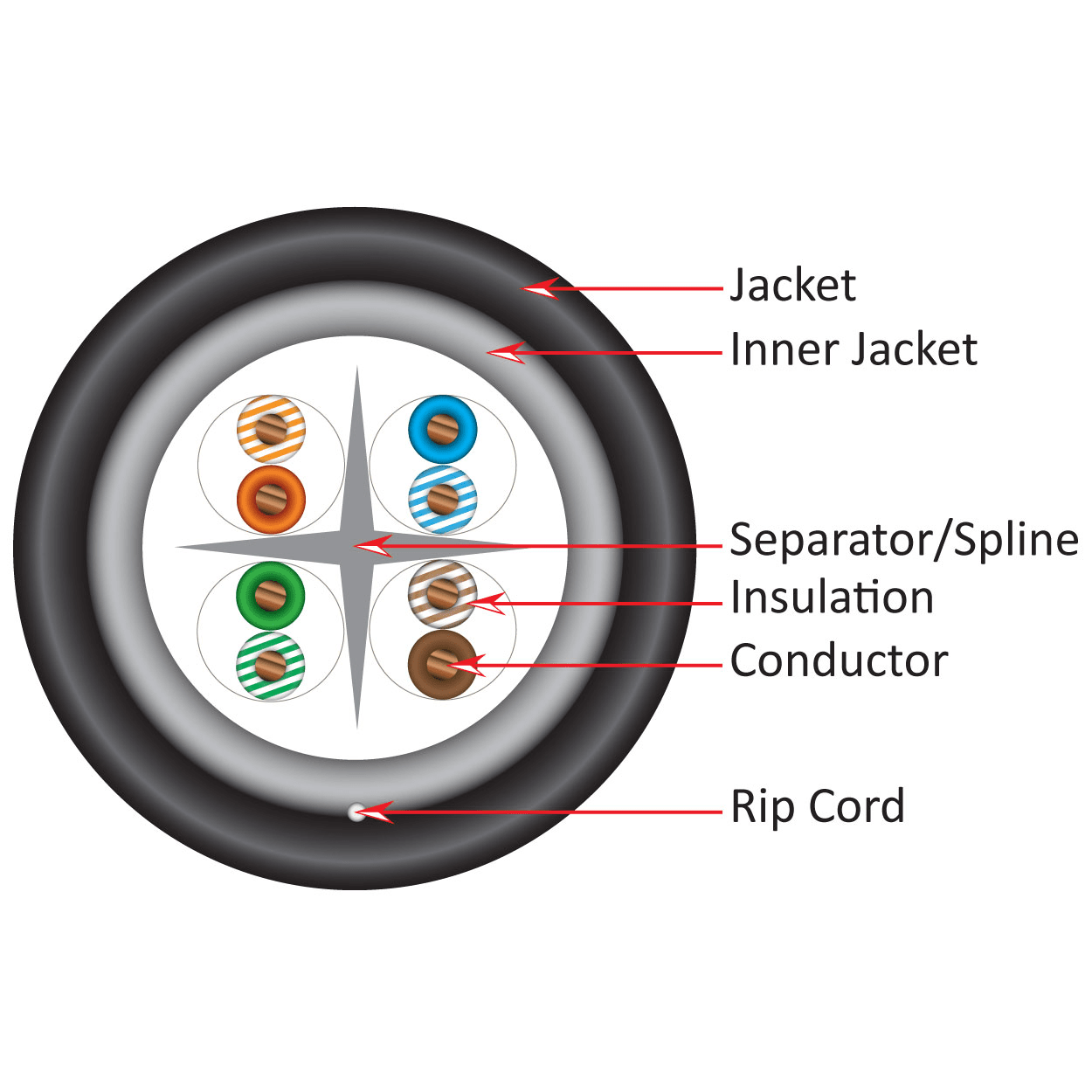

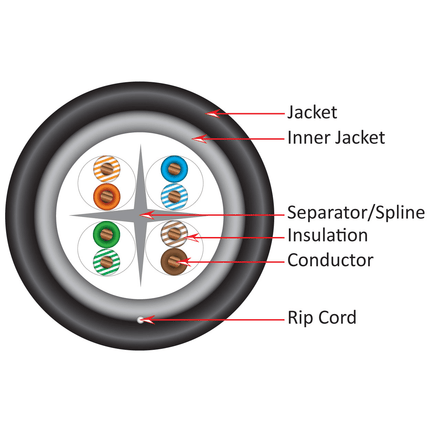

Construction: Double Jacket
Color: Black
Length: 1000 ft
Application: Direct Burial, Outdoor, PoE++
Built for Outdoor and Underground Performance
The double jacket construction adds an additional moisture barrier, helping protect the cable core from water ingress and soil contaminants. The CMX rating makes it suitable for outdoor installations, and its rugged design withstands Arizona’s extreme heat and UV exposure.
For installers in the Phoenix metro area, this cable offers dependable performance when trenching between buildings, running to detached garages, connecting perimeter cameras, or extending network infrastructure across large properties.
Optimized for PoE++ Applications
With 23 AWG solid copper conductors and enhanced bandwidth capacity, this CAT6 cable is well suited for high-power PoE devices including:
PTZ IP security cameras
Outdoor wireless access points
VoIP call boxes
Access control panels
Digital signage systems
Installers and low-voltage technicians benefit from consistent power delivery and reduced voltage drop over longer distances.
Example Installation Scenario
A contractor in Mesa, AZ installs an outdoor IP camera system across a commercial property. Using the VC069-557/US/CMXT direct burial cable, they trench between the main building and perimeter poles without needing additional conduit. The double jacket protects against soil moisture, while the PoE++ capability powers high-performance PTZ cameras from a central PoE switch inside the building.
The result: a clean, reliable installation with long-term durability in Arizona’s harsh desert environment.
Why Buy from Tri-Tek Electronics?
Tri-Tek Electronics proudly serves professional installers, IT technicians, and security contractors throughout Arizona. With a retail location in Mesa, AZ, we provide:
Local stock availability
Expert technical support
Authorized manufacturer warranty coverage
Competitive pricing for Phoenix-area contractors
Trusted supplier for commercial and residential low-voltage projects
Whether you are wiring a new construction project in Scottsdale or upgrading a security system in Chandler, Tri-Tek Electronics is your trusted local source for professional-grade CAT6 direct burial cable.
