Vertical Cable 064-486/A/WH White CAT6A Cable, CMR (Riser-Rated) UTP, 23 AWG Solid-Bare Copper, Wooden Spool, 1000 ft.
The Vertical Cable 064-486/A/WH is a high-performance Category 6A (CAT6A) unshielded twisted pair (UTP) cable, engineered to meet the rigorous demands of modern data communications. Designed for indoor installations, particularly in riser spaces between floors, this cable ensures safety and reliability in vertical applications.
Key Features:
-
High-Speed Data Transmission: Supports 10 Gigabit Ethernet applications, providing a bandwidth of up to 750 MHz, ensuring efficient and fast data transfer.
-
23 AWG Solid Bare Copper Conductors: Utilizes solid bare copper conductors for superior conductivity and signal integrity.
-

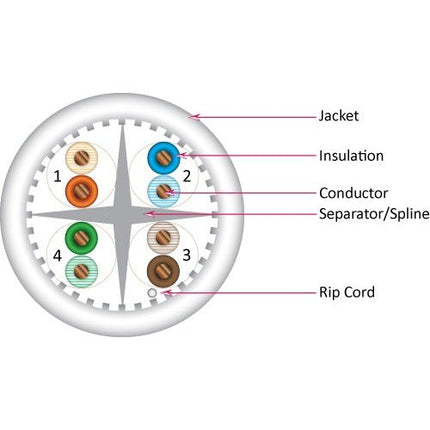

Unshielded Twisted Pair (UTP): Features four color-striped pairs, facilitating easy identification and installation.
-
CMR (Riser) Rated PVC Jacket: The riser-rated PVC jacket is suitable for vertical installations, preventing fire from traveling between floors.
-
Compliance and Certification: Exceeds ANSI/TIA 568C.2 standards, ETL listed, and RoHS compliant, ensuring adherence to industry standards and environmental safety.
Specifications:
-
Cable Type: CAT6A UTP
-
Conductor Material: 23 AWG Solid Bare Copper
-
Jacket Material: PVC, Riser (CMR) Rated
-
Color: White
-
Length: 1000 ft. (supplied on a wooden spool)
-
Bandwidth: Tested up to 750 MHz
-
Applications: Suitable for 10 Gigabit Ethernet, high-speed data applications, and indoor riser installations.
Installation Scenario:
Ideal for professional installers and technicians, this cable is perfect for setting up high-speed network infrastructures in commercial buildings. Its riser rating makes it suitable for vertical runs between floors, ensuring compliance with building codes and safety standards. The solid bare copper conductors provide excellent performance over longer distances, making it a reliable choice for backbone cabling.
Why Choose Vertical Cable 064-486/A/WH:
-
Performance: Delivers consistent and reliable high-speed data transmission, essential for modern networking needs.
-
Safety: The CMR rating ensures the cable meets fire safety standards for riser applications, providing peace of mind during installation.
-
Compliance: Adheres to industry standards, ensuring compatibility and performance across various networking equipment.
