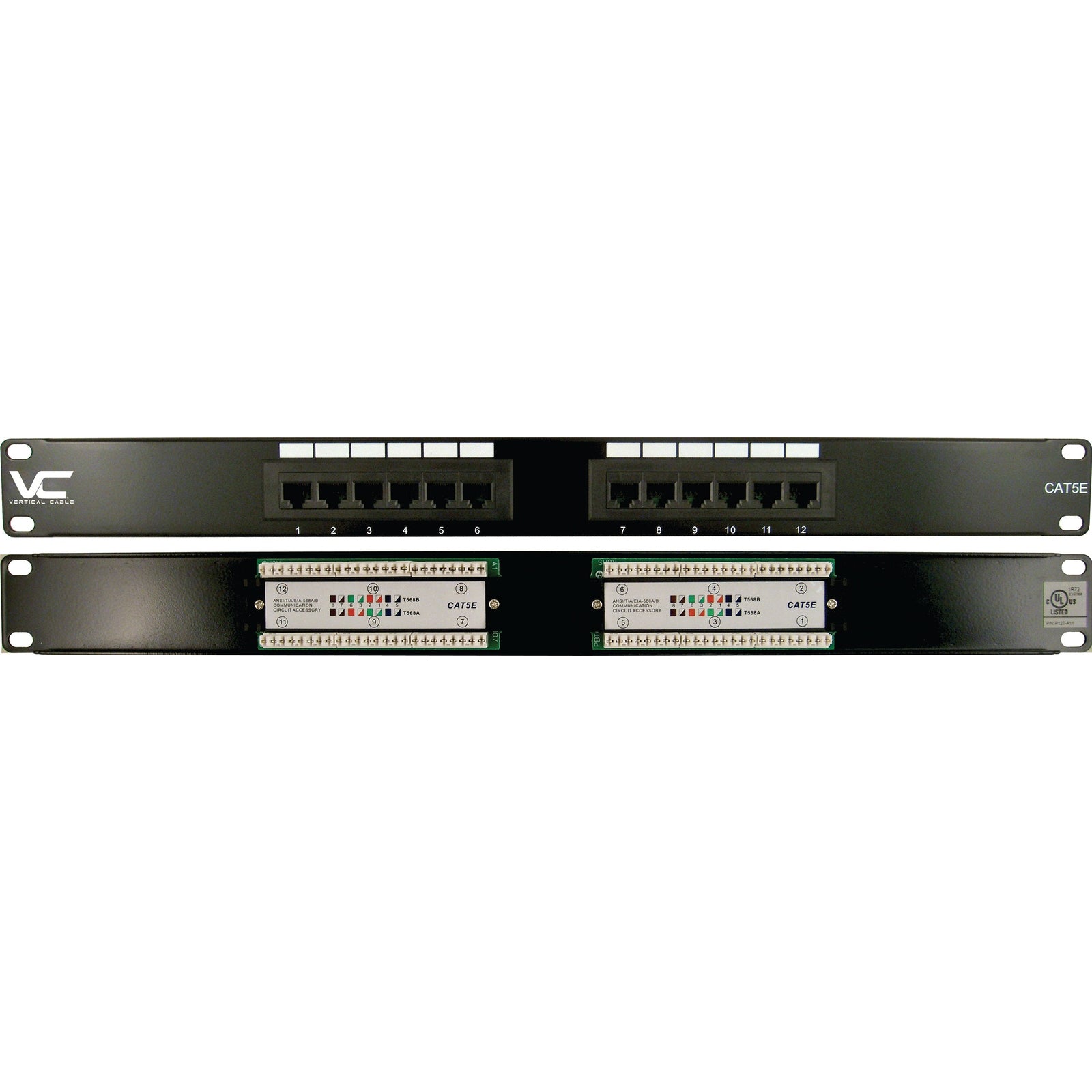

Vertical Cable 041‑371/12 CAT5E 12‑Port Rack‑Mount Patch Panel
Overview
The 041‑371/12 is a streamlined, high‑performance Cat5E patch panel serving installers, technicians, and hobbyists across Phoenix and surrounding cities. Designed for durability and ease of use, this compact 1U 19" rack‑mount panel delivers professional-grade networking reliability.
Tri‑Tek Electronics is an authorized distributor of Vertical Cable products, offering full manufacturer warranty coverage, factory support, and locally‑competitive pricing from our Mesa, AZ location.
Key Features & Benefits
-
Compact & Rugged Construction
Built with rolled‑edge, anodized SPCC steel housing, featuring a tough black finish, and fully enclosed to protect circuitry during termination.
-
Easy, Error‑Free Wiring

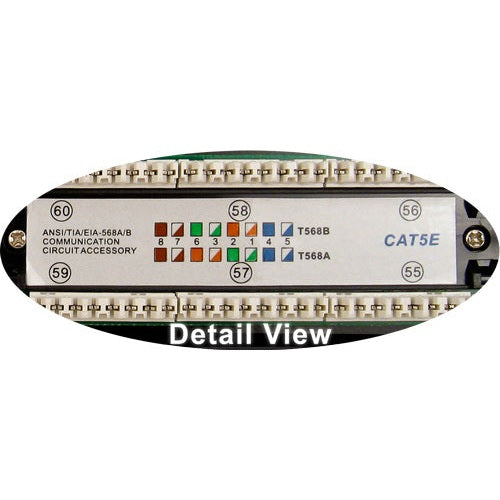

Color‑coded for both T‑568A and T‑568B schemes, with a pair punch sequence that keeps twists within ½" of termination—preserving signal integrity.
-
Reliable Contacts & Long Lifespan
Equipped with gold‑plated beryllium copper contacts (50 μ over 100 μ nickel) for durable, low‑loss connections. Supports at least 750 insertions and 250 IDC cycles.
-
Wide Operational Range & Certifications
Withstands from –40 °C to +68 °C, compliant with UL Listed, UL94‑V‑0, RoHS, FCC Part 68, ANSI/TIA/EIA 568C.2, and ISO/IEC 11801 standards.
-
Standard 1U Rack Compatibility
Size: 19" width × 1⅗" height × approx. 1¼" depth (EIA‑310D, 1U).
Specifications (Tabular Format)
| Component |
Specification |
| Housing |
Anodized SPCC steel, black finish, fully enclosed design |
| Wiring |
T‑568A and T‑568B color‑coded, ½" punch‑down pair twist |
| Termination |
110‑type IDC, PC + glass fiber housing, phosphor bronze IDC |
| Contacts |
Beryllium copper, 50 μ gold over 100 μ nickel |
| Lifespan |
≥ 750 insertions, ≥ 250 IDC cycles |
| Operating Temp. |
–40 °C to +68 °C (some sources list –10 °C to 60 °C) |
| Certifications |
UL Listed, UL94‑V‑0, RoHS, FCC Part 68, ANSI/TIA/EIA, ISO |
| Rack Size |
1U (EIA‑310D) 19"W × ~1.75"H × ~1.25"D |
Installation Scenario
Example: In downtown Mesa, an MSP installs this panel in a telecom closet to centralize and simplify data cabling. The durable steel housing and clear color coding reduce installation time, while high‑quality contacts minimize future maintenance. Its compact 12‑port size is perfect for small racks in local offices or smart homes in Gilbert and Tempe.
Why Choose Tri‑Tek Electronics?
-
Authorized Vertical Cable Distributor — Guaranteed support from the factory, full warranty, and authentic product.
-
Local Availability in Mesa, AZ — Quick in‑stock pickups and responsive tech support tailored for the Phoenix metro area.
-
Ideal for Technicians & Hobbyists — Combines performance, reliability, and ease in a compact, installer‑friendly design.
