Description
Vigitron Vi1054VP UTP 12 VDC Video/Power Combiner
Engineered for structured-cabling CCTV installations, the Vigitron Vi1054VP merges analog video and regulated 12 VDC camera power onto a single four-pair Cat-5/6 cable. By eliminating separate coax and power runs, installers save labor, reduce cable bulk, and centralize power in one secure location.
Key Features & Benefits
-

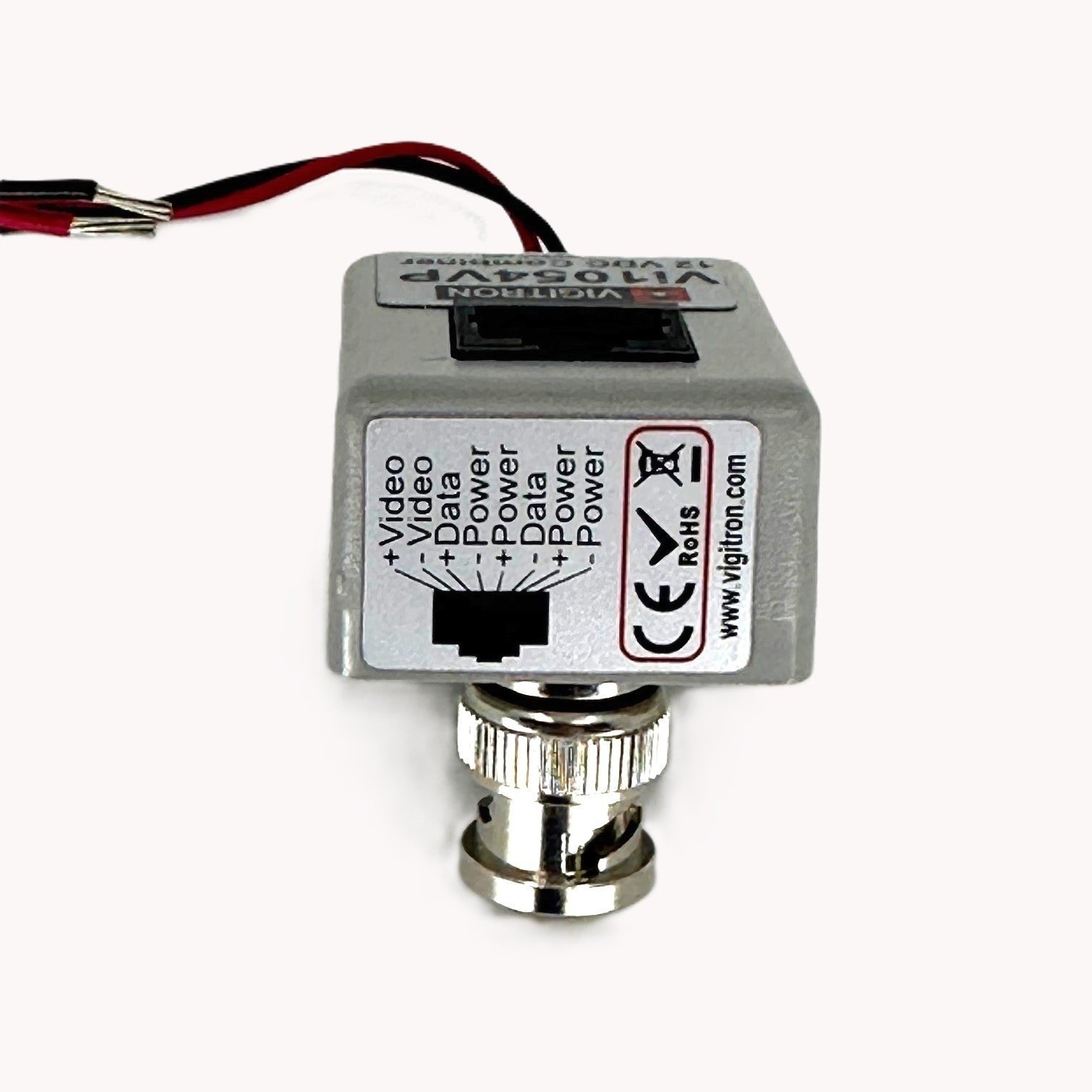

Combines video and 12 VDC power through one RJ-45 connection, simplifying cable management
-
Supports distances up to 3,000 ft (930 m) with active receiver hubs—or 750 ft (225 m) with passive hubs—ideal for campuses and parking lots
-
Integrated passive video transceiver with 60 dB crosstalk/noise immunity preserves image clarity in electrically noisy environments
-
Built-in surge protection shields cameras and head-end equipment from damaging voltage spikes
-
Carries “up-the-coax” PTZ control signals on the same UTP cable—no extra conductors required
-

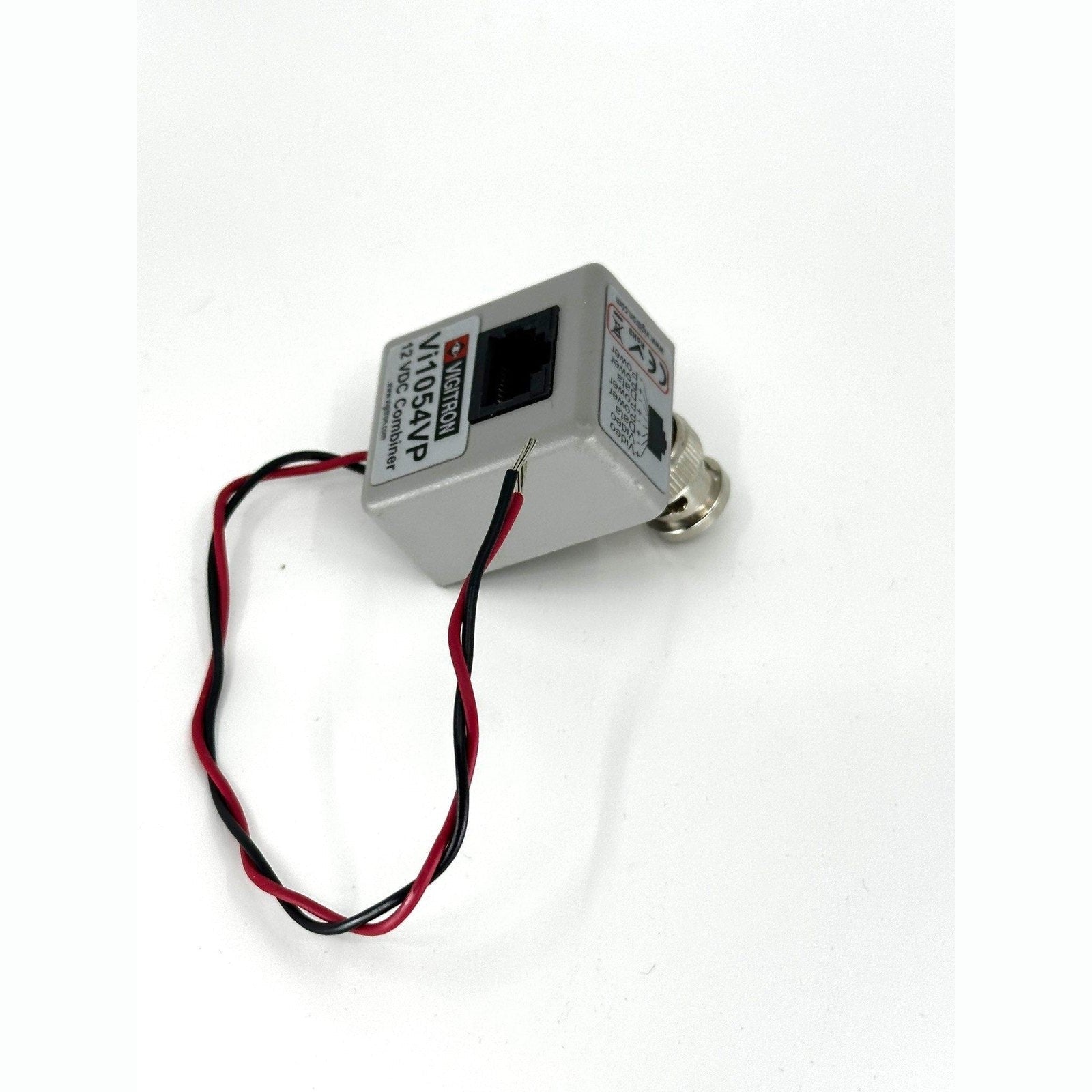

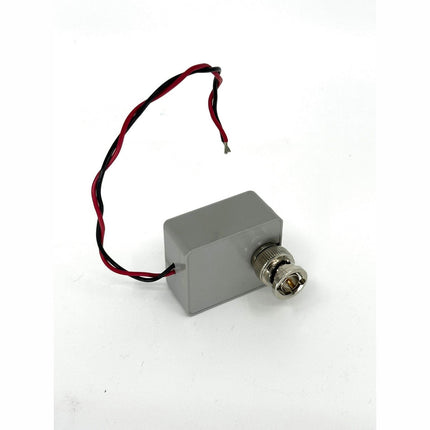

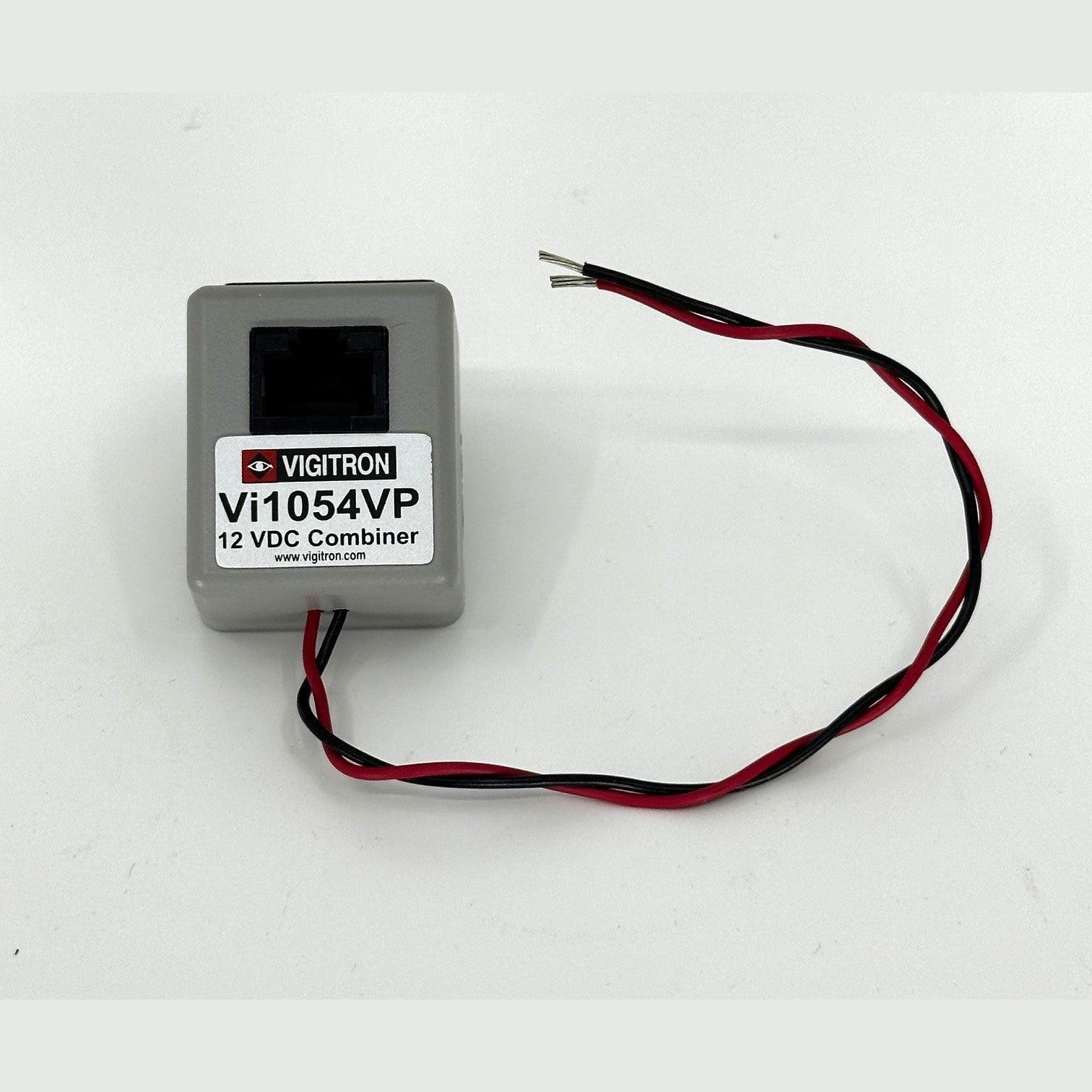

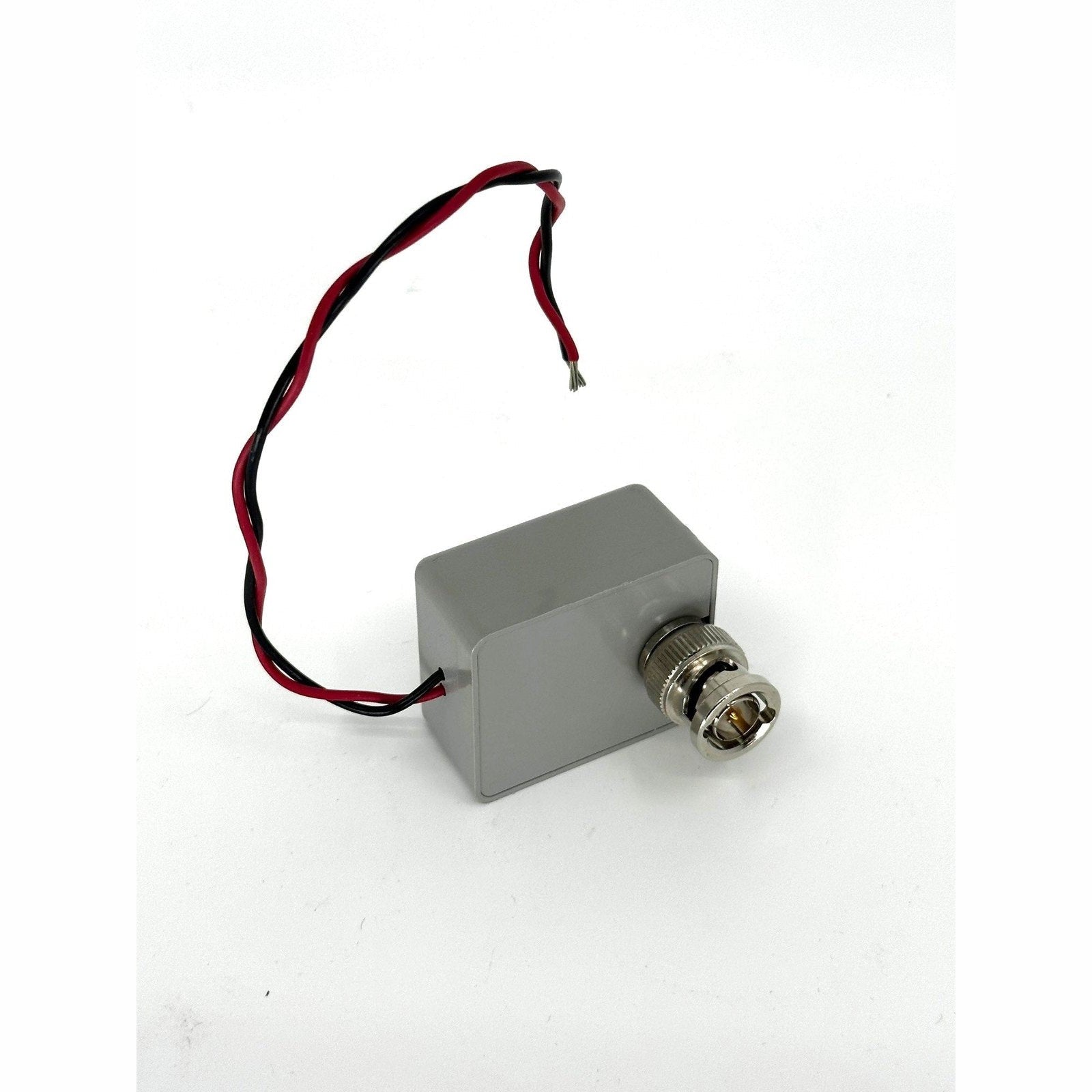

Compact housing mounts directly at the camera; 9-inch pigtail feeds regulated 12 VDC output
-
Passive device—no local power supply needed, streamlining field installation and troubleshooting
-
Protected by Vigitron’s limited lifetime warranty for long-term peace of mind
Typical Installation Scenario
A multi-building office park already wired with Cat-5 for data can reuse that existing UTP to deliver both video and centralized 12 VDC power. Place a Vi1054VP at each analog camera and connect the far end to an active receiver hub in the security room; high-quality video travels well over 2,000 feet without adding new coax or local power supplies—an upgrade path that slashes labor and material costs.
Value for Installers, Hobbyists & Technicians
-
Installers finish projects faster with fewer cables and cleaner cable trays.
-
Service technicians gain easier fault isolation—no separate power line to trace.
-
DIY hobbyists achieve professional-grade cabling using readily available Cat-5/6.
