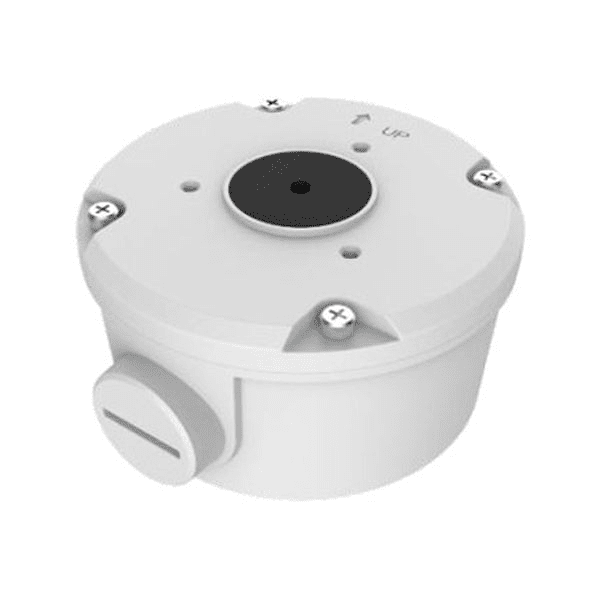

Uniview TR‑JB05‑B‑IN Junction Box for Fixed Lens Bullet Cameras (Three‑Hole Pattern)
When installing Uniview fixed‑lens bullet cameras, clean and secure wiring is just as important as high image quality. The TR‑JB05‑B‑IN junction box gives you the strength, protection, and neatness needed for reliable outdoor deployments. Its extra back‑outlet design, durable construction, and compatibility with the circular base three‑hole mounting pattern make this box an ideal accessory for enhancing installation reliability and appearance.
Key Benefits
-
Provides a tidy, protected pathway for camera wiring so connections stay weather‑sealed and neat
-
Extra back outlet allows versatile cable routing, avoiding strain or tight bends
-
Aluminum alloy build resists corrosion and protects internal cabling from environmental exposure
-
Compact size helps maintain low profile installations while offering robust support
Features & Specifications
| Feature |
Specification |
| Compatible Cameras |
Uniview fixed‑lens bullet cameras with three‑hole mounting pattern, especially IPC21XX series with circular base |
| Application |
Junction box, wall mount camera mounting bracket, extra back outlet for cable routing |
| Dimensions |
Diameter: 104.4 mm × Depth/Height: 54.5 mm (≈ 4.11″ × 2.15″) |
| Weight |
Approx. 0.36 kg (≈ 0.79 lb) |
| Material |
Aluminum alloy – for strength, durability, and weather resistance |
| Color / Finish |
Typically elegant white (paint/coated) finish to match common camera housings |
Installation Tips
-
Use in combination with Uniview IPC21XX series bullet cameras with the circular 3‑hole base to align mounting points correctly
-
Route cables through the extra back outlet to reduce stress on connections, and seal openings with appropriate grommets or sealant
-
When mounted outdoors, ensure that the junction box is installed facing downward or slightly tilted to prevent water pooling
-
Use stainless or corrosion‑resistant fasteners matching the camera/junction box to maintain integrity over time
Use Case Example
Imagine you’re installing several bullet cameras on the exterior wall of a commercial building in Phoenix, AZ, where heat, dust, and monsoon season are concerns. Using the TR‑JB05‑B‑IN junction box helps you run all camera cables neatly behind the box, protect them from moisture ingress, and make the install look professional. It also simplifies servicing because you can access the connectors in a protected enclosure rather than directly exposed on the camera body.
