Dual-Lens 4MP+4MP MultiView PTZ Camera (25× LightHunter, Sound & Light Warning)

Description

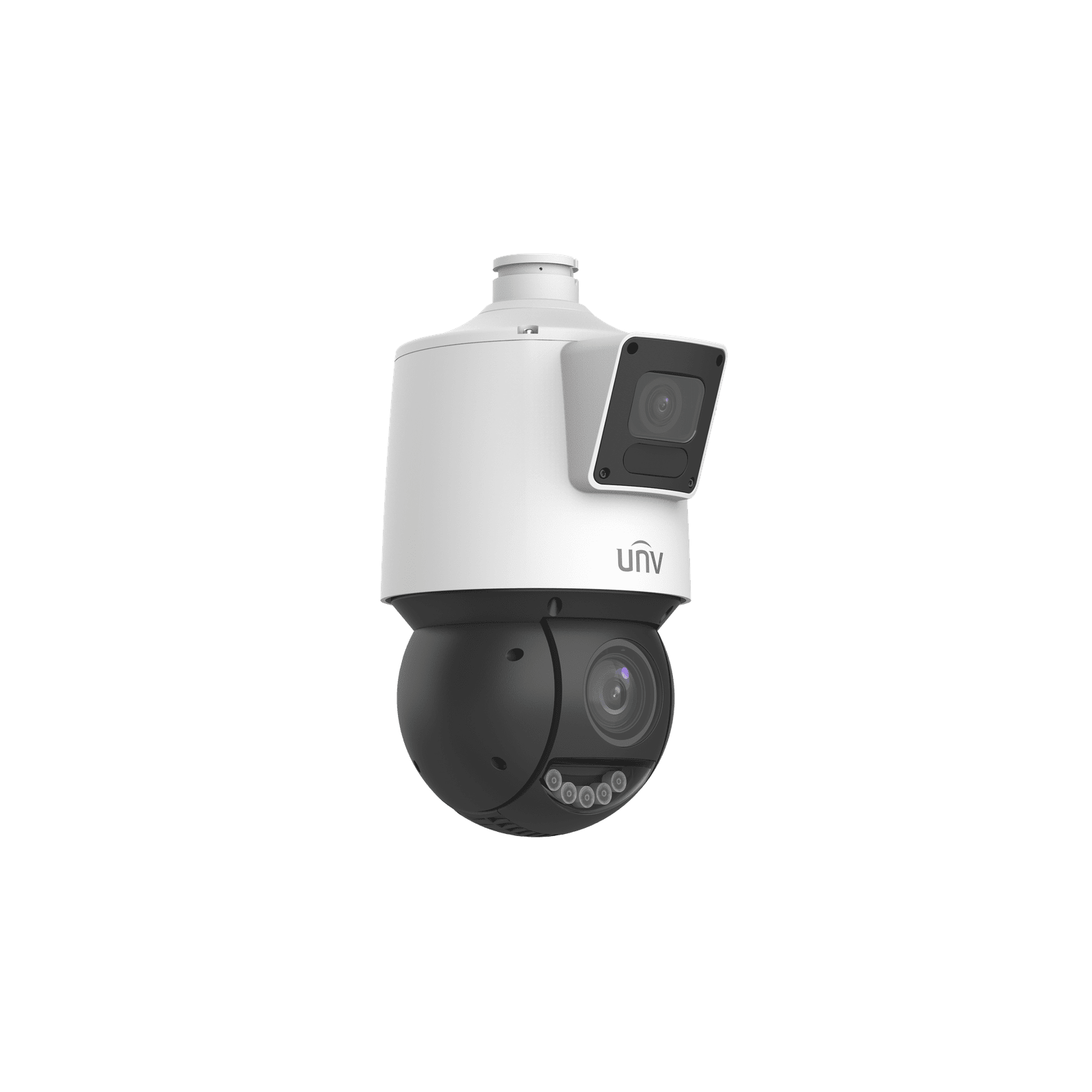

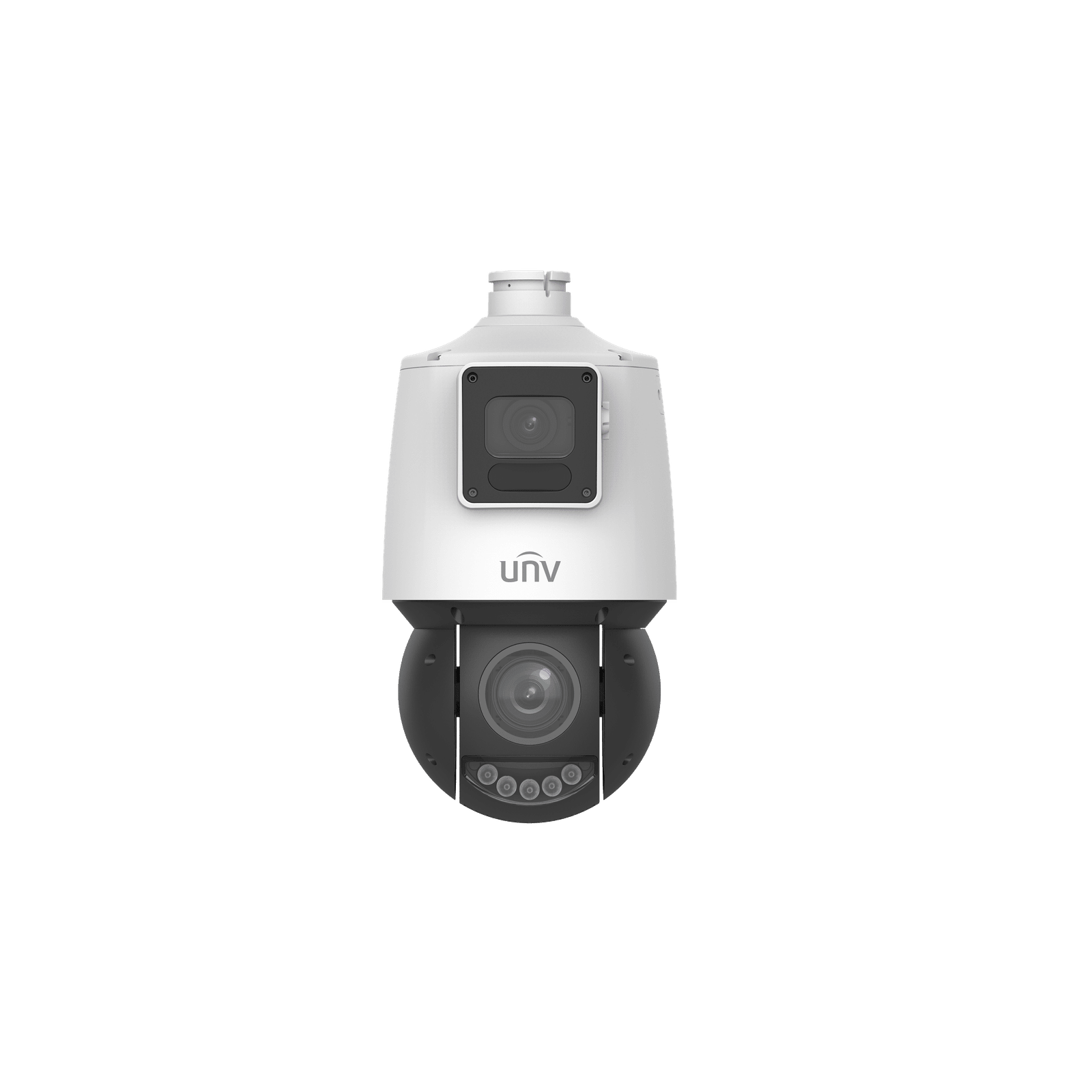

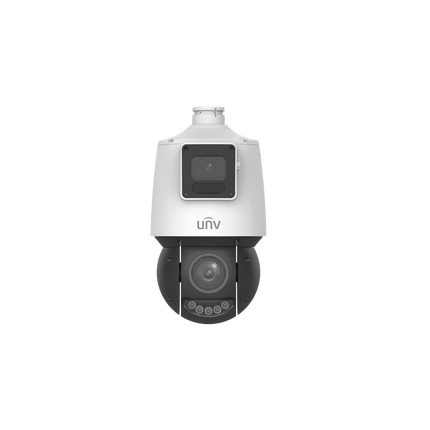

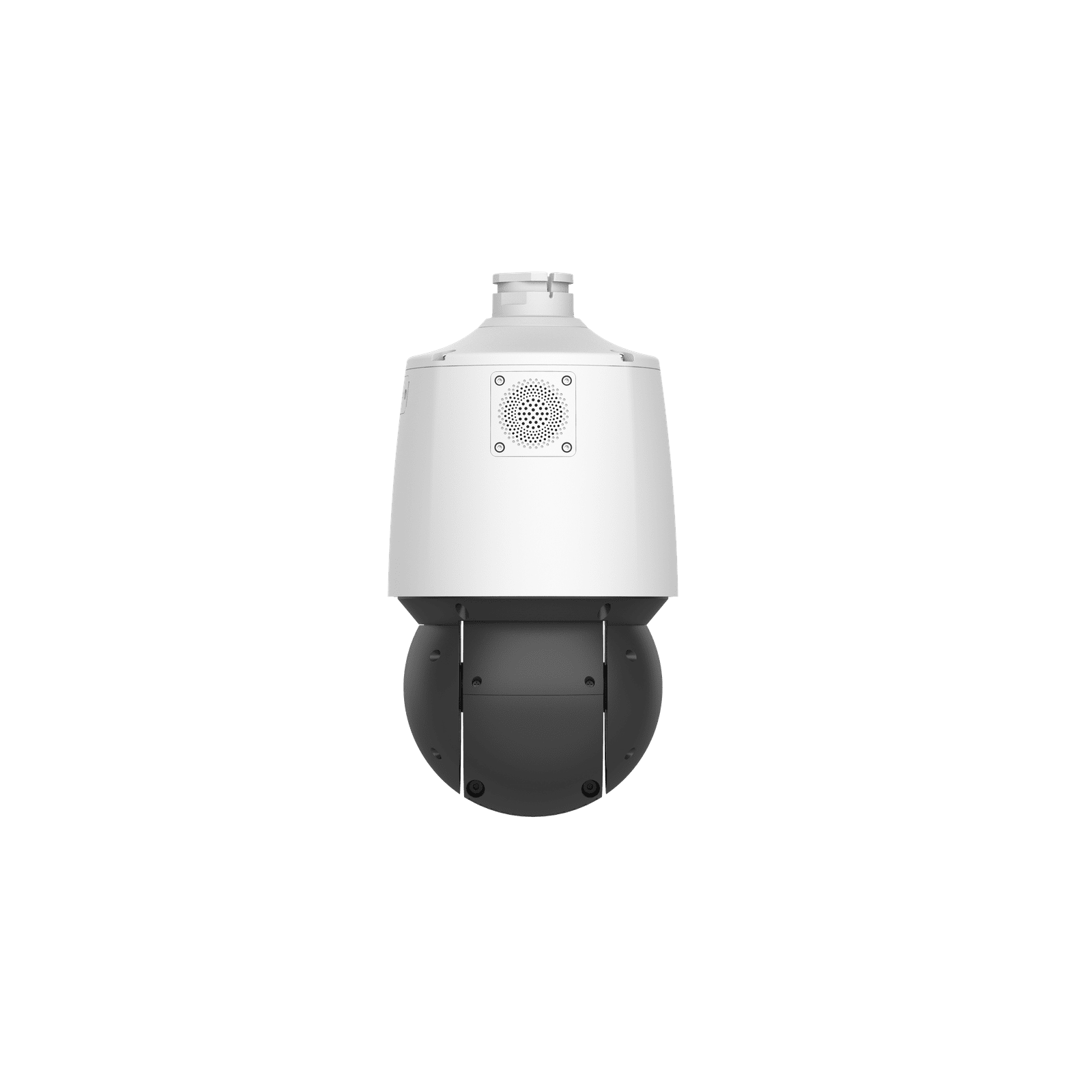

Uniview IPC94144SR-X25-F40C Dual-Lens 4MP+4MP MultiView PTZ Camera (25× LightHunter, Sound & Light Warning)

Experience a surveillance camera that truly does it all. The IPC94144SR-X25-F40C integrates a dual-lens setup—one fixed wide view and one powerful 25× PTZ zoom—so you can monitor full scenes and zoom into details with one device. Powered by Uniview’s LightHunter technology, it offers excellent low-light performance, and the built-in sound & light warning functions help deter unwanted activity in real time. Smart detection, vivid imaging, and rugged construction make this camera ideal for mission-critical outdoor applications.


Key Features

  • Dual-Lens Design: One fixed wide-angle lens and one PTZ channel with 25× optical zoom for simultaneous panoramic monitoring and detail capture

  • 4MP resolution per channel using high-performance CMOS sensors

  • LightHunter imaging for excellent color fidelity and clarity under low illumination

  • Smart detection features including cross line, intrusion, and enter/leave area with false alarm filtering

  • PTZ channel can be linked to events detected on the fixed channel for intelligent tracking

  • Built-in sound & light warning with audible and visual alerts to deter intrusions

  • People counting and crowd density monitoring for advanced analytics

  • Triple video streams with Ultra-265, H.265, H.264, and MJPEG compression

  • Flexible power options: DC 12 V or PoE+ (IEEE 802.3at)

  • Robust I/O: 2 alarm inputs, 1 alarm output, audio input and output for two-way audio


Technical Specifications

Specification Detail
Sensors Dual CMOS sensors, 4MP each
Minimum Illumination Color: 0.003 lux (F1.6, AGC ON); 0 lux with IR
Lens Fixed lens: 4.0 mm; PTZ lens: 4.8-120 mm, 25× optical zoom
Field of View Fixed channel: ~91° H; PTZ channel: 55° wide to 3° tele
Illumination IR up to 100 m for PTZ; fixed channel IR up to 30 m
Wide Dynamic Range 120 dB
Video Streams Triple streams; ROI; privacy masking supported
Compression Formats Ultra-265, H.265, H.264, MJPEG
Storage MicroSD up to 256 GB; network storage supported
Power DC 12 V or PoE+ (IEEE 802.3at); max consumption ~24 W
Environmental Operating temp -40°C to +65°C; IP66 weather rating
Dimensions & Weight Approx. Φ163 × 304 mm; ~2.27 kg

Installation & Use Case Example

This dual-lens PTZ is perfect for perimeter security, plazas, transportation hubs, traffic intersections, or industrial sites where both wide coverage and zoom detail are required. For example, installed at a facility entrance, the fixed lens monitors overall activity while the PTZ channel zooms in to capture identifying details such as license plates or faces. With LightHunter imaging and strong IR illumination, it performs reliably day and night. The sound & light warning provides a proactive deterrent for sensitive or high-risk areas, while its rugged IP66 build ensures dependable operation in harsh outdoor environments.


Why Buy From Tri-Tek Electronics?

Tri-Tek Electronics is an authorized distributor of Uniview, ensuring you receive authentic products, full manufacturer warranty, and direct factory technical support. With local inventory in Mesa, AZ, and service across Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and surrounding areas, you’ll get fast fulfillment, expert installation advice, and competitive local pricing.

Product form

Uniview IPC94144SR-X25-F40C Dual-Lens 4MP+4MP MultiView PTZ Camera (25× LightHunter, Sound & Light Warning) Experience a surveillance camera that truly does... Read more

Free local pickup in our store

SKU: UNVIPC94144SR-X25-F40C

$1,559.00 $1,249.00

      Description

      Uniview IPC94144SR-X25-F40C Dual-Lens 4MP+4MP MultiView PTZ Camera (25× LightHunter, Sound & Light Warning)

      Experience a surveillance camera that truly does it all. The IPC94144SR-X25-F40C integrates a dual-lens setup—one fixed wide view and one powerful 25× PTZ zoom—so you can monitor full scenes and zoom into details with one device. Powered by Uniview’s LightHunter technology, it offers excellent low-light performance, and the built-in sound & light warning functions help deter unwanted activity in real time. Smart detection, vivid imaging, and rugged construction make this camera ideal for mission-critical outdoor applications.


      Key Features

      • Dual-Lens Design: One fixed wide-angle lens and one PTZ channel with 25× optical zoom for simultaneous panoramic monitoring and detail capture

      • 4MP resolution per channel using high-performance CMOS sensors

      • LightHunter imaging for excellent color fidelity and clarity under low illumination

      • Smart detection features including cross line, intrusion, and enter/leave area with false alarm filtering

      • PTZ channel can be linked to events detected on the fixed channel for intelligent tracking

      • Built-in sound & light warning with audible and visual alerts to deter intrusions

      • People counting and crowd density monitoring for advanced analytics

      • Triple video streams with Ultra-265, H.265, H.264, and MJPEG compression

      • Flexible power options: DC 12 V or PoE+ (IEEE 802.3at)

      • Robust I/O: 2 alarm inputs, 1 alarm output, audio input and output for two-way audio


      Technical Specifications

      Specification Detail
      Sensors Dual CMOS sensors, 4MP each
      Minimum Illumination Color: 0.003 lux (F1.6, AGC ON); 0 lux with IR
      Lens Fixed lens: 4.0 mm; PTZ lens: 4.8-120 mm, 25× optical zoom
      Field of View Fixed channel: ~91° H; PTZ channel: 55° wide to 3° tele
      Illumination IR up to 100 m for PTZ; fixed channel IR up to 30 m
      Wide Dynamic Range 120 dB
      Video Streams Triple streams; ROI; privacy masking supported
      Compression Formats Ultra-265, H.265, H.264, MJPEG
      Storage MicroSD up to 256 GB; network storage supported
      Power DC 12 V or PoE+ (IEEE 802.3at); max consumption ~24 W
      Environmental Operating temp -40°C to +65°C; IP66 weather rating
      Dimensions & Weight Approx. Φ163 × 304 mm; ~2.27 kg

      Installation & Use Case Example

      This dual-lens PTZ is perfect for perimeter security, plazas, transportation hubs, traffic intersections, or industrial sites where both wide coverage and zoom detail are required. For example, installed at a facility entrance, the fixed lens monitors overall activity while the PTZ channel zooms in to capture identifying details such as license plates or faces. With LightHunter imaging and strong IR illumination, it performs reliably day and night. The sound & light warning provides a proactive deterrent for sensitive or high-risk areas, while its rugged IP66 build ensures dependable operation in harsh outdoor environments.


      Why Buy From Tri-Tek Electronics?

      Tri-Tek Electronics is an authorized distributor of Uniview, ensuring you receive authentic products, full manufacturer warranty, and direct factory technical support. With local inventory in Mesa, AZ, and service across Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and surrounding areas, you’ll get fast fulfillment, expert installation advice, and competitive local pricing.
