Description

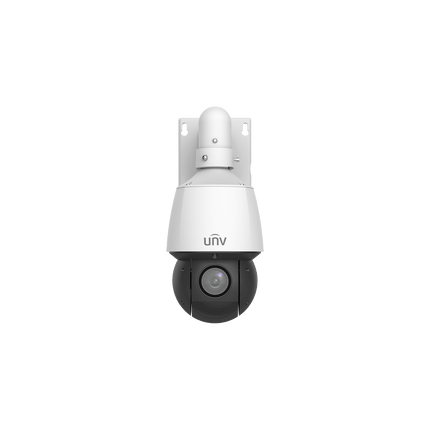

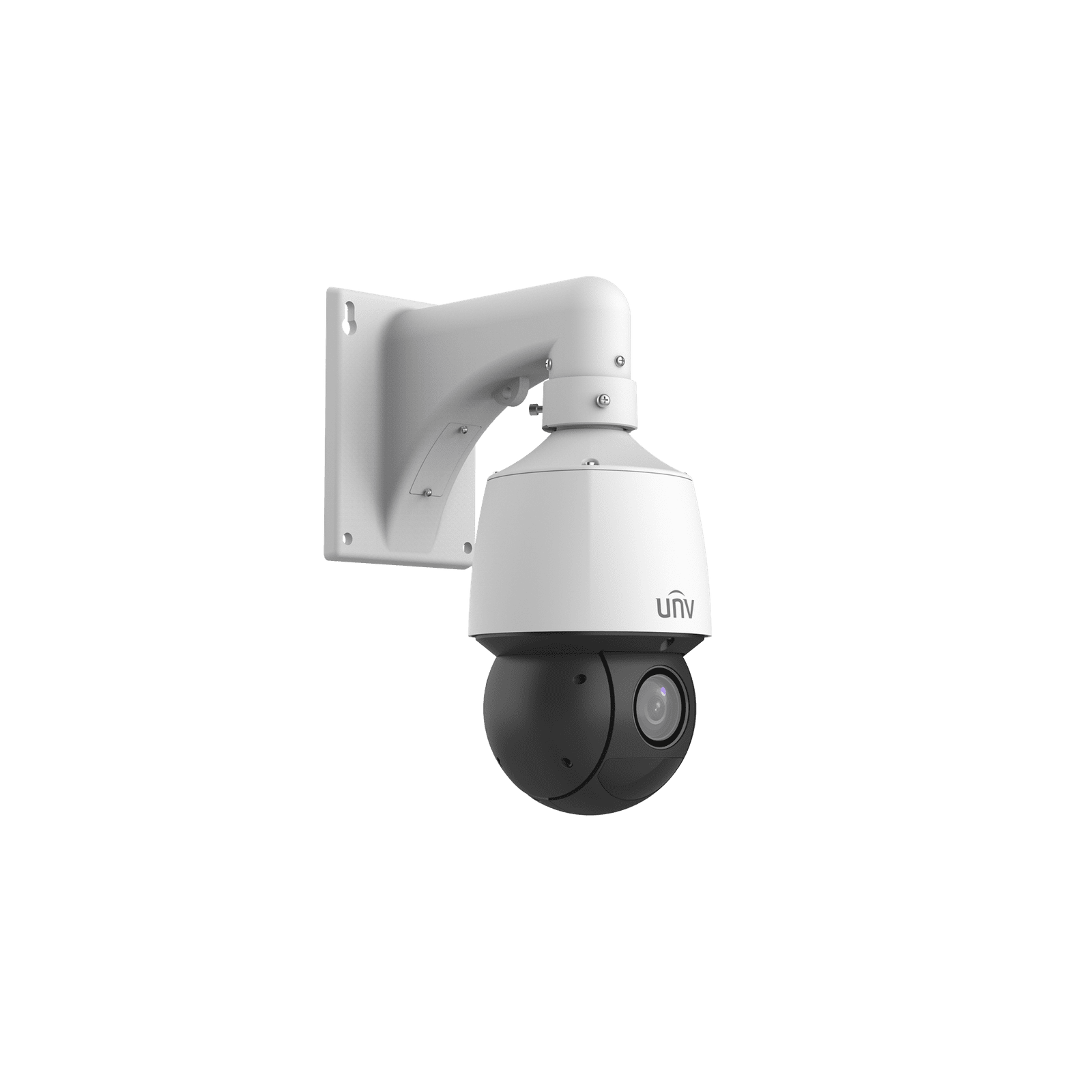

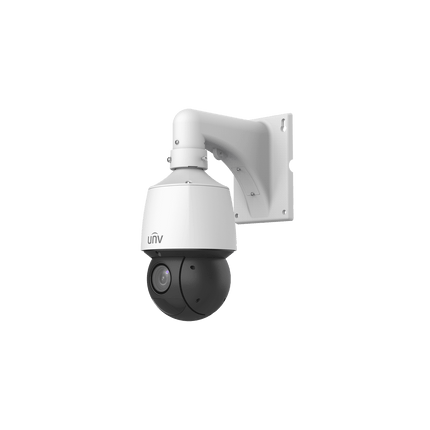

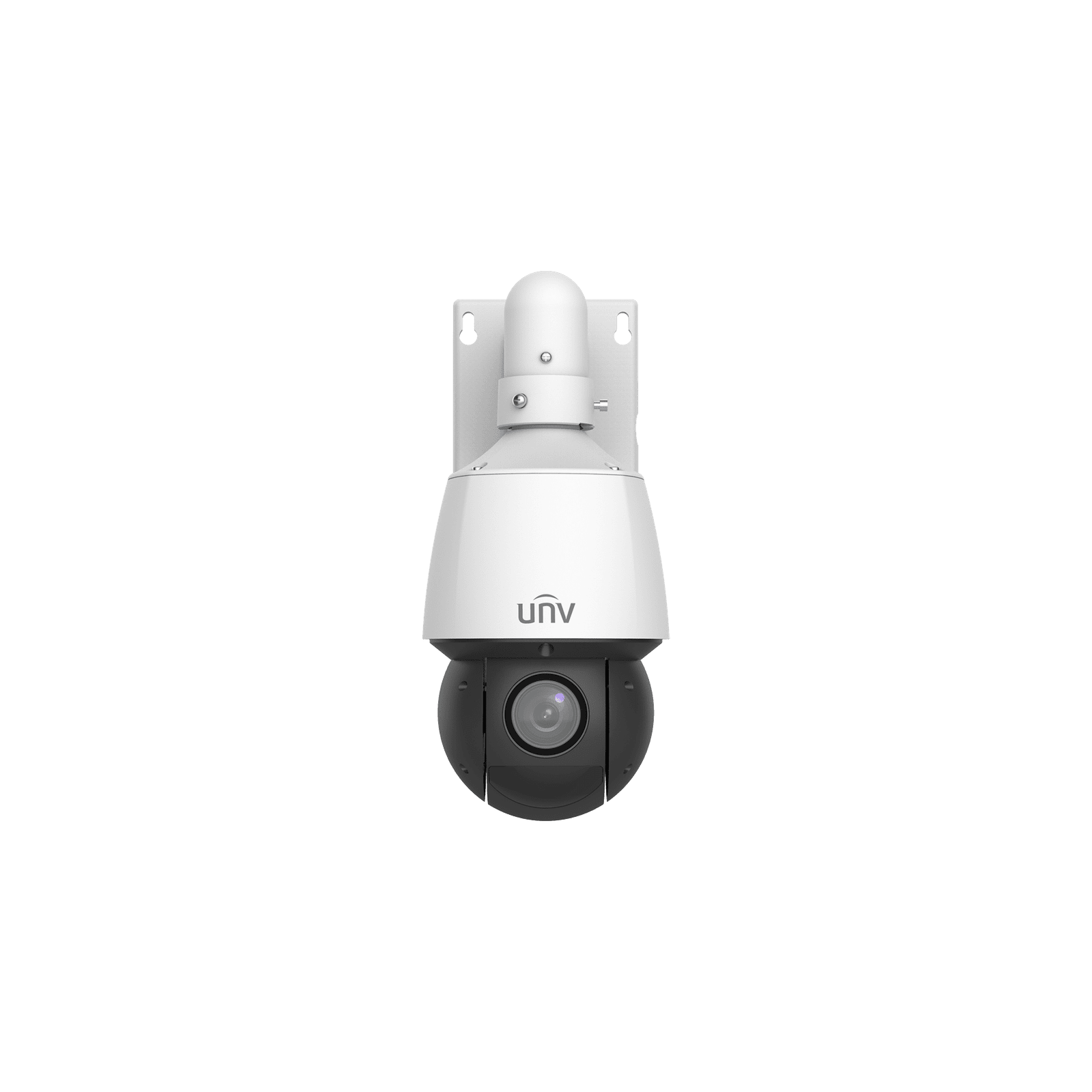

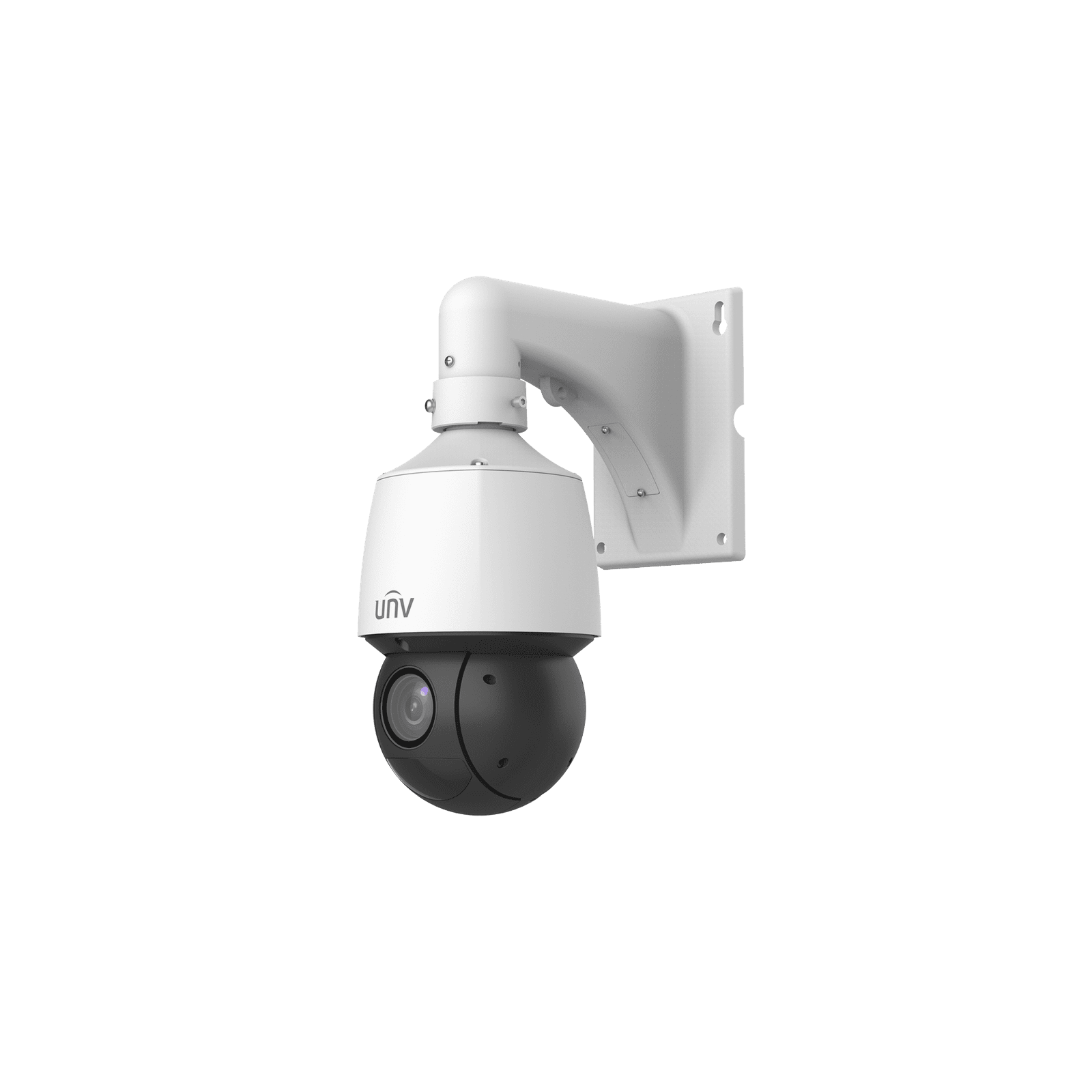

Uniview IPC6424SR-X25-VF-B 4MP 25× LightHunter IP PTZ Dome Camera with Bracket
Meet a premium PTZ dome camera built for demanding outdoor surveillance. The Uniview IPC6424SR-X25-VF-B combines high-resolution imaging, long-range zoom, robust night vision, and rugged physical protection. With LightHunter low-light tech, smart IR, extreme zoom, and durable IP67 & IK10 ratings, it's ideal for sites needing detailed, round-the-clock security: perimeters, large parking areas, critical infrastructure, and campuses.
Key Features
-
4MP (2688×1520 @ 30fps) high definition video with a 1/2.8" progressive scan CMOS sensor
-
25× optical zoom via a motorized varifocal lens (4.8-120 mm) for tight close-ups at distance
-
LightHunter technology for bright, color imaging even in low illumination settings
-
Smart IR up to 100 m (328 feet) night vision performance
-
Wide Dynamic Range (120 dB) and high S/N ratio (>56 dB) to handle scenes with strong contrast
-
Rugged build: IP67 ingress protection and IK10 vandal resistance for tough external conditions
-
Flexible audio and alarm I/O: 1 audio input and 1 audio output; 2 alarm inputs and 1 alarm output
-
Power flexibility: supports DC 12V ±25% or PoE+ (IEEE 802.3at) for easier deployments
Technical Specifications
| Specification |
Detail |
| Sensor |
1/2.8″ progressive scan CMOS |
| Minimum Illumination |
Color: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR |
| Lens |
Motorized varifocal: 4.8 - 120 mm |
| Optical Zoom |
25× |
| Digital Zoom |
Up to 16× |
| Field of View (H/V/D) |
Horizontal 52.20° to 2.74°; Vertical 30.81° to 1.54°; Diagonal 64.20° to 3.23° |
| DORI Ranges* |
Detect: 119.3 m – 2475 m; Observe: 47.7 m – 990.0 m; Recognize: 23.9 m – 495.0 m; Identify: 11.9 m – 247.5 m |
| IR / Night Illumination |
Smart IR, up to 100 m (328 ft) |
| Video Compression |
Ultra-265, H.265, H.264, MJPEG |
| Streams |
Triple streams (Main + Sub + Third) |
| Privacy Masking & OSD |
Up to 24 privacy mask areas; multiple OSD overlays |
| Pan / Tilt / Presets |
360° endless pan; tilt range –15° to +90°; 1024 presets; patrol routes supported |
| Environmental / Physical |
Rated IP67 & IK10; operating temp –40°C to +70°C (–40°F to +158°F) |
| Power Input |
12V DC (±25%) or PoE+ (IEEE 802.3at) |
| Power Consumption |
Max approx. 21 W |
| Storage |
Edge storage via microSD, up to 256 GB |
*DORI = Detect, Observe, Recognize, Identify. Guidelines for how far the lens can perform at different levels of detail.
Use-Case Example
This model shines in large-scale outdoor settings: parking structures, stadium perimeters, campus entrances, industrial sites, or border areas. For example, mounted high on a pole overlooking a large parking lot entrance, its 25× zoom lets you clearly inspect license plates or faces at far distances, while during night or low light the LightHunter imaging plus Smart IR ensures visibility across broad zones. The tough build protects against harsh weather, dust, vandalism, or impacts. With high-speed PTZ control, presets, and patrols, it’s ideal for tracking moving subjects or monitoring large perimeters.
