Description

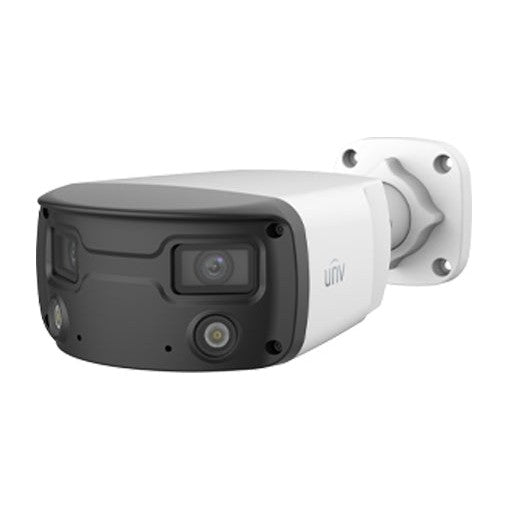

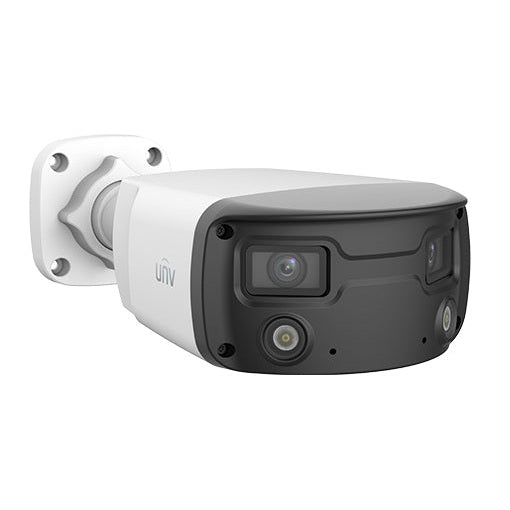

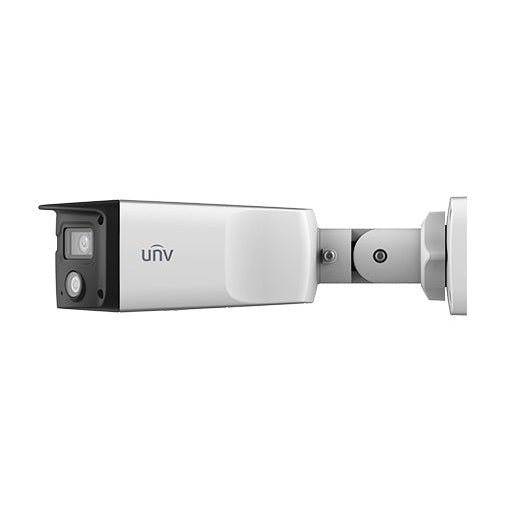

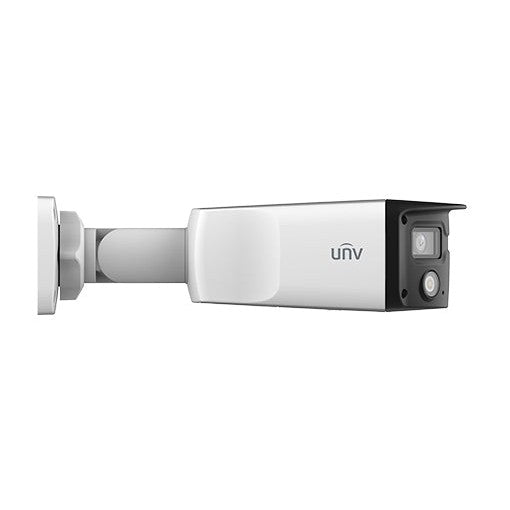

Uniview IPC2K28SE-ADF40KMC-WL-I0 8MP ColorHunter OmniView Panoramic Fixed Warm Light Bullet Network Camera
Designed for wide, high-clarity surveillance, the IPC2K28SE-ADF40KMC-WL-I0 offers a full panoramic, close-to 180° horizontal view with warm light illumination, delivering vivid color images even at night. Utilizing double-lens splicing, ColorHunter tech, and deep learning AI, this camera excels in parking lots, plazas, building entryways or any site where one camera needs to cover a very wide area without compromising on detail, image quality, or detection capabilities.
Key Features
-
8MP resolution (5120 × 1440) at up to 20 fps
-
Double lens splicing design to achieve approximately 180° ±10° horizontal field of view
-
ColorHunter imaging with warm light to maintain full-color video 24/7
-
Very low minimum illumination: ~0.0005 lux (F1.0, AGC ON) for color in dim light
-
Smart intrusion prevention with classification (human, vehicle, non-motor vehicle), reducing false alarms from leaves, lights, animals
-
People flow counting and crowd density monitoring analytics
-
Auto Scene Match (ASM) to optimize image based on scene conditions (when WDR is active)
-
1 alarm input / 1 alarm output; 1 audio input / 1 audio output; built-in dual microphones and speaker for two-way audio
Technical Specifications
| Specification |
Detail |
| Sensor |
1/2.7-inch CMOS |
| Minimum Illumination |
Color: 0.0005 lux (F1.0, AGC ON) |
| Lens |
Dual 4.0 mm (fixed) lenses, aperture F1.0 |
| Field of View (H × V × Diagonal) |
H: ~180° ±10°; V: ~47.41°; Diagonal: ~180° ±10° |
| DORI Distances |
Detect: ~90 m; Observe: ~36 m; Recognize: ~18 m; Identify: ~9 m |
| Warm Light Range |
Up to 30 m (≈98 ft), warm light LED, auto/manual control |
| Video Compression |
Ultra-265, H.265, H.264, MJPEG |
| Max Frame Rates |
Main stream: 8MP @ up to 20 fps; Sub-stream: 2560×720 @ up to 20 fps |
| Bit-Rate |
Approx. 128 Kbps to 16 Mbps |
| Video Features |
OSDs up to 8; Privacy Mask up to 4 areas; Region of Interest support; 2D/3D Noise Reduction; WDR 130 dB; Digital Defog; BLC, HLC support |
| Audio / Alarm I/O |
Audio I/O 1 in / 1 out; Alarm I/O 1 in / 1 out; built-in dual mics & speaker |
| Storage |
MicroSD up to 512 GB edge storage; network storage (NAS, ANR) |
| Network & Protocols |
IPv4/v6, ONVIF Profiles (S/G/T/M), API/SDK, standard protocols (HTTP/S, RTSP, RTMP, etc.), strong password/encryption options |
| Power Options |
12 V DC or PoE (IEEE 802.3af) |
| Environmental / Build |
IP67 rated for weather resistance; metal housing; operating temp approx -30°C to +60°C; humidity ≤95% non-condensing |
| Physical Size / Weight |
Approx dimensions: 273 × 130 × 76 mm; weight approx 0.96-1.0 kg |
| Surge Protection |
~4 kV protection for outdoor robustness |
Use-Case Example
If you need to cover a wide frontage (say, a long building face, plaza, or joint-entrance) with one camera, this OmniView model is ideal. Mounted high in the center, it gives a sweeping 180° view so you don’t need two separate cameras to cover both sides. At dusk, warm LED lighting keeps color active; at night, the built-in analytics lets you focus on real human or vehicle movement rather than false triggers. Two-way audio allows announcements or warnings. Because of its weather rating and rugged build, it’s reliable in demanding outdoor conditions (heat, dust, etc.).
