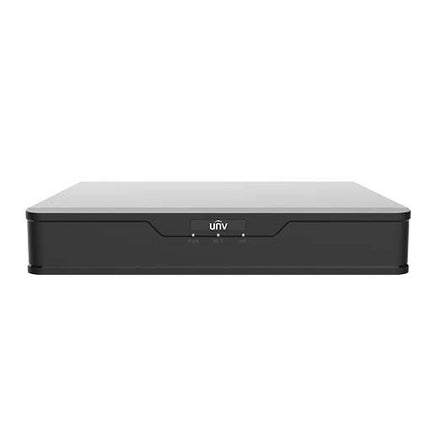

Uniview XVR301-08Q3 8-Channel DVR/NVR Hybrid
The Uniview XVR301-08Q3 is an advanced 8-channel DVR/NVR hybrid designed to support both analog and IP camera systems, offering seamless integration and upgrade options. This unit supports 8 analog cameras and up to 4 additional IP cameras, allowing for a total of 12 channels. With its flexible hybrid setup, the XVR301-08Q3 is ideal for businesses or homeowners upgrading their existing analog systems while integrating modern IP cameras. Key features like high-resolution video, Power Over Coax (PoC), and audio over coax ensure that this device provides a comprehensive surveillance solution.
Key Features:
-
8-Channel Hybrid DVR/NVR: Supports 8 analog cameras and up to 4 IP cameras for a total of 12 camera inputs.
-
High-Definition Video: Supports up to 8MP (4K) resolution for crystal-clear video recording and playback.
-
H.265/H.264 Video Compression: Efficient video compression technology reduces storage requirements while maintaining video quality.
-
Dual-Stream Recording: Optimizes bandwidth and storage usage through dual-streaming technology.
-
Remote Access: Allows remote monitoring through a web browser, mobile app, or client software, enabling access to live feeds and recorded footage from anywhere.
-
Smart Video Analytics: Includes intelligent features such as motion detection, line crossing detection, and intrusion detection, enhancing the system's security capabilities.
-
Audio Over Coax: Supports audio transmission over coaxial cables, eliminating the need for additional audio wiring in analog systems.
-
Expandable Storage: Supports 1 SATA hard drive, with a maximum storage capacity of 10TB, providing ample space for long-term video retention.
Specifications:
| Model |
XVR301-08Q3 |
| Video Input |
8 Analog channels, 4 IP channels (max 12 channels) |
| Video Output |
HDMI, VGA |
| Maximum Resolution |
8MP (4K) |
| Video Compression |
H.265, H.264 |
| Storage |
1 SATA interface, up to 10TB |
| Ethernet |
1 x RJ45 100Mbps |
| USB Ports |
2 USB (1x USB 3.0, 1x USB 2.0) |
| Audio Over Coax |
Supported |
| Operating Temperature |
-10°C to +55°C |
| Dimensions |
260mm × 237mm × 48mm |
| Weight |
≤ 1.5kg (without HDD) |
Installation Scenario
The Uniview XVR301-08Q3 is perfect for small-to-medium-sized surveillance applications, such as a retail store, office, or residential building, where a combination of analog and IP cameras is required. The system's ability to support 8 analog cameras and 4 additional IP cameras makes it ideal for phased upgrades from analog to IP systems. For example, a retail store with 8 existing analog cameras can seamlessly add 4 high-definition IP cameras for enhanced coverage and clarity without replacing the entire infrastructure. The 10TB storage capacity ensures that footage is securely stored for extended periods.
Authorized Distributor and Warranty
Tri-Tek Electronics is an authorized distributor of Uniview products, providing full manufacturer warranty coverage, the best pricing, and factory support. Visit our Mesa, AZ retail location for expert advice and local support for Uniview surveillance systems.
