PI Manufacturing 14‑Port +1 Dolby 7.1 Double‑Gang Decora Wall Plate — Closeout Special
Overview

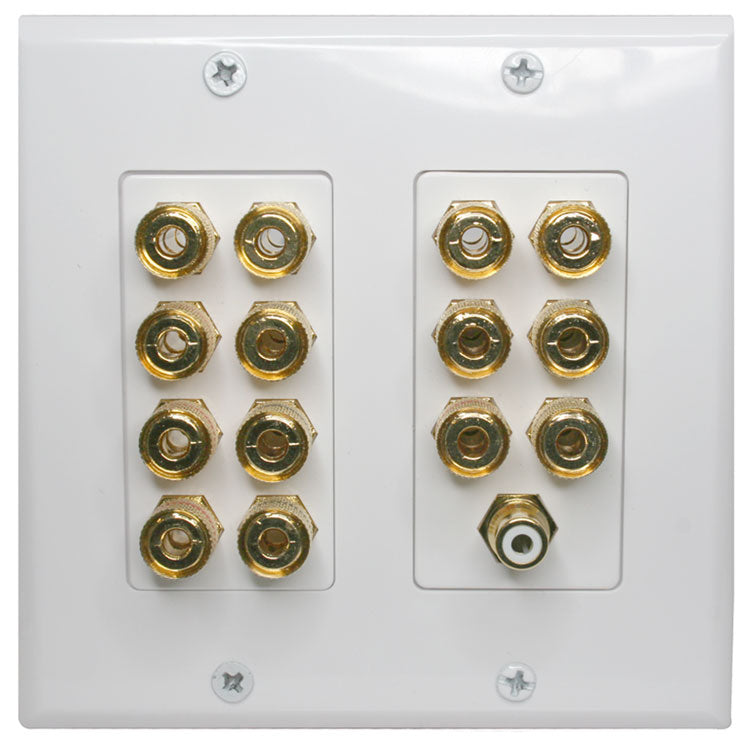

This high‑capacity wall plate from PI Manufacturing provides a clean, concealed termination for 7.1 audio systems. It features 14 brass binding posts (7 pairs, red/black) for the seven full range channels, plus a single RCA feed‑through for the subwoofer. The unit is configured in a double‑gang Decora form factor, making it ideal for professional AV installations or home theater prewire. Because this is a closeout item, stock and pricing are limited to on‑hand inventory only.
As an authorized distributor, Tri‑Tek Electronics offers this product with full manufacturer warranty coverage and factory support. We ensure the best pricing and availability for installers, AV integrators, and tech enthusiasts in the Phoenix / Mesa AZ region.
Key Features
-
Decora‑style, double‑gang faceplate (white)
-
7 pairs of brass binding posts (color coded: red + black)
-
Binding posts accept bare wire, banana plugs, or spade lugs
-
1 RCA feed-thru connector (for subwoofer or LFE)
-
Clearly labeled channel designations (e.g. FL, FR, C, RL, RR, SL, SR)
-
Low‑voltage installation — mounts into standard double gang electrical / low voltage box
-
Decora screw mounting (included)
-
Durable construction suitable for long-term installations
-
Closeout item — limited quantity, while supplies last
Typical Use / Installation Example

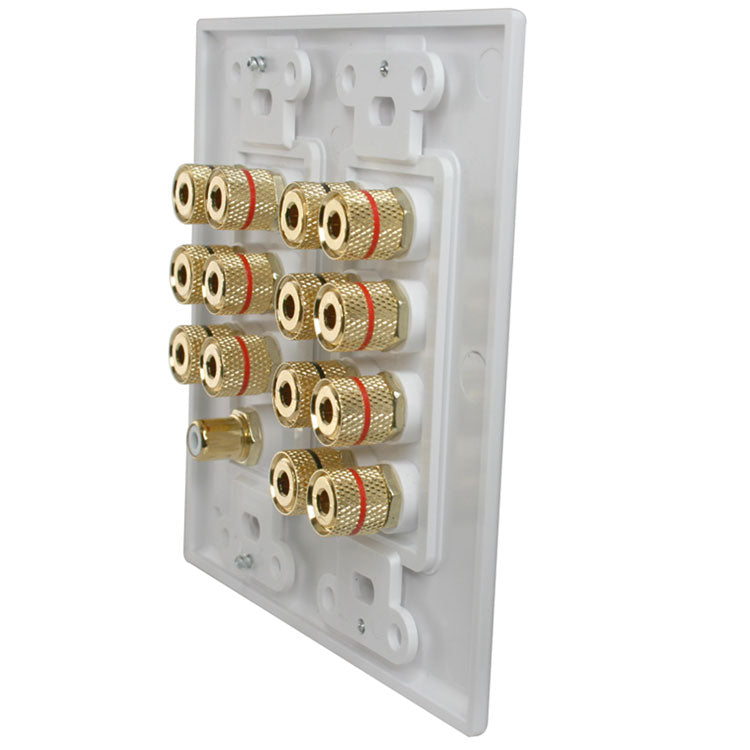

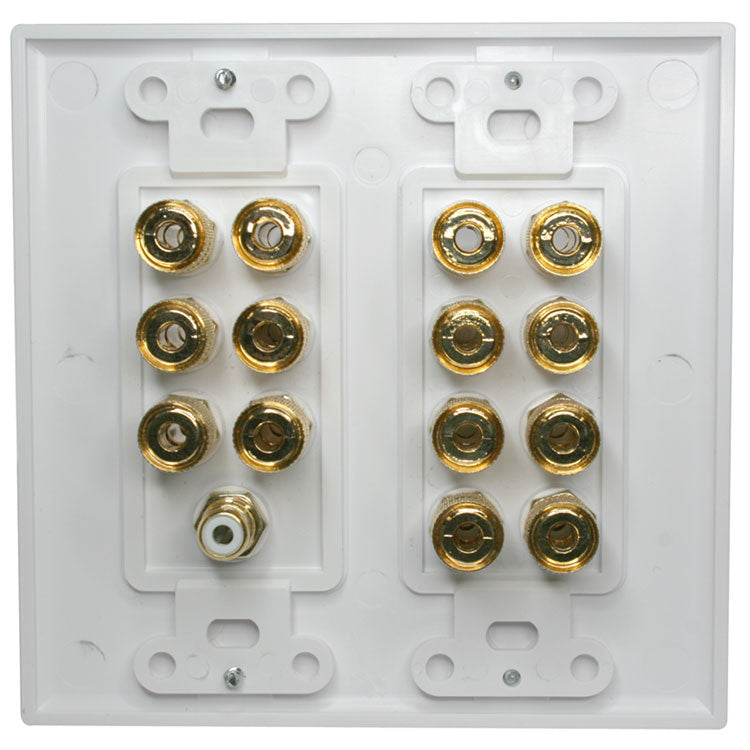

A common use case is in home theater prewire projects. During the rough‑in phase, you run speaker cable (12–16 AWG) from the AV rack location out to each speaker position. At the theater room, you mount a double gang low-voltage bracket in the wall and install this PI wall plate. You terminate each speaker cable to the back side of the brass binding posts. At the front (clean) side, your AV receiver or amplifier connects via banana plugs or spade lugs. The RCA feed‑through is used for the subwoofer’s LFE out. This arrangement neatly hides all wiring behind the wall and provides clear, labeled connection for future equipment changes.
Because of the Decora design, the plate blends with standard wall décor and fits within standard trim kits.
Specification Table
| Parameter |
Specification |
| Channels |
7 (full‑range) binding post pairs + 1 RCA (sub) |
| Binding Post Material |
Brass |
| Connection types supported |
Bare wire, banana plug, spade lug |
| Faceplate Style |
Decora, double‑gang |
| Color |
White |
| Mounting |
Standard double-gang low-voltage / electrical box |
| Labeling |
Clearly printed channel designators |
| Warranty |
Full manufacturer warranty (via Tri‑Tek Electronics) |
| Special Note |
Closeout item — limited stock |
Important Notes & Recommendations
-
Closeout item: Quantities are limited and pricing is final. When inventory is depleted, the product will not be restocked.
-
Use a double gang low-voltage bracket or box for installation to allow room behind the plate for banana plugs and wiring bend radius.
-
Label each cable during termination to avoid channel confusion (Front Left, Center, etc.).
-
When using banana plugs on both sides, ensure clearance behind the plate is sufficient to accommodate plug length.
-
Maintain consistent polarity (red = positive, black = negative) to avoid phase issues.
-
This plate is designed strictly for low-voltage audio; do not use for mains or power wiring.
