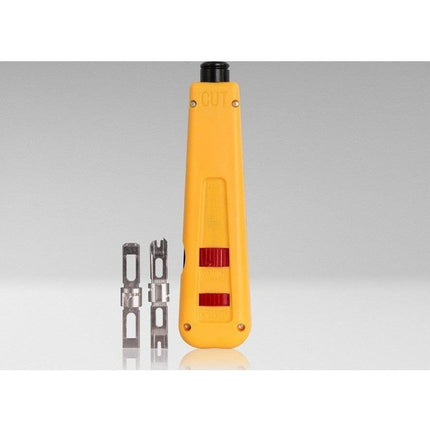

Jonard Tools EPD-91461, Punchdown Tool with 2 Blades 66 & 110
Designed to terminate and trim wires in 66- and 110-style cross connect blocks and 110-style wall jack modules, this punchdown tool is perfect for any telecom or data communications installer. This punchdown tool features the following:

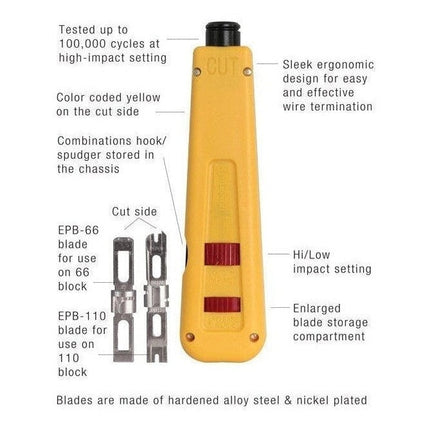

Cleanly terminates and trims wires in 66- and 110-style cross connect blocks as well as 110-style wall jack modules
Hi/Lo impact settings (Hi: 40 lb / 178 N, Lo: 30 lb / 133 N) terminate 22-28 AWG (0.08 - 0.34 mm2) solid or stranded wire
Combination Hook/Spudger stored in the chassis
Color coded body is half yellow (cut side) and half blue for ease of use
Enlarged blade storage compartment for easy storage
Tested up to 100,000 cycles at high impact setting, ensuring long life during use
Compatible with all our EPB-series blades (sold separately)
Lifetime Warranty
Includes:
EPD-914 Punchdown Tool
EPB-110 110 Blade With & Without Cutter
EPB-66 66 Blade With & Without Cutter
Block Type
66, 110
Color
Yellow and Blue
Weight
0.311 lbs (141g)
UPC No.
811490014947
