Thermosleeve HST116R4 1/16'' Red 4ft 2:1 Thin Wall Heat Shrink
Tri-Tek Electronics proudly presents the Thermosleeve HST series, a high-quality heat shrink tubing designed for efficient, durable insulation and protection of wires and cables. As an authorized distributor, we guarantee full manufacturer warranty coverage, competitive pricing, and excellent factory support.
Product Overview

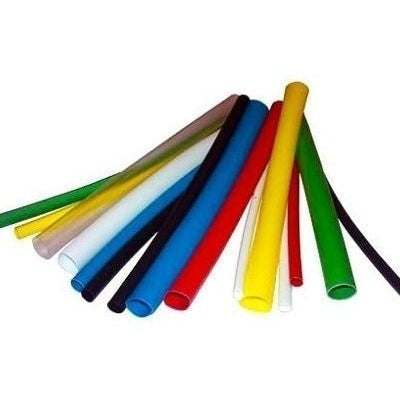

The Thermosleeve HST series heat shrink offers a practical solution for electrical insulation, bundling, and mechanical protection of wiring and cables. This heat shrink tubing is engineered with a 2:1 shrink ratio, ensuring a tight, secure fit around both regular and irregular shapes. With its easy application and reliable performance, the HST series heat shrink is an essential component for electrical installations, maintenance, and repairs.
Specifications
-
Diameter (before shrinkage): 1/16 inch
-
Color: Red
-
Length: 4 feet
-
Shrink Temperature: Starts at 70°C and fully recovers at 110°C
-
Flammability: Flame retardant
Key Features
-
Material: Made from durable polyolefin, which is flame retardant and provides excellent resistance to abrasion, solvents, and chemicals.
-
Color: Red, ideal for creating a clean, professional appearance in visible areas.
-
Operating Temperature: -55°C to +125°C, making it suitable for a wide range of environments.
-
Certifications: Complies with UL and CSA standards for safety and reliability.
Installation Scenario
Ideal for automotive wiring, marine electrical systems, and home theater installations, the HST series 2:1 thin wall heat shrink provides effective insulation and protection, enhancing the longevity and safety of electrical systems. Its ease of use makes it perfect for DIY projects and professional applications alike, ensuring a secure, heat-sealed covering for any wiring job.
Product Value and Usefulness
The Thermosleeve HST series thin wall heat shrink is not just a protective solution but also a crucial component for maintaining the integrity and performance of your electrical systems. Whether you are a professional electrician or a hobbyist, this heat shrink tubing is a must-have for ensuring safe, efficient, and organized electrical installations.
|
SIZE
(Inch)
|
As supplied (mm)
|
After Recovery (mm)
|
|
MIN ID
|
WALL
|
MAX ID
|
WALL
|
|
3/64
|
1.2
|
0.18±0.05
|
≤0.6
|
0.30±0.05
|
|
1/16
|
1.6
|
0.18±0.05
|
≤0.8
|
0.32±0.05
|
|
3/32
|
2.4
|
0.18±0.05
|
≤1.00
|
0.35±0.05
|
|
1/8
|
3.2
|
0.20±0.05
|
≤1.5
|
0.38±0.05
|
|
3/16
|
4.8
|
0.23±0.05
|
≤2.0
|
0.45±0.05
|
|
1/4
|
6.4
|
0.25±0.05
|
≤3.0
|
0.50±0.05
|
|
3/8
|
9.5
|
0.30±0.08
|
≤4.5
|
0.60±0.08
|
|
1/2
|
12.7
|
0.30±0.08
|
≤6.0
|
0.60±0.08
|
|
3/4
|
19.1
|
0.40±0.12
|
≤10.0
|
0.75±0.12
|
|
1
|
25.4
|
0.45±0.12
|
≤12.5
|
0.90±0.12
|
|
1–1/4
|
31.8
|
0.45±0.12
|
≤15.0
|
0.90±0.12
|
|
1–1/2
|
38.1
|
0.50±0.15
|
≤21
|
1.00±0.30
|
|
2
|
50.8
|
0.50±0.15
|
≤27
|
1.00±0.30
|
|
3
|
≥80
|
0.70±0.30
|
≤40.0
|
1.45±0.25
|
|
4
|
≥100
|
0.70±0.30
|
≤50.0
|
1.45±0.25
|
|
Item
|
Specifications
|
|
Shrink Temperature(°C)
|
90
|
|
Temperature Range(°C)
|
-55 ~ 125
|
|
Radial Shrinking Ratio(%)
|
≥50
|
|
Longitudinal Change(%)
|
≤5
|
|
Tensile Strength(MPa)
|
≥10.4
|
|
Ultimate Elongation (%)
|
≥200
|
|
Aging in Circulating-air Oven
|
158.0±1.0°C, 168hrs
|
|
After aging
|
Tensile Strength(MPa)
|
≥7.3
|
|
Ultimate Elongation(%)
|
≥100
|
|
Volume Resistivity(Ω.cm)
|
≥1014sup>
|
|
Dielectric Strength(@1min, AC2500V)
|
No Breakdown
|
|
Flammability
|
VW-1
|
|
Concentricity(%)
|
≥65
|
