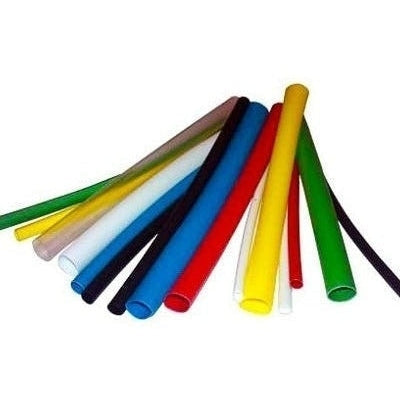

Thermosleeve CBDWT3X3/8C4 3/8'' Clear 4ft 3:1 Adhesive Lined Heat Shrink Tubing
The Thermosleeve CBDWT3X3/8C4 is a premium clear heat shrink tubing designed to deliver superior insulation and protection for electrical connections and components. With a 3:1 shrink ratio and a diameter of 3/8 inch, this tubing ensures a snug and reliable fit over a variety of substrates including cables, wire harnesses, and connectors. Its 4-foot length makes it perfect for various applications that require durable and precise coverage.
This adhesive-lined heat shrink tubing not only conforms to the shape of the components it covers when shrunk but also creates a waterproof and environmental seal due to its internal adhesive lining. The clear material facilitates easy inspection of the covered components without the need for removal.
Tri-Tek Electronics is an authorized distributor of Thermosleeve products, ensuring full manufacturer warranty coverage, competitive pricing, and factory support.
Key Features
-
3:1 Shrink Ratio: Ensures a tight fit over varied component shapes and sizes.
-
Adhesive Lining: Provides a waterproof seal and enhances insulation.
-
Clear Material: Allows for visual inspection without removal.
-
Wide Operating Temperature Range: Suitable for both high and low-temperature environments.
-
Excellent Flexibility: Easily conforms to irregular shapes and offers robust protection.
-
Length: 4 feet, offering sufficient material for multiple applications.
Specifications
| Attribute |
Specification |
| Manufacturer |
Thermosleeve |
| Part Number |
CBDWT3X3/8C4 |
| Diameter (Before Shrink) |
3/8 inch (9.5 mm) |
| Diameter (After Shrink) |
1/8 inch (3.2 mm) |
| Shrink Ratio |
3:1 |
| Material |
Polyolefin |
| Color |
Clear |
| Length |
4 feet (1.22 meters) |
| Adhesive Lined |
Yes |
| Operating Temperature Range |
-55°C to 125°C (-67°F to 257°F) |
| Minimum Shrink Temperature |
80°C (176°F) |
| Full Recovery Temperature |
120°C (248°F) |
| Tensile Strength |
14 MPa |
| Dielectric Strength |
15 kV/mm |
Applications
-
Electrical Insulation: Ideal for insulating wires, connections, and terminals in a variety of electrical applications.
-
Cable Management: Provides a tidy and secure way to bundle and protect cables.
-
Environmental Sealing: Ensures protection against moisture and contaminants, suitable for outdoor and harsh environments.
-
Automotive Industry: Frequently used for securing and protecting wiring harnesses.
-
Telecommunications: Offers reliable insulation for fiber optics and other sensitive cables.
Installation Example
Imagine an installer working on a telecommunications project, needing to insulate and protect multiple connectors in an outdoor environment. The Thermosleeve CBDWT3X3/8C4 heat shrink tubing can be easily applied over the connectors, then heated using a standard heat gun. The tubing will shrink to a 1/8-inch diameter, securely fitting around the connectors, while the adhesive lining melts to create a waterproof seal. This ensures long-term protection against weather and environmental factors, while also allowing for easy inspection of the covered connections due to the clear material.
Usage Tips
-
Preparation: Ensure the surfaces to be covered are clean and dry before application.
-
Heating: Use a heat gun or similar tool to evenly heat the tubing, starting from one end and moving to the other.
-
Inspection: Check the tubing for proper shrinkage and a uniform seal around the components.
Tri-Tek Electronics ensures that you receive the best support and warranty for all Thermosleeve products. Contact us for further assistance and product inquiries.
