Description

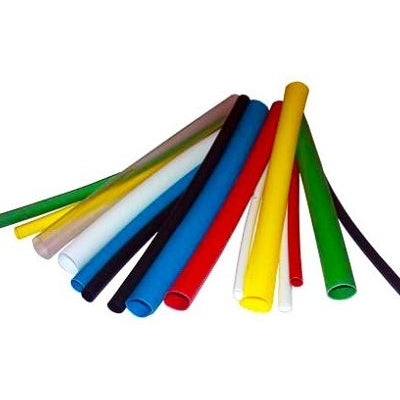

Thermosleeve CBDWT3X1/8R4 1/8'' Red 4ft 3:1 Dual Wall Adhesive-Lined Heat Shrink Tubing
The Thermosleeve CBDWT3X1/8R4 Heat Shrink Tubing is a high-quality, 1/8-inch diameter, red, dual wall heat shrink tubing designed for superior electrical insulation, mechanical protection, and watertight sealing. Featuring a 3:1 shrink ratio and an adhesive-lined interior, this tubing ensures a secure, tight fit around wires, cables, and connectors, making it ideal for a wide range of demanding applications. The 4-foot length provides ample material for various projects, offering exceptional performance even in harsh environments.
Tri-Tek Electronics, as an authorized distributor of Thermosleeve products, guarantees full manufacturer warranty coverage, competitive pricing, and comprehensive factory support, ensuring the best value and reliable service.
Key Features
-
Diameter: 1/8 inch (3.18mm)
-
Color: Red
-
Length: 4 feet (1.22 meters)
-
Shrink Ratio: 3:1
-
Wall Type: Dual Wall with Adhesive Lining
-
Material: Outer Polyolefin and Inner Adhesive
-
Operating Temperature Range: -55°C to 110°C
-
Dielectric Strength: ≥ 20 kV/mm
-
Adhesive Activation Temperature: 70°C to 100°C
-
Flame Retardant: Yes, meets UL 224 VW-1 standards
-
Waterproof: Yes, provides watertight sealing
-
RoHS Compliant: Yes
Applications
-
Wire and Cable Insulation: Ideal for providing insulation and strain relief for electrical wires and cables, especially in environments exposed to moisture.
-
Connector Protection: Ensures watertight sealing for connectors, safeguarding them from environmental factors such as moisture, dust, and corrosion.
-
Mechanical Protection: Offers a strong barrier against abrasion, chemicals, and physical impacts.
-
Color-Coding: Useful for organizing and identifying wires and components, making maintenance and troubleshooting more efficient.
Example Installation Scenario
Consider an installer working on a solar panel system that needs to secure and protect the wiring connections against harsh outdoor conditions. By using the Thermosleeve CBDWT3X1/8R4, the installer can cut the tubing to the required length, slide it over the connection, and apply heat with a heat gun. As the tubing shrinks, the adhesive melts and forms a watertight seal around the connection, providing long-term protection against moisture and environmental elements, which is crucial for outdoor applications like solar installations.
Specifications
| Specification |
Details |
| Diameter (Before Shrink) |
1/8 inch (3.18mm) |
| Diameter (After Shrink) |
1/24 inch (1.06mm) |
| Color |
Red |
| Length |
4 feet (1.22 meters) |
| Shrink Ratio |
3:1 |
| Material |
Outer Polyolefin and Inner Adhesive |
| Operating Temperature |
-55°C to 110°C |
| Dielectric Strength |
≥ 20 kV/mm |
| Adhesive Activation Temp |
70°C to 100°C |
| Flame Retardant |
Yes, UL 224 VW-1 |
| Waterproof |
Yes |
| RoHS Compliance |
Yes |
Product Benefits
-
Watertight Sealing: The adhesive lining creates a watertight seal, making it ideal for applications where moisture resistance is crucial.
-
Enhanced Protection: Provides excellent protection against environmental factors, including water, dust, and chemicals, ensuring the longevity of electrical components.
-
Easy Installation: Simple to apply with a heat gun, offering a secure and durable fit, suitable for both professionals and DIY enthusiasts.
-
Versatility: Perfect for various applications, including automotive, marine, industrial, and electronic projects.
Product Support
As an authorized distributor, Tri-Tek Electronics provides full manufacturer warranty coverage for the Thermosleeve CBDWT3X1/8R4. We are committed to offering the best pricing and factory support, ensuring you receive authentic products with complete after-sales service.
