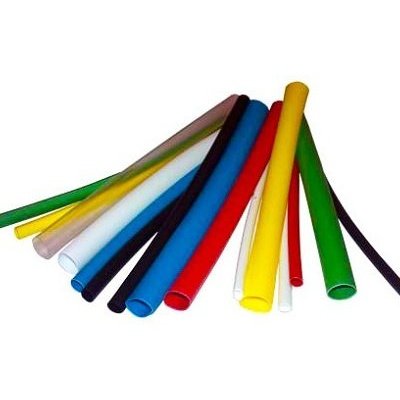

Thermosleeve CBDWT3X1/8C4 3:1 Dual Wall Adhesive Lined Heat Shrink Tubing - Clear, 1/8" Diameter, 4' Length
Overview
The Thermosleeve CBDWT3X1/8C4 is a high-quality, dual-wall adhesive-lined heat shrink tubing designed for superior insulation and protection of wires and cables. With a clear appearance, a 3:1 shrink ratio, and a length of 4 feet, it provides a versatile solution suitable for a wide range of applications including automotive, electrical, and industrial environments.
Tri-Tek Electronics is an authorized distributor of Thermosleeve products, ensuring full manufacturer warranty coverage, competitive pricing, and comprehensive factory support for your installation needs.
Features
-
Dual Wall Construction: Combines a durable outer layer with an adhesive inner layer for effective environmental sealing.
-
Clear Appearance: Enables visual inspection of the underlying components without compromising protection.
-
3:1 Shrink Ratio: Ensures a tight fit over various shapes and sizes, providing a secure and snug application.
-
Adhesive Lined: Forms a moisture-proof seal, safeguarding against environmental contaminants.
-
Broad Temperature Range: Operates effectively between -55°C and +125°C, making it suitable for diverse conditions.
-
Flame Retardant: Offers added safety in high-risk environments.
-
Flexible and Easy to Install: Adapts to complex shapes and is straightforward to apply using standard heat guns.
Specifications
-
Product Number: CBDWT3X1/8C4
-
Material: Polyolefin
-
Shrink Ratio: 3:1
-
Recovered ID (after heating): 1/8 inch
-
Length: 4 feet
-
Color: Clear
-
Operating Temperature: -55°C to +125°C
-
Dielectric Strength: 15 kV/mm
-
Flammability: Flame Retardant
Application Examples
Automotive Wiring: The clear Thermosleeve CBDWT3X1/8C4 is perfect for bundling and protecting automotive wiring harnesses, allowing for visual inspection of the connections while providing resistance to abrasion, chemicals, and environmental stressors.
Electrical Insulation: Ideal for insulating and protecting electrical connectors and components, ensuring a secure and reliable seal against environmental factors while maintaining visibility of the components for easy inspection and maintenance.
Industrial Use: Provides excellent insulation and protection for cables and wires in harsh industrial environments, safeguarding against wear and tear, and environmental contaminants.
Installation Scenario
In an automotive workshop, a technician uses the Thermosleeve CBDWT3X1/8C4 to protect a newly repaired wiring harness. The clear tubing allows for easy inspection of the connections while providing robust protection against vibration, moisture, and temperature fluctuations, ensuring a reliable and durable repair.
How to Install
-
Measure and Cut: Measure the required length of the tubing and cut it accordingly.
-
Position: Slide the tubing over the area that needs coverage.
-
Heat: Use a heat gun to apply even heat until the tubing shrinks and the adhesive flows, creating a secure seal.
-
Inspect: Ensure that the tubing has shrunk evenly and the adhesive has formed a solid bond with the substrate.
Specifications Table
| Parameter |
Specification |
| Shrink Ratio |
3:1 |
| Minimum Shrink Temp |
80°C (176°F) |
| Full Recovery Temp |
110°C (230°F) |
| Operating Temp Range |
-55°C to +125°C |
| Recovered ID |
1/8 inch |
| Length |
4 feet |
| Color |
Clear |
| Material |
Polyolefin |
| Dielectric Strength |
15 kV/mm |
| Flammability |
Flame Retardant |
Tri-Tek Electronics provides the Thermosleeve CBDWT3X1/8C4 with full support and expertise to ensure a seamless and efficient installation for all applications.
