Thermosleeve CBDWT3X1/4C4 1/4'' Clear 3:1 Dual Wall Heat Shrink - 4' Stick
- Shrinks 3:1 of original size
- Polyolefin Halogen Free Material
- UL, CUL, and RoHS Certified
- Flame Retardant
- Rated @ 125 degrees C @ 600V

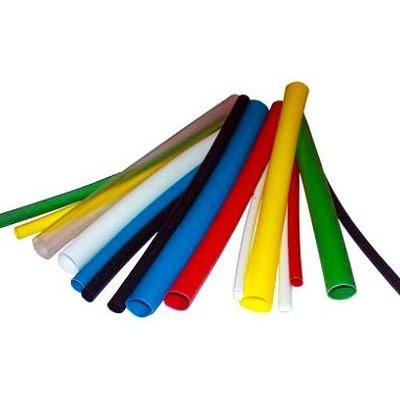

CB-DWT is adhesive-lined, flexible, halogen free and flame-retardant polyolefin heat-shrinkable dual wall tubing, This tubing has good mechanical strength which can be protect from fluids, moisture and corrosion, they are used in a wide variety of electrical applications, including back end connector sealing, breakouts, and connector-to-cable transitions. High expansion ratio makes it possible to repair most damaged cable jackets without removing connectors. The product is UL recognized and the file No is E180908.
|
Shrink Temperature(°C)
|
110
|
|
Operating Temperature Range(°C)
|
-55—125
|
|
Tensile Strength (Mpa)
|
≥10.4
|
|
Ultimate Elongation (%)
|
≥200
|
|
Radial shrinking ratio (%)
|
≥50
|
|
Longitudinal Change (%)
|
≤10
|
|
Aging in Circulating-air Oven
|
158.0±1.0°C, 168hrs
|
|
After Aging
|
Tensile Strength (Mpa)
|
≥7.3
|
|
Ultimate Elongation (%)
|
≥100
|
|
Dielectric Strength at 1min, AC2500V
|
No breakdown
|
|
Volume Resistivity (Ω cm)
|
≥1013
|
|
Flammability
|
VW-1
|
|
Water Absorption (%)
|
Less than 0.4%
|
|
Fluid Resistance
|
Excellent
|
|
(Copper Corrosion)
|
(No Corrosion)
|
|
Softening Point (°C)
|
120±5°C
|
|
Tissue Strength (N/25mm)
|
>80
|
|
Size
(Inch)
|
As Supplied
|
After Recovery
|
|
Min ID(mm)
|
Nominal Wall (mm)
|
Max ID (mm)
|
Total Wall (mm)
|
Nominal Adhesive Wall(mm)
|
|
3/64
|
1.2
|
0.30
|
0.6
|
0.45±0.12
|
0.20
|
|
1/16
|
1.6
|
0.30
|
0.8
|
0.45±0.12
|
0.20
|
|
3/32
|
2.4
|
0.35
|
1.2
|
0.55±0.12
|
0.30
|
|
1/8
|
3.2
|
0.4
|
1.60
|
0.60±0.15
|
0.30
|
|
3/16
|
4.8
|
0.4
|
2.4
|
0.75±0.15
|
0.35
|
|
1/4
|
6.4
|
0.4
|
3.20
|
0.75±0.15
|
0.35
|
|
3/8
|
9.5
|
0.4
|
4.80
|
0.80±0.20
|
0.35
|
|
1/2
|
12.7
|
0.4
|
6.40
|
0.80±0.20
|
0.35
|
|
3/4
|
19.1
|
0.5
|
9.50
|
0.95±0.28
|
0.40
|
|
1
|
25.4
|
0.5
|
12.7
|
1.15±0.28
|
0.45
|
|
1 -1/2
|
38.1
|
0.65
|
19.00
|
1.25±0.41
|
0.45
|
|
2
|
50.8
|
0.73
|
25.4
|
1.40±0.41
|
0.50
|
